Sargent 8510 Narrow Design Rim...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,966.00
$1,771.35
SGT-8510

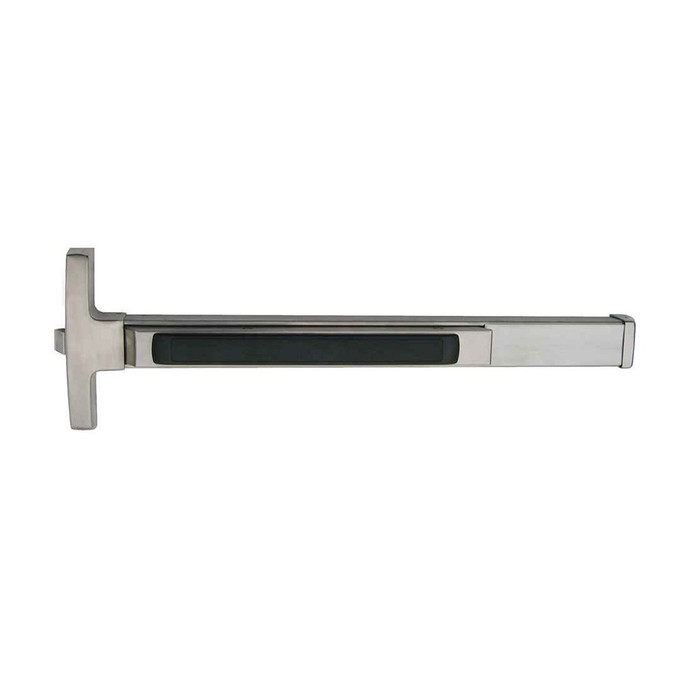

Sargent 8510 Narrow Design Rim Exit Device with Exit Only Function

(No reviews yet) Write a Review
New Parts & Accessories Available!

Model: 8510E 32D
$2,966.00
$1,771.35
Selected Finish is
Selected Trim Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,966.00
$1,771.35
Adding to cart… The item has been added
New Parts & Accessories
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 8510 Narrow Design Rim Exit Device with Exit Only Function

Professional Exit Device Solution for Narrow Stile Applications

The Sargent 8510 Narrow Design Rim Exit Device delivers professional-grade security and quiet operation specifically engineered for narrow stile door applications. This single point rim latching device features a rim bolt design that provides solid security while maintaining quiet operation, making it ideal for commercial environments where noise control is important. The narrow design accommodates doors with limited stile width while maintaining full exit device functionality and ADA compliance for accessible egress requirements.

Professional Features & Benefits

  • Narrow Stile Design: Specifically engineered for narrow stile applications where standard exit devices cannot be accommodated, maximizing installation flexibility.
  • Quiet Rim Bolt Operation: Single point rim latching mechanism provides solid security with minimal operational noise for professional environments requiring sound control.
  • Heavy-Duty Construction: Built to heavy duty standards for demanding commercial applications with high traffic ratings and long-term reliability.
  • ADA Compliant Design: Meets ADA requirements for accessible egress hardware in commercial installations, ensuring code compliance.
  • Exit Only Function: Dummy trim configuration prevents outside access while maintaining emergency egress capability for enhanced security control.
  • Electronic Integration Ready: Compatible with electronic access control systems for enhanced security management and system integration.
  • High Traffic Rating: Engineered for high traffic commercial applications with durable components for consistent performance.
  • Manufacturer Warranty: 4 Year Limited warranty provides confidence and protection for commercial installations.

Technical Specifications

  • ADA Compliant: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Duty Level: Heavy Duty
  • Electronic: Yes
  • Product Category: Door Controls
  • Product Group: Door Controls
  • Product Subgroup: Door Closers - Surface Mounted
  • Product Type: Surface Mounted Door Closers
  • Series: 5800 Series
  • Subcategory: Surface Closers
  • Traffic Rating: High Traffic
  • Warranty: 4 Year Limited

Installation & Operation

  1. Verify electrical requirements match available power supply and confirm integration compatibility with existing access control systems before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including any configurable options per application requirements and security protocols.
  6. Restore power and test all functions including normal operation, electronic integration, and emergency egress functionality.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent exit devices deliver professional-grade reliability with heavy-duty construction rated for high traffic commercial applications. The 4 Year Limited warranty demonstrates the manufacturer’s confidence in product durability and performance. Engineered for demanding commercial applications where dependable egress performance and quiet operation are essential for professional environments.

Manufacturer Resources

SARGENT Full Line Catalog

Product Specs

Series:
8500 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Commercial/Residential:
Commercial
Keyed Function:
Non-Keyed
Keyed:
No
Stile Type:
Narrow Stile
Lock Function:
Dummy
Grade:
Grade 1
Model Series:
8500 Series
Wood Door Compatible:
No
Product Model:
8510
Product Function:
Dummy
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Parts & Accessories

    Sargent 8510E 32D – Frequently Asked Questions

    1) Can the Sargent 8510 be installed on a wood door?
    No. The 8510 is not rated for wood door applications, so for a wood door opening you need a different device. Among narrow stile rim devices, the Adams Rite 3700 Series and 8700 Series are both listed as wood door compatible, and the 3700 is the fire rated one of the two.
    2) What does exit only or dummy trim mean on the Sargent 8510 rim device?
    Exit only means there is no way in from the outside through the device. The 8510 is a non-keyed dummy function, so the outside trim is a pull with no cylinder and no latch retraction. People inside always get out by pushing the bar, which is what makes it work as egress hardware, but anyone coming from the outside needs another way in. If you need entry through the door, order it with one of the ET lever trims instead of device only.
    3) Does handing matter when ordering a Sargent 8510?
    Only if you are adding lever trim. The rim device itself does not need a hand called out, but as soon as you select an ET lever trim you have to specify RHR (right hand reverse) or LHR (left hand reverse). Stand outside the door: if it swings toward you and the hinges are on your right, it is RHR. Exit devices are always reverse bevel because the door swings out in the direction of egress.
    4) What is the closest narrow stile rim exit device to the Sargent 8510 if I need it on a wood door?
    The Sargent 8510 is not wood door compatible, so for a wood door in a narrow stile application the Adams Rite 8700 Series 30 inch narrow stile rim exit device is the match - it is Grade 1, narrow stile, and wood door compatible. If the opening is also fire rated, the Adams Rite 3700 Series 30 inch is the fire-rated narrow stile rim device that is wood door compatible. Both are 30 inch devices, so confirm the door width against the 32, 36, 42 and 48 inch sizes the 8510 covers.
    5) My door has a wide stile - what should I order instead of the Sargent 8510?
    The Sargent 8510 is built for narrow stile doors, so on a wide stile door the Grade 1 wide stile rim devices are the right family. The Corbin Russwin ED2200 36 inch and ED5200 36 inch are both Grade 1 wide stile exit only devices, with the ED5200 also accepting trim. The Von Duprin 22 Series 36 inch is a Grade 1 non-handed wide stile pushpad device for 1-3/4 inch doors. The Dormakaba 9300 Series 48 inch is Grade 1 heavy duty wide stile exit only with a 1-3/4 inch to 2-1/4 inch door thickness range, and the TownSteel ED1100 and ED9700 in 36 inch are Grade 1 heavy duty wide stile. Detex also offers the 10 Advantex Series 36 inch in extra heavy duty wide stile.
    6) Which Grade 1 narrow stile rim exit devices are direct alternatives to the Sargent 8510?
    The Sargent 8510 is a Grade 1 narrow stile rim exit device with exit only dummy trim function. Grade 1 narrow stile rim devices in the same class include the Corbin Russwin ED4200 36 inch, which is exit only and accepts trim on a 1-3/4 inch door; the Falcon 19-R 36 inch exit only on 1-3/4 inch doors; the Falcon 1590EO and 1790EO at 42 inch exit only; the TownSteel ED3700 and ED8900 in 36 inch heavy duty; the Detex 40 Advantex Series in extra heavy duty; and the Adams Rite 8800 Series 30 inch, which lists a 1-3/4 inch to 2-1/4 inch door thickness range. All are narrow stile and none of them are wood door compatible, the same as the 8510.
    7) I need a fire rated exit only rim device - can I use the Sargent 8510?
    The Sargent 8510 is an exit only dummy trim function Grade 1 narrow stile rim device. For an opening that requires a fire label, the Adams Rite 3700 Series 30 inch is Grade 1, narrow stile and fire rated. Wider stile alternatives that carry a fire rating include the Marks USA M9900F in 36 inch and 48 inch exit only, the Orca Hardware OED85 Series 36 inch exit only, the Arrow FS1250 32 inch, and the Dexter ED1000 Series Grade 1 fire rated rim device. Match the stile width of your door to the device before you order.
    8) Is a Cal-Royal rim exit device an equivalent swap for the Sargent 8510?
    It covers the same opening but not the same certification level. The Sargent 8510 is Grade 1. The Cal-Royal 5000 36 inch touch bar, 5500 48 inch push bar, A9800 36 inch exit only, and A9820 48 inch exit only are all listed as Grade 2 heavy duty rim devices. If the drawing or facility standard calls for ANSI/BHMA Grade 1, stay with a Grade 1 device such as the Corbin Russwin ED4200 narrow stile or the TownSteel ED8900 36 inch narrow stile.
    9) The Sargent 8510 takes electric options - what other exit devices give me electrified egress on an access control opening?
    The Sargent 8510 can be ordered with electric options including 56 remote dogging and latch retraction, 58 electric dogging, 59 Electroguard, and switch options such as 53 latchbolt monitor and 55 signal switch in rail. Other electrified approaches to the same opening include the SDC Spectra S6136 36 inch electrified architectural rim exit device with a 4 inch wide stile for 1-3/4 inch to 2 inch doors, the Dormakaba electrified 36 inch rim device with 4908A trim in a classroom function, and the Securitron EMB electromechanical exit bar for 2-1/4 inch doors. For a request-to-exit sensing bar rather than a latching device, the SDC MSB550 Series 36 inch mechanical switch bar with electromagnetic lock release and the SDC SureExit PSB560 Series 36 inch pressure sense bar both suit narrow or wide stile doors.
    10) A switch bar looks like a cheaper version of the Sargent 8510 - can I use one on the same door?
    No, they do different jobs. The Sargent 8510 is a Grade 1 rim exit device with its own latching mechanism, so the door latches mechanically and releases on push. The SDC MSB550 Series 36 inch is a mechanical switch bar that releases an electromagnetic lock, and the SDC SureExit PSB560 Series 36 inch is a pressure sense bar with tri-failsafe technology - both signal a separate locking device rather than latching the door themselves. If the door has no mag lock and needs to latch on its own, the rim device is the correct part.
    11) Does the Sargent 8510 exit only function mean I cannot add a lever later, and what device should I pick if I need outside trim?
    The Sargent 8510 is a non-keyed dummy function device, and it can be ordered with ET trim in A, B, E, F, J, L, P or W lever styles, or as device only with no trim. If you would rather specify a device whose function is published as accepting trim, the Corbin Russwin ED4200 Grade 1 narrow stile is exit only and accepts trim on a 1-3/4 inch door, and the Corbin Russwin ED5200 Grade 1 is the wide stile equivalent that also accepts trim. For a night latch trim on a wide stile door, the Detex V4003A/03AN Series is a Grade 1 wide stile device supplied with night latch trim.
    12) What device length do I order for a 36 inch door on the Sargent 8510?
    The 8510 comes in 32, 36, 42 and 48 inch device lengths. Pick the length by door width, not by the opening: the device should cover most of the door leaf so the pushpad meets the egress requirement across the width. A 36 inch door normally takes the 36 inch device; the 42 and 48 inch sizes are there for wider leaves.
    13) Is the Sargent 8510 rim exit device ANSI Grade 1?
    Grade 1, which is the highest commercial grade and what most institutional and code-driven specs call for on egress hardware. That matters if you are standardizing exit devices across a school, hospital or municipal building where the spec sheet names a grade.
    14) Can I key the Sargent 8510 into my existing master key system?
    No, the 8510 is non-keyed. It is a dummy function device with no cylinder, so there is nothing to key and it will not join a master key system. If the door needs keyed outside access, you want a keyed function rim device rather than this one.
    15) What is the difference between the Sargent 8510 and a concealed vertical rod exit device?
    The Sargent 8510 is a rim exit device - the latch and strike sit on the face of the door and frame. A concealed vertical rod device latches at the top and bottom of the door through rods hidden inside the door, which means the door has to be prepped for it. The Hager 4601 Series 36 inch is a Grade 1 concealed vertical rod narrow stile device, and the Hager 4501 Series 36 inch is the Grade 1 concealed vertical rod version with a wide stile pushpad. Choose the rim device when you are surface mounting to an existing door and the concealed rod device when the door is prepped and you want no visible strike on the frame.
    16) I want a non-handed rim exit device so I do not have to stock both hands - is the Sargent 8510 non-handed?
    Handing on the Sargent 8510 only comes into play when lever trim is specified, where you choose RHR right hand reverse or LHR left hand reverse; the device itself is ordered without a hand when no trim is taken. If you want a device documented as non-handed, the BEST 2401 Series is a narrow stile rim device that is exit only and non-handed, the BEST Precision 5101 Series is a non-handed universal design rim device, the CRL Jackson 1295 Series push pad device is non-handed for 1-3/4 inch doors, and the Von Duprin 22 Series 36 inch is a non-handed Grade 1 wide stile pushpad device.
    17) I need a 48 inch rim exit device - which products cover that width besides the Sargent 8510?
    The Sargent 8510 is offered in 32, 36, 42 and 48 inch sizes, so it covers the wide opening directly. Other devices listed at 48 inch include the Dormakaba 9300 Series Grade 1 heavy duty wide stile exit only for 1-3/4 inch to 2-1/4 inch doors, the Corbin Russwin ED3000 Series Grade 1 crossbar wide stile for 1-3/4 inch doors, the CRL Jackson 1095 Series crossbar exit only wide stile, the Marks USA M9900F fire rated exit only, the Cal-Royal 5500 push bar, and the Dexter ED1000 Series Grade 1 at 4FT.
    18) What is a heavier duty alternative to the Sargent 8510 for a high abuse entrance?
    The Sargent 8510 is a heavy duty Grade 1 device rated for high traffic commercial use. If you want a device catalogued above heavy duty, the Detex 40 Advantex Series is an extra heavy duty Grade 1 narrow stile rim device, and the Detex 10 Advantex Series 36 inch is the extra heavy duty Grade 1 wide stile version. The Detex Advantex 00 Series is a super heavy duty Grade 1 dummy exit device in a wide stile design, which matches the 8510 dummy function on a wider stile door.
    19) Which narrow stile rim devices can go on a door thicker than 1-3/4 inches?
    Most narrow stile rim devices in this class are specified for 1-3/4 inch doors, including the Corbin Russwin ED4200, the Falcon 19-R, the Falcon 1590EO and the Arrow 4800 Series 36 inch narrow stile. The Adams Rite 8800 Series 30 inch narrow stile is listed for 1-3/4 inch to 2-1/4 inch doors, which is the narrow stile option for a thicker leaf. Among electrified bars, the Securitron EMB is specified at 2-1/4 inch and the SDC Spectra S6136 at 1-3/4 inch to 2 inch, though the S6136 is a 4 inch wide stile device.
    20) Is the Stanley QED211 the same device as the Dormakaba QED200 when cross referencing against the Sargent 8510?
    Both are Grade 1 heavy duty narrow stile rim devices in the QED200 Series and neither is wood door compatible, the same as the Sargent 8510. The Stanley Security version is described with hex-key dogging, and the Dormakaba QED200 is specified as a 36 inch device with a 7 ft rod. When you are cross referencing a QED200 callout, confirm which of the two your specification names and which dogging and rod configuration the opening needs.
    21) Which lever styles can I get with the Sargent 8510 ET trim?
    Eight ET lever designs are offered on the 8510: A, B, E, F, J, L, P and W. If you are matching lever shape across a building, that is the full range to choose from, and it is also fine to order the device with no trim at all when the door is pure egress and the outside face just gets a pull or nothing.
    22) What finishes does the Sargent 8510 come in for matching existing door hardware?
    Twelve finishes are available on the 8510: bright brass (03), satin brass (04), bright bronze (09), satin bronze (10), dark oxidized satin bronze in oil rubbed (10B), standard (10BE) and clear coated (10BL), dark statuary bronze lacquered (20D), bright stainless (32), satin stainless (32D), plus black suede (BSP) and white suede (WSP) powder coats. For a building already running satin stainless entrance hardware, 32D is the usual match; the suede powder coats are the ones to specify against dark or white painted storefront framing.
    23) Are Design Hardware 1000R and 2000R rim devices comparable to the Sargent 8510?
    They land in a different duty class. The Sargent 8510 is a heavy duty Grade 1 narrow stile device. The Design Hardware 1000R 33 inch is a heavy duty rim device with hex key dogging, while the Design Hardware 2000R 33 inch is a standard duty wide stile rim device with hex key dogging. Neither is wood door compatible. For a narrow stile opening the 8510 fits, the 2000R standard duty wide stile device is not an interchangeable fit.
