Sargent Sargent 8700 Series - (8743) Classroom Function with Freewheeling Trim Wide Stile Design Surface Vertical Rod Exit Device SGT-8743

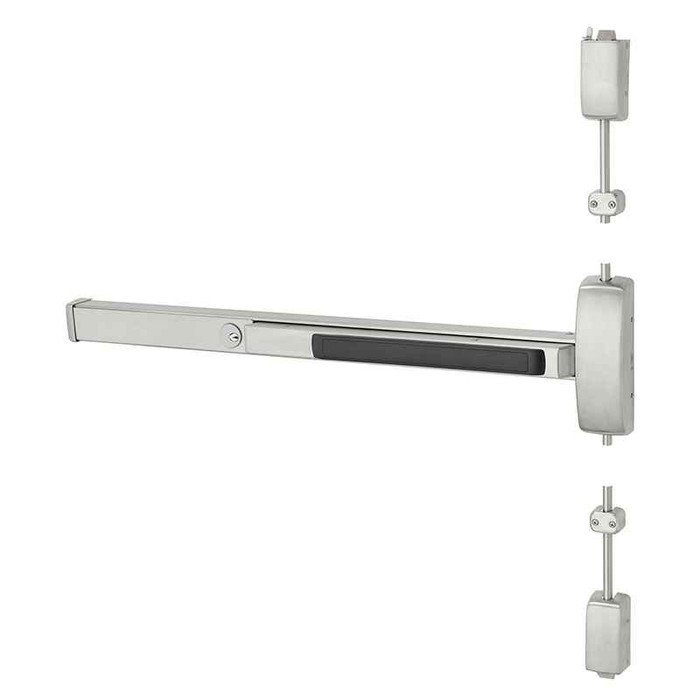

Sargent 8743 Classroom Function Surface Vertical Rod Exit Device with Wide Stile Design

(No reviews yet) Write a Review

Model: 8743E 10BE
From the 8700 Series Collection
$3,195.00
$2,970.13
Selected Finish is
Selected Trim Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,195.00
$2,970.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 8743 Classroom Function Surface Vertical Rod Exit Device with Wide Stile Design

Professional Classroom Security Exit Device Solution

The Sargent 8743 Classroom Function Surface Vertical Rod Exit Device delivers professional-grade security for educational facilities with specialized classroom function capability and wide stile design compatibility. This heavy-duty exit device exceeds ANSI/BHMA Grade 1 requirements for cycle and strength testing, engineered for the lifetime of the building with maintenance-free modular design. The surface vertical rod configuration provides secure top and bottom latching for enhanced security performance in educational environments.

Professional Features & Benefits

  • Heavy-Duty Grade 1 Performance: Exceeds ANSI/BHMA Grade 1 requirements for cycle and strength testing, ensuring reliable operation in high-traffic educational environments.
  • Wide Stile Design Compatibility: Engineered for doors requiring wide stile configurations, providing flexibility for various door construction types and installation requirements.
  • Classroom Function Operation: Specialized function designed specifically for educational facility security requirements with appropriate access control features for classroom applications.
  • Lifetime Durability Construction: Built to last the lifetime of the building with maintenance-free modular design for long-term reliability and reduced service requirements.
  • Surface Vertical Rod Configuration: Surface-mounted vertical rod design provides secure top and bottom latching for enhanced security performance and reliable operation.
  • Modular Design System: Maintenance-free construction with modular components allows for easy service and configuration changes throughout the product lifecycle.
  • Enhanced Security Features: Provides unsurpassed security for educational facilities with robust construction and reliable operation under demanding conditions.
  • Manufacturer Warranty: 2 Year Limited warranty for added confidence and protection in educational facility installations.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Educational Facilities and Classrooms
  • School Administrative Buildings
  • Training Centers and Institutes
  • Commercial Office Buildings
  • Healthcare Educational Facilities
  • Government Training Facilities
  • Multi-Tenant Educational Properties

Why Choose Sargent Quality?

Sargent exit devices deliver professional-grade reliability with heavy-duty construction that exceeds ANSI/BHMA Grade 1 requirements for demanding commercial applications. Built to last the lifetime of the building with maintenance-free modular design, these devices provide unsurpassed security performance. 2 Year Limited warranty ensures confidence in long-term educational facility security installations where dependable operation is essential.

Product Specs

Series:
8700 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Surface Vertical Rod
Subcategory:
Concealed Vertical Rod Exit Device
Commercial/Residential:
Commercial
Stile Type:
Wide Stile
Lock Function:
Classroom
Grade:
Grade 1
Model Series:
8700 Series
Product Model:
8743
Product Function:
Classroom
Product Category:
Exit Devices and Trim
Collection:
8700 Series
Department:
Door Hardware

Sargent 8743E 10BE – Frequently Asked Questions

1) What does the classroom function do on a Sargent 8743 exit device?
Classroom function on the Sargent 8743 means the outside lever is locked or unlocked by key from the outside trim, and free egress is always available by pushing the pad from the inside. It is the function schools specify so a teacher can secure the door from the corridor side without ever blocking exit. The 8743 is the surface vertical rod version of that function in the Sargent 8700 Series.
2) Can the Sargent 8743 be used on a pair of doors with no center mullion?
Yes. The 8743 is a surface vertical rod device, so it latches into a strike at the head and one at the threshold rather than into a mullion or a strike on the opposite leaf. That is exactly why vertical rod devices are used on pairs where a removable mullion is not wanted. If you have a single door in a frame with a standard jamb strike, a rim device is the simpler choice.
3) Do I have to specify handing when ordering a Sargent 8743?
Yes, handing is a required choice on the 8743 and it is either RHR (right hand reverse) or LHR (left hand reverse). Exit devices are always described in reverse bevel terms because the door swings out toward the person pushing the pad. Stand outside the door: if the hinges are on your right and the door pulls toward you, it is RHR. If you want a device that avoids the handing decision entirely, a non-handed option like the Von Duprin 2227 or the Orca OED56 is worth a look.
4) The Sargent 8743 is wide stile - what should I use on a narrow stile aluminum door instead?
The 8743 is engineered for wide stile doors, so on a narrow stile opening look at a narrow stile device instead. The Von Duprin 3327A-3ft is a Grade 1 grooved case narrow stile surface vertical rod device for 36 inch doors at 1-3/4 inch thickness, the Corbin Russwin ED4400 is a Grade 1 36 inch narrow stile surface vertical rod device that accepts trim, and the Falcon 19-V-EO is a Grade 1 narrow stile vertical rod device at 36 inch, exit only. Adams Rite also offers the 8200 Series 30 inch narrow stile surface vertical rod device.
5) What is the closest wide stile Grade 1 surface vertical rod alternative to the Sargent 8743?
The Sargent 8743 is a Grade 1 wide stile surface vertical rod device in the 8700 Series. The closest wide stile Grade 1 peers are the Von Duprin 2227-3FT, a 36 inch non-handed 22 Series wide stile surface vertical rod device for 1-3/4 inch doors, and the Corbin Russwin ED5400, a 36 inch Grade 1 wide stile surface vertical rod device in the ED5000 Series for 1-3/4 inch doors that accepts trim. The difference to weigh is function: the 8743 is built as a classroom function device with ET lever trim, while the ED5400 is catalogued as exit only accepting trim and the 2227 is non-handed where the 8743 is ordered RHR or LHR.
6) I need a fire rated surface vertical rod device - is the Sargent 8743 the right pick?
If the opening is a labeled fire door, specify from the fire rated peers: the TownSteel EF9727 is an ANSI Grade 1 certified heavy duty wide stile surface vertical rod device at 36 by 84 inches with a fire rating and wood door compatibility, the Adams Rite 3100 Series 30 inch is a Grade 1 fire rated wide stile surface vertical rod device for 1-3/4 inch doors, and the Arrow S1150 is a fire rated surface vertical rod device, less trim, that suits narrow or wide stile at 1-3/4 inch. Note that fire rated vertical rod devices are latching only, so the dogging and electric dogging options associated with non-rated openings do not apply.
7) What outside trim options come with the Sargent 8743 classroom device?
The 8743 takes Sargent ET trim in eight lever designs: A, B, E, F, J, L, P, and W. You can also order the device alone with no trim if you already have trim on the opening or you are ordering it separately. For classroom function the outside lever is the key-controlled side, so the ET lever choice is what the user actually touches.
8) Is the Sargent 8743 Grade 1?
Grade 1, and the 8700 Series is stated to exceed ANSI/BHMA Grade 1 cycle and strength testing. That is the level institutional and MRO buyers specify for high traffic openings like school corridors and stairwells.
9) Should I use a surface vertical rod like the 8743 or a concealed vertical rod?
Surface vertical rod puts the rods on the face of the door, so it retrofits onto an existing door with no internal prep and the rods, latches, and strikes stay reachable for adjustment. That is the practical choice for a school replacing hardware on doors already hung. Concealed vertical rod hides the rods inside the door for appearance, but it needs a door prepped for it and service means pulling the device apart. The 8743 is the surface version.
10) Can I get the Sargent 8743 with a lever that does not break when someone hangs on it?
The 8743 is offered with Sargent freewheeling ET trim, which lets the outside lever rotate free when the device is locked instead of transmitting force into the trim and lock. On a school corridor door that gets abused, that is the reason to spec ET rather than a rigid lever.
11) Which alternatives to the Sargent 8743 support electric options like latch retraction or electric dogging?
The Sargent 8743 is the one in this comparison group with published electric options, including AL alarmed with a 36 inch minimum door width, 53 latchbolt monitor switch, 54 internal micro switch in ET control, 55 signal switch in rail, 56 remote dogging and latch retraction, 58 electric dogging and 59 Electroguard. The comparable devices such as the Von Duprin 2227-3FT, Corbin Russwin ED5400 and TownSteel ED8927 are Grade 1 mechanical surface vertical rod devices, so if access control integration drives the spec the 8743 covers it directly.
12) What is a simpler exit-only alternative to the Sargent 8743 for a door that does not need lever entry?
The 8743 is a classroom function device ordered with ET lever trim in A, B, E, F, J, L, P or W lever styles. If the door only needs free egress with no outside entry, an exit only device is simpler: the Falcon 25-V-EO is a Grade 1 wide stile surface vertical rod device, exit only, 36 inch for 1-3/4 inch doors, the Falcon 20 Series is a Grade 1 wide stile surface vertical rod exit only device at 36 inch, and the Arrow 3700 Series 30 inch is a Grade 1 wide stile pushpad surface vertical rod exit bar, exit only, for 1-3/4 inch doors.
13) Is there a Grade 2 surface vertical rod device I can use instead of the Sargent 8743 on a lower traffic door?
The 8743 is Grade 1. For a lighter duty opening, the TownSteel TS5100 Series is a heavy duty Grade 2 wide stile surface vertical rod device at 36 by 84 inches, and the Dexter ED2000 Series is a Grade 2 surface vertical rod panic device. Both are non-fire-rated, so they are limited to openings without a fire label, and neither carries the classroom function trim arrangement the 8743 is built around.
14) The Sargent 8743 requires handing - what non-handed or reversible vertical rod devices avoid that?
The 8743 must be ordered RHR or LHR. If you are stocking one device for mixed openings, the Von Duprin 2227-3FT is a 36 inch non-handed Grade 1 wide stile surface vertical rod device, the BEST Precision 5201 Series 36 inch surface vertical rod device is reversible, and the Orca OED56 Series 36 inch standard duty vertical rod device is non-handed and supplied less bottom rod in aluminum finish.
15) Which surface vertical rod devices work on wood doors as an alternative to the Sargent 8743?
Among the comparable surface vertical rod devices, TownSteel lists wood door compatibility on the ED8927, an ANSI Grade 1 certified 36 by 84 inch wide stile device, on the fire rated Grade 1 EF9727, and on the Grade 1 narrow stile ED3727. By contrast the Von Duprin 7527-3ft and 7827-3ft are both listed as not wood door compatible, so confirm the door material before substituting either one.
16) Von Duprin 7827 is called wide stile - can it replace the Sargent 8743 on a wide stile door?
Read that one carefully. The Von Duprin 7827-3ft is named as a 3 ft wide stile surface vertical rod device with hex key dogging, but its stile type is listed as narrow stile and it is not wood door compatible, so it is not a like-for-like swap for the wide stile 8743. For a confirmed wide stile Grade 1 replacement, the Von Duprin 2227-3FT and the Corbin Russwin ED5400 are both listed wide stile at 36 inch for 1-3/4 inch doors.
17) What finishes can I get to match the Sargent 8743 to the rest of my building hardware?
Twelve finishes are available: 03 bright brass, 04 satin brass, 09 bright bronze, 10 satin bronze, 10B dark oxidized satin bronze oil rubbed, 10BE, 10BL, 20D dark statuary bronze lacquered, 32 bright stainless, 32D satin stainless, BSP black suede powder coat, and WSP white suede powder coat. For a school or office standardizing across openings, 32D satin stainless is the usual commercial default and BSP matches dark storefront.
18) What crossbar style vertical rod device can I use where the Sargent 8743 touchpad rail is not wanted?
The 8743 is a touchpad rail device with ET lever trim. Where a crossbar look is specified, the Corbin Russwin ED7400 is a Grade 1 narrow stile crossbar surface vertical rod device at 36 inch for 1-3/4 inch doors that accepts operator trim. Because it is narrow stile, confirm the stile width of the door before substituting it for the wide stile 8743.
19) Are there heavy duty versus standard duty vertical rod options if I am comparing against the Sargent 8743?
Design Hardware splits the two explicitly: the 1000V Series 33 inch is a heavy duty surface vertical rod device and the 2000V Series 33 inch is a standard duty surface vertical rod device, both non-fire-rated. Dexter runs a similar ladder, with the ED1000 and ED1500 Series listed Grade 1 and the ED2000 Series Grade 2. The Sargent 8743 sits at Grade 1 with classroom function, so a standard duty substitute changes the performance class of the opening.
