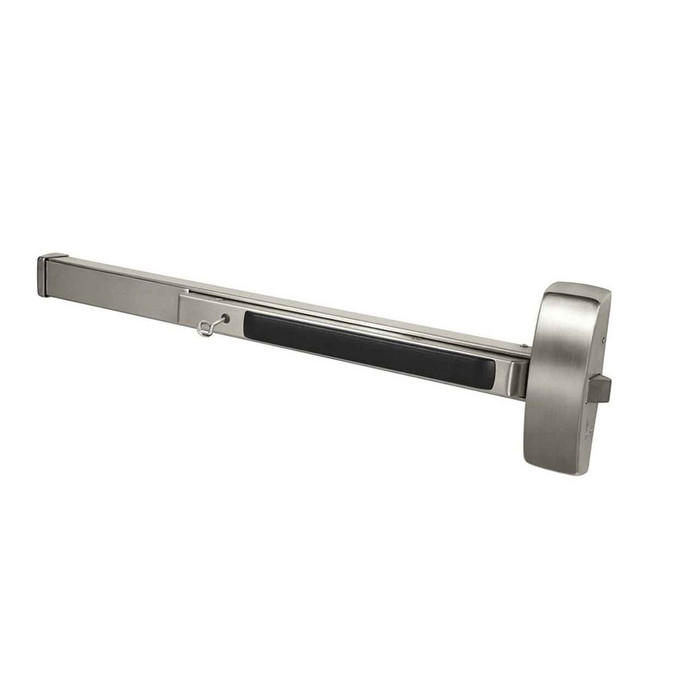

Sargent 8843 Classroom Function Wide Stile Rim Exit Device with Freewheeling Trim

(No reviews yet) Write a Review
New Parts & Accessories Available!

Model: 8843E 32D
$2,403.00
$1,427.03
Selected Finish is
Selected Trim Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,403.00
$1,427.03
Adding to cart… The item has been added
New Parts & Accessories
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 8843 Series Classroom Function Wide Stile Rim Exit Device with Freewheeling Trim

Professional Grade 1 Exit Device for Commercial Applications

The Sargent 8843 Series Classroom Function Wide Stile Rim Exit Device delivers professional-grade security and code compliance for commercial door applications. This single point rim latching device is designed for standard width stile applications on both wood and metal doors, featuring ANSI/BHMA A156.3 Grade 1 certification with UL10C Fire and UL305 Panic listings. Engineered for quiet operation while maintaining solid security performance in professional environments.

Professional Features & Benefits

  • Grade 1 Performance Rating: ANSI/BHMA A156.3 Grade 1 certification ensures heavy-duty performance for high-traffic commercial applications.
  • Fire and Panic Safety Compliance: UL10C Fire and UL305 Panic listings provide essential life safety code compliance for commercial buildings.
  • Wide Stile Compatibility: Designed specifically for standard width stile applications on wood and metal door construction.
  • Single Point Rim Latching: Reliable rim latching mechanism provides secure door control with smooth operation.
  • Versatile Installation Options: Suitable for single door and double door applications with mullions for flexible building configurations.
  • Quiet Operation Design: Engineered for quiet operation while maintaining solid security performance in professional environments.
  • Hurricane-Resistant Options: Also available as HC8800 or WS8800 configurations for hurricane-resistant applications when required.
  • Manufacturer Warranty: 2 Year Limited warranty coverage for added confidence and protection.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Educational Facilities and Classroom Security
  • Commercial Office Buildings
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities
  • Retail Establishments

Why Choose Sargent Quality?

Sargent exit devices deliver professional-grade reliability with Grade 1 performance certification and comprehensive UL fire and panic safety listings. The 2 Year Limited warranty provides added confidence for demanding commercial applications. Engineered for quiet operation while maintaining solid security, Sargent exit devices are trusted for critical life safety applications where dependable performance is essential.

Manufacturer Resources

SARGENT Full Line Catalog

Product Specs

Series:
8800 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Commercial/Residential:
Commercial
Stile Type:
Wide Stile
Lock Function:
Classroom
Grade:
Grade 1
Model Series:
8800 Series
Wood Door Compatible:
No
Product Model:
8843
Product Function:
Classroom
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Parts & Accessories

    Sargent 8843E 32D – Frequently Asked Questions

    1) What does classroom function mean on the Sargent 8843 exit device?
    Classroom function on the Sargent 8843 rim exit device means the outside lever is locked and unlocked by key from the outside trim, while the push rail always retracts the latch for free egress. Staff key the lever to leave the room open during class changes, then key it back to locked so the door secures without anyone stepping into the corridor. Any of the ET lever trims (A, B, E, F, J, L, P or W lever) can carry that function, and the device can also be ordered with no trim at all for exit only.
    2) Does the Sargent 8843 need to be handed when I order it?
    The device body itself does not, but the lever trim does. If you select any ET lever trim, you have to call out RHR (right hand reverse) or LHR (left hand reverse). Exit doors swing out, so nearly every opening with this device is a reverse hand. Stand outside the door: if the hinges are on your right and the door pulls toward you, it is RHR. Order it exit only with no trim and handing drops out of the equation.
    3) My door has a narrow stile, so the Sargent 8843 will not fit. What rim device should I use instead?
    The 8843 is built for wide stile doors, so on an aluminum or narrow stile opening you need a narrow stile rim device. Grade 1 narrow stile options include the Corbin Russwin ED4200 at 36 inches, which is listed as exit only or accepting trim, the Falcon 19-R at 36 inches exit only, the TownSteel ED3700 and ED8900 at 36 inches, and the Detex 40 Advantex, an extra heavy duty narrow stile rim device. If you need outside trim as you would on the 8843, the ED4200 is the one of those that accepts it.
    4) What is the closest wide stile Grade 1 rim exit device to the Sargent 8843 if I need lever trim on the outside?
    The Sargent 8843 is a Grade 1 wide stile rim exit device with classroom function and ET lever trim available in A, B, E, F, J, L, P and W lever styles. The nearest equivalents that also take outside trim are the Corbin Russwin ED5200, a Grade 1 wide stile 36 inch rim device listed as exit only or accepting trim, and the Dormakaba E2103 with 4908A trim, a 36 inch electrified rim device in classroom function. The Corbin Russwin is mechanical like the 8843; the Dormakaba is electrified at the trim.
    5) I need a fire rated rim device. Which peers match the Sargent 8843 on that?
    The Sargent 8843 is UL10C fire and UL305 panic listed, so it suits fire rated openings. Rim device peers also carrying a fire rating include the Dexter ED1000-R-F-EO Grade 1 fire rated rim device, the Marks USA M9900F in 36 inch and 48 inch, the Orca OED85 36 inch, the Arrow FS1250 at 32 inches, and the Adams Rite 3700 Series. Note the Marks M9900F and Orca OED85 are exit only, so they will not give you the outside lever entry the 8843 classroom function provides.
    6) What should I use instead of the Sargent 8843 if the pair of doors has no mullion and needs vertical rods?
    The 8843 is a rim device and relies on a strike, which on a pair means a mullion such as the Sargent 980 or 12-980. If you cannot use a mullion, move to a concealed vertical rod device: the Hager 4501 Series 36 inch is a Grade 1 concealed vertical rod device with a wide stile pushpad, and the Hager 4601 Series 36 inch is the narrow stile Grade 1 equivalent. Those latch top and bottom instead of into a mullion strike.
    7) What does freewheeling trim do on a classroom exit device?
    Freewheeling means the outside lever spins free when the door is locked instead of standing rigid. That matters in schools and corridors because a lever that cannot be wrenched against a fixed stop is far harder to break, which is the usual failure point on high traffic classroom and stairwell doors. The 8843 pairs that trim with classroom function, so the lever is keyed locked or unlocked from outside and the inside rail always releases.
    8) How does the Sargent 8843 compare to a Von Duprin 22 or a Corbin Russwin ED5200?
    All three are Grade 1 wide stile rim devices, but they are not equivalent on function. The Von Duprin 22-3FT is a non-handed wide stile pushpad rim device at 36 inches for 1-3/4 inch doors, and the Corbin Russwin ED5200 is a 36 inch wide stile device for 1-3/4 inch doors set up exit only or to accept trim. Both are listed without a fire rating. The Sargent 8843 is the one to specify when you need a keyed classroom lever and a UL10C fire listing in the same device.
    9) I only need free egress out of a stair door, not classroom function. What is a simpler alternative to the Sargent 8843?
    The 8843 carries classroom function with outside lever trim, which is more device than an egress-only opening needs. Exit only wide stile Grade 1 rim devices include the Von Duprin 22 at 36 inches non-handed, the Corbin Russwin ED2200 at 36 inches, the TownSteel ED1100 at 36 inches heavy duty, and the Imperial USA ED-501 at 36 inches. None of those provide outside lever entry, so use them only where nobody needs to come back in through that door.
    10) Is an SDC pressure sense bar or switch bar a substitute for the Sargent 8843?
    No, they do a different job. The Sargent 8843 is a mechanical single point rim latching device with its own latch and strike. The SDC MSB550 36 inch is a mechanical switch bar that releases an electromagnetic lock, and the SDC PSB560 SureExit 36 inch is a pressure sense bar with tri-failsafe technology. Both fit narrow or wide stile doors but they signal a separate locking device rather than latching the door themselves. Same idea applies to the Securitron EMB electromechanical exit bar. If your opening needs a latch in the door, stay with the 8843.
    11) Our building already runs crossbar exit devices. Will the Sargent 8843 match that look?
    The Sargent 8843 is a push rail style wide stile rim device, not a crossbar. If you are matching existing crossbar hardware, the Corbin Russwin ED3200 is a Grade 1 48 inch crossbar rim device for wide stile doors, and the CRL Jackson 1095 Series 48 inch is a crossbar rim panic device in wide stile, listed exit only. Both are visually crossbar; the 8843 gives you classroom function with lever trim that neither of those exit-only options provides.
    12) I need a 48 inch wide stile rim device. What are my options besides the Sargent 8843?
    The Sargent 8843 is offered in 32, 36, 42 and 48 inch device lengths, so it covers a 48 inch door directly. Other 48 inch wide stile rim devices include the Dormakaba 9300 Series, a Grade 1 heavy duty exit only device for doors 1-3/4 inch to 2-1/4 inch thick, the Corbin Russwin ED3200 Grade 1 crossbar for 1-3/4 inch doors, and the Marks USA M9900F 48 inch fire rated exit only. The 8843 is the one of that group with classroom function trim.
    13) What finishes does the Sargent 8843 come in to match the rest of my building?
    Twelve. Brass and bronze run 03 bright brass, 04 satin brass, 09 bright bronze, 10 satin bronze, 10B oil rubbed dark oxidized satin bronze, 10BE, 10BL and 20D dark statuary bronze. Stainless is 32 bright and 32D satin, which is what most schools and healthcare corridors standardize on. There are also two powder coats, BSP black suede and WSP white suede, which are useful when the device has to disappear against a painted hollow metal frame.
    14) For an extra heavy duty abuse-prone opening, is there a step up from the Sargent 8843?
    The Sargent 8843 is ANSI/BHMA A156.3 Grade 1, the top performance grade for exit devices. If you want a device specifically catalogued at extra heavy duty, the Detex 10 Advantex 36 inch is a Grade 1 wide stile rim device rated extra heavy duty, and the Detex 40 Advantex is the extra heavy duty narrow stile version. The Detex V4003A/03AN is a Grade 1 wide stile rim device with night latch trim rather than classroom function, so it locks differently from the 8843.
