Sargent 8XG05 Grade 1 Entrance...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,015.00
$619.46
SGT-8XG05

Sargent 8XG05 Grade 1 Entrance/Office Single Cylinder Knob Lock with 2-3/4" Backset

(No reviews yet) Write a Review

Model: 28LC-8XG05 LB 32D
$1,015.00
$619.46
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,015.00
$619.46
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 8X Line Series Grade 1 Single Cylinder Knob Lock with 2-3/4" Backset

Professional-Grade Cylindrical Lock Solution

The Sargent 8X Line Series Grade 1 knob lock delivers commercial-grade security and durability for entrance and office applications. This ANSI/BHMA Grade 1 certified lock accommodates door thicknesses from 1-3/8" to 1-3/4" with standard 2-3/4" backset and features reversible, self-adjusting latches for versatile installation. UL-cUL fire-rated up to 3 hours and accepts SARGENT standard, Signature and Degree® cylinders for flexible master key system integration.

Professional Features & Benefits

  • Door Compatibility: Accommodates door thicknesses from 1-3/8" to 1-3/4" with standard 2-3/4" backset for versatile installation options.
  • Grade 1 Durability: ANSI/BHMA Grade 1 certification ensures heavy-duty performance designed and tested for robust commercial applications.
  • Fire-Rated Construction: UL-cUL fire-rated up to 3 hours for code compliance in fire-rated door assemblies.
  • Reversible Latch Design: Self-adjusting latches automatically conform to door bevel, simplifying installation and reducing preparation time.
  • Cylinder Flexibility: Accepts SARGENT standard, Signature and Degree® cylinders for integration with new or existing master key systems.
  • Interior/Exterior Versatility: Suitable for both interior and exterior applications with weather-resistant construction.
  • Heavy-Duty Load Rating: Designed to support doors up to 250 lbs for demanding commercial applications.
  • Manufacturer Warranty: 3-year limited warranty provides confidence and protection for commercial installations.

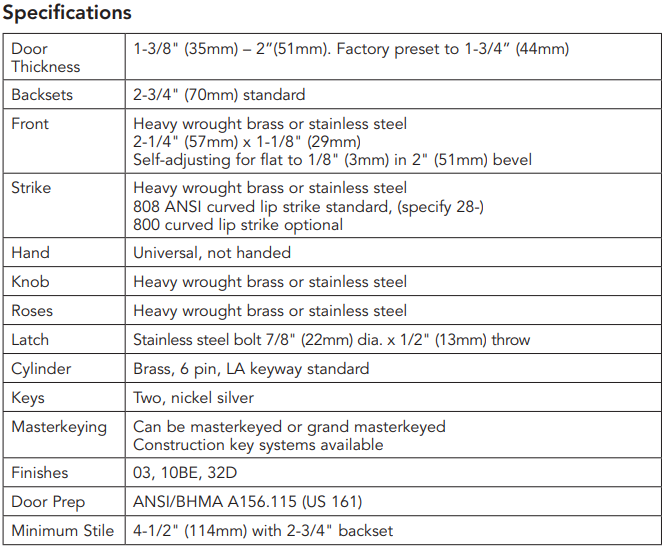

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent 8X Line Series knob locks deliver professional-grade reliability with Grade 1 construction rated for heavy-duty commercial applications. UL-cUL fire-rated up to 3 hours with 3-year limited warranty coverage for added confidence. Engineered for demanding commercial applications where dependable performance and code compliance are essential.

Product Specs

Series:
8X Line Series
Grade:
Grade 1
Keyed Function:
Single Cylinder
Subcategory:
Bored Locksets
Keyed:
Yes
Commercial/Residential:
Commercial
Handle Type:
Knob
Lock Function:
Entrance/Office
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Knobsets
Duty Level:
Heavy Duty
Product Attribute:
Cylindrical Locks
Product Function:
Entrance/Office
Door Hand Direction:
Non-Handed
Product Category:
Mechanical Locks
Department:
Door Hardware

Sargent 28LC-8XG05 LB 32D – Frequently Asked Questions

1) Does the Sargent 8X entrance lock need to be ordered handed?
No. It is non-handed, and the latch is reversible and self-adjusting to the door bevel, so one lock works on a left or right hand opening without field conversion. That is useful when you are stocking spares for a building rather than a single door.
2) Can I key the Sargent 8X knob lock into the master key system already running in my building?
That is what the keying and keyway selections are for. The 8XG05 takes SARGENT standard, Signature and Degree cylinders, and you can order it keyed different, keyed alike, master keyed, or standard keying. Keyway choice runs from LA (the standard) through the full Sargent range, including the CA through CR, HA through HK, LB through LL, R series, S and U. Match the keyway your existing system uses and give us the master key system details with the order.
3) What does the LC option on the Sargent 8XG05 mean, and when should I choose it?
LC is less cylinder. The lock ships without a cylinder so a locksmith can drop in a cylinder from the system already in service. Choose LC when you are matching existing keying in house. Choose the Standard 6-pin cylinder when you want the lock keyed and ready. If you order LC, the keying and keyway selections are set to None.
4) Can the Sargent 8X knob lock go on a fire rated door?
Yes. The 8X Line knob lock is UL-cUL fire rated up to 3 hours, so it can be used in a fire rated door assembly up to that rating. Entrance/office function keeps the latch operable from the inside at all times.
5) What does entrance/office function actually do on a Sargent 8XG05?
Entrance/office means the outside knob is locked or unlocked by key from outside, or by a pushbutton in the inside knob. The inside knob always retracts the latch for free egress. It suits tenant office doors, suite entries and back-of-house doors where staff want to leave it open during business hours and secure it at close. It is a single cylinder lock, so there is no key cylinder on the inside.
6) My door is thicker than 1-3/4 inches. What Grade 1 cylindrical knob should I look at instead?
The 8XG05 stops at 1-3/4 inches, so it is the wrong part for a thicker slab. The Falcon X101 Grade 1 cylindrical knobset covers 1-3/8 to 2-1/4 inches, and the Corbin Russwin CK4310 Grade 1 knob covers 1-3/8 to 2 inches. Note both of those are passage function, not keyed entrance, so confirm the function you need matches.
7) What is the closest Grade 1 keyed entrance knob lock to the Sargent 8XG05 from another manufacturer?
The BEST 8K Series 8K-AB is the nearest match: it is a Grade 1 heavy duty single cylinder knob lock in entrance function, the same duty level and keyed function as the Sargent 8XG05, which is a Grade 1 heavy duty entrance/office knob lock. The Corbin Russwin CK4851 is another Grade 1 entrance/office cylindrical knob lock, built around the Global knob and a conventional cylinder, and it covers doors from 1-3/8 inch to 2 inch. The practical difference is the key system: the 8XG05 accepts SARGENT standard, Signature and Degree cylinders, so if the building is already on a SARGENT master key system the 8XG05 keeps that system intact.
8) Which knob locks look like the Sargent 8XG05 but will not work on a keyed entrance door?
Several cylindrical knobsets share the look but not the function. The Schlage D10S and the Falcon X101 are Grade 1 knob locks, but both are passage latches with no key. The Falcon W101 and the Corbin Russwin CK4310 are likewise passage/closet function. The Schlage A170 and the BEST 6K single dummy trim have no latch action at all. The Dexter C2000 classroom knob is keyed but is classroom function, not entrance/office. The Sargent 8XG05 is a single cylinder entrance/office lock, so if the door needs a key from the outside, only a keyed entrance or office function substitutes for it.
9) Can I use a residential entry knob like the Kwikset 400P in place of the Sargent 8XG05?
They do different jobs. The Kwikset 400P-CP Polo keyed entry knob is a Grade 3 entrance lock for 1-3/8 inch to 1-3/4 inch doors and ships with a round corner adjustable latch and round corner strike, and the Master Lock BC01 biscuit knob is likewise a Grade 3 keyed entry. The Sargent 8XG05 is a commercial ANSI/BHMA Grade 1 heavy duty lock that is UL-cUL fire rated up to 3 hours and accepts SARGENT standard, Signature and Degree cylinders for master keying. On a fire-rated commercial opening or one that has to join a master key system, the Grade 3 residential knobs are not an equivalent.
10) Is the Cal-Royal BER00 a drop-in replacement for a Sargent 8XG05?
They share the entrance/office function and both fit 1-3/8 inch to 1-3/4 inch doors, but the BER00 is a Grade 3 knob lock supplied with a Kwikset keyway, while the Sargent 8XG05 is ANSI/BHMA Grade 1 heavy duty and accepts SARGENT standard, Signature and Degree cylinders across a long list of SARGENT keyways including LA, the C, H, L and R families, R, S and U. If the doors are keyed into a SARGENT system, the BER00 keyway will not key alike with them.
11) Is a Grade 1 knob lock overkill for an office door, or should I drop to Grade 2?
Grade 1 is the top ANSI/BHMA commercial grade and means the highest cycle and strength testing. On a high traffic tenant entry, a school corridor or a healthcare door, the 8XG05 is the right call. If the opening sees light use, ZenSupply carries Grade 2 entrance knobs like the Corbin Russwin CK4851 or the Dexter C2000 entry/office knob. For Grade 1 in another brand, the BEST 8K Series entrance knob is the closest peer.
12) What finishes does the Sargent 8X entrance knob come in?
Three: 03 bright brass with clear coat, 10BE dark oxidized satin bronze, and 32D satin stainless steel. 32D is the usual choice when you are matching existing commercial hardware across a building; 10BE is the dark bronze that pairs with aluminum storefront and bronze exit devices. All three are available with either the standard 6-pin cylinder or less cylinder.
13) I need matching non-keyed knobs for the corridor and closet doors to go with Sargent 8XG05 entrance locks. What is the Grade 1 option?
For non-keyed openings at the same Grade 1 level, the Schlage D10S is a Grade 1 heavy duty passage latch with the Orbit knob, the Falcon X101 is a Grade 1 heavy duty passage knobset with an interchangeable core prep and fits 1-3/8 inch to 2-1/4 inch doors, and the Corbin Russwin CK4310 is a Grade 1 Global knob passage lock for 1-3/8 inch to 2 inch doors. The Sargent 8XG05 handles the keyed entrance and office doors in that same Grade 1 heavy duty tier.
14) Is there a lighter duty entrance knob lock if Grade 1 is more than the opening needs?
Yes. For interior office and tenant doors that do not see Grade 1 traffic, the Dexter C2000 entry/office ball knob lock is a Grade 2 keyed cylindrical knob for doors 1-3/8 inch to 1-3/4 inch, and the Corbin Russwin CK4410 is a Grade 2 Global knob cylindrical lock over the same door thickness range. The Cal-Royal BER00 and the Pamex FTF Baron are Grade 3 entrance/office knob locks, also for 1-3/8 inch to 1-3/4 inch doors. The Sargent 8XG05 remains the choice where an ANSI/BHMA Grade 1 heavy duty lock is called out on the spec.
15) Will the Sargent 8XG05 hold up on a heavy exterior door?
It is rated heavy duty and built for commercial use, indoors or out, and the 8X Line knob lock is designed to support doors up to 250 lbs. On a heavy exterior opening also confirm your hinges and closer are sized for the slab, since the lock is only one part of that load path.
16) Do I need a separate deadbolt with the Sargent 8X entrance knob?
Not for the lock to function. The 8XG05 is a single cylinder cylindrical lockset with its own latch, keyed from outside. Whether you add a deadbolt is a security and code decision for the opening, not a requirement of this lock. If you do add one, keep it on the same Sargent keyway so both turn on one key.
