Sargent LC-713-8-ETL Exit Trim...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$965.25
$548.65

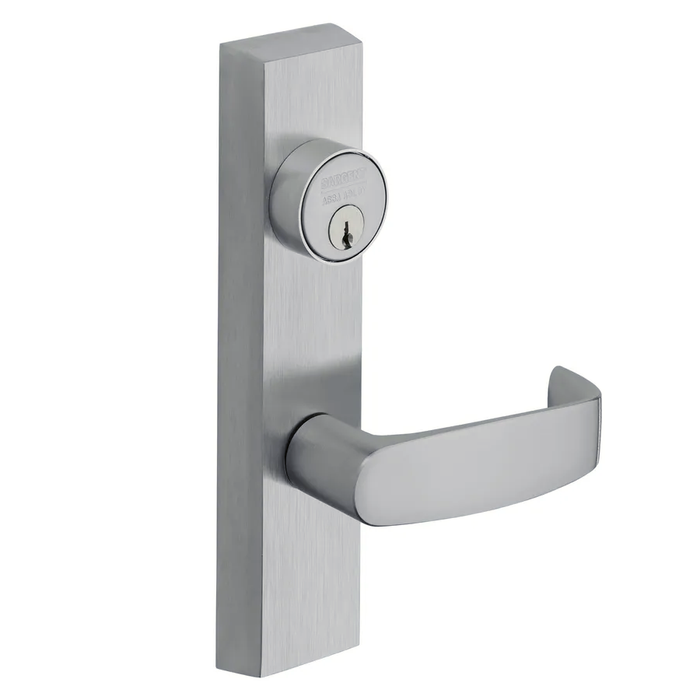

Sargent LC-713-8-ETL Exit Trim with L Lever and Classroom Function - Field Reversible Design

Sargent LC-713-8-ETL Exit Trim with L Lever and Classroom Function - Field Reversible Design

(No reviews yet) Write a Review

Model: LC-713-8-ETL-26D LHR
$965.25
$548.65
Selected Finish is
Selected Lever is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$965.25
$548.65
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent Exit Device Trim with L Lever and Classroom Function - Field Reversible

Professional Exit Device Trim Solution for Commercial Applications

The Sargent Exit Device Trim with L Lever provides classroom function operation with key outside locks and unlocks trim capability. This field reversible trim works with 8513/8713/8813/8888 Series exit devices and features through-bolted construction for enhanced security and durability. The trim is non-handed and sold separately from the exit device for flexible configuration options in commercial applications.

Professional Features & Benefits

  • Series Compatibility: Works with 8513/8713/8813/8888 Series exit devices for versatile installation options across multiple product lines.
  • Through-Bolted Construction: Chassis mounting provides greater security and durability compared to standard mounting methods for demanding commercial environments.
  • Field Reversible Design: Non-handed trim allows installation flexibility without requiring specific handing during ordering, reducing inventory complexity.
  • Classroom Function Operation: Key outside locks and unlocks trim capability provides appropriate security control for educational and institutional applications.
  • One-Hand Operation: Easy operating lever handle allows convenient single-hand operation for improved accessibility and user experience.
  • ANSI/BHMA Finishes: Available in standard architectural finishes to match building hardware specifications and maintain consistent appearance.
  • Multiple Function Options: Available in 7 different functions including night latch, passage, and electrified options to meet various security requirements.
  • Stainless Steel Option: Stainless steel levers available for enhanced durability and corrosion resistance in demanding environments.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Educational Facilities and Classrooms
  • Commercial Office Buildings
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities
  • Retail Establishments

Why Choose Sargent Quality?

Sargent Exit Device Trim products deliver professional-grade reliability with through-bolted construction and ANSI/BHMA finish standards for demanding commercial applications. The field reversible design and multiple function options provide installation flexibility while maintaining the security and durability required in high-traffic environments where dependable performance is essential.

Product Specs

Series:
700 Series
Grade:
Grade 1
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device Trim
Subcategory:
Exit Device Trim
Commercial/Residential:
Commercial
Lock Function:
Classroom
Product Type:
Exit Device Trims
Duty Level:
Heavy Duty
Electronic:
No
Product Function:
Classroom
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Sargent LC-713-8-ETL-26D LHR – Frequently Asked Questions

1) Which Sargent exit devices does the LC-713-8-ETL lever trim fit?
The LC-713-8-ETL trim mounts to Sargent 8513, 8713, 8813 and 8888 Series exit devices. It is sold separately from the device itself, so the exit device has to be ordered alongside it. It will not mount to another manufacturer's device chassis.
2) What does classroom function mean on a Sargent 700 Series exit trim?
Classroom function means a key on the outside locks and unlocks the lever trim. Once unlocked, the lever retracts the latch and anyone can pull the door open; once keyed locked, the outside lever is rigid and entry requires the key. The inside push bar always gives free egress regardless of trim state. That is the standard configuration for a classroom or lab door where staff control entry from the corridor side.
3) Do I need to specify handing when ordering the Sargent L lever exit trim?
The trim itself is non-handed and field reversible, so the lever can be set to either hand during installation. The ordering options are still split into LHR (left hand reverse) and RHR (right hand reverse) so the trim ships matched to the opening, but you are not locked out if the door swing changes later.
4) Does the LC in the Sargent LC-713-8-ETL mean it comes without a cylinder?
Correct, LC is less cylinder. The classroom function relies on a key outside to lock and unlock the lever, so you need to supply a mortise cylinder in your building's keyway and keying, ordered separately.
5) I need storeroom function instead of classroom on my exit device - what trim should I use?
The Sargent LC-713-8-ETL is a classroom-function trim, where the key outside locks and unlocks the trim. If you want storeroom function - lever always locked, key retracts the latch, lever never left unlocked - look at the Design Hardware KIL Storeroom trim, a Grade 1 storeroom-function trim for 1000 and 2000 Series exit devices with a Schlage C keyway and flat lever; the Pamex E9000, a Grade 1 storeroom-function heavy duty trim with the L3 lever; or the Marks USA M195F storeroom-function lever and rose trim for M9900 touchbar devices. Each is tied to its own device family, so confirm the exit device before ordering.
6) I need access control on this opening - what electrified exit trim can I use instead?
The Sargent LC-713-8-ETL is a mechanical, non-electronic trim, so it will not tie into an access control system on its own. Electrified lever trims include the Falcon 510L-FSA/FSE, a heavy duty electrified trim with lever handle for 25 Series devices, and the Command Access ET15, ET25 and ET26 electrified exit trims with 12V/24V operation and fail safe or fail secure options; the ET26 is Grade 1 with a field reversible design. Command Access also lists the 230L electrified trim for Von Duprin V96/36/23 Series devices. Confirm the device family and the voltage available at the door before specifying.
7) What is the closest cross-brand equivalent to the Sargent LC-713-8-ETL classroom lever exit trim?
For a classroom-function lever trim from another maker, the Falcon 510L is the nearest match: it is a heavy duty classroom-function exit device trim with a lever handle, built for the Falcon 24/25 Series devices. The Accentra 446F is another classroom-function lever trim, using the Augusta lever design. The Sargent LC-713-8-ETL is a Grade 1 heavy duty classroom-function trim with the L lever, so the key difference is device compatibility: the Sargent trim mounts to 8513/8713/8813/8888 Series exit devices, while the Falcon and Accentra trims are built to their own device families. Match the trim to the device already on the door.
8) Is this Sargent exit trim heavy enough for a high-traffic school corridor?
It is a Grade 1, heavy duty commercial trim with through-bolted chassis mounting, which is the mounting method that holds up when levers get pulled and hung on all day. Grade 1 is the top ANSI/BHMA durability tier for this hardware.
9) I want the lever to stay unlocked all the time - is there a passage version instead of this classroom trim?
Yes, but it is a different trim. The Sargent LC-713-8-ETL is classroom function, which requires a key to lock and unlock the outside lever. For an always-free outside lever, passage-function trims include the Arrow SRX01 with the Sierra lever on a rose for ED910, S1150 and S1250 devices, the Corbin Russwin 3310AET passage trim for ED300 Series devices, and the Corbin Russwin x910ET heavy-duty passage trim for ED5200S/ED5200/ED5400/ED5800 devices. Passage trim has no cylinder, so if the opening ever needs to be secured from the outside, stay with a keyed classroom trim.
10) Is a night latch trim the same thing as this classroom lever trim?
No. The Sargent LC-713-8-ETL is a classroom-function lever trim: the outside lever operates the device once the key unlocks it, and the key can lock it again. Night latch trim is key-only - there is no outside lever to turn, and the key retracts the latch each time. Night latch options include the Accentra 121NL nightlatch trim, the Accentra AU-441F keyed lever night latch trim with the Augusta design, the Corbin Russwin VT957ET nightlatch escutcheon trim in stamped or formed stainless steel, and the Von Duprin 110MD-NL night latch cylinder assembly for metal and wood doors. If the spec calls for a classroom opening, night latch trim will not meet it.
11) Is there a lighter duty classroom exit trim than the Sargent LC-713-8-ETL?
Yes. The Falcon 179L, part of the 1790 Series lever control trim, is a medium duty classroom-function exit device trim. The Sargent LC-713-8-ETL is a Grade 1 heavy duty classroom trim with through-bolted chassis mounting. The Falcon 510L is the heavy duty classroom-function option in the Falcon line if you want to stay in that brand but keep the heavier duty level. Choose by traffic: a medium duty trim suits lower-cycle openings, while high-traffic school and institutional doors typically get the heavy duty trim.
12) Can I substitute a dummy or blank escutcheon trim for this classroom lever trim?
Only if the outside is never meant to operate the device. The Sargent LC-713-8-ETL is a keyed classroom-function trim with a working L lever. Dummy and blank trims include the Detex 02BN dummy S-lever trim with blank escutcheon for Value Series devices, the Von Duprin 230DT dummy trim for 22 Series with a 10 gauge steel escutcheon, the Von Duprin 210K-BE knob with blank escutcheon for 22 Series, the Falcon 212L blank escutcheon lever trim for 20 Series, and the Dexter ED1500T dummy function trim with handle pull plate. None of these retract the latch, so they are not a functional substitute on a classroom opening.
13) Is there a classroom exit trim with a thumbpiece instead of a lever?
Yes. The Dexter ED1000T-CLRM-TP-NC is a Grade 1 classroom-function exit device trim for ED1000 Series devices, built as a thumbpiece with pull plate and cylinder, supplied less cylinder. The Tell EDTHP53 is a thumbpiece trim in keyed entry function for doors 1-3/8 inch to 1-3/4 inch thick. The Sargent LC-713-8-ETL provides the same classroom function with an L lever, which gives one-hand operation without grasping or twisting - worth weighing where accessibility is part of the spec.
14) What is the difference between a classroom trim like the Sargent LC-713-8-ETL and an entry function exit trim?
The Sargent LC-713-8-ETL is classroom function: the outside lever is controlled only by key, so a teacher or staff member locks and unlocks it from the corridor side and no one can leave it unlocked by pushing a button. Entry-function trims such as the Design Hardware KIL Entry and LE08 Grade 1 entry trims for 1000R and 2000R devices, the Tell EDELT53 entry escutcheon lever trim for 1-3/8 inch to 1-3/4 inch doors, and the Delaney 500L entrance-function trims in CT, MD and SD lever styles are keyed entry designs suited to general exterior and tenant doors. Institutions writing a classroom specification generally need the key-controlled classroom trim.
15) I need keypad or credential entry on an exit device - what replaces a mechanical classroom trim?
A pushbutton or electronic exit trim takes the place of a keyed lever trim when you want code entry rather than a key. The Dormakaba E-Plex 201U is an electronic pushbutton exit trim in the E-Plex 2000 Series for wide stile doors, the Dormakaba PowerPlex P201U is an exit trim for rim, mortise and SVR devices, and the Dormakaba E-Plex 5067 is a mechanical pushbutton mortise lock for wide stile applications. The Sargent LC-713-8-ETL is a non-electronic classroom trim, so it is the mechanical, key-managed route on the same type of opening.
How fast can I get the Sargent LC-713-8-ETL-26D LHR delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Sargent LC-713-8-ETL-26D LHR come with a warranty?
Absolutely. The Sargent LC-713-8-ETL-26D LHR is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Sargent LC-713-8-ETL-26D LHR?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Sargent LC-713-8-ETL-26D LHR from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
