Sargent KESO F182-70 Series Mortise Type Cylinders

SARGENT KESO F182-70 SERIES MORTISE TYPE CYLINDERS OVERVIEW

• Brass, bronze and stainless steel
• Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 32, 32D, BSP, WSP
• Cylinder plugs/barrels are available in the following finishes: 04, 15, or BSP
• Consult individual catalogs/parts pages for collar options ordered separately
• Hotel or 50 function: Mortise locks require a 50 Function cylinder and a 50 Function cam (115 Cam) The cylinders for the hotel/50 function mortise locks are specified with a 115 cam suffix
• Optional short cams (105 cam) are required for the inside cylinder of 16 and 92 function Mortise locks and are specified with a 105 cam suffix

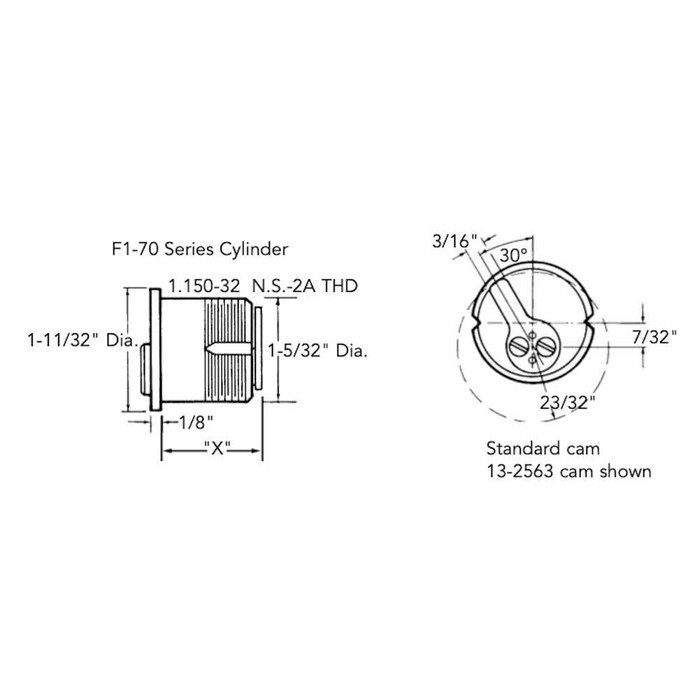

• When no cam is specified, the SARGENT standard offset cam (p/n 13-2563) will be supplied (see page 10 for cam options)
  • To order with hardware, specify F1-82-
  • Example: F1-82-8243 x LNL 32D

Note: Use a 50 function to designate a mortise lock hotel functions.
