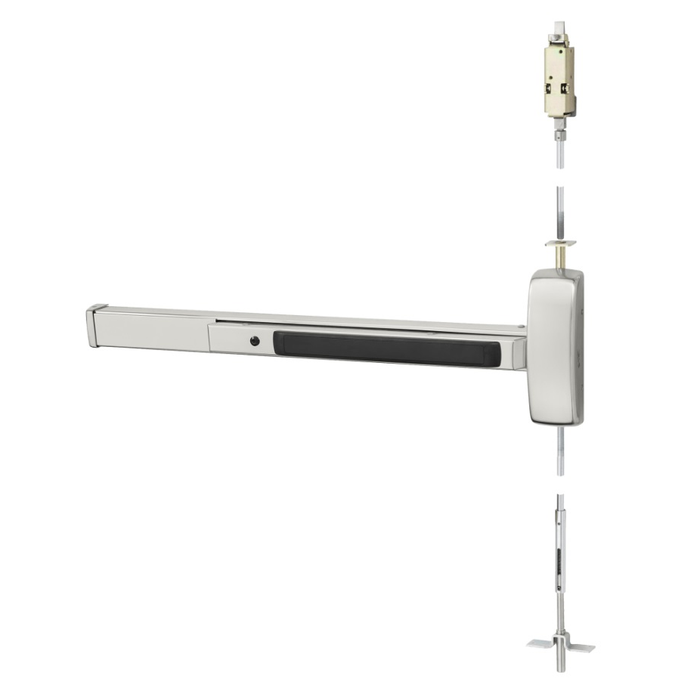

Sargent MD8610 Dummy Function Concealed Vertical Rod Exit Device for 1-3/4" to 2-1/4" Metal Doors

Sargent MD8610 Dummy Function Concealed Vertical Rod Exit Device for 1-3/4" to 2-1/4" Metal Doors

(No reviews yet) Write a Review

Model: MD8610E 32D
From the MD8600 Series Collection
$3,990.78
$2,443.24
Selected Finish is
Selected Trim Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,990.78
$2,443.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent MD8610 Concealed Vertical Rod Exit Device for 1-3/4" to 2-1/4" Metal Doors with Dummy Function

Professional Concealed Vertical Rod Exit Device Solution

The Sargent MD8610 is part of the proven 8600 Series concealed vertical rod exit devices, engineered for standard width stile applications on hollow metal doors. This dummy function device accommodates door thicknesses from 1-3/4" (44mm) minimum to 2-1/4" thick with a 4-1/2" (114mm) minimum stile width requirement. The device features a center case dimension of 8-3/8" x 2-5/8" with pushbar projection of 3" neutral and 2-1/8" when depressed, designed for door openings up to 120" (3048mm) maximum height.

Professional Features & Benefits

  • Door Compatibility: Designed for hollow metal doors with 1-3/4" (44mm) minimum thickness, accommodating doors over 1-3/4" to 2-1/4" thick for versatile installation options.
  • Stile Width Requirements: 4-1/2" (114mm) minimum stile width ensures proper mounting and operation on standard commercial door configurations.
  • Factory-Cut Rail System: Available in four rail sizes (E, F, J, G) for door widths from 24" to 48", with factory cutting to exact door width when specified for precise fit.
  • Heavy-Duty Construction: Stainless steel top bolt and robust center case design provide exceptional durability for demanding commercial applications.
  • Flexible Installation Height: Standard device centerline at 41" (1041mm) from finished floor, with 38" (965mm) option for elementary schools and accessibility compliance.
  • Comprehensive Strike System: Includes 650 Top Strike and 606 Bottom Strike for both panic and fire-rated applications.
  • Dogging Options: Standard hex key dogging on non-fire rated devices, with optional cylinder dogging (#41 cylinder supplied) for enhanced security control.
  • Electronic Integration Ready: Compatible with multiple electric options including alarm, beacon, photoluminescent coating, illuminated touchpad, and monitoring systems.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent 8600 Series exit devices deliver professional-grade reliability with stainless steel top bolt construction and robust center case design engineered for maximum door opening heights up to 120" (3048mm). The comprehensive rail system with factory cutting capability ensures precise fit across door widths from 24" to 48". Engineered for demanding commercial applications where dependable performance and code compliance are essential.

Product Specs

Series:
MD8600 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Mortise
Product Type:
Exit Devices - Mortise
Subcategory:
Mortise Exit Devices
Commercial/Residential:
Commercial
Stile Type:
Narrow Stile
Lock Function:
Dummy
Grade:
Grade 1
Model Series:
MD8600 Series
Product Model:
MD8610
Product Function:
Dummy
Product Category:
Exit Devices and Trim
Collection:
MD8600 Series
Department:
Door Hardware

Sargent MD8610E 32D – Frequently Asked Questions

1) Do I have to specify handing when ordering the Sargent MD8610?
Handing is required. The MD8610 is ordered as either RHR (right hand reverse) or LHR (left hand reverse), and it is not field reversible on the order form, so you pick one. Stand outside the door on the pull side: if the hinges are on your right, it is right hand reverse. Get this wrong and the device arrives mirrored to your opening. Some crossbar mortise devices, like the Von Duprin 5575, are field reversible, but this one is specified at order.
2) What rail size do I order for a 42 inch wide door on the Sargent MD8600 Series?
Rails come in 32, 36, 42 and 48 inch sizes, so a 42 inch door takes the 42 inch rail. Sargent's factory-cut rail system covers door widths from 24 to 48 inches across four rail sizes (E, F, J, G), and the rail can be factory cut to your exact door width if you state it on the order.
3) My door only has a 3 inch stile. Will the Sargent MD8610 work, or do I need something else?
No, a 3 inch stile is too narrow. The MD8610 needs a 4-1/2 inch (114mm) minimum stile. For a genuinely narrow aluminum stile, look at the Adams Rite 8400 Series narrow stile mortise exit device, built for aluminum doors, or the Von Duprin 5575 narrow stile crossbar mortise device. Measure the stile at the lock edge before you order either way.
4) The Sargent MD8610 is dummy function. What mortise exit device actually latches the door?
The MD8610 is a dummy function device, so it provides the pushbar and trim appearance without latching the opening. When the leaf has to latch, the Falcon 25-M-EO in the 25 Series is a Grade 1 exit only mortise device for 1-3/4 inch doors, the BEST Precision 2301 Series is an exit only mortise device with heavy wrought construction, and the Detex 30 Series Advantex is a Grade 1 exit only mortise lock device. If the opening needs lever trim on the outside, the Corbin Russwin ED5600AL is a Grade 1 mortise device for 1-3/4 inch doors that accepts passage or classroom lever trim. Dummy devices are normally used on the inactive leaf of a pair, so the active leaf is where these latching devices go.
5) Which mortise exit devices work on wood doors?
The Sargent MD8610 is specified for hollow metal doors. For a wood leaf, the Adams Rite 3300 Series is a Grade 1 fire rated mortise exit device for wood and hollow metal doors, the Adams Rite 8300 Series is a Grade 1 life-safety mortise device for wood and hollow metal, and the Corbin Russwin ED5600AL is a Grade 1 3 hour fire rated mortise device for wood and hollow metal. The Von Duprin 8875-3FT, Von Duprin 9875-3FT, and Detex 30 Series each carry a wood door compatible value of No, so those go on metal openings only.
6) What is the closest narrow stile mortise exit device to the Sargent MD8610 from another manufacturer?
The Sargent MD8610 is a Grade 1 narrow stile mortise exit device in the MD8600 Series. The closest narrow stile mortise peers are the Von Duprin 5575-3ft, a Grade 1 narrow stile crossbar mortise lock exit device in the 55 Series that is field reversible and built for 1-3/4 inch doors, and the Adams Rite 8400 Series, a Grade 1 narrow stile life-safety mortise exit device for aluminum doors. The Sargent uses a pushbar with a 3 inch neutral projection and 2-1/8 inch depressed, while the Von Duprin 5575 uses a crossbar, so the touchpad versus crossbar look and the door material target are the two things to settle before swapping.
7) The opening has a wide stile door. What mortise exit device should be used instead of the Sargent MD8610?
The Sargent MD8610 is built for narrow stile applications with a 4-1/2 inch minimum stile width, so a wide stile leaf calls for a wide stile device. Wide stile Grade 1 mortise options include the Von Duprin 9875-3FT, a 3 foot smooth case non-handed device for 1-3/4 inch doors, the Von Duprin 8875-3FT crossbar device at 36 inches, also non-handed, the Falcon 25-M-EO exit only device in the 25 Series at 36 inches, and the Detex 30 Series Advantex. The Von Duprin 9875 and 8875 and the Detex 30 are not wood door compatible, so on a wood leaf the Adams Rite 8300 Series or Corbin Russwin ED5600AL, both listed for wood and hollow metal, are the ones to look at.
8) Which mortise exit devices are fire rated if the opening is a labeled door?
On a labeled opening, the Adams Rite 3300 Series is a Grade 1 fire rated mortise exit device for wood and hollow metal doors, and the Corbin Russwin ED5600AL is a Grade 1 3 hour fire rated mortise device for 1-3/4 inch doors that can go exit only or take classroom or passage lever trim. Several of the adjacent devices are life-safety rather than fire rated and carry a fire rating of No, including the Adams Rite 8300 and 8400 Series, the Von Duprin 5575, 8875, 9875, and the Von Duprin 9475/9575 Impact Series, so those belong on non-labeled openings.
9) The doors are aluminum storefront, not hollow metal. Does the Sargent MD8610 fit, or is there a better option?
The Sargent MD8610 is specified for hollow metal doors from 1-3/4 inches up to 2-1/4 inches thick with a 4-1/2 inch minimum stile width. For aluminum storefront, the Adams Rite 8400 Series is a Grade 1 narrow stile life-safety mortise exit device written specifically for aluminum doors, and it is the same narrow stile family, so it suits the thin stile a glass front leaf gives you. The Adams Rite 8400 carries a fire rating of No, so on a labeled aluminum opening the rating has to be confirmed separately before it is specified.
10) The doors are thicker than 1-3/4 inches. Which mortise exit devices cover that?
The Sargent MD8610 accommodates doors over 1-3/4 inches up to 2-1/4 inches thick, which covers a heavier leaf. Among the alternatives, the Von Duprin 5575-3ft, Von Duprin 8875-3FT, Von Duprin 9875-3FT, Falcon 25-M-EO, and Corbin Russwin ED5600AL are each specified at a 1-3/4 inch door thickness, so on a leaf above 1-3/4 inches the Sargent is the one written for that range.
11) How much clearance does the Sargent MD8610 pushbar need in the opening?
The pushbar projects 3 inches from the door at rest and 2-1/8 inches when fully depressed, and the center case measures 8-3/8 x 2-5/8 inches. That 3 inch neutral projection is what to check against anything close to the door swing, a return wall, a vestibule, or a second leaf, before you commit.
12) Can the Sargent MD8610 be mounted lower than standard for an elementary school?
Yes. Standard device centerline is 41 inches (1041mm) from finished floor, and there is a 38 inch (965mm) option intended for elementary schools and accessibility. Specify the 38 inch mounting height at order rather than trying to shift it in the field.
13) What lever trim options are available with the Sargent MD8600 Series exit device?
Nine trim choices: ET trim with A, B, E, F, J, L, P or W lever, or no trim at all if you are ordering the device by itself. Since this is a dummy device, the lever is there for pull and appearance and matching the rest of the openings, not for retracting a latch. Pick the lever style that matches the active leaf so a pair reads as one set.
14) What dogging options come on the Sargent MD8600 Series exit device?
Hex key dogging is standard on non-fire rated devices, which lets you hold the pushbar down and leave the opening in push-pull during business hours. Cylinder dogging is optional and comes with a #41 cylinder, so a keyed employee controls it rather than anyone with a hex wrench. On a school or retail entry where staff dog the doors every morning, the cylinder option is the one worth specifying.
15) Concealed vertical rod or a rim mortise exit device for a pair of doors?
A concealed vertical rod device like the MD8600 Series runs its rods inside the door and secures at the head and the threshold, so a pair of doors works with no center mullion and nothing is exposed on the door face. That is why it gets specified where appearance matters or where a mullion would block the opening. The trade off is preparation: the door has to be built for concealed rods. A mortise or rim device on a removable mullion, like the Von Duprin 9875 or the Falcon 25-M-EO, is simpler to install and service but leaves a post in the middle of the opening.
16) Is the Sargent MD8610 exit device Grade 1?
Grade 1, the highest ANSI/BHMA durability grade and what most commercial and institutional specs call for on exit hardware. It is a commercial device, built for hollow metal doors. Every mortise exit device we carry from Adams Rite, Corbin Russwin, Detex, Falcon and Von Duprin that publishes a grade is also Grade 1, so grade alone will not separate them; stile width and function will.
17) Are strikes included with the Sargent MD8610, or do I order them separately?
Strikes are part of the package: a 650 top strike and a 606 bottom strike, covering panic and fire-rated applications. The top bolt is stainless steel. You still need the door prepped for concealed rods and the frame prepped for the top strike, so confirm the opening is built for it before the device shows up.
18) Is the Von Duprin 9875 a drop-in replacement for a Sargent MD8610?
No. The Von Duprin 9875-3FT is a wide stile smooth case mortise exit device, while the Sargent MD8610 is a narrow stile device with a 4-1/2 inch minimum stile width, so the two do not target the same leaf. The MD8610 is also dummy function and handed, offered RHR and LHR, where the 9875 is described as non-handed and is not wood door compatible. Both are Grade 1 mortise devices, but the stile width and the latching versus dummy difference mean the door prep and the leaf they belong on are not the same.
19) What mortise exit device holds up on a high abuse opening like a school or a loading corridor?
The Sargent MD8610 uses a stainless steel top bolt and a heavy center case measuring 8-3/8 inches by 2-5/8 inches, and the device centerline can be set at 38 inches instead of the standard 41 inches for elementary schools. Among the alternatives, the Von Duprin 9475/9575 Impact Series is a Grade 1 wide stile mortise device with a recessed push pad, which keeps the pad back from carts and traffic, and the BEST Precision 2301 Series is an exit only mortise device with heavy wrought construction. The Detex 30 Series Advantex is a Grade 1 wide stile mortise lock device for non-wood doors.
20) Do any of these mortise exit devices avoid handing the way the Sargent MD8610 requires it?
The Sargent MD8610 is ordered handed, either RHR right hand reverse or LHR left hand reverse. If handing the order is the problem, the Von Duprin 8875-3FT and the Von Duprin 9875-3FT are both described as non-handed, and the Von Duprin 5575-3ft is field reversible, so it can be set on site. All three are Grade 1 mortise devices; the 5575 is narrow stile while the 8875 and 9875 are wide stile, so the leaf still decides which one applies.
21) What is the simpler option if lever trim and electric functions are not needed on the opening?
The Sargent MD8610 can be ordered with ET lever trim in A, B, E, F, J, L, P, and W levers or as exit device only, and it accepts electric options including alarm, latchbolt monitor switch, signal switch in rail, remote dogging, electric dogging, and Electroguard. For a plain push and go opening with no trim and no electrification, the Falcon 25-M-EO is a Grade 1 exit only mortise device, the BEST Precision 2301 Series is an exit only mortise device with heavy wrought construction, and the Detex 30 Series is a Grade 1 device only exit only unit.
22) What finishes does the Sargent MD8600 Series exit device come in to match existing hardware?
Twelve finishes: 03 bright brass clear coated, 04 satin brass clear coated, 09 bright bronze clear coated, 10 satin bronze clear coated, 10B dark oxidized satin bronze oil rubbed, 10BE dark oxidized satin bronze, 10BL dark oxidized satin bronze clear coated, 20D dark statuary bronze lacquered, 32 bright stainless, 32D satin stainless, BSP black suede powder coat and WSP white suede powder coat. For a building already standardized on brushed stainless, 32D is the usual match.
