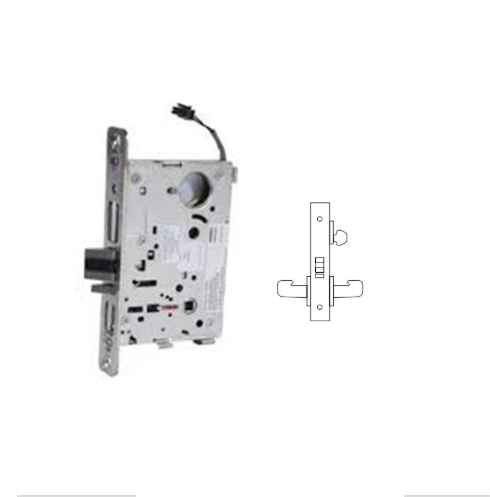

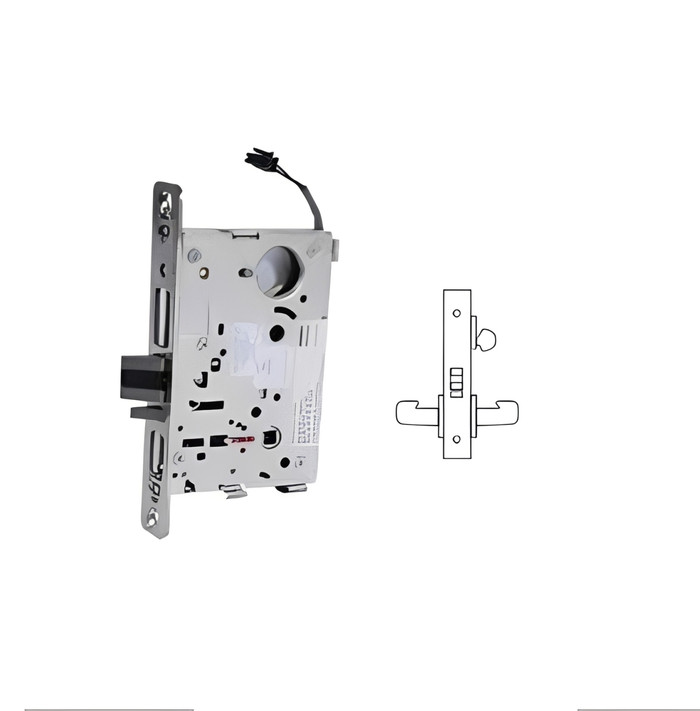

Sargent RX-8200-12/24 Electrified Mortise Lock with Request to Exit and Power ON Operation

Sargent RX-8200-12/24 Electrified Mortise Lock with Request to Exit and Power ON Operation

(No reviews yet) Write a Review

Model: SGT-RX-8200-12/24
From the 8200 Series Collection
$2,145.00
$1,168.75
Selected Finish is
Selected Rose is
Selected Lever is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,145.00
$1,168.75
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent RX-8200 Series Electrified Mortise Lock with Request to Exit and Power ON Operation

Professional Electrified Mortise Lock Solution

The Sargent RX-8200 Series Electrified Mortise Lock delivers commercial-grade security with single cylinder operation and Power ON functionality that locks and unlocks the outside lever. This professional mortise lock features request to exit capability and meets ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 standards with UL and cUL listing for fire-rated applications.

Professional Features & Benefits

  • Grade 1 Performance: ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 certification ensures professional-grade reliability for demanding commercial applications.
  • Ecoflex Technology: Patented electromechanical design reduces power consumption by up to 96% as certified by GreenCircle for energy-efficient operation.
  • Power ON Operation: Single cylinder configuration with Power ON functionality provides reliable control of outside lever locking and unlocking.
  • Request to Exit Integration: Built-in request to exit capability allows for seamless integration with access control systems.
  • Fire-Rated Compliance: UL and cUL listed with ANSI/UL 10C positive pressure fire test certification for door assemblies in fire-rated applications.
  • Fast Installation Design: Pre-assembled components and patented construction make installation fool-proof with easy re-handing capability without removing parts or opening the lock case.
  • Manufacturer Warranty: 10 Year Limited Warranty on mechanical components and 2 Year Limited Warranty on electrified components for added confidence and protection.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm voltage and current capacity before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including Power ON operation and request to exit functions per application requirements.
  6. Restore power and test all functions including normal operation, request to exit functionality, and integration with connected systems.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Security Systems
  • Educational Institution Access Control
  • Healthcare Facility Security
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial Facility Access Points
  • Fire-Rated Door Applications

Why Choose Sargent Quality?

Sargent RX-8200 Series mortise locks deliver professional-grade reliability with patented Ecoflex Technology that reduces power consumption by up to 96% while maintaining Grade 1 operational and security performance. Backed by a 10 Year Limited Warranty on mechanical components and 2 Year Limited Warranty on electrified components, these locks are engineered for demanding commercial applications where dependable performance and energy efficiency are essential.

Product Specs

Series:
RX-8200 Series
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Subcategory:
Bored Locksets
Keyed:
No
Commercial/Residential:
Commercial
Lock Type:
Heavy Duty
Department:
Door Hardware
Lock Type:
Electronic Mortise Lock
Lock Function:
Electromechanical
Product Type:
Mortise Locks
Duty Level:
Heavy Duty
Handle Type:
Lever
Product Function:
Electromechanical
Product Category:
Mechanical Locks
Collection:
8200 Series

Sargent SGT-RX-8200-12/24 – Frequently Asked Questions

1) What is the difference between fail-safe and fail-secure on the Sargent RX-8200 electrified mortise lock, and which one do I order?
Both are built on the RX-8200 and you pick one at order time. Fail-safe unlocks the outside lever when power drops, which is what you want on an egress or stair door that has to stay usable during a power loss or fire alarm. Fail-secure keeps the outside lever locked with no power, which suits a tenant suite, a server room, or any opening that must stay secured whether or not the access control system is live. Life safety code for the opening decides this, not preference, so confirm with the door schedule before ordering.
2) Does the Sargent RX-8200 mortise lock run on 12V or 24V?
Both. The RX-8200 is ordered as either a 12V or a 24V lock, so match it to the power supply already feeding the door rather than buying a converter. Sargent's Ecoflex design cuts the current draw by up to 96 percent, which matters when you are running several openings off one supply: the amperage budget goes much further than it would with a conventional electrified mortise lock.
3) What does the RX in Sargent RX-8200 actually do for my access control system?
RX is a request to exit switch built into the lock case. It signals the access control panel the moment someone turns the inside lever, so the panel shunts the door alarm instead of reporting a forced-open event on a legitimate exit. That is the difference between a clean egress and nuisance alarms at the head end. It also means you do not need a separate RX device or an exit push-button on the inside of the opening for that function.
4) Can I use a Sargent RX-8200 on a labeled fire door?
Yes. The RX-8200 is UL and cUL listed and carries ANSI/UL 10C positive pressure fire test certification for fire-rated door assemblies. Note that a fail-safe lock on a fire door has to be released by the fire alarm system in the way the code official expects, so the electrical sequence, not the lock listing, is usually what gets reviewed on those openings.
5) I already have Sargent cylinders on my master key system. Can I order the RX-8200 without a cylinder?
Yes, the RX-8200 is available in a Less Cylinder version alongside the standard configuration. Less Cylinder is the one to order if you are pinning to an existing keyway in-house or the building already runs a restricted Sargent system, since you supply the mortise cylinder and keep every opening on one key system. If you have no existing system to match, take the standard version.
6) What is the difference between the Sargent RX-8200 and a standalone keypad or card reader mortise lock?
The RX-8200 is a wired lock with no reader or credential logic of its own. It takes a lock or unlock command from an access control panel over 12V or 24V and reports egress back through the RX switch, so it belongs on a door already tied into a head-end system. If there is no panel and no wiring to the opening, a standalone lock is the better fit: the Alarm Lock DL3500CR Trilogy is a Grade 1 keypad mortise lock with 300 user codes, and the Schlage CO-100-MS-40-KP is a Grade 1 heavy duty keypad mortise lock. For a wireless credential lock that still talks to a system, the Schlage LEMD-GRW is a Grade 1 ENGAGE wireless mortise lock with a 125kHz proximity reader.
7) Is there a direct equivalent to the Sargent RX-8200 electrified mortise lock from another brand?
The closest match we carry is the Schlage L9092EU with 03A trim, an electric lock/unlock outside lever mortise lock, keyed outside, with request to exit and 12/24VDC operation, heavy duty and rated for 1-3/4 inch doors. It does the same job on the same voltage range with the same RX reporting. The BEST 45HW is another wired electromechanical mortise lock with 12V/24V operation in a heavy duty body. The Command Access ML190 is a motorized mortise lock with field selectable fail-safe or fail-secure operation on 24VDC, so one part covers either mode instead of choosing at order time.
8) Will the Sargent RX-8200 drop into an existing 8200 Series mortise prep?
The RX-8200 belongs to Sargent's 8200 Series collection and uses the 7800 and 8200 Series mortise lock installation template, the same template that covers sectional rose and escutcheon trims. If the door is already prepped for a Sargent 8200, the lock case pocket and trim holes line up. What is new on a retrofit is the wiring: you will need a power transfer at the hinge or an electric hinge to get 12V or 24V into the door, which a mechanical 8200 never required.
9) Which wired electrified mortise lock also runs on both 12V and 24V?
The BEST 45HW Series wired electromechanical mortise lock is listed for 12V/24V operation and heavy duty service, the same dual-voltage flexibility the Sargent RX-8200 offers across its 12V and 24V builds. Both are wired locks that depend on a house power supply and transfer hinge or electric transfer device rather than batteries, so the rough-in work at the opening is the same kind of job.
10) I need fail-safe and fail-secure selectable in the field instead of ordering one or the other. What should I look at?
The Command Access ML190 Series motorized mortise lock is field selectable between EL and EU operation and runs on 24VDC, so one part number covers both fail-safe and fail-secure on a heavy-duty storeroom opening. The Sargent RX-8200 handles that choice at the order instead, with fail-safe and fail-secure as separate configurations in 12V and 24V. If a hospital or school corridor is still being finalized on the drawing, the field-selectable ML190 removes the need to decide before the lock ships.
11) The opening has no power and no way to run wire. What mortise lock works instead of a wired electrified one?
The Sargent RX-8200 is a wired electromechanical lock with Power ON control of the outside lever, so it needs a supply at the door. Where pulling wire is not an option, standalone keypad locks cover the same access control need without it: the Alarm Lock DL3500CR Trilogy is a Grade 1 classroom mortise lock with 300 user codes for 1-5/8 to 1-7/8 inch doors, and the BEST 45HZ EZ Series electronic keypad mortise lock includes key override. Codes are managed at the lock rather than from an access control head end.
12) What is the difference between the Sargent RX-8200 and a credential reader lock like the Schlage LEMD or TownSteel FME-2000?
The RX-8200 is an electrified lock body controlled by an external access control system, which supplies 12V or 24V and reads the request to exit signal the lock sends back. Reader locks put the credential decision at the door: the Schlage LEMD-GRW is a Grade 1 ENGAGE Series wireless mortise lock with a 125kHz proximity reader and 3 hour fire rating, and the TownSteel FME-2000 is a Grade 1 heavy-duty classroom mortise lockset with RFID for 1-3/4 inch doors. The RX-8200 suits an opening already wired into a panel; the reader locks suit openings being brought onto credentials without a panel run.
13) Is a Grade 1 mechanical storeroom mortise lock a substitute for the RX-8200?
Only if the opening does not need to be released electrically. The Accentra 8805FL is a Grade 1 storeroom mortise lock in the 8800 Series and the Cal-Royal NM8080 is a Grade 1 storeroom mortise lockset for 1-3/4 inch doors with an interchangeable core option. Both hold the same ANSI/BHMA Grade 1 the Sargent RX-8200 carries, but neither takes a control signal or returns request to exit. Where an access control panel has to lock and unlock the outside lever and see the inside lever operate, a mechanical storeroom lock will not do the work.
14) Which electronic mortise lock alternatives are Grade 2 rather than Grade 1?
The Schlage Electronics LEBMB-ADD mobile-enabled mortise lock with push button and LED is Grade 2, with a 3 hour fire rating for 1-3/4 inch doors and privacy, office and apartment functions. The Dormakaba LX-I-M002 Saffire electronic RFID mortise lockset with BLE mobile access is BHMA Grade 2 as well. The Sargent RX-8200 is ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1. If a facility standard or a spec section calls for Grade 1 on the opening, that distinction decides it.
15) The door is an aluminum storefront with a narrow stile. Will a Sargent RX-8200 mortise lock fit?
An aluminum storefront usually needs hardware made for that door. The Alarm Lock DL1300NW Trilogy Networx wireless electronic mortise lock with keypad is built for Adams Rite deadlatches, which is the latch family found in aluminum stile doors, and the Dormakaba E-Plex 2066 Series electronic pushbutton keyless mortise lock is listed for wide stile. The Sargent RX-8200 is a heavy duty commercial mortise lock body sized for a standard commercial mortise pocket, not a narrow aluminum stile.
16) Which alternatives suit a behavioral health or hospital opening rather than a standard corridor?
Anti-ligature trim is the deciding factor there. The TownSteel MRX-L-01 is a Grade 1 heavy duty stainless steel anti-ligature lever mortise lockset with passage function for 1-3/4 inch doors, the MRX-A-01 is the same Grade 1 heavy duty passage lockset with satin stainless ligature resistant arch trim, and the Marks USA 5PDN is a Grade 1 hospital passage mortise push/pull paddleset that is ligature resistant and ADA compliant in satin stainless steel. The Sargent RX-8200 uses conventional lever trim, offered with B, J, L and P levers on a 2 inch LN rose.
17) On a Sargent RX-8200 with Power ON operation, is the door locked or unlocked when the system is idle?
Power ON means electricity is what changes the state of the outside lever. Applied power drives the lock or unlock action on the outside lever; the inside lever always retracts the latch for free egress. Which state you get with no power on the coil is set by whether you ordered the fail-safe or the fail-secure version, so specify that on the order.
18) What lever styles and finish does the Sargent RX-8200 come in?
Four lever designs are offered on the RX-8200, the B, J, L and P levers, all on the LN rose, which is a 2 inch (51mm) round rose. The finish is 26D, satin chromium plated over nickel, the satin chrome look that matches most commercial openings already out there. If you are matching existing Sargent trim elsewhere in the building, the lever letter is what you need off the old lock, since the rose and finish are fixed here.
19) Do I have to specify handing when I order a Sargent RX-8200 mortise lock, and can it be re-handed in the field?
Re-handing is done without taking parts off or opening the lock case, so a locksmith can flip it at the opening if the door turns out to be the other hand. Components arrive pre-assembled. That is useful on a retrofit where the schedule and the actual door do not agree, and it means stocking fewer variations if you are doing a run of openings.
20) I just need a classroom or storeroom mortise lock with no wiring. Is the Sargent RX-8200 overkill?
If the opening has no access control and no power at the door, yes. The RX-8200 is an electrified lock, so it needs a 12V or 24V supply and a panel to be worth anything. For a mechanical Grade 1 mortise lock, the Corbin Russwin ML2003 is a classroom function for 1-3/4 inch doors, the Cal-Royal NM8080 is a storeroom function with an interchangeable core option, and the Accentra 8805FL is a Grade 1 storeroom lock. Any of those key into a mechanical master system and cost nothing to power.
21) Does the energy saving on the Sargent RX-8200 mean I can put more locks on one power supply?
That is the practical effect. The patented Ecoflex electromechanical design cuts power consumption by up to 96 percent, certified by GreenCircle. On a job with a bank of access-controlled openings, the current each lock holds is what sizes the supply and the battery backup, so a lower holding draw stretches an existing supply across more doors and lengthens standby runtime on the same battery. Size the supply from the actual current figure on the Sargent wiring data for the voltage you order.
22) Does the Dormakaba E-Plex E5086 do the same job as a Sargent RX-8200?
They solve access control differently. The Dormakaba E-Plex E5086 is a Grade 1 entry/egress electronic pushbutton and card mortise lock in a back-to-back configuration, deciding at the door from a code or card. The Sargent RX-8200 carries no reader; it is a Grade 1 electromechanical mortise lock whose outside lever is locked and unlocked by a 12V or 24V signal from a panel, with request to exit reported back. Choose the E5086 for a self-contained opening and the RX-8200 where the opening reports into a central system.
23) We need battery-free electronic control without running power. Is there an alternative to a wired lock like the RX-8200?
The Dormakaba PowerPlex P2066 Series mortise lock is the option to look at, since it is a self-powered electronic mortise lock that does not depend on a wired supply at the door. The Sargent RX-8200 is a wired electromechanical lock that needs 12V or 24V brought to the opening. Note that the RX-8200 uses Ecoflex Technology that cuts power consumption up to 96 percent as certified by GreenCircle, so where wire can be pulled the current draw on the supply stays low.
24) The opening is fire rated. Which mortise locks besides the Sargent RX-8200 are listed for fire doors?
The Sargent RX-8200 is UL and cUL listed with ANSI/UL 10C positive pressure fire test certification for fire-rated door assemblies. Among comparable mortise locks, the Falcon MA101 is a Grade 1 heavy-duty mortise passage lock with a fire rating and field reversible operation, and both the Schlage LEBMB-ADD and the Schlage LEMD-GRW carry a 3 hour fire rating. The MA101 is a passage function with no locking, so it suits an opening that needs the fire label but no security.
25) What looks like a mortise lock substitute but will not accept a cylinder or lock the door?
Dummy trim will not. The Schlage L0170 half dummy trim is a Grade 1 non-keyed mortise lever lock for 1-3/4 inch doors, and the Emtek 3102 Memphis, 3104 Hamilton, 3106 Manhattan and 3019 Brisbane mortise entrance locksets are all dummy function. They mount to the door face and have no latch or bolt. The Sargent RX-8200 is a working lock body, offered either standard or less cylinder so a facility can install its own core into the keying system already in place.
26) Can a Grade 1 mechanical classroom mortise lock replace an electrified one on a budget-constrained job?
For openings where the access control drop is being cut from the scope, the Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset in the ML2000 Series for 1-3/4 inch doors, and the Cal-Royal NM8070 is a Grade 1 heavy duty classroom mortise lockset with an auxiliary deadlatch for 1-3/4 inch doors. Both are keyed mechanical locks with no wiring, no power supply and no request to exit output. The Sargent RX-8200 keeps the opening on the system; the mechanical locks take it off.
27) Is an electronic mortise deadbolt like the Alarm Lock DL4500 an alternative to the RX-8200?
Only for a different job. The Alarm Lock DL4500 is a Grade 1 electronic mortise deadbolt with 2,000 user codes and a privacy keypad for 1-5/8 to 1-7/8 inch doors, so it throws a bolt and has no latch or lever operation. The Sargent RX-8200 is a lever-operated electromechanical lock whose outside lever is electrically locked and unlocked, with a request to exit signal from the inside lever. A deadbolt gives you code-managed privacy; it does not give an access control panel latch control on an egress path.
