Sargent 11G13 T-Zone Grade 1 N...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$876.00
$759.24
SGT-11G13

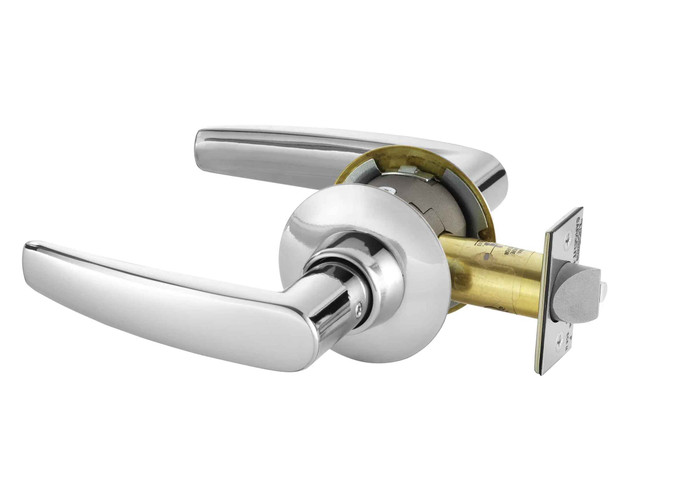

Sargent 11G13 T-Zone Grade 1 Non-Keyed Cylindrical Lock with Exit Latch Function

(No reviews yet) Write a Review

Model: 28-11G13 BB 26D
From the 11 Line Series Collection
$876.00
$759.24
Selected Finish is
Selected Lever is
Selected Rose is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$876.00
$759.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent T-Zone Grade 1 Non-Keyed Cylindrical Lock with Exit Latch Function

Professional Grade 1 Cylindrical Lock Solution

The Sargent T-Zone 11 Line Series cylindrical lock delivers Grade 1 commercial performance with modular design flexibility. This non-keyed exit latch function lock accommodates door thickness from 1-3/4" to 2-1/2" with standard 2-3/4" backset and fits standard 161 door preparation. UL cycle testing verified performance at 7.6 million cycles, exceeding industry standards for demanding commercial applications with torque-resistant T-Zone construction.

Professional Features & Benefits

  • Heavy-Duty Durability: UL cycle testing completed at 7.6 million cycles (Verification ID: V584148) for exceptional longevity in high-traffic commercial environments.
  • Door Compatibility: Accommodates door thickness from 1-3/4" to 2-1/2" with standard 2-3/4" backset and fits standard 161 door preparation for versatile installation.
  • T-Zone Construction: Torque-resistant design prevents lock twisting and eliminates through bolts or surface screws for superior structural integrity.
  • Modular Design: Field-changeable functions and simple cylinder removal enable easy maintenance and reconfiguration without complete lock replacement.
  • Universal Key System Integration: Accepts SARGENT key systems including Degree® and Signature, plus SFIC and Schlage® and Medeco® LFIC for flexible facility management.
  • Grade 1 Certification: ANSI/BHMA A156.2 Series 4000 Grade 1 rated with UL-cUL fire rating up to 3 hours for code compliance and safety.
  • Sustainable Construction: Made from 68% post-consumer recycled content per LEED MR credit 4 requirements for green building initiatives.
  • Manufacturer Warranty: 10-year limited warranty provides long-term protection and confidence in commercial applications.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/4" to 2-1/2", standard 161 preparation, and 2-3/4" backset requirements.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for proper alignment.
  3. Prepare door by drilling required holes and routing as specified in manufacturer instructions for standard 161 preparation.
  4. Install all mounting hardware and secure the cylindrical lock to door per manufacturer torque specifications, ensuring proper T-Zone engagement.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Microshield® Anti-Microbial Option

Optional Microshield® coating supplements cleaning protocols for healthier environments by providing additional antimicrobial protection on high-touch lock surfaces for enhanced hygiene in healthcare and educational facilities.

Why Choose Sargent Quality?

Sargent T-Zone cylindrical locks deliver professional-grade reliability with torque-resistant construction rated for 7.6 million cycles in independent UL testing. The 10-year limited warranty and Grade 1 certification ensure dependable performance in demanding commercial applications. Engineered with sustainable materials containing 68% post-consumer recycled content and modular design for reduced maintenance costs and environmental responsibility.

Product Specs

Series:
11 Line Series
Grade:
Grade 1
Keyed Function:
Non-Keyed
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Subcategory:
Bored Locksets
Keyed:
No
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Lock Function:
Exit Only
Product Type:
Leversets
Duty Level:
Heavy Duty
Handle Type:
Lever
Product Attribute:
Cylindrical Locks
Product Function:
Exit
Door Hand Direction:
Non-Handed
Product Category:
Mechanical Locks
Collection:
11 Line Series
Department:
Door Hardware

Sargent 28-11G13 BB 26D – Frequently Asked Questions

1) What does the Sargent 11G13 exit latch function actually do on the door?
The 11G13 is an exit-only lock: the inside lever always retracts the latch to let people out, and there is no cylinder and no outside operation. It is non-keyed, so if you need key control from the corridor side this is the wrong function. Typical uses are stairwell discharge, mechanical rooms and back-of-house doors where free egress matters and entry is controlled elsewhere.
2) Will a Sargent 11 Line cylindrical lock fit a 2 inch thick door?
Yes. The 11 Line T-Zone bored lock covers door thickness from 1-3/4 inches up to 2-1/2 inches, so a 2 inch door is in range without a thick-door kit. Standard commercial doors at 1-3/4 inches are the low end of that range.
3) Is the Sargent 11G13 fire rated for a stairwell door?
Yes, the 11 Line carries a UL-cUL fire rating up to 3 hours and is ANSI/BHMA A156.2 Series 4000 Grade 1. That combination covers most rated openings in stairwells, corridors and tenant separations.
4) What is a Grade 1 alternative to the Sargent 11G13 exit latch lock if the opening really needs a passage function instead?
The Sargent 11G13 is a non-keyed cylindrical lever with an exit only function, so the lever retracts the latch from one side of the opening. If the door needs to operate from both sides, Grade 1 non-keyed passage options include the Falcon K101, a Grade 1 heavy duty passage cylindrical lock with non-handed levers and a 1-3/8 inch to 2-1/4 inch door thickness range, the Falcon T101 Grade 1 heavy duty passage lever, the Corbin Russwin CL3110 Grade 1 vandal resistant passage/closet lever for 1-3/4 inch to 2 inch doors, and the Dexter C1000 Grade 1 passage lever with clutching for 1-3/8 inch to 1-3/4 inch doors.
5) Will a dummy lever work in place of a Sargent 11G13?
No. The Sargent 11G13 is a cylindrical lock with an exit latch function, meaning it has a working latchbolt the lever retracts. A dummy trim has no latch at all and is pull-only. The BEST 9K Series 1DT Grade 1 heavy duty single dummy trim, the BEST 7KC Series Grade 2 single dummy trim, and the Accentra 455LN Augusta Grade 1 single dummy lever are all dummy function and would leave the door without a latching mechanism. Use one of those only on an inactive leaf or a door held closed by other means.
6) The Sargent 11G13 is non-keyed. What should I specify if the opening actually needs key control?
The Sargent 11G13 has no cylinder, so it cannot be keyed or tied into a masterkey system. For keyed cylindrical levers, the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors, the Hager 2580 is a Grade 2 storeroom lever with the Withnell lever for 1-3/8 inch to 2 inch doors, the Dexter C1000 classroom is a Grade 1 keyed clutching lever for 1-3/8 inch to 1-3/4 inch doors, and the Cal-Royal AG03 is a classroom lever in a 6-pin Schlage C keyway with a 2-3/4 inch backset.
7) Can I use the Sargent 11G13 on a thick door, and what else fits doors over 2 inches?
The Sargent 11G13 accommodates door thickness from 1-3/4 inch to 2-1/2 inch with standard 161 preparation, which covers most thick commercial doors in a single lock. Among comparable cylindrical levers, the Falcon K101 covers 1-3/8 inch to 2-1/4 inch, while the Corbin Russwin CL3110 and CL33903 are rated 1-3/4 inch to 2 inch and the Arrow GL01 1-3/4 inch to 2 inch. On doors thicker than those ranges, the 11G13 is the one that stays within its stated range.
8) Do I have to specify handing when ordering the Sargent 11G13?
No handing to call out. The lock is non-handed, so one part number works on left or right hand doors and you are not stuck with dead stock when a door swing changes. What you do have to choose is backset, strike, lever style, rose and finish.
9) How durable is the Sargent T-Zone lock in a high traffic building?
UL cycle testing on the T-Zone 11 Line was completed at 7.6 million cycles (verification ID V584148), which is why it gets specified on school corridors, hospital wings and high-rise stair doors. The T-Zone construction resists torque on the lever so the chassis does not twist in the door, and it mounts without through bolts or surface screws.
10) What lever, rose and finish combinations does the Sargent 11 Line come in?
Levers are B, J, L and P. Roses are B at 2-3/4 inches, O at 2-3/4 inches, L at 3-1/8 inches and E at 3-1/2 inches, so if you are covering scars from an older lock the larger E rose hides the most. Fourteen finishes run from 03 bright brass and 04 satin brass through 10B oil rubbed bronze, 26 bright chrome and 26D satin chrome, plus BSP black and WSP white suede powder coat for matching painted hardware across a property.
11) I need a keyed lock on the same doors, can the Sargent 11 Line be keyed later?
The 11G13 itself is non-keyed, but the 11 Line is modular with field-changeable functions and simple cylinder removal, so you can reconfigure rather than replace the whole lock. The line accepts SARGENT key systems including Degree and Signature, plus SFIC and Schlage and Medeco LFIC, which is what lets a facility keep one keyway across a mix of functions.
12) Is a Grade 2 lever lock good enough, or do I need Grade 1 like the Sargent 11 Line?
Grade 1 is the heavy duty commercial tier and is what gets specified for schools, hospitals and high-traffic public buildings; the Sargent 11 Line sits there with a 7.6 million cycle UL test behind it. For lighter interior traffic, offices and closets, a Grade 2 lever such as the Falcon B101 passage or the Hager 2510 passage is the usual step down. On a rated stair or corridor door, stay with Grade 1.
13) If Grade 1 is more than the door needs, what lighter-duty non-keyed lever can replace the Sargent 11G13?
The Sargent 11G13 is a Grade 1 heavy duty commercial cylindrical leverset. For lower-traffic openings, Grade 2 non-keyed levers include the Falcon B101 medium duty passage lever with a non-handed design, the Accentra 5301LN Augusta Grade 2 passage/closet lever, the Arrow GL01 Grade 2 passage lever with Sierra lever for 1-3/4 inch to 2 inch doors, and the Hager 2510 Grade 2 passage lever with Withnell design for 1-3/8 inch to 2 inch doors. All are passage rather than exit function, so confirm the door does not need one-sided operation.
14) What is the difference between the Sargent 11G13 and an electrified cylindrical lever like the Corbin Russwin CL33903?
The Sargent 11G13 is a mechanical non-keyed cylindrical leverset with exit latch function and no electrical component. The Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever operating on 12VAC/DC for 1-3/4 inch to 2 inch doors, which requires power transfer to the door and ties into an access control system. Choose the CL33903 when the opening must unlock on signal or loss of power; choose the 11G13 when the opening is mechanically egress-only.
15) Is a residential-grade lever like the Kwikset 200BRNL an acceptable substitute for the Sargent 11G13?
Not for a commercial opening. The Sargent 11G13 is a Grade 1 heavy duty lock specified for commercial use. The Kwikset 200BRNL Breton is a Grade 3 passage lever for 1-3/8 inch to 1-3/4 inch doors, and the Callan Asheville is a Grade 3 passage leverset. Those suit interior residential hall and closet doors rather than high-traffic commercial doors, and they will not meet a Grade 1 line on a hardware schedule.
16) I need a knob instead of a lever for the same kind of opening as the Sargent 11G13. What are the options?
The Sargent 11G13 is a lever-handled cylindrical lock and is not offered with knob trim. Knob-style cylindrical locks in the comparable range include the Arrow MK02-TA Grade 2 privacy lock with a Tudor knob for 1-3/4 inch to 2 inch doors, the Arrow MK33-BD-CS heavy duty asylum lock with a ball knob and conventional cylinder in the Schlage C keyway, and the Arrow HK11-BB entrance lock with ball knob for 1-3/8 inch to 1-3/4 inch doors. Note that levers are generally preferred where ADA operable-hardware requirements apply.
17) What should I use instead of the Sargent 11G13 on an institutional door that needs to be secured from both sides?
The Sargent 11G13 is exit only, so it always allows free egress from the inside. Where a room must be controlled from both faces, asylum or institutional function locks are the substitute: the Dexter C1000 Grade 1 asylum lock (F87) covers 1-3/8 inch to 2 inch doors, and the Arrow MK33-BD-CS is a heavy duty asylum function lock with a conventional cylinder in the Schlage C keyway. Verify local egress code before specifying either on an occupied space.
18) Does the Sargent 11 Line help with LEED or healthcare infection control requirements?
Two things apply. The lock is made from 68 percent post-consumer recycled content per LEED MR credit 4, which procurement teams use on green building submittals. There is also an optional Microshield antimicrobial coating on the high-touch lock surfaces, which is why it shows up in healthcare and school specs alongside cleaning protocols.
