Sargent 11U93 T-Zone Single Du...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$347.00
$201.75
SGT-11U93

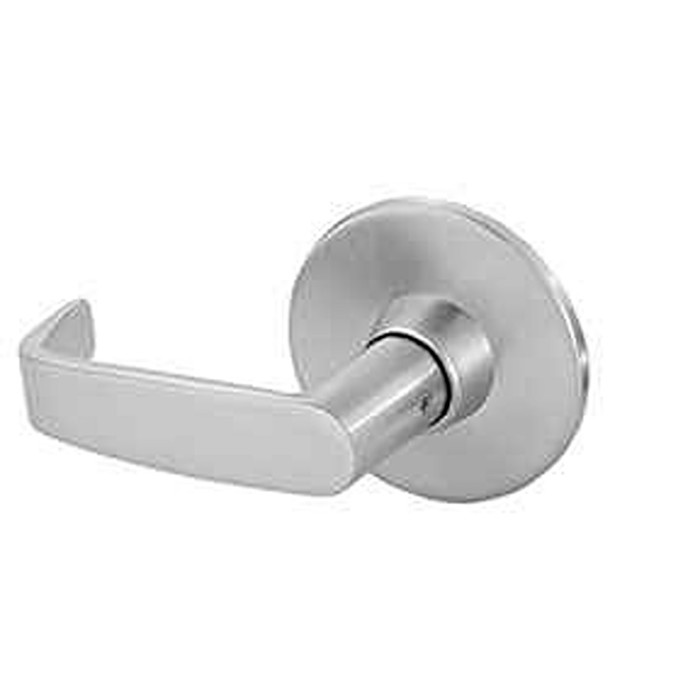

Sargent 11U93 T-Zone Single Dummy Trim Cylindrical Lever with Grade 1 Construction

(No reviews yet) Write a Review

Model: 11U93 LB 26D
From the 11 Line Series Collection
$347.00
$201.75
Selected Finish is
Selected Lever is
Selected Roses is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$347.00
$201.75
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent T-Zone 11 Line Single Dummy Cylindrical Lever with Grade 1 Construction

Professional Grade 1 Cylindrical Lever Hardware Solution

The Sargent T-Zone 11 Line Series Single Dummy Cylindrical Lever delivers professional-grade performance with Grade 1 construction rated for 7.6 million cycles. This non-handed cylindrical lever features modular design for easy field function changes and fits standard 161 door prep with 1 3/4" to 2 1/2" door thickness compatibility. The T-Zone construction prevents lock twisting while accommodating 2 3/4" to 5" backset depths for versatile installation requirements.

Professional Features & Benefits

  • Heavy-Duty Durability: UL verified cycle testing completed at 7.6 million cycles for exceptional longevity in high-traffic commercial applications.
  • Door Compatibility: Accommodates 1 3/4" to 2 1/2" door thickness with 2 3/4" to 5" backset range for versatile installation options.
  • Grade 1 Certification: ANSI/BHMA A156.2 Series 4000 Grade 1 rated with UL-cUL fire rating up to 3 hours for code compliance and safety.
  • T-Zone Construction: Torque-resistant design with no through bolts or surface screws prevents improper installation and lock twisting for enhanced security.
  • Modular Design: Field-changeable functions and simple cylinder removal provide operational flexibility and reduced maintenance requirements.
  • Universal Key System Integration: Accepts SARGENT key systems including Degree and Signature, plus SFIC and Schlage and Medeco LFIC for seamless facility integration.
  • Sustainable Construction: Made from 68% post-consumer recycled content per LEED MR credit 4 requirements for green building initiatives.
  • Manufacturer Warranty: 10-year limited warranty provides long-term protection and confidence in product reliability.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness (1 3/4" to 2 1/2"), backset depth (2 3/4" to 5"), and standard 161 door prep compatibility.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for proper alignment.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for the selected backset configuration.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications without through bolts or surface screws.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion with 1/2" latchbolt throw.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent T-Zone 11 Line Series products deliver professional-grade reliability with torque-resistant construction rated for 7.6 million cycles through independent UL verification. The 10-year limited warranty and Grade 1 certification ensure dependable performance in demanding commercial applications where reliability is essential.

Product Specs

Series:
11 Line Series
Grade:
Grade 1
Keyed Function:
Non-Keyed
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Subcategory:
Bored Locksets
Keyed:
No
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Dummy
Duty Level:
Heavy Duty
Product Attribute:
Cylindrical Locks
Product Function:
Dummy
Door Hand Direction:
Non-Handed
Product Category:
Mechanical Locks
Collection:
11 Line Series
Department:
Door Hardware

Sargent 11U93 LB 26D – Frequently Asked Questions

1) Does the Sargent 11U93 dummy lever actually latch, or is it just a pull?
It is trim only. The 11U93 is a single dummy, non-keyed, with no latch and no moving mechanism, so the lever is fixed and used as a pull on the active or inactive leaf. If you need the door to stay closed you need a passage or privacy function instead, not this one.
2) Do I need to drill a special prep for the Sargent 11U93, or does it drop into an existing 161 bore?
It mounts to standard 161 door prep, so a door already bored for a cylindrical lockset takes it. Backset accommodation runs 2-3/4 inches to 5 inches, which covers both the usual 2-3/4 inch commercial backset and wide-stile openings. T-Zone mounting uses no through bolts or surface screws.
3) Can I match Sargent 11U93 dummy trim to the working locks on the rest of my doors?
That is the point of it. It is 11 Line Series trim offered in B, J, L and P levers and B, E, L and O roses, so you specify the same lever and rose as the functioning 11 Line locks elsewhere in the building and the openings look identical. Fourteen finishes are available, from 26D satin chrome and 10B oil rubbed bronze through BSP black and WSP white suede powder coat.
4) What is the closest Grade 1 equivalent to the Sargent 11U93 single dummy lever from another manufacturer?
The BEST 9K Series 1DT is the closest match: it is a single dummy trim cylindrical lever lock, non-keyed, Grade 1, heavy duty - the same function and grade class as the Sargent 11U93, which is a Grade 1 non-keyed dummy cylindrical lever. The Accentra 455LN Augusta from the 5400 Series is another Grade 1 heavy duty single dummy cylindrical lever. Choose on the lever and rose style your facility already standardizes on; the Sargent 11U93 is offered with B, J, L and P levers.
5) The door actually needs to latch - what should I order instead of the 11U93 dummy?
A dummy lever like the Sargent 11U93 has no latch and no keyed function, so it will not hold a door closed. For a latching non-keyed opening, the Falcon K101 is a Grade 1 heavy duty passage cylindrical lock with a fire rating, and the Corbin Russwin CL3110 is a Grade 1 vandal-resistant passage/closet lever, also fire rated, for 1-3/4 inch to 2 inch doors. The Dexter C1000 passage is a Grade 1 clutching passage lever for 1-3/8 inch to 1-3/4 inch doors.
6) Which dummy levers look like substitutes for the Sargent 11U93 but are not?
Two kinds. The Baldwin Estate 5103 half dummy is sold as a handed part - a left hand (5103-LDM) and a right hand (5103-RDM) version - while the Sargent 11U93 is non-handed, so one Sargent part covers either swing. The Emtek Arts and Crafts and Cortina dummies are sold as pairs, meaning trim for both faces of the door, not the single-side trim the 11U93 provides. Confirm handing and single versus pair before cross-referencing.
7) My door is thicker than 2 inches - which comparable dummy or lever options fit?
The Sargent 11U93 covers 1-3/4 inch through 2-1/2 inch door thickness, which is the widest range in this group. The Falcon K101 Grade 1 passage lever goes to 2-1/4 inch. Most others stop earlier: the Corbin Russwin CL3110 lists 1-3/4 inch to 2 inch, the Hager 2510 passage lists 1-3/8 inch to 2 inch, and the Design Hardware X75 Grade 1 passage is 1-3/4 inch only. For a thick door, stay with the Sargent 11 Line.
8) Is the Sargent 11U93 handed? I have both left and right swing doors in the building.
Non-handed, so one part number works on either swing and you can stock a single item for the whole property. That is a difference from something like the Baldwin Estate 5103 half dummy, which is ordered as a specific left hand or right hand part.
9) What rose diameters does the Sargent 11 Line dummy come in, and which one covers an old bore?
Four rose options: B at 2-3/4 inches, O at 2-3/4 inches, L at 3-1/8 inches, and E at 3-1/2 inches. If you are covering a worn or oversized prep from previous hardware, the E rose at 3-1/2 inches gives the most coverage.
10) Is a Grade 1 dummy lever overkill, or does the rating matter on a non-latching door?
On dummy trim the grade shows up as material and mounting strength, not cycle life of a latch. The 11 Line carries ANSI/BHMA A156.2 Series 4000 Grade 1 and heavy duty classification, and the T-Zone torque-resistant mounting resists a lever being pulled or twisted, which is what fails on abused dummy pulls in schools and healthcare corridors. In lower-traffic interior work a Grade 2 dummy like the BEST 7KC 1DT is the lighter alternative.
11) Can the Sargent 11U93 be keyed or converted to a working lock later?
No cylinder goes in it. The 11U93 ships as a non-keyed dummy with no keyed function. The 11 Line itself is modular with field-changeable functions and accepts SARGENT Degree and Signature key systems, SFIC, and Schlage and Medeco LFIC, but that applies to the keyed chassis functions in the line, not to dummy trim. If the opening may later need keyed control, order a keyed 11 Line function now.
12) Is this the right pull for the inactive leaf of a pair of doors?
Yes, that is the usual application. Single dummy trim mounts on one face only and gives a fixed lever pull on an inactive leaf, a closet slab, or a door held by a separate latch or magnet. For a through-door application with a pull on both faces you need two units or a dummy pair, like the Emtek Cortina dummy pair.
13) If I need a keyed lever to match the 11U93 dummy trim on adjacent doors, what functions are available in Grade 1?
The Sargent 11U93 is non-keyed dummy trim only. For keyed Grade 1 openings in the same run, the Dexter C1000 Series covers classroom, classroom security and asylum functions, and the Corbin Russwin CL33903 is a Grade 1 electrified fail safe lever available in 12VAC/DC for 1-3/4 inch to 2 inch doors. Keyed Grade 2 options include the Cal-Royal AG05 storeroom and the Hager 2580 storeroom with Withnell lever.
14) Does the Sargent 11 Line count toward LEED credits?
The 11 Line is made with 68 percent post-consumer recycled content per LEED MR credit 4, which is the figure a sustainability-focused spec or a green distributor will ask for.
15) For a residential or light-commercial interior door, is there a simpler alternative to the Sargent 11U93?
Yes. The Sargent 11U93 is a commercial Grade 1 heavy duty part. For light interior use, the Kwikset 200BRNL Breton passage lever is Grade 3 for 1-3/8 inch to 1-3/4 inch doors, the Callan Asheville AH5011 is a Grade 3 passage leverset, and the Bravura Atlanta BV333002 is a Grade 2 passage leverset with round trim. Note these are latching passage sets rather than fixed dummy trim.
