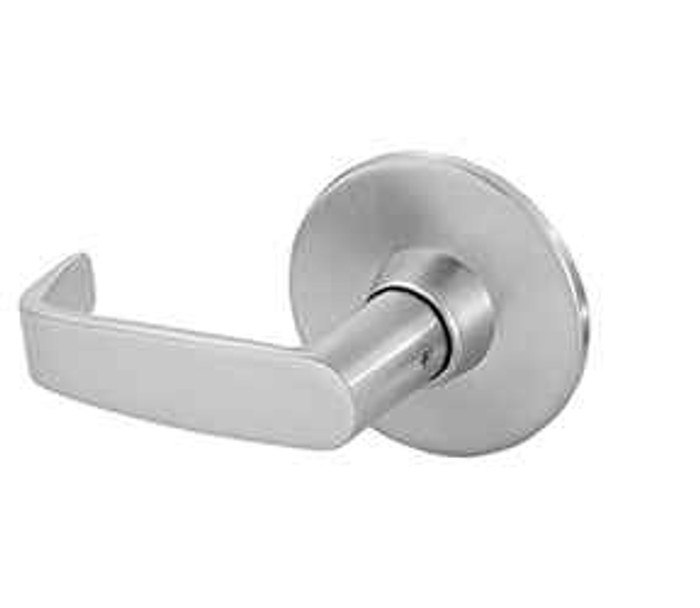

Sargent 10XU93 Single Dummy Trim Heavy Duty Grade 1 Cylindrical Lock

(No reviews yet) Write a Review

Model: 10XU93 LB 26D
From the 10X Line Series Collection
$296.00
$183.78
Selected Finish is
Selected Lever is
Selected Roses is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$296.00
$183.78
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 10X Line Single Dummy Trim Grade 1 Heavy Duty Cylindrical Lock

Ultra-Heavy Duty Cylindrical Lock for High-Traffic Commercial Applications

The Sargent 10X Line Single Dummy Trim Cylindrical Lock delivers exceptional security and durability for demanding commercial environments. This Grade 1 heavy-duty lock exceeds ANSI/BHMA performance standards by up to 20 times, withstanding over 3,100 in-lb locked lever torque and 1,600 lbs offset lever pull. Engineered with a 2 3/4" standard backset and accommodating door thickness from 1 3/8" to 2", this non-handed lock provides reliable performance throughout its entire lifecycle with UL testing completed at 20 million cycles.

Professional Features & Benefits

  • Extreme Durability Testing: Tested to 20 million cycles (UL Verification ID: V584148) for unmatched longevity in high-abuse applications.
  • Superior Security Performance: Prevents entry against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA requirements) and 1,600 lbs offset lever pull (8x ANSI/BHMA requirements).
  • Heavy-Duty Construction: Grade 1 rated lockbody design supports all cylinder formats from fixed to interchangeable core and integrates with all SARGENT Key Systems.
  • Flexible Door Compatibility: Accommodates door thickness from 1 3/8" to 2" with backset options from 2 3/8" to 5" maximum for versatile installation requirements.
  • Enhanced Operational Reliability: Ensures latch retraction with 100 lb preload (2x ANSI/BHMA requirements) while maintaining operation in warped doors or doors with latch bind.
  • EcoFlex Technology: Available electromechanical functions provide up to 92% energy savings for sustainable electrified door openings and access control integration.
  • Comprehensive Certifications: UL-cUL Fire-Rated up to 3 hours, Florida Building Code approved, ADA compliant, and windstorm certified for code compliance assurance.
  • Manufacturer Warranty: 10-year limited warranty with 2-year coverage for electrical components provides long-term protection and confidence.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness (1 3/8" to 2"), backset depth (2 3/8" to 5"), and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent 10X Line cylindrical locks deliver professional-grade reliability with Grade 1 construction rated for 20 million cycles and tested to exceed ANSI/BHMA standards by up to 20 times. The comprehensive 10-year limited warranty with 2-year electrical component coverage provides added confidence and protection. Engineered for demanding commercial applications where dependable performance and maximum vandalism resistance are essential.

Product Specs

Series:
10X Line Series
Grade:
Grade 1
Keyed Function:
Non-Keyed
Subcategory:
Bored Locksets
Keyed:
No
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Lock Function:
Dummy
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Duty Level:
Heavy Duty
Handle Type:
Lever
Product Attribute:
Cylindrical Locks
Product Function:
Dummy
Door Hand Direction:
Non-Handed
Product Category:
Mechanical Locks
Collection:
10X Line Series
Department:
Door Hardware

Sargent 10XU93 LB 26D – Frequently Asked Questions

1) Does the Sargent 10XU93 dummy lever actually latch, or is it just a pull?
It is trim only. The 10XU93 is a single dummy, non-keyed, with no latch and no moving lockbody, so the lever is rigid and used as a pull on an inactive leaf, a closet door, or the inactive half of a pair. If you need a door that latches but never locks, you want a passage function instead.
2) What door thickness does the Sargent 10X Line cylindrical lock cover?
The 10X Line covers doors from 1-3/8 inches up to 2 inches, which takes in standard 1-3/4 inch commercial doors as well as older 1-3/8 inch interior leaves and thicker custom doors.
3) Do I need to specify handing when ordering a Sargent 10XU93 dummy trim?
No handing to call out. The 10X Line is non-handed, so one part number works on a left or right hand door. What you do have to specify is the lever style (B, L or P), the rose (G or L), and the finish.
4) Will a 10XU93 dummy match the other Sargent 10X locks already on my building's doors?
That is exactly what it is for. The dummy trim uses the same 10X Line lever designs (B, L and P) and rose options (G and L) as the keyed and non-keyed functions in the line, so the inactive leaf or closet door reads identically to the working openings. Order the same lever, rose and finish code you used elsewhere and the trim matches across the fleet.
5) Is the Sargent 10X Line rated for a fire door?
The 10X Line is UL-cUL fire rated up to 3 hours, and is also ADA compliant, Florida Building Code approved and windstorm certified. On a labeled opening remember that a dummy trim carries no latch, so the latching hardware on that leaf has to come from elsewhere (flush bolts or a fire exit device) to keep the assembly compliant.
6) Our doors are 1-3/8 inch - which levers fit besides the Sargent 10XU93?
The Sargent 10XU93 accommodates door thickness from 1-3/8 inch to 2 inch. Among alternates that also start at 1-3/8 inch, the Falcon K101 Grade 1 passage covers 1-3/8 inch to 2-1/4 inch, the Dexter C1000 asylum covers 1-3/8 inch to 2 inch, and the Hager 2510 Grade 2 passage covers 1-3/8 inch to 2 inch. The Arrow GL01 and Corbin Russwin CL3110 start at 1-3/4 inch, so they will not suit a 1-3/8 inch door.
7) Can I use the Sargent 10XU93 where the door needs to lock?
No - it is a non-keyed dummy, with no cylinder and no latch. For keyed commercial functions, the Cal-Royal AG05 is a Grade 2 storeroom lever and the Hager 2580 is a Grade 2 storeroom lever with the Withnell design; the Dexter C1000 classroom and classroom security are Grade 1 keyed clutching levers. For privacy without a key, the Hager 2540 and the Baldwin Estate 5103 privacy cover bed and bath openings.
8) Is Grade 1 overkill for a dummy trim on a high traffic door?
Not in an abuse-prone opening. The 10X Line lockbody is Grade 1 heavy duty and the line is UL tested to 20 million cycles, with the lever trim built to take over 3,100 in-lb of locked lever torque and 1,600 lbs of offset lever pull. On a school, dorm or hospital corridor where people hang off the lever, that trim strength is the whole reason to buy a dummy at this grade rather than a residential one.
9) What is a good alternative to the Sargent 10XU93 if I want a Grade 1 single dummy from another brand?
The BEST 9K Series 1DT is the closest peer we carry: Grade 1, heavy duty, single dummy trim, non-keyed cylindrical lever. The Accentra 455LN Augusta is another Grade 1 heavy duty single dummy cylindrical lever. If your opening does not need Grade 1, the BEST 7KC Series 1DT is the Grade 2 medium duty single dummy of the same configuration.
10) I need a dummy lever on both sides of a door. Is the Sargent 10XU93 the right part?
No. The 10XU93 is single dummy trim, meaning one lever on one face. For two faces you either order two of them or go to a pair-configured product such as the Emtek Classic Cortina dummy, which is sold as a pair. Note the Emtek is a decorative brass leverset rather than a Grade 1 commercial trim, so for a commercial corridor ordering two 10XU93 units keeps the look and the duty level consistent.
11) Can the Sargent 10X Line take an interchangeable core or work with my existing Sargent key system?
The 10X lockbody supports every cylinder format from fixed to interchangeable core and integrates with all Sargent key systems. That applies to the keyed functions in the line. The 10XU93 itself is non-keyed dummy trim and has no cylinder, so if you need a keyed opening you order a keyed 10X function and pull the cylinder format from the same key system.
12) Is there a lighter duty dummy lever if the opening does not need Grade 1?
Yes. The BEST 7KC Series single dummy trim is a Grade 2 medium duty non-keyed dummy cylindrical lever, and the Callan Bentley BN5051 is a Grade 2 dummy lever. The Sargent 10XU93 is Grade 1 heavy duty, which is what you want on high-traffic commercial openings; a closet or low-cycle office door often does not need that level.
13) I need dummy trim on both sides of a pair of doors - does the 10XU93 cover that?
The Sargent 10XU93 is single dummy trim, so it covers one face of one door; for both faces you would order two. If you prefer a factory pair, Emtek sells dummy leversets as pairs, including the Arts and Crafts lever and the Cortina lever from the Classic Brass line. Baldwin takes a different approach again with the Estate 5103 half dummy offered as handed left and right versions.
14) Which dummy levers are handed, and does that matter next to the Sargent 10XU93?
It matters at ordering time. The Sargent 10XU93 is non-handed, so one part number works on either face regardless of door swing. The Baldwin Estate 5103 half dummy is sold as separate left hand and right hand items, which means you have to determine the hand before you order. If you are buying dummy trim in quantity for a mixed-swing building, the non-handed approach keeps it to one SKU.
15) What is the practical difference between the Sargent 10XU93 and the Accentra 455LN Augusta?
Both are Grade 1 single dummy cylindrical levers, so the function and grade line up. The difference is the trim program: the Sargent 10XU93 comes in B, L and P lever styles with G or L rose, across fourteen finishes including 26D satin chrome, 10B oil rubbed bronze and BSP black suede powder coat. The Accentra 455LN carries the Augusta lever design from the 5400 Series. Pick on which lever profile matches the rest of the openings.
16) Will a Kwikset or Callan lever work as a substitute for the Sargent 10XU93 in a commercial building?
They are built to a different standard. The Sargent 10XU93 is Grade 1 heavy duty commercial. The Kwikset 200BRNL Breton passage and the Callan Asheville AH5011 passage are Grade 3, and the Callan Bentley BN5051 dummy is Grade 2. For a high-traffic commercial corridor the Grade 1 dummy options - Sargent 10XU93, BEST 9K 1DT or Accentra 455LN - are the closer match to the spec.
17) Can the Sargent 10XU93 be used as exit device trim?
No. The 10XU93 is dummy trim for a bored lock prep and does not attach to an exit device. For pushpad exit device trim, the Corbin Russwin 585F715 is a Grade 1 lock lever built for the ED8000 pushpad exit device and the CL3300 cylindrical line, for doors 1-3/4 inch to 2 inch. The Imperial USA ED-EL500HD is a heavy duty escutcheon lever trim in an entry function from the ED-500 Series.
18) What should I look at instead of the Sargent 10XU93 for a keyless code-entry opening?
A dummy lever has no latch or credential at all, so it cannot serve a code-entry opening. Standalone keypad levers in that role include the Lockey 1150 heavy duty mechanical keypad lever set with double combination, which fits doors 1-1/8 inch to 2 inch, the Delaney LP250 Grade 2 electronic keypad leverlock, and the Emtek Classic keypad leverset.
19) What finishes can I get the Sargent 10X dummy lever in?
Fourteen finishes: 03 bright brass, 04 satin brass, 09 bright bronze, 10 satin bronze, 10B oil rubbed dark oxidized satin bronze, 10BE, 10BL, 14 bright nickel, 15 satin nickel, 20D dark statuary bronze, 26 bright chrome, 26D satin chrome, plus BSP black suede and WSP white suede powder coats. 26D and 10B are the usual commercial picks; the two powder coats are the option when you need a flat painted look rather than plated.
20) If I need an access controlled version instead of a dummy, does the Sargent 10X Line offer one?
Yes, the 10X Line includes electromechanical functions with Sargent EcoFlex technology, rated for up to 92 percent energy savings on electrified openings, and Sargent publishes a separate installation instruction for the 10X Line electrified bored lock. If you want an electrified cylindrical lever from another brand, the Corbin Russwin CL33903 is a Grade 1 fail safe electrified lever available in 12VAC/DC for 1-3/4 to 2 inch doors.
21) Is a knob version available if the Sargent 10XU93 lever does not suit the opening?
The Sargent 10XU93 is a lever trim. If a knob is required, the Arrow RL Series HK11-BB uses a ball knob in an entrance function, the Arrow MK02-TA uses a Tudor knob in a privacy function, and the Arrow MK33-BD-CS uses a ball knob in an asylum function. Note that lever hardware is the route to ADA compliance, which the Sargent 10X Line carries.
