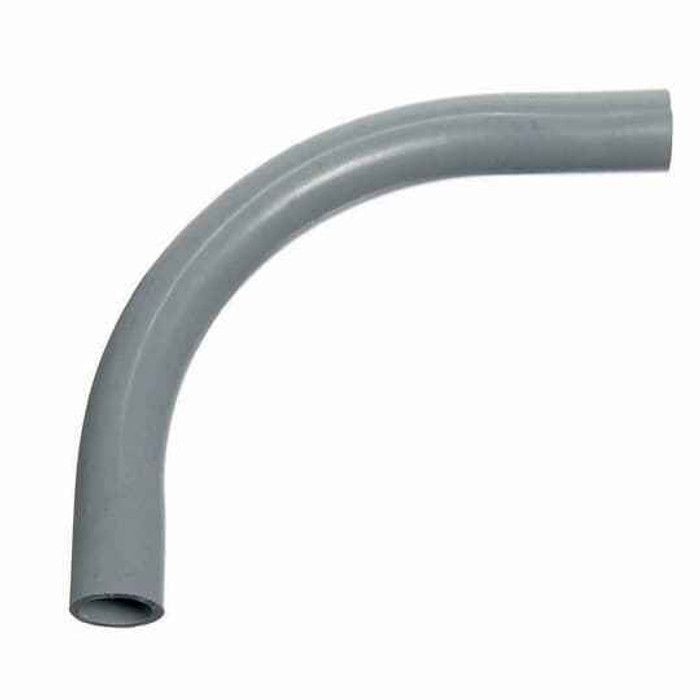

Carlon 1-1/4 Inch Gray PVC Schedule 80 Non-Metallic Conduit 90 Degree Elbow

Carlon 1-1/4 Inch Gray PVC Schedule 80 Non-Metallic Conduit 90 Degree Elbow

Heavy-Duty Schedule 80 Conduit Fitting for Professional Electrical Installations

The Carlon 1-1/4 Inch Schedule 80 PVC Elbow delivers professional-grade conduit fitting performance for heavy-duty electrical applications. This gray PVC 90-degree elbow features Schedule 80 wall thickness designed for electrical contractors and installers, providing the reliable performance and UL Listed safety that electrical professionals demand for underground and direct burial installations.

Professional Features & Benefits

Heavy-Duty Construction

• Schedule 80 Wall Thickness - Superior strength and durability for demanding electrical applications and underground installations
• 1.66 Inch Outside Diameter - Precise dimensional accuracy ensures proper fit with Schedule 80 conduit systems
• 90-Degree Angle Configuration - Perfect right-angle turns for professional conduit routing and wire protection
• Gray PVC Construction - Industry-standard color coding for Schedule 80 non-metallic conduit systems

Safety & Compliance

• UL Listed E323335 - Certified safety and performance for electrical conduit applications
• Code Compliant Installation - Meets NEC requirements for rigid non-metallic conduit systems
• Non-Metallic Design - Eliminates corrosion concerns and provides electrical isolation

Technical Specifications

Nominal Size: 1-1/4 inch, Outside Diameter: 1.66 inches, Material: Schedule 80 PVC, Color: Gray, Configuration: 90-degree elbow, UL Listed: E323335, Compliance: NEC approved for rigid non-metallic conduit systems, Selling Unit: Each

Installation Process

1. Measure and cut Schedule 80 conduit to required lengths ensuring square, clean cuts for proper fitting engagement
2. Test fit the elbow with conduit sections to verify proper alignment and positioning before applying solvent cement
3. Clean both the conduit end and elbow socket thoroughly to remove debris and ensure optimal bonding surface
4. Apply PVC solvent cement evenly to both surfaces following manufacturer specifications for Schedule 80 fittings
5. Insert conduit fully into elbow socket with slight twisting motion, holding firmly for 30 seconds to ensure proper bond
6. Allow adequate cure time before pulling wires or energizing the electrical system for maximum joint strength

Professional Applications

Ideal for:

• Underground Electrical Systems - Direct burial applications requiring heavy-duty conduit protection
• Industrial Electrical Installations - Manufacturing facilities and commercial buildings with demanding electrical requirements
• Outdoor Electrical Routing - Weather-resistant conduit systems for exterior electrical distribution
• High-Traffic Areas - Locations requiring superior mechanical protection for electrical wiring
• Concrete Encased Systems - Conduit installations within concrete structures and foundations
• Corrosive Environment Protection - Chemical plants and facilities where metal conduit would deteriorate
• Electrical Service Entrances - Heavy-duty conduit routing for main electrical service connections
• Motor Control Centers - Industrial electrical distribution requiring Schedule 80 conduit protection

Schedule 80 PVC Advantage

Carlon Schedule 80 PVC elbows provide superior wall thickness compared to Schedule 40 fittings, making them ideal for applications requiring maximum mechanical protection and durability. The heavy-duty construction resists impact damage, provides excellent chemical resistance, and maintains dimensional stability under temperature variations, ensuring long-term reliability in demanding electrical installations.

Why Choose Carlon Quality?

Carlon demonstrates unwavering commitment to UL Listed safety standards and reliable performance in Schedule 80 conduit systems. Our precision-manufactured PVC elbows ensure code compliance and professional installation results, providing electrical contractors with the heavy-duty conduit fittings necessary for demanding commercial and industrial electrical applications.
