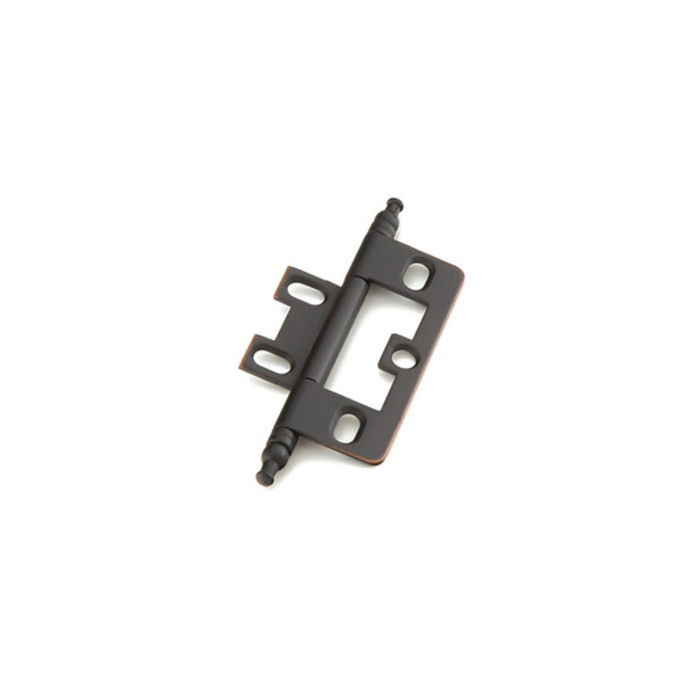

Schaub 1100M Solid Brass Minaret Tip Non-Mortise Cabinet Hinge, 3-5/8" Overall

Schaub 1100M Solid Brass Minaret Tip Non-Mortise Cabinet Hinge, 3-5/8" Overall

(No reviews yet) Write a Review

Model: 1100M-03
From the Hinges Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$26.00
$15.15
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schaub Solid Brass Minaret Tip Non-Mortise Cabinet Hinge, 3-5/8" Overall

Schaub's Solid Brass Minaret Tip Non-Mortise Cabinet Hinge brings traditional-style detailing to fine cabinetry with a decorative minaret finial tip. Crafted from solid brass for lasting durability, this non-mortise hinge measures 3-5/8" overall with a 2-1/2" base dimension and a slim 1/16" projection, allowing it to mount to the face of the cabinet door and frame without routing or mortising. Part of Schaub's traditional Hinges collection, it is designed to complement classic cabinetry throughout the home with authentic period-inspired styling.

Key Features

  • Overall Length: Measures 3-5/8" overall for proper fit on standard cabinet doors and face frames.
  • Base Dimension: 2-1/2" base dimension provides a substantial, traditional profile at the hinge barrel.
  • Low-Profile Projection: Slim 1/16" projection keeps the hinge close to the cabinet surface for a refined, tailored look.
  • Solid Brass Construction: Made from solid brass for exceptional durability and long-lasting performance in daily use.
  • Non-Mortise Design: Surface-mount, non-mortise installation eliminates the need for routing or mortising the door and frame, simplifying installation.
  • Minaret Tip Detailing: Decorative minaret finial tip adds authentic traditional styling to cabinet doors and face frames.
  • Traditional Style: Part of Schaub's Hinges collection, engineered to complement classic and traditional cabinetry designs.
  • Hinge Function: Purpose-built hinge function designed specifically for cabinet door applications.

Technical Specifications

  • Subcategory: Cabinet Backplates
  • Product Type: Cabinet Backplates
  • Product Group: Cabinet Hardware
  • Product Subgroup: Cabinet Backplates
  • Commercial/Residential: Residential
  • MAP Policy: Yes
  • Overall: 3-5/8"
  • Product Dimension: 2-1/2"
  • Product Projection: 1/16"
  • Product Category: Cabinet Hardware
  • Department: Door Hardware

Typical Applications

  • Kitchen Cabinetry
  • Bathroom Vanities
  • Traditional and Period-Style Homes
  • Custom Cabinetry Projects
  • Residential Furniture
  • Cabinet Door and Face Frame Installations
  • Home Renovation and Remodeling Projects

Why Schaub Hinges?

Schaub cabinet hinges are crafted from solid brass for enduring quality and authentic traditional styling. This non-mortise minaret tip hinge delivers reliable, surface-mount installation with the decorative detailing expected from Schaub's Hinges collection, making it a fitting choice for residential cabinetry projects that call for classic, period-inspired design throughout the kitchen, bath, or beyond.

Manufacturer Resources

Schaub Product Catalog

Product Specs

Subcategory:
Cabinet Backplates
Collection:
Hinges
Product Type:
Cabinet Backplates
Product Group:
Cabinet Hardware
Product Subgroup:
Cabinet Backplates
Commercial/Residential:
Residential
MAP Policy:
Yes
Overall:
3-5/8"
Product Function:
Hinge
Product Dimension:
2-1/2"
Product Projection:
1/16"
Product Style:
Traditional
Product Material:
Solid Brass
Product Category:
Cabinet Hardware
Department:
Door Hardware

Schaub 1100M-03 – Frequently Asked Questions

1) Do the Schaub 1100M cabinet hinges require mortising the door and frame?
No mortising. The 1100M Minaret Tip hinge is a non-mortise design, so the leaves sit on the face of the door and the cabinet frame without chiseling a recess for either leaf. The tradeoff is that the hinge stands proud, with a 1/16 inch projection, which sets the door out that much from the frame. For a refacing job on existing face frame cabinets, that is the whole point: you can hang doors without routing anything.
2) Will a non-mortise hinge change how far my cabinet doors sit off the frame?
Yes, by 1/16 inch. Both leaves of the 1100M sit on the surface rather than in a recess, so the barrel thickness pushes the door out that much. On an inset door that means checking your reveal, and on a run where you are swapping only some hinges it means the retrofitted doors will stand slightly proud of the ones still on mortised or concealed hardware. Change the hinges across a whole run so the doors line up.
3) What finishes do the Schaub 1100M Minaret Tip hinges come in?
Twelve finishes: Polished Brass, Antique Brass, Antique Light Brass, Polished Nickel, Satin Nickel, Antique Nickel, Distressed Nickel, Polished Chrome, Oil Rubbed Bronze, Distressed Bronze, Michelangelo Bronze, and Flat Black. Because Schaub runs the same finish range across its Hinges collection and its pulls and knobs, you can match the hinge to the rest of the cabinet hardware in the same room rather than settling for a close approximation.
4) Are Schaub 1100M hinges solid brass or plated steel?
Solid brass throughout the base material, not plated steel. That matters for two reasons on cabinetry: brass will not rust in a kitchen or bath where humidity swings, and a solid brass body takes the living finishes (antique brass, distressed bronze) in a way that plated steel does not, so wear points age rather than flake down to bare metal.
5) Can I use Schaub 1100M hinges on commercial cabinetry in an office or clinic?
These are specified for residential use. A property manager doing apartment kitchens or a builder on single family and multi-family units is on target. For a high-traffic commercial casework application (a nurses station, a school casework run, a hotel back of house), look instead at a commercial-duty institutional cabinet hinge rather than a decorative solid brass non-mortise hinge.
6) Should I use a non-mortise hinge like the Schaub 1100M or a concealed European cup hinge?
They solve different problems. The 1100M is an exposed decorative hinge for traditional face frame cabinets, where the minaret tip barrel is meant to be seen and matched to the rest of the hardware. A concealed cup hinge hides completely inside the door, offers adjustment in three directions after hanging, and needs a 35mm bore drilled in the back of every door. If the look is the point and you do not want to bore doors, the non-mortise hinge is right. If you want invisible hardware and post-install adjustability, it is not.
7) Are the Schaub 1100M hinges handed, or does one part work on both left and right doors?
Nothing in the Schaub 1100M specification separates a left hand from a right hand version. What you do need to decide before ordering is quantity and finish: hinges are sold to hang a door, so count two or three per door depending on door height and weight, and pick one of the twelve finishes to carry across the whole run.
8) Do Schaub 1100M cabinet hinges come with a Proposition 65 warning for California?
Schaub publishes a Proposition 65 warning for this product through its product stewardship notice, which is standard for solid brass hardware sold into California. If you are a contractor or procurement buyer who has to document that disclosure for a California project, the warning is on record from the manufacturer.
