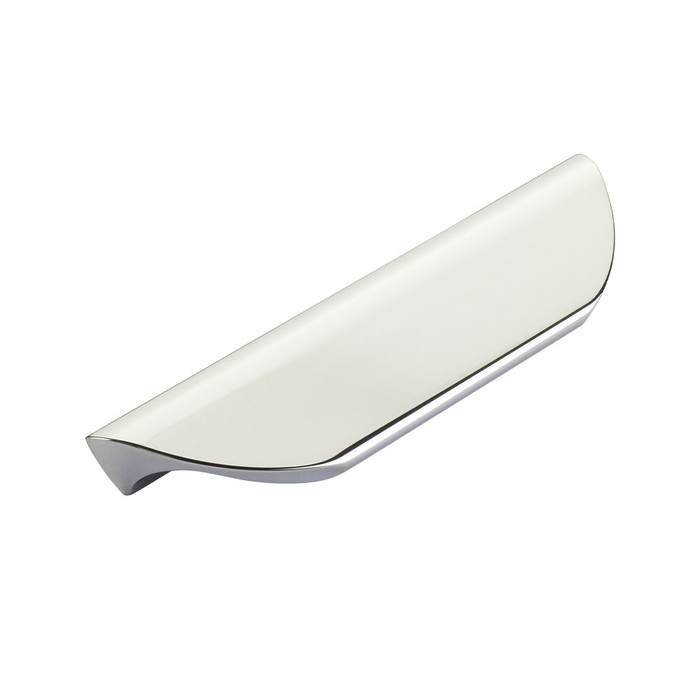

Schaub 211039 96mm Center to Center Suave Cabinet Cup Pull

Yes, if your drawer fronts are drilled on 96mm centers. The 211039 Suave cup pull is a 96mm center-to-center pull, which is the common metric spacing on European-style cabinetry and frameless boxes. It uses M4 machine screws, the standard cabinet screw thread, so it mounts through existing 96mm bores without redrilling.

It's zinc and aluminum, not solid brass. For residential kitchen and bath drawers that is normal and the finish range is wider because of it. If a solid brass body is specified on the drawing, look at the Omnia 1968/102 or Omnia 1970 modern cabinet pulls instead, both of which we carry in forged solid brass, or the Deltana SBP35 square bar pull.

No. The Trimco 553 series drawer pulls are 3 inch center to center, while the Schaub 211039 Suave cup pull is 96mm center to center, so the mounting holes do not line up. If you want a Trimco drawer pull on existing 96mm boring, the 562 series is the one offered with a 96mm center-to-center option.

The Trimco 562 series drawer pulls are offered with a 96mm center-to-center option, along with 3-1/2 inch and 4 inch spacing, so they land on the same two holes as the Schaub 211039 Suave cup pull at 96mm center to center. The difference is form: the 211039 is a cup pull in zinc and aluminum with a 1 inch projection, while the 562 is a drawer pull series. If the drawer fronts are already bored at 96mm, either will mount without redrilling.

The Schaub 211039 Suave cup pull is built in zinc and aluminum. If the specification calls for solid brass, the Omnia 1968/102 is a forged solid brass modern cabinet pull at 4 inch center to center, and the Deltana SBP35 is a heavy-duty solid brass square bar pull at 3-1/2 inch. Both are bar-style pulls rather than cup pulls, and neither matches the 211039's 96mm hole spacing, so plan on new drilling if you switch.

Projection is 1 inch off the face, with overall length of 5-7/8 inches and a 1/2 inch base dimension. In a tight galley or a run where drawers sit opposite an island, that 1 inch is what you measure against for clearance. The 5-7/8 inch overall footprint also matters on narrow drawer fronts, since the pull is wider than the 96mm hole spacing at each end.

Five: Polished Chrome (PC), Gold Rande (GR), Matte Black (MB), Matte White (MW), and Nickel Silk (NS). Matte White is the unusual one in that group and is worth knowing about if you are matching painted cabinetry rather than metal appliances.

A cup pull like the Schaub 211039 Suave is grabbed from underneath, so it works on drawers and drawer banks but not on doors that swing, where the hand position is wrong. Bar pulls work on both doors and drawers, which is why people standardize on them across a whole kitchen. If you want one profile everywhere, the Emtek Bar Cabinet Pull or the Orca CK-12001 T-pull bar are bar-style options. Many kitchens mix: cup pulls on the drawers, bar pulls or knobs on the doors.

The Schaub 211039 takes M4 machine screws. Standard-length M4 screws suit typical 5/8 to 3/4 inch drawer fronts; if you are going through a thicker front, an applied panel, or a front plus a false face, you need longer M4 screws, which are a separate item. Specify the front thickness when you order so you get screws long enough.

The Schaub 211039 Suave cup pull projects 1 inch off the drawer face. Among modern brass pulls, the Omnia 1969 and Omnia 1971 both project 1-3/16 inch and the Omnia 1970 projects 1-1/4 inch, so all three stand further off the face rather than less. If clearance in front of the drawer is the constraint, the 1 inch projection of the 211039 is the tighter of the group.

Yes, and that is a common approach: cup pulls on drawers, knobs on doors. The Schaub 211039 Suave is a cup pull with 96mm center-to-center two-hole drilling. For single-hole knobs on the door fronts, the Orca Hardware Bachelor Collection CK-15030 round knob and CK-16030 round ring knob are both 1-1/4 inch diameter, and the Blackcomb CK-17025 is a 25mm square knob. Knobs use one bore, so door and drawer prep are not the same.

They are related lines but not the same part. The Schaub 211039 belongs to the Suave collection and is a cup pull. Emtek's Schaub Collection offerings include the Emtek 8405 Select cabinet pull, the Alexander cabinet pull, the Art Deco cabinet pull, and the Bar cabinet pull, each its own series with its own profile. If a drawing calls out 211039 Suave, ordering an Emtek Schaub Collection pull will not give you the same cup shape or the 96mm cup-pull drilling.

The Schaub 211039 Suave is a contemporary cup pull in zinc and aluminum with M4 screws. For heavier commercial duty, the Deltana SBP35 is a heavy-duty solid brass square bar pull at 3-1/2 inch, and the Orca Hardware CK-12001 T-pull bar is steel with a 2 inch bar width. Both are graspable bar forms rather than a recessed cup, which matters where gloved hands or carts are involved.

The Suave is styled contemporary, not traditional. Cup pulls read farmhouse or classic in most people's heads, but this one is a clean modern take on the shape, so on ornate or period cabinetry it can look out of place. For a period look we carry the Emtek Art Deco and Emtek Alexander cabinet pulls from the Schaub collection.

The Schaub 211039 Suave cup pull is offered in Matte Black (MB), along with Polished Chrome (PC), Gold Rande (GR), Matte White (MW), and Nickel Silk (NS), so a dark finish is available within the same 96mm cup pull. If you need a satin nickel bar instead of a cup, the Orca Hardware CK-12001 T-pull bar is a steel pull supplied in satin nickel.
