OVERVIEW

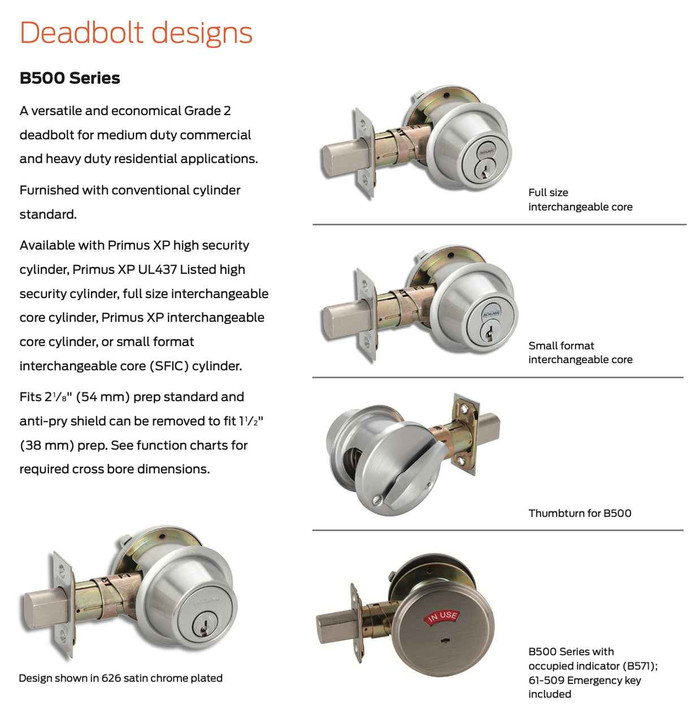

Top selling Schlage grade 2 B Series deadbolts rival many grade 1 products for strength, durability and versatility. These competitively priced deadbolts are offered in 11 finishes, 7 functions and 3 cylinder formats. Their design includes anti-saw, anti-pry, anti-wrench and other security features not common to grade 2 deadbolts. They are easy to install and can meet any security need.
FEATURES & BENEFITS
Strength and security
- Solid zinc bolt with hardened steel anti-saw pin
- Metal dustbox anchors deep to reinforce wood door frames with three 3" screws to protect against kick-in attacks
- Free spinning, cylinder collar resists wrenching and prying
- Removeable security shield protects bolt from ice-pick attack through the door
- Adjustable backset has a lock-in-place helix design
- Available UL 10C 3-hour fire rated options (as auxiliary locks)
Key System Security
- Open and restricted keyway options
- Factory master keying available
- Accepts all three cylinder formats: Conventional, FSIC and SFIC
Functional and aesthetic options
- 7 functions include keyless, single cylinder and double cylinder options
- 11 finish options
- Suites with nearly all Schlage and Von Duprin product
CERTIFICATIONS
- ANSI/BHMA A156.5 Grade 2 certified with Conventional or FSIC cylinder (SFIC is Grade 3)
- UL 10B/UL 10C listing optional for B500 Series as auxiliary locks (the letter F and UL symbol on latch front indicate listing)
- ADA compliant thumbturn design
- BAA (Buy American Act) compliant product
FUNCTIONS
Keyless
- B571 Door bolt with occupancy indicator - thumbturn x occupancy indicator plate
- B580 (E0192) Door bolt - thumbturn x no exterior trim
- B581 (E01112) Door bolt - thumbturn x blank rose
Keyed single cylinder
- B560 (E0152) - thumbturn x cylinder
- B561 (E0162) - blank rose x cylinder
- B563 (E0172) Classroom deadbolt - thumbturn retracts only x cylinder
Keyed double cylinder
- B562 (E0142) - cylinder x cylinder
PRODUCT SPECIFICATIONS
Deadbolt: 1" housing diameter; 0.81" x 0.62" x 1" throw; zinc with hardened steel anti-saw pin insert (drive-in options available)
Faceplate: 1" x 2-1/4" with square corners
Strike: 1-1/8" x 2-3/4" with square corners (ANSI, round corner and thimble strike options available)
Backset: Adjustable for 2-3/8" and 2-3/4" (5" fixed and fire rated options available)
Door range: 1-3/8"-1-7/8" Conventional and thumbturn only; 1-5/8"-2" SFIC
Reinforcement: Metal dust box reinforcer with three 3" screws
Trim ring: 1" wrought brass or bronze reinforced with security insert
Cylinder: 6-pin solid brass, keyed 6-pin, S123 keyway, keyed different (KD)
Keys: Two unplated brass or nickel silver cut keys per lock
FINISHES
- Weather-resistant for interior and perimeter applications
- 605 (US3) bright brass
- 606 (U4) satin brass
- 609 (US5) satin brass, blackened
- 612 (US10) satin bronze
- 613 (US10B) oil rubbed bronze
- 619 (US15) satin nickel
- 622 (US19) matte black
- 625 (US26) bright chrome plated
- 626 (US26D) satin chrome plated
- 626AM satin chrome plated with antimicrobial coating
- 643e (US11) aged bronze
Suiting
Designed to create an attractive and cohesive building-wide look when paired with other Schlage, Von Duprin or LCN devices
DOWNLOADS
Product Information
Related product information
- Key Systems, Cylinders and Keys catalog
- Allegion BAA Compliance catalog
- Allegion US Green Building Council LEED brochure
- Whitepaper: Basics of Lock Functions
Technical resources
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Subcategory:
- Deadbolts
- Series:
- B500 Series
- Grade:
- Grade 2
- Duty Level:
- Medium Duty
- Keys Included:
- 2
- Warranty:
- 10 Year
- Standard Latch:
- 12-294: Deadbolts - Adjustable 2-3/8" or 2-3/4" - Square corner, 1" x 2-1/4", 1" Housing Diameter, Fire-Rated (UL listed)
- Standard Strike:
- 10-094: Square corner, no box, 1-1/8" x 2-3/4"
- Keyed:
- Yes
- Backset:
- Adjustable 2-3/8" or 2-3/4"
- ANSI/BHMA:
- E0152
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Product Type:
- Deadbolts
- Model:
- B560F
- Electronic:
- No
- Function:
- Cylinder x Thumbturn
- Keyed Function:
- Single Cylinder
- Commercial/Residential:
- Commercial
- Cylinder and Keyways:
- 6-pin Conventional Cylinder (C Keyway)
- Function Description:
- Deadlocking Deadbolt thrown or retracted by key outside or thumbturn inside retracted by key from outside or by inside turn unit. Rotating turn unit and activating hold-back feature keeps latch retracted.
- Lock Function:
- Deadbolt
- Product Attribute:
- Deadbolts
