Schlage B572 - Grade 2 Door Bo...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$284.00
$163.48

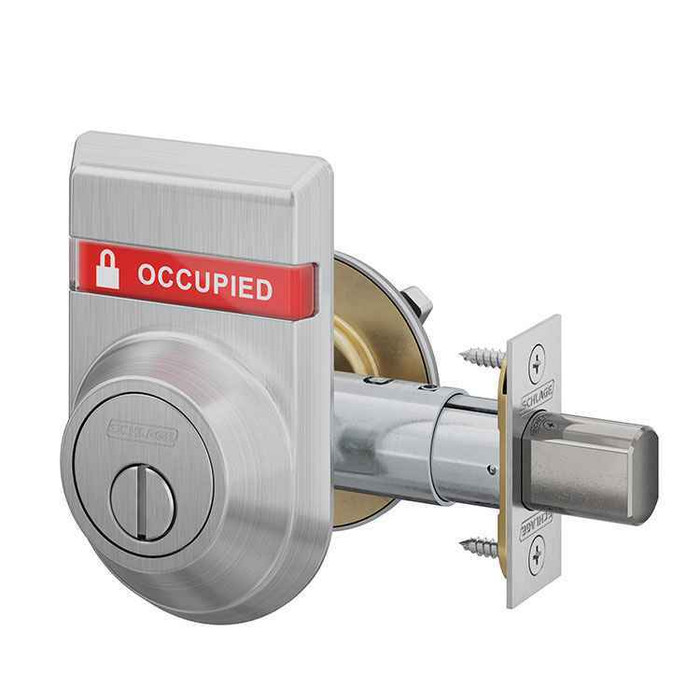

Schlage B572 - Grade 2 Door Bolt with Coin Turn, Cointurn Outside/Thumbturn Inside, Exterior "VACANT/OCCUPIED", Interior "UNLOCKED/LOCKED"

Schlage B572 - Grade 2 Door Bolt with Coin Turn, Cointurn Outside/Thumbturn Inside, Exterior "VACANT/OCCUPIED", Interior "UNLOCKED/LOCKED"

(No reviews yet) Write a Review

Model: B572 626 OS-OCC IS-LOC
From the B500_Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$284.00
$163.48
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage B572 Door Bolt with Coin Turn and OS-OCC (OCCUPIED/VACANT) Outside Occupancy Indicator Trim, Adjustable 2-3/8″ and 2-3/4″ Backset

Coin turn outside; thumbturn inside • Deadbolt thrown or retracted by thumbturn inside • A flat screwdriver inserted in the coin turn outside can also retract deadbolt • When installed with lock status indicator trim, in unlocked state message displays on white background; in locked state on red background

  • Perfect for commercial restroom doors
  • Outside indicator displays “Occupied” or “Vacant”
  • Window size is unmatched in the market using an escutcheon style trim to allow the message to run the full width of the lock at a height of .45” for maximum visibility
  • ADA compliant thumbturn
  • Adjustable for 2-3/8″ or 2-3/4″ backset
  • Can be installed using the same standard door prep as any B Series lock
  • 3-year limited mechanical warranty

DOWNLOADS

Product Information


Related product information


Technical resources

Manufacturer Resources

Product Specs

Subcategory:
Deadbolts
Series:
B500 Series
Grade:
Grade 2
Duty Level:
Medium Duty
Warranty:
3 Year
Standard Strike:
1-1/8" x 2-3/4", Square Corner
Keyed:
No
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Indicator Lock
Electronic:
No
Keyed Function:
Non-Keyed
Commercial/Residential:
Commercial
Function Description:
72-Cointurn x Thumbturn
Lock Function:
One-Sided
Lock Type:
Deadbolts
Product Attribute:
Indicator Locks
Latch Number:
12-288
Strike Number:
10-094
Product Model:
B572
Collection:
B500_Series
Backset (Distance):
Adjustable 2-3/8 or 2-3/4
Product Function:
Thumbturn x Indicator
Door Thickness Range:
1-3/4" to 1-7/8”
Product Category:
Mechanical Locks
Department:
Door Hardware

Schlage B572 626 OS-OCC IS-LOC – Frequently Asked Questions

1) Will the Schlage B572 indicator deadbolt fit a 1-3/8 inch door?
No. The B572 is built for 1-3/4 inch to 1-7/8 inch doors, so a 1-3/8 inch door is out of range. For thinner doors, the Accentra D292 indicator deadbolt covers 1-3/8 inch to 1-3/4 inch, and the Arrow E50 exit deadlock with a Vacant/Occupied indicator covers the same 1-3/8 inch to 1-3/4 inch range. 1-3/4 inch is the standard commercial door; 1-3/8 inch shows up on older interior openings.
2) Do I have to specify a backset when I order the Schlage B572?
No, you don't pick one. The B572 latch is adjustable for either a 2-3/8 inch or a 2-3/4 inch backset, so one part covers both of the standard bored-door preps. The latch is the 12-288.
3) Will the Schlage B572 drop into the door prep I already have from another B Series deadbolt?
Yes. The B572 uses the same standard door prep as any other Schlage B Series lock, so a door already bored for a B Series deadbolt takes it without new machining. The frame side wants a 1-1/8 x 2-3/4 inch square corner strike, part 10-094.
4) How does someone get into a locked restroom from the outside in an emergency with a Schlage B572?
The outside face is a coin turn, not a cylinder. Staff put a flat screwdriver (or a coin) into the coin turn and retract the deadbolt from the corridor side. Inside, the occupant throws and retracts the bolt with a thumbturn. No key, no cylinder, nothing to key into a master system, since the B572 is a non-keyed lock.
5) Is a Schlage B572 deadbolt or a privacy lever lock the better choice for a single-occupancy restroom?
Two different approaches. The B572 is a one-sided deadbolt: it adds a bolt with occupancy indication above whatever passage latch is already on the door, which is why it suits a restroom that already has a lever or pull. A privacy lever lock does the latching and the locking in one unit, so it's the choice on a new opening or when you're replacing the whole lock. The Corbin Russwin CLX3320 NVSL is a Grade 1 privacy lever with a visual status indicator for 1-3/4 inch to 2 inch doors, and the Accentra AUYPL02 YPL Series is a Grade 1 privacy cylindrical lock with a status indicator. If you want the lever and the deadbolt tied together, the Falcon H2171 is a Grade 2 public restroom interconnected lock with an occupancy indicator.
6) What is a close substitute for the Schlage B572 occupancy indicator deadbolt from another brand?
Several Grade 2 deadbolts carry the same thumbturn-plus-indicator function. The Hager 3216 is a Grade 2 thumbturn x occupancy indicator deadbolt with a 1 inch throw for 1-3/4 inch doors, and it is fire rated. The Falcon D271 is a Grade 2 medium duty one-sided deadbolt with an occupancy indicator. The Arrow E50 is a Grade 2 non-keyed exit deadlock reading Vacant/Occupied outside. Where the B572 differs is the backset: it adjusts to 2-3/8 or 2-3/4, so it drops into either standard bored prep.
7) Is there a Grade 1 indicator deadbolt instead of a Grade 2 for a high traffic restroom?
The B572 is Grade 2 and medium duty. Where a heavier rating is specified, the Cal-Royal IND90-G2 is a Grade 1 indicator deadbolt with an ADA thumbturn and a thumbturn x indicator function. On the lever side rather than the deadbolt side, the Corbin Russwin CLX3320 NVSL is a Grade 1 extra heavy duty privacy visual status lever lock with an indicator, and the Accentra AUYPL02 is a Grade 1 privacy cylindrical lock with a visual status indicator.
8) What is the difference between the Schlage B572 and an Emtek thumbturn privacy bolt with indicator?
The B572 is a commercial, Grade 2, one-sided deadbolt with a coin turn outside and a thumbturn inside, and it works off the standard B Series door prep. The Emtek 8383 Wilshire, 8483 Watford, 8583 Square and 8683 Disk are thumbturn privacy bolts with double rosettes and an indicator, and they carry a privacy/bed/bath function intended to be used together with a brass passage set. So the Emtek bolts are paired with a separate passage latch to make a working door, while the B572 is the whole locking function on its own.
9) Which one-sided occupancy indicator deadbolt matches the Schlage B572 duty level?
The Falcon D271 is a Grade 2 deadbolt with an occupancy indicator and a thumbturn inside, carried as a one-sided function at medium duty in the D200 Series. That is the same Grade 2, medium duty, one-sided arrangement the B572 carries, so it is the direct cross for an opening already prepped for a single-sided indicator bolt.
10) How do you tell from the hallway whether a restroom with a Schlage B572 is occupied?
The outside trim reads VACANT or OCCUPIED, and the color changes with it: unlocked shows on a white background, locked on red. The escutcheon-style trim runs the message the full width of the lock at a .45 inch character height, so it reads down a corridor rather than only up close.
11) Is the Schlage B572 thumbturn ADA compliant for a public restroom?
Yes, the inside thumbturn on the B572 is ADA compliant, so it operates without tight grasping or twisting of the wrist. If you need another ADA thumbturn option in the same function, the Cal-Royal IND90-G2 indicator deadbolt is also built with an ADA thumbturn.
12) Can I use the Schlage B572 on a fire rated restroom door?
For a fire rated opening, look at the Hager 3216 Grade 2 thumbturn x occupancy indicator deadbolt, which is fire rated and made for 1-3/4 inch doors, or the Corbin Russwin CLX3320 NVSL Grade 1 privacy lever with visual status, also fire rated, for 1-3/4 inch to 2 inch doors. Both carry the same occupancy indication a restroom needs.
13) Is there a lighter duty indicator deadbolt than the Schlage B572?
The B572 is Grade 2 and rated commercial and medium duty. The Cal-Royal IND84 is a Grade 3 indicator deadbolt with the same thumbturn x indicator function, which is the lighter rating in the indicator deadbolt group.
14) Is a privacy lever lock with a visual status indicator the same thing as a Schlage B572?
No. The B572 is a non-keyed deadbolt with a coin turn outside and a thumbturn inside, thrown and retracted by the inside thumbturn, and a flat screwdriver in the outside coin turn also retracts it. The Accentra AUYPL02 and the Corbin Russwin CLX3320 NVSL are privacy/bed/bath cylindrical and lever locks with a visual status indicator, so the indicator rides on a latching lever set rather than on a bolt with an outside coin turn. The Emtek 8583 Square and 8683 Disk are privacy/bed/bath thumbturn bolts with double rosettes.
15) Which indicator deadbolts can be standardized across a facility with mixed door thicknesses?
The B572 covers 1-3/4 inch to 1-7/8 inch doors and adjusts for a 2-3/8 inch or 2-3/4 inch backset. Among the Grade 2 thumbturn x indicator crosses, the Arrow E50 and the Accentra D292 each cover 1-3/8 inch to 1-3/4 inch, and the Hager 3216 lists 1-3/4 inch. A facility running both thinner and thicker leaves usually splits the spec at 1-3/4 inch, which the B572, the Arrow E50, the Accentra D292 and the Hager 3216 all reach.
16) Can I match the Schlage B572 indicator deadbolt to the finishes already on my building's doors?
Ten finishes are offered on the B572: 605 bright brass, 606 satin brass, 609 antique brass, 612 satin bronze, 613 oil rubbed bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome, and 643E aged bronze. That covers the usual commercial standards (626 and 630-family chrome tones, 613) plus the darker residential and hospitality looks.
17) Does the Schlage B572 restroom deadbolt need power or wiring?
None. The B572 is fully mechanical, with no wiring, no battery, and no access control tie-in. The occupancy display is driven by the bolt itself, so the indicator still reads correctly when the building loses power.
