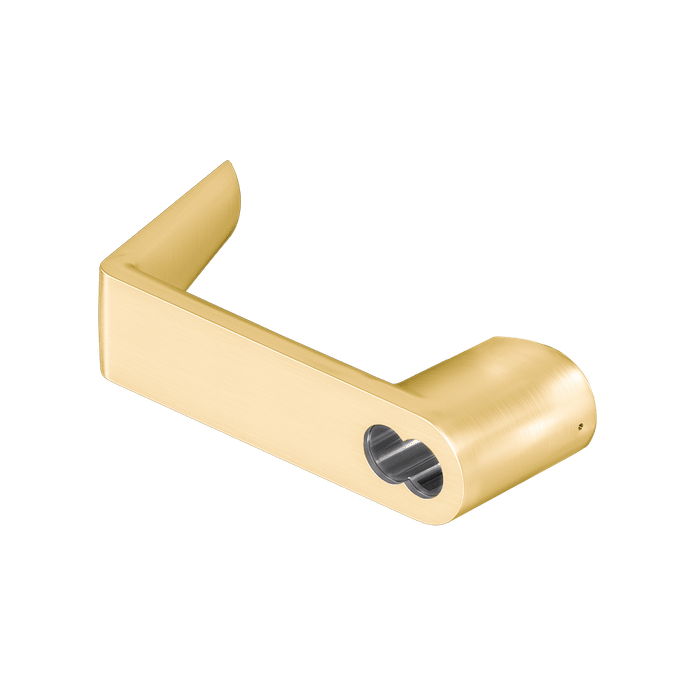

Schlage 03-235 Lever for AD/ALX/CO/ND Series with Corbin Russwin 7-Pin FSIC Less Core

Schlage 03-235 Lever for AD/ALX/CO/ND Series with Corbin Russwin 7-Pin FSIC Less Core

(No reviews yet) Write a Review

Model: 03-235 RHO 626

In Stock (leaves warehouse same day if ordered before 3pm ET)

$415.00
$283.92
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage 03-235 Lever for AD/ALX/CO/ND Series with Corbin Russwin 7-Pin FSIC Less Core

The Schlage 03-235 is a commercial-grade replacement lever engineered for use with Corbin Russwin 7-Pin Full-Size Interchangeable Core (FSIC) cylinders in a Less Core configuration. Designed to integrate seamlessly with Schlage AD, ALX, CO, and ND Series locksets, this lever provides a reliable lock trim solution for facilities requiring flexible core management across multiple access points. As a genuine Schlage part, it ensures direct compatibility and consistent performance within supported series platforms.

Key Features

  • Corbin Russwin 7-Pin FSIC Compatibility: Engineered specifically for Corbin Russwin 7-Pin Full-Size Interchangeable Core cylinders, supporting Less Core configurations for easy rekeying and core management.
  • Multi-Series Compatibility: Designed for use with Schlage AD, ALX, CO, and ND Series locksets, providing broad integration flexibility across Schlage commercial product lines.
  • Less Core Configuration: Supplied without a core, allowing facility managers to install their own compatible Corbin Russwin 7-Pin FSIC core for a customized keying solution.
  • Commercial-Grade Lock Trim: Classified as Lock Trim within the Schlage parts and accessories ecosystem, suitable for demanding commercial environments.
  • Genuine Schlage Replacement Part: Sourced as an authentic Schlage component, ensuring proper fit and function within supported AD, ALX, CO, and ND Series applications.
  • Flexible Core Management: The FSIC format enables rapid core interchange without specialized tools, streamlining key control and master key system administration.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Mechanical Locks
  • Product Group: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Lock Trim
  • Parts and Accessories Type: Replacement Parts
  • Commercial/Residential: Commercial
  • Product Model: 03-235
  • Features: Schlage Parts

Typical Applications

  • Commercial Office Buildings with Schlage AD or ND Series Locksets
  • Educational Facilities Utilizing Interchangeable Core Key Control Systems
  • Healthcare Institutions Requiring Flexible Rekeying Capabilities
  • Government and Municipal Buildings with Master Key System Administration
  • Multi-Tenant Commercial Properties with Corbin Russwin FSIC Programs
  • Industrial and Warehouse Facilities Using Schlage CO or ALX Series Hardware
  • Hospitality Properties Maintaining Large-Scale Key Control Programs

Why Schlage 03-235?

The Schlage 03-235 delivers the precise compatibility and quality craftsmanship expected from a genuine Schlage replacement component. Engineered to exact specifications for the AD, ALX, CO, and ND Series platforms with Corbin Russwin 7-Pin FSIC support, this lever ensures seamless integration within existing commercial access control and key management programs. For facilities professionals who demand reliable, authentic parts, the 03-235 is the correct replacement lever for supported Schlage series applications.

Manufacturer Resources

Product Specs

Department:
Door Hardware
Product Category:
Mechanical Locks
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Lock Trim
Parts and Accessories Type:
Replacement Parts
Commercial/Residential:
Commercial
Product Model:
03-235
Features:
Schlage Parts

Schlage 03-235 RHO 626 – Frequently Asked Questions

1) Will the Schlage 03-235 lever work on my ND Series lockset?
Yes. The 03-235 lever fits Schlage AD, ALX, CO, and ND Series locksets. It is the outside lever trim for those platforms, so if the door already carries one of those four series you are ordering the correct part. It will not go on other manufacturers' locks, and it is not a fit for Schlage series outside that group.
2) Does the Schlage 03-235 lever come with a cylinder core?
No core is included. The 03-235 ships in a Less Core configuration, so you supply and install your own Corbin Russwin 7-pin full-size interchangeable core. Budget the core into the order, along with the control key needed to seat and pull it. If your key system runs on Schlage cores rather than Corbin Russwin, this is the wrong lever prep.
3) Can I put a Corbin Russwin 7-pin interchangeable core in a Schlage lock?
That is exactly what the 03-235 lever is prepped for. It is a Schlage lever machined to accept a Corbin Russwin 7-pin full-size interchangeable core, which lets a facility keep one Corbin Russwin key system while running Schlage AD, ALX, CO, or ND locksets on the doors. Facilities that inherited a Corbin Russwin master key program and are replacing lock hardware use this to avoid rekeying the whole building.
4) My lock is fine but the lever is bent, do I have to replace the whole lockset?
No. The 03-235 is a replacement lever, so on an AD, ALX, CO, or ND Series lock you swap the trim and leave the chassis, latch, and strike in the door. Nothing about the door prep changes and the existing core carries over into the new lever. That keeps a damaged-lever call to a trim change rather than a full lockset and a re-key.
5) Can a Corbin Russwin 483F80 lever be used as a substitute for a Schlage 03-235?
No. The Corbin Russwin 483F80 is an outside lever and spindle for the Corbin Russwin ML2000 Series and is sized for a 1-3/4 inch thick door, so its spindle and rose engagement are matched to that mortise chassis. The Schlage 03-235 is Schlage lock trim for the AD, ALX, CO and ND Series. The two share a Corbin Russwin core format interest but not a lock platform, so neither mounts on the other manufacturer's chassis. Match the lever to the lock body already in the door.
6) What is the difference between the Schlage 03-235 lever and the Corbin Russwin 483F80 outside lever and spindle?
They solve two different problems even though both involve Corbin Russwin keying. The Schlage 03-235 is replacement lock trim built for Schlage AD, ALX, CO and ND Series locksets, prepped to accept a Corbin Russwin 7-pin full-size interchangeable core and supplied less core. The Corbin Russwin 483F80 is a Grade 1 outside lever and spindle for the Corbin Russwin ML2000 Series mortise lock in a corridor/dormitory function. If the lock body in the door is a Schlage AD, ALX, CO or ND, the 03-235 is the trim that fits it; if the lock body is an ML2000 mortise, the 483F80 is the lever and spindle for that chassis. The 03-235 does not retrofit an ML2000 body.
7) Can I get the Schlage 03-235 lever in matte black or satin nickel to match my other doors?
Both, in the Rhodes and Rhodes Tactile styles. The full finish range on the 03-235 is 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome, 626AM satin chrome antimicrobial, and 643E aged bronze. Not every finish is offered in every lever style: Athens comes in 606 and 612, Sparta in 625 and 626, and Tubular in 606 and 626.
8) Is there an antimicrobial lever option for a healthcare or school door?
Yes, the 626AM satin chrome antimicrobial finish, available in both the Rhodes and Rhodes Tactile styles. It reads as standard 626 satin chrome next to the rest of a satin chrome opening, so you can specify it on patient room or classroom doors without breaking the finish schedule across the rest of the building.
9) What do I need to specify when ordering a Schlage 03-235 replacement lever?
Three things settle the order: lever style (Rhodes, Rhodes Tactile, Athens, Sparta, or Tubular), finish, and the handing of your door, since a lever is handed trim. The core is a separate line, because the 03-235 is supplied less core. Pull the existing lever and check the style against the door before ordering, as AD, ALX, CO, and ND openings in one building are often mixed.
10) Can I rekey a door with the 03-235 without pulling the lever off?
Yes, that is the point of the full-size interchangeable core format. A control key rotates the core out of the lever and a new one drops in, no tools and no disassembly of the trim. For a property manager turning units or a school changing a compromised key, it is a minute at the door instead of a lockset teardown. The core has to be a Corbin Russwin 7-pin FSIC to seat in this lever.
11) Does the Schlage 03-235 come in the same lever styles as the Corbin Russwin 483F80?
They are different design families. The Schlage 03-235 is offered in Rhodes (RHO), Rhodes Tactile (8RO), Athens, Sparta and Tubular lever styles, in finishes including 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome, 626AM satin chrome antimicrobial and 643E aged bronze. The Corbin Russwin 483F80 is the LW lever design for the ML2000 Series. If an existing run of doors is being matched visually, the lever design name has to match the lock line already installed, since the two families are not cross-mountable.
12) Our spec calls for a Grade 1 corridor function lever on a mortise lock. Does the Schlage 03-235 meet that, or do I need something else?
A corridor or dormitory function is a property of the lock chassis, and the Schlage 03-235 is replacement lock trim for Schlage AD, ALX, CO and ND Series locksets rather than a complete lock. For a mortise opening written to a Grade 1 corridor/dormitory function, the Corbin Russwin 483F80 is the Grade 1 corridor/dormitory outside lever and spindle for the ML2000 Series on a 1-3/4 inch door. Use the 03-235 when the AD, ALX, CO or ND lockset already in the opening carries the required function and only the Corbin Russwin 7-pin FSIC lever trim is being replaced.
13) Is the Schlage 03-235 lever rated for commercial traffic or is it residential grade?
Commercial. The 03-235 is commercial lock trim built for the AD, ALX, CO, and ND Series, which are Schlage's commercial platforms. It is the right lever for office corridors, schools, healthcare, and multi-tenant buildings, not for a residential passage set.
