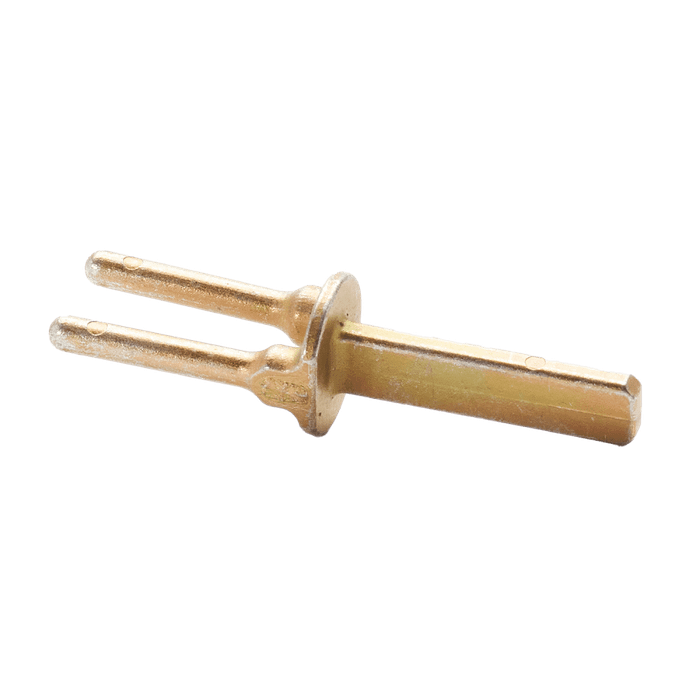

Schlage 09-063 Cylinder Tailpiece for ND Series Sargent FSIC Compatibility

Schlage 09-063 Cylinder Tailpiece for ND Series Sargent FSIC Compatibility

(No reviews yet) Write a Review

Model: 09-063

In Stock (leaves warehouse same day if ordered before 3pm ET)

$29.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage 09-063 Cylinder Tailpiece for ND Series Sargent FSIC Compatibility

The Schlage 09-063 is a commercial-grade cylinder tailpiece designed specifically for use with ND Series locks and Sargent Full Size Interchangeable Core (FSIC) cylinder configurations. As a genuine Schlage replacement part, this tailpiece ensures proper mechanical engagement between the cylinder core and the lock chassis, maintaining the reliable and precise operation that commercial door hardware demands. Designed for commercial applications, it integrates seamlessly into existing ND Series installations requiring Sargent FSIC compatibility.

Key Features

  • Targeted Compatibility: Engineered specifically for use with ND Series locks paired with Sargent Full Size Interchangeable Core (FSIC) cylinders, ensuring precise mechanical fit and reliable operation.
  • Genuine Schlage Component: An authentic Schlage replacement part built to original manufacturer specifications, maintaining the performance integrity of the host lock assembly.
  • Commercial-Grade Construction: Manufactured to meet the demands of commercial door hardware applications where consistent, long-term performance is essential.
  • Drop-In Replacement: Designed as a direct replacement part for compatible ND Series installations, simplifying service and maintenance without requiring full hardware replacement.
  • Interchangeable Core Support: Supports FSIC (Full Size Interchangeable Core) cylinder systems, enabling efficient re-keying and core management in large commercial facilities.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Mechanical Locks
  • Product Group: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Cylinder Tailpiece
  • Parts and Accessories Type: Replacement Parts
  • Commercial/Residential: Commercial
  • Product Model: 09-063
  • Features: Schlage Parts

Typical Applications

  • Commercial Office Buildings with ND Series Lock Installations
  • Educational Facilities Utilizing Interchangeable Core Systems
  • Healthcare Institutions Requiring FSIC Cylinder Compatibility
  • Government and Municipal Buildings with Large-Scale Key Management Systems
  • Multi-Tenant Commercial Properties Servicing ND Series Hardware
  • Industrial Facilities Maintaining Commercial Lock Infrastructure
  • Hospitality Properties Utilizing Interchangeable Core Access Control

Why Schlage 09-063?

Schlage cylinder tailpiece components are manufactured to original equipment specifications, ensuring proper mechanical engagement and lasting reliability within compatible ND Series and Sargent FSIC lock assemblies. For facility managers, locksmiths, and commercial installers, using genuine Schlage replacement parts like the 09-063 is the most reliable way to restore and maintain the performance of commercial door hardware without full hardware replacement.

Manufacturer Resources

Product Specs

Department:
Door Hardware
Product Category:
Mechanical Locks
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Cylinder Tailpiece
Parts and Accessories Type:
Replacement Parts
Commercial/Residential:
Commercial
Product Model:
09-063
Features:
Schlage Parts

Schlage 09-063 – Frequently Asked Questions

1) What is the Schlage 09-063 tailpiece used for?
The 09-063 is the cylinder tailpiece that links a Sargent full size interchangeable core cylinder to the lock chassis on a Schlage ND Series lever lock. Without the right tailpiece the core turns but nothing drives the lock, so this is the piece you order when you are putting a Sargent FSIC cylinder into ND Series hardware or replacing a worn or wrong-length tailpiece in one.
2) Will the Schlage 09-063 work with a Schlage-brand interchangeable core in an ND lock?
No. The 09-063 is specified for ND Series locks running Sargent full size interchangeable core cylinders. Tailpieces are cut to match the core manufacturer's cam and drive, so if your cores are Schlage FSIC or small format, this is the wrong part number and you need the tailpiece matched to that core type.
3) Do I have to replace the whole ND lock to switch to Sargent cores?
No, that is the point of the 09-063. It is a drop-in replacement part for compatible ND Series installations, so a locksmith can pull the cylinder, swap the tailpiece, and set the Sargent FSIC core without changing the chassis, lever, or door prep.
4) How many versions of the Schlage 09-063 tailpiece are there? Do I need to pick a size or finish?
There is one part to order, 09-063. No length, handing, or finish choice to make, so there is nothing to specify beyond the model number when you are matching it to ND Series locks with Sargent FSIC cores.
5) We rekey with interchangeable cores across a campus. Does this tailpiece let us keep doing that on ND locks?
Yes. The 09-063 supports full size interchangeable core cylinder systems, so maintenance staff can pull and swap cores with a control key for rekeying instead of servicing the lock itself. It is the piece that makes ND Series levers work inside a Sargent FSIC key system.
6) Is the Schlage 09-063 tailpiece a genuine Schlage part or aftermarket?
Genuine Schlage, built to original manufacturer specification for the ND Series lock assembly. For a facility standardizing on ND hardware, that matters because the tailpiece has to engage the chassis exactly as the factory part does.
7) Is the 09-063 tailpiece rated for commercial door traffic or is it a residential part?
Commercial. The 09-063 is built for commercial door hardware duty and is used in offices, schools, healthcare, government buildings, multi-tenant properties, industrial plants, and hotels running ND Series locks on interchangeable core key systems.
