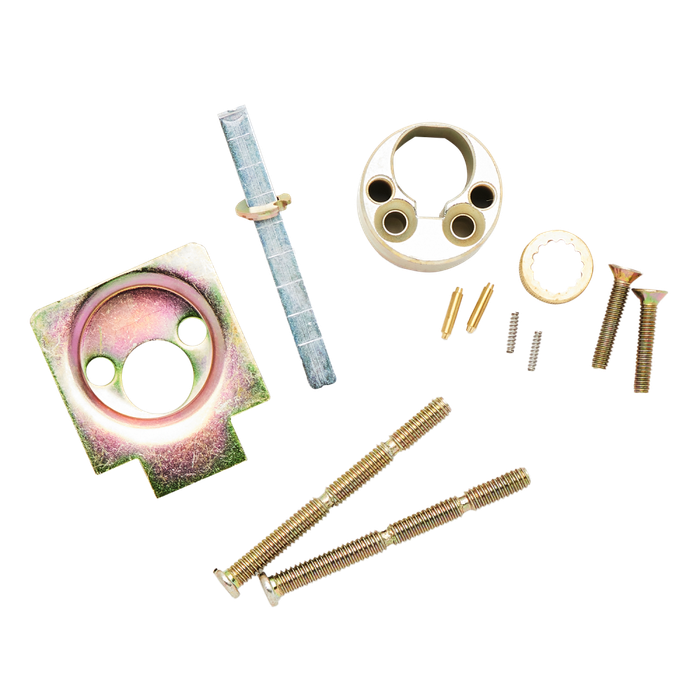

Schlage 09-998 Service Kit for Modular Rim Cylinder with Back Housing, Tailpiece, Driver and Back Plate

Schlage 09-998 Service Kit for Modular Rim Cylinder with Back Housing, Tailpiece, Driver and Back Plate

(No reviews yet) Write a Review

Model: 09-998

In Stock (leaves warehouse same day if ordered before 3pm ET)

$34.90
$21.42
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage 09-998 Service Kit for Modular Rim Cylinder with Back Housing, Tailpiece, Driver and Back Plate

The Schlage 09-998 is a comprehensive service kit designed specifically for use with Schlage Modular Rim Cylinders. This function kit consolidates all essential replacement and installation components into a single package, including the B520-727 Back Housing, B520-693 Housing Screws, one B502-899 Tailpiece, one B502-310 Driver, and one B202-328 Back Plate with Screws. Purpose-built for commercial door hardware applications, this kit ensures technicians and installers have the correct Schlage parts on hand for efficient servicing and maintenance of modular rim cylinder assemblies.

Key Features

  • Complete Service Bundle: Includes B520-727 Back Housing, B520-693 Housing Screws, B502-899 Tailpiece, B502-310 Driver, and B202-328 Back Plate with Screws, all components needed for a full service call in one kit.
  • Modular Rim Cylinder Compatibility: Engineered specifically for use with Schlage Modular Rim Cylinders, ensuring precise fit and reliable performance.
  • Genuine Schlage Parts: All components are authentic Schlage parts, maintaining the integrity and performance standards of the original hardware installation.
  • Commercial-Grade Application: Designed for commercial door hardware environments where reliable, professional-grade components are required.
  • Function Kit Design: Categorized as a Function Kit under Parts and Accessories, streamlining procurement for service technicians and facility maintenance teams.
  • All-Inclusive Fasteners: Kit includes housing screws (B520-693) and back plate screws (B202-328), eliminating the need to source fasteners separately.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Mechanical Locks
  • Product Group: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Function Kit
  • Parts and Accessories Type: Installation Accessories
  • Commercial/Residential: Commercial
  • Product Model: 09-998
  • Features: Schlage Parts

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties

Why Schlage 09-998?

The Schlage 09-998 Service Kit delivers the reliability and precision that commercial door hardware professionals demand, combining genuine Schlage components, including the B520-727 Back Housing, B502-899 Tailpiece, B502-310 Driver, and B202-328 Back Plate, into a single, convenient kit. By sourcing authentic Schlage parts as a matched assembly, installers and maintenance technicians can confidently restore Modular Rim Cylinders to full factory-specification performance with minimal downtime.

Manufacturer Resources

Product Specs

Department:
Door Hardware
Product Category:
Mechanical Locks
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Function Kit
Parts and Accessories Type:
Installation Accessories
Commercial/Residential:
Commercial
Product Model:
09-998
Features:
Schlage Parts

Schlage 09-998 – Frequently Asked Questions

1) What parts come in the Schlage 09-998 rim cylinder service kit?
The 09-998 kit contains the B520-727 back housing, B520-693 housing screws, one B502-899 tailpiece, one B502-310 driver, and one B202-328 back plate with its screws. Fasteners for both the housing and the back plate are in the box, so nothing extra has to be sourced to complete the service call.
2) Will the Schlage 09-998 kit work on a standard one-piece rim cylinder?
No. The 09-998 is built for Schlage Modular Rim Cylinders only. A conventional one-piece rim cylinder does not use the modular back housing, driver and tailpiece arrangement this kit supplies, so the parts will not assemble to it. Confirm the cylinder on the door is a Schlage modular rim before ordering.
3) Does the Schlage 09-998 include a cylinder or any keys?
No cylinder and no keys. The 09-998 is the back-end service hardware for a modular rim cylinder: housing, housing screws, tailpiece, driver, and back plate with screws. The keyed plug and shell are ordered separately, which also means this kit carries no keyway or keying decision.
4) My rim cylinder spins or the tailpiece won't drive the exit device latch. Is this the right repair kit?
That symptom usually traces to the driver, tailpiece, or a loose back housing on the cylinder, and the 09-998 replaces all three at once along with the back plate and both sets of screws. It is the service kit Schlage packages for exactly this kind of modular rim cylinder rebuild rather than buying each small part individually.
5) Is the Schlage 09-998 a commercial part or is it for residential doors?
It is a commercial door hardware item. Schlage classes the 09-998 as commercial, and modular rim cylinders of this kind turn up on exit devices and rim latches in offices, schools, hospitals, government buildings, retail, warehouses and multi-tenant residential buildings rather than on typical house doors.
6) Are the parts in the Schlage 09-998 genuine Schlage, or aftermarket?
Every component is a genuine Schlage part, listed by Schlage's own part numbers (B520-727, B520-693, B502-899, B502-310, B202-328). For a facility standardized on Schlage cylinders, that matters because the housing and driver have to match the modular cylinder body exactly to seat and function.
7) How do I order the Schlage 09-998 service kit, and is there more than one version?
There is one configuration only. The 09-998 is ordered as a single kit under model number 09-998, with no finish, keyway, or size options to specify.
