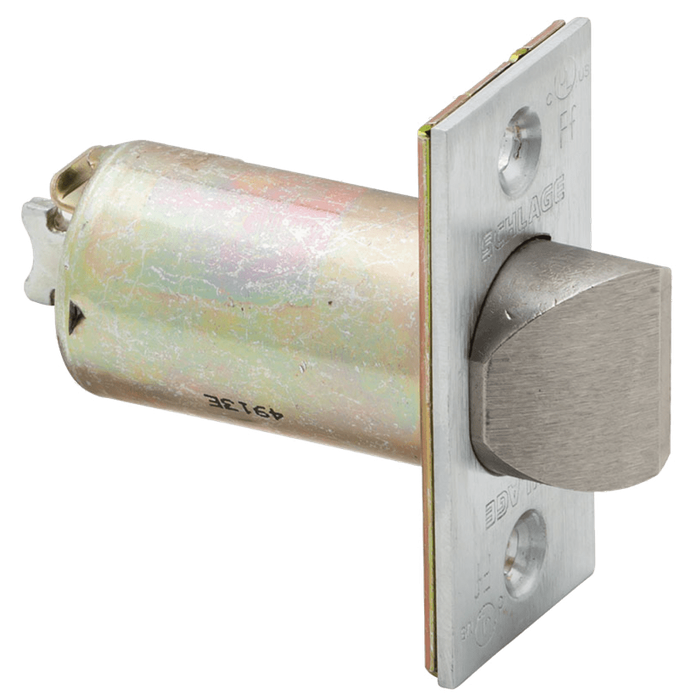

Schlage Commercial 14-001 Spring Latch (Unguarded), With 2-1/4" x 1-1/8" Square Corner Faceplate, 2-3/4" Backset, 1" Housing Diameter, For Use With D Series

That is exactly what the Schlage 14-001 is for. It is a replacement latch for the D Series, and it is made to work with the lock trim, so the lever or knob and rose already on the door stay where they are. You pull the lockset, swap the latch in the door edge prep, and reassemble. No new trim, no new keying, and the opening stays on the same lock platform as the rest of the building.

One part covers both. The latch is adjustable for flat or beveled edge doors, so you do not have to know whether you are working on a square edge hollow metal door or a beveled wood door before you order. Wood doors are commonly beveled while most hollow metal doors are square edge, and a fleet of openings usually has some of each. This latch handles the mix.

The faceplate is the piece you see on the edge of the door once the door is open, so on visible openings it should match the lockset. The 14-001 is offered in 605 bright brass, 606 satin brass, 612 satin bronze, and 613 oil rubbed bronze. Those are standard BHMA finish numbers, so if you know the code stamped on the lockset already hanging in the building you can order the same code and keep the openings consistent.

Commercial hardware, and stainless steel. That combination is what you want on doors that get cycled all day: office corridors, school and healthcare openings, hotel back of house, multi-family common area doors. It is also a certified Schlage part rather than an aftermarket copy, which matters when a facility is standardized on Schlage and the maintenance stock has to match what is already hanging.

A replacement latch has to match the lock body it drops into, so start from the brand on the door. Deltana's Grade 1 regular latches split two ways, by function and by backset: the G1RLE238 and G1RLE275 are entry latches at 2-3/8 and 2-3/4 inch backset, and the G1RLP238 and G1RLP275 are the passage and privacy versions at those same two backsets. Dexter builds a deadlatch specifically for its C1000 Series. Measure from the door edge to the center of the bore first, since 2-3/8 and 2-3/4 inches are the two backsets in general use and ordering the wrong one is the most common mistake on a latch swap.

Neither is a drop-in for the latch inside a lockset. The Accentra YSSL10 is a security sidelite auxiliary latch with an ADA compliant thumbturn for 1-3/4 inch doors, a separate latching device for a sidelite panel. The Lockey M230 is a whole lock, a mechanical keyless digital combination deadlocking spring latch with an adjustable backset, fitting doors 1-1/8 to 2 inches thick. Both are worth knowing about if you are solving a different problem, but if the lock body on the door is fine and only the latch has failed, you want a replacement latch that matches that lock.

The Deltana G1RLE275 is a Grade 1 regular latch with an entry function and a 2-3/4 inch backset, so it lands on the same door prep. The two parts are sold differently, though: the Schlage 14-001 is the D Series dead latch, a stainless steel replacement part that goes back into an existing Schlage D Series lock and keeps its trim and keying. The Deltana is chosen by grade, function, and backset for a Deltana lock. If the lock body on the door is a D Series, stay with the 14-001; if you are building up a Deltana entry set, the G1RLE275 is the matching latch.

Function. The G1RLE275 lists an entry function and the G1RLP275 lists passage/privacy. Both are Grade 1 regular latches at a 2-3/4 inch backset, so the door prep does not change between them - only what the latch is intended to serve. Order the entry version behind a keyed lockset and the passage/privacy version behind a non-keyed knob or lever. The Schlage 14-001 is a different kind of decision: it is the D Series dead latch, so the function is already set by the D Series lock it goes into.

They are not the same class of part, so one does not drop in for the other. The Lockey M230 is a complete mechanical keyless digital combination lock with a deadlocking spring latch and an adjustable backset, fitting doors 1-1/8 to 2 inches thick - installing it replaces the lock on the door and changes how the door is operated, since users enter a code rather than carry a key. The Schlage 14-001 is a replacement part: the D Series dead latch that goes back into the lock already hanging on the door, leaving the existing trim, keyway, and key system untouched. Choose the M230 when the goal is to get off keys on that opening, and the 14-001 when the D Series lock is staying and only the latch is being renewed.

No - latches follow the lock series they were built for. The Dexter unit is a deadlatch made for the C1000 series and belongs with a C1000 lock; the Schlage 14-001 is the D Series dead latch and belongs with a D Series lock. Even where the backset and faceplate dimensions look close, the latch tailpiece and retractor engagement are specific to the chassis, so a cross-brand pairing is not a supported repair. Identify the series stamped on the lock or the existing latch faceplate first, then order the latch from that same family - the Dexter part for a C1000 door, the 14-001 for a D Series door.

That is a different part than a bore-in door latch. The Accentra YSSL10 is a security sidelite auxiliary latch with an ADA compliant thumbturn, built for a 1-3/4 inch door thickness and carrying a fire rating, which is what a sidelite panel next to the active leaf calls for when the opening has to hold a rating and the operating hardware has to be usable without tight grasping or twisting. The Schlage 14-001 is the D Series dead latch, a commercial replacement latch for the D Series lock on the active door. On a storefront with a sidelite, the two serve different leaves of the same entrance rather than substituting for each other.
