Schlage 47258052 Boardwalk Lever Trim for AD/ALX/CO/ND Series, FSIC Less Core Replacement Part

Schlage 47258052 Boardwalk Lever Trim for AD/ALX/CO/ND Series, FSIC Less Core Replacement Part

(No reviews yet) Write a Review

Model: 47258052 626

In Stock (leaves warehouse same day if ordered before 3pm ET)

$223.00
$162.47
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage 47258052 Boardwalk Lever Trim for AD/ALX/CO/ND Series, FSIC Less Core Replacement Part

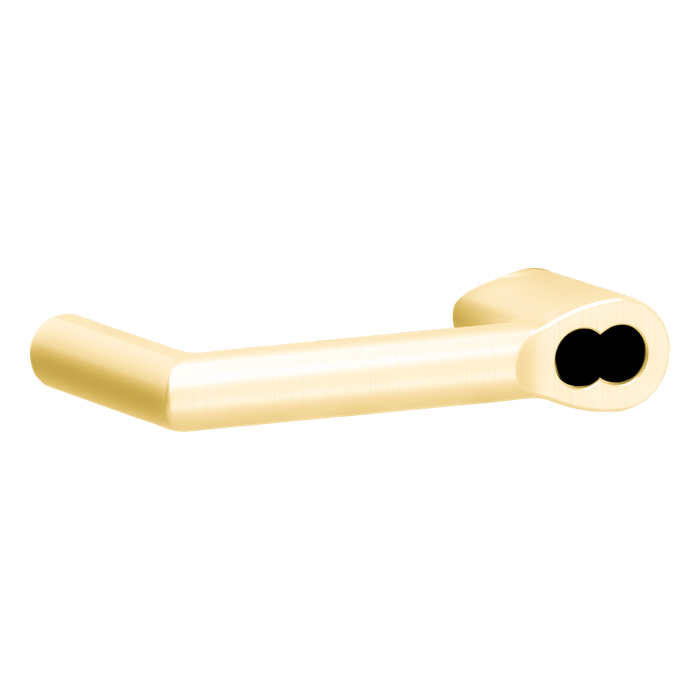

The Schlage 47258052 is a genuine Boardwalk Lever trim replacement part designed for commercial-grade lock systems. Configured for Schlage Full-Size Interchangeable Core (FSIC) Less Core installations, this lever trim is compatible with Schlage AD, ALX, CO, and ND Series locks, making it a versatile solution for facilities maintaining multiple Schlage platforms. Purpose-built for commercial environments, it delivers the consistent form and function expected from Schlage lock trim components.

Key Features

  • Boardwalk Lever Style: Genuine Schlage Boardwalk lever design provides a professional, commercial-grade aesthetic suited to high-traffic door applications.
  • FSIC Less Core Configuration: Designed for Full-Size Interchangeable Core (FSIC) systems, sold without the core to allow integration with existing keying systems.
  • Broad Series Compatibility: Compatible with Schlage AD, ALX, CO, and ND Series locks for flexible use across multiple lock platforms within a facility.
  • Genuine Schlage Replacement Part: OEM component engineered to Schlage specifications, ensuring proper fit, finish, and operational performance.
  • Commercial Application: Designed and rated for commercial use, appropriate for demanding institutional and commercial door hardware installations.
  • Direct Replacement: Serves as a drop-in replacement lever trim to restore or upgrade existing Schlage lock assemblies without full hardware replacement.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Mechanical Locks
  • Product Group: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Lock Trim
  • Parts and Accessories Type: Replacement Parts
  • Commercial/Residential: Commercial
  • Product Model: 47258052
  • Features: Schlage Parts

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities
  • Retail Establishments

Why Schlage 47258052?

The Schlage 47258052 Boardwalk Lever trim is engineered to OEM specifications, ensuring seamless compatibility with AD, ALX, CO, and ND Series lock platforms. Its FSIC Less Core design allows facilities managers and locksmiths to maintain consistent keying systems while replacing or refreshing lever trim components. Schlage's reputation for commercial-grade precision makes this part a dependable choice for restoring lock assemblies to full operational performance.

Manufacturer Resources

Product Specs

Department:
Door Hardware
Product Category:
Mechanical Locks
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Lock Trim
Parts and Accessories Type:
Replacement Parts
Commercial/Residential:
Commercial
Product Model:
47258052
Features:
Schlage Parts

Schlage 47258052 626 – Frequently Asked Questions

1) Does the Schlage 47258052 Boardwalk lever trim come with a cylinder core?
No core is included. The 47258052 Boardwalk lever trim is built for Full-Size Interchangeable Core (FSIC) and ships less core, so you supply your own FSIC core and keep the opening on your existing keying system. If you do not already have a spare FSIC core keyed to your system, order one separately or the trim will go on the door unkeyed.
2) Can I use this Boardwalk lever to replace a damaged lever without replacing the whole lock?
That is what it is for. The Boardwalk lever trim is a replacement part that goes onto an existing AD, ALX, CO or ND Series lock, so a bent or worn lever on a high-traffic door can be swapped out while the chassis, latch and keying stay in place.
3) Will this Boardwalk trim work if my existing Schlage locks use small format interchangeable core or conventional cylinders?
Only FSIC. This trim is prepped for Full-Size Interchangeable Core, so an SFIC core or a conventional key-in-lever cylinder will not seat in it. If your building is keyed on small format cores, order the trim configured for that prep instead, otherwise you will have a lever you cannot key.
4) What is the difference between the Schlage 47258052 Boardwalk lever trim and the Corbin Russwin 483F80 outside lever and spindle?
The Schlage 47258052 is a Boardwalk lever trim configured for Full-Size Interchangeable Core (FSIC) less core, and it is a replacement trim for Schlage AD, ALX, CO, and ND Series locks. The Corbin Russwin 483F80 is an outside lever and spindle for the ML2000 Series, sized for a 1-3/4 inch thick door and specified as Grade 1 with a corridor/dormitory function. So the two are tied to different lock platforms: use the 47258052 when the chassis in the door is a Schlage AD, ALX, CO, or ND, and the 483F80 when it is a Corbin Russwin ML2000 mortise lock.
5) What finishes does the Schlage Boardwalk FSIC lever trim come in?
Ten finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome, 626AM satin chrome antimicrobial, and 643E aged bronze. For a building standardized on 626, that is the common commercial satin chrome; 626AM is the same look with an antimicrobial coating, which is the one healthcare and food service jobs usually call for.
6) We are standardizing finishes across a building - what finish range does the Boardwalk lever trim cover compared with the Corbin Russwin lever?
The Schlage 47258052 Boardwalk lever trim is offered in 605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613E Dark Oxidized Satin Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial, and 643E Aged Bronze - ten options, including an antimicrobial satin chrome for healthcare corridors. The Corbin Russwin 483F80 is identified by its ML2000 Series lever and spindle configuration and Grade 1 corridor/dormitory function, so match that part by series and function when you are working an ML2000 opening.
7) Is the Boardwalk lever trim rated for commercial traffic or is it a residential part?
Commercial. The 47258052 is an OEM Schlage part for commercial lock platforms and is used in offices, schools, healthcare, government buildings, multi-tenant residential, warehouses and retail. It is not a residential-duty lever.
