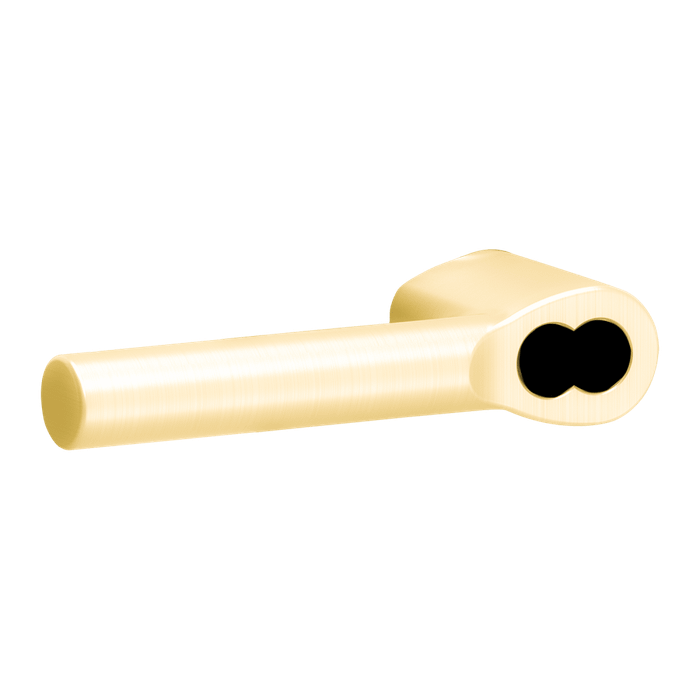

Schlage 47260549 Broadway Tactile Lever Lock Trim, Less Conventional Cylinder, for AD/CO/ND/ALX Series

Schlage 47260549 Broadway Tactile Lever Lock Trim, Less Conventional Cylinder, for AD/CO/ND/ALX Series

(No reviews yet) Write a Review

Model: 47260549 626

In Stock (leaves warehouse same day if ordered before 3pm ET)

$303.00
$243.68
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage 47260549 Broadway Tactile Lever Lock Trim, Less Conventional Cylinder, for AD/CO/ND/ALX Series

The Schlage 47260549 Broadway Tactile Lever is a commercial-grade lock trim replacement part designed for seamless integration with Schlage AD, CO, ND, and ALX Series lock platforms. Supplied less conventional cylinder, this lever trim is engineered for professional installation where the cylinder is sourced separately or already in service. Its tactile lever design meets the demands of high-traffic commercial door hardware applications, making it an ideal component for maintaining or upgrading existing Schlage lock assemblies.

Key Features

  • Broadway Tactile Lever Design: Distinctive Broadway profile with tactile styling provides a professional aesthetic well-suited to commercial door hardware installations.
  • Less Conventional Cylinder Configuration: Supplied without a conventional cylinder, allowing integration with existing cylinders or separate cylinder specification for maximum flexibility.
  • Broad Series Compatibility: Compatible with Schlage AD, CO, ND, and ALX Series lock platforms, enabling use across a wide range of Schlage commercial lock families.
  • Commercial-Grade Construction: Engineered to Schlage's commercial standards for durability and long-term performance in demanding environments.
  • Replacement Part Convenience: Purpose-built as a replacement lock trim component, simplifying maintenance and refurbishment of existing Schlage hardware without full lock replacement.
  • Lock Trim Classification: Classified as Lock Trim within the Schlage Parts and Accessories product group, ensuring correct form, fit, and function for compatible platforms.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Mechanical Locks
  • Product Group: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Lock Trim
  • Parts and Accessories Type: Replacement Parts
  • Commercial/Residential: Commercial
  • Product Model: 47260549
  • Features: Schlage Parts

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Schlage Broadway?

Schlage Broadway Tactile Lever trim components are manufactured to the same commercial-grade standards as original Schlage lock assemblies, ensuring consistent form, fit, and function across AD, CO, ND, and ALX Series platforms. Purpose-built as a replacement part, the 47260549 delivers the reliability and professional finish that facility managers and security professionals depend on for long-term door hardware performance.

Manufacturer Resources

Product Specs

Department:
Door Hardware
Product Category:
Mechanical Locks
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Lock Trim
Parts and Accessories Type:
Replacement Parts
Commercial/Residential:
Commercial
Product Model:
47260549
Features:
Schlage Parts

Schlage 47260549 626 – Frequently Asked Questions

1) Which Schlage lock series does the 47260549 Broadway lever trim fit?
The Broadway tactile lever trim, model 47260549, is built for Schlage AD, CO, ND and ALX Series lock platforms. If your opening runs one of those four families, this is the correct trim family to order. It will not serve as trim for Schlage mortise or bored lines outside those series.
2) Does the Schlage 47260549 Broadway lever come with a cylinder?
No cylinder is included. The 47260549 Broadway tactile lever is supplied less conventional cylinder, so you either reuse the cylinder already in service or order one separately keyed to your system. Budget for that line item before the trim goes on the job.
3) Can I replace just the lever on a Schlage ND lock instead of the whole lockset?
Yes. The 47260549 is sold as a replacement lock trim, so a damaged or worn Broadway lever on an ND (or AD, CO, ALX) lock can be swapped without pulling and rebuying the entire lock body. That is the usual path for property managers refreshing a floor of doors or repairing vandalism.
4) If the door has a Corbin Russwin ML2000 mortise lock rather than a Schlage, can the Broadway tactile lever trim be used on it?
No. The Schlage 47260549 Broadway tactile lever trim is built to fit Schlage AD, CO, ND and ALX Series lock platforms, and its mounting and spindle arrangement follow those chassis. For a Corbin Russwin ML2000 Series mortise lock, the matching outside trim is the Corbin Russwin 483F80, a Grade 1 LW outside lever and spindle for a 1-3/4 inch thick door in a corridor/dormitory function. Match the trim to the lock family already in the door rather than mixing manufacturers.
5) What finishes is the Broadway tactile lever trim available in?
Ten finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome, 626AM satin chrome antimicrobial and 643E aged bronze. For a building already standardized on 626, that is the common commercial match; 626AM is the same look with an antimicrobial coating, which is why it shows up on healthcare specs.
6) Is the Broadway tactile lever rated for commercial traffic or is it a residential lever?
Commercial. The Broadway tactile lever trim is specified as a commercial product and is intended for high-traffic openings such as offices, schools, healthcare, retail and multi-tenant residential corridors. It is not a residential-duty lever.
7) Do I have to specify handing when ordering the 47260549 Broadway lever trim?
Finish is the only choice made on the order for the 47260549: ten finishes from 605 bright brass through 643E aged bronze. Cylinder is the separate decision, since the trim ships less conventional cylinder and has to be matched to your keyway and keying system.
8) What is the difference between ordering a lever trim like the Broadway 47260549 and ordering an outside lever and spindle assembly?
The Schlage 47260549 is a complete lock trim component, supplied less conventional cylinder so an existing or separately specified cylinder can be fitted, and it is a Schlage replacement part for AD, CO, ND and ALX Series locks. A part such as the Corbin Russwin 483F80 is described as an outside lever and spindle for the ML2000 Series, sized to a 1-3/4 inch thick door. The two address the same repair - restoring the outside operating trim - but on different lock families, so the part number follows whichever chassis is already installed.
9) We need Grade 1 corridor function trim - does the Broadway tactile lever cover that, or should we look at something else?
The Broadway tactile lever 47260549 is a commercial lock trim that takes its function from the AD, CO, ND or ALX chassis it mounts to, so the lock body determines corridor, storeroom or classroom behavior, not the trim itself. Where a Grade 1 corridor/dormitory function is being specified on a Corbin Russwin opening, the 483F80 is a Grade 1 ML2000 Series corridor/dormitory outside lever and spindle. Confirm the installed lock series first, then order the trim that belongs to it.
10) What does 'tactile' mean on the Schlage Broadway lever?
Tactile refers to the lever's surface treatment on the Broadway profile, giving a textured grip surface rather than a smooth one. It is a styling and feel variant of the Broadway lever, not a different mounting or function.
