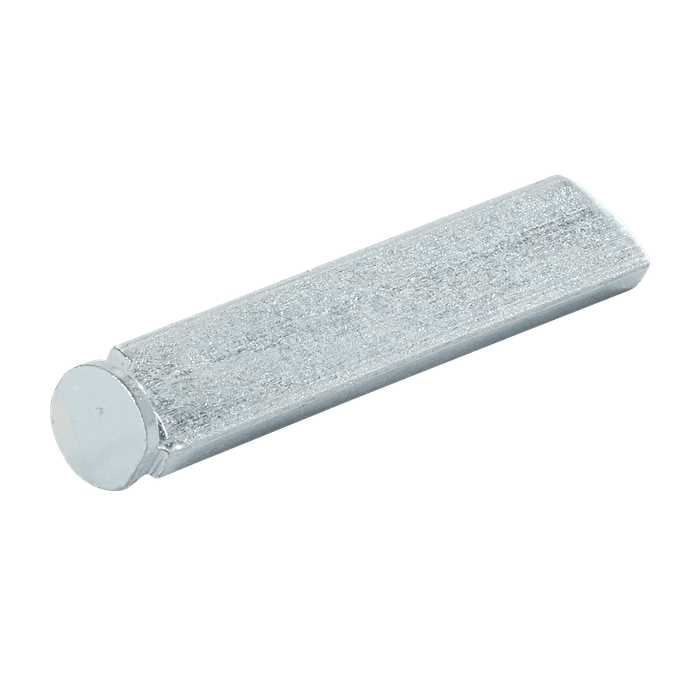

Schlage B202-957 Cylinder Tailpiece for MD160 5-Pin and B560/63 BD/GD 1.14" Single Cylinder, 1-3/8" to 2-1/4" Doors

Schlage B202-957 Cylinder Tailpiece for MD160 5-Pin and B560/63 BD/GD 1.14" Single Cylinder, 1-3/8" to 2-1/4" Doors

(No reviews yet) Write a Review

Model: B202-957

In Stock (leaves warehouse same day if ordered before 3pm ET)

$19.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage B202-957 Cylinder Tailpiece for MD160 5-Pin and B560/63 BD/GD Single Cylinder

The Schlage B202-957 is a commercial-grade cylinder tailpiece replacement part engineered for precise compatibility with the MD160 5-Pin cylinder on doors ranging from 1-5/8" to 2" thick, as well as the B560/63 BD/GD 1.14" single cylinder on doors ranging from 1-3/8" to 2-1/4" thick. Designed specifically for Schlage mechanical lock systems, this tailpiece provides the critical mechanical linkage between the cylinder and the lock body, ensuring reliable and consistent operation in commercial door hardware applications.

Key Features

  • Broad Door Thickness Compatibility: Supports door thicknesses of 1-5/8" to 2" when used with the MD160 5-Pin cylinder, and 1-3/8" to 2-1/4" when paired with the B560/63 BD/GD 1.14" single cylinder.
  • Dual Cylinder Compatibility: Designed for use with both the MD160 5-Pin cylinder and the B560/63 BD/GD 1.14" single cylinder, providing versatility across Schlage lock families.
  • OEM Replacement Part: Genuine Schlage replacement component engineered to factory specifications for dependable fit and performance in existing Schlage mechanical lock assemblies.
  • Commercial-Grade Construction: Rated for commercial applications, ensuring durability and long-term reliability in high-use door hardware installations.
  • Precise Mechanical Linkage: Functions as the critical connection between the lock cylinder and lock body, maintaining smooth and accurate actuation of the locking mechanism.
  • Easy Integration: Designed as a direct replacement part that integrates seamlessly with compatible Schlage lock systems without modification.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Mechanical Locks
  • Product Group: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Cylinder Tailpiece
  • Parts and Accessories Type: Replacement Parts
  • Commercial/Residential: Commercial
  • Product Model: B202-957
  • Features: Schlage Parts

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Schlage B202?

Schlage mechanical lock components are engineered to exacting commercial standards, ensuring dependable performance in demanding environments. The B202-957 cylinder tailpiece is a genuine OEM part built to integrate precisely with compatible Schlage MD160 and B560/63 BD/GD lock systems, delivering the fit and reliability that commercial door hardware installations require.

Manufacturer Resources

Product Specs

Department:
Door Hardware
Product Category:
Mechanical Locks
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Cylinder Tailpiece
Parts and Accessories Type:
Replacement Parts
Commercial/Residential:
Commercial
Product Model:
B202-957
Features:
Schlage Parts

Schlage B202-957 – Frequently Asked Questions

1) Which Schlage cylinders does the B202-957 tailpiece fit?
The B202-957 tailpiece is made for two Schlage cylinders: the MD160 5-Pin cylinder and the B560/63 BD/GD 1.14 inch single cylinder. If your cylinder is neither of those, this is the wrong tailpiece length and the lock will not actuate properly.
2) What door thickness does the Schlage B202-957 tailpiece cover?
It depends which cylinder it is going into. With the MD160 5-Pin cylinder, the B202-957 covers doors 1-5/8 to 2 inches thick. With the B560/63 BD/GD 1.14 inch single cylinder, it covers 1-3/8 to 2-1/4 inches. Measure the door leaf first, then confirm which cylinder you have, because the same part has two different working ranges.
3) My Schlage deadbolt cylinder turns but the bolt doesn't move. Is the tailpiece the part I need?
That symptom points at the linkage between the cylinder and the lock body, which is exactly what a tailpiece is. The B202-957 is the replacement tailpiece for MD160 5-Pin and B560/63 BD/GD 1.14 inch single cylinders. If the key turns freely with no bolt movement, a sheared, bent or wrong-length tailpiece is the usual cause.
4) I'm standardizing deadbolt parts across a building. Can one tailpiece cover both my MD160 and B560 openings?
Yes, within limits. The B202-957 serves both the MD160 5-Pin cylinder and the B560/63 BD/GD 1.14 inch single cylinder, so a property manager stocking one part number covers both families. Watch the door thickness though: it only works on MD160 openings from 1-5/8 to 2 inches, while B560/63 openings run 1-3/8 to 2-1/4 inches. Any MD160 door thinner than 1-5/8 inches falls outside the range.
5) Is the Schlage B202-957 a genuine OEM part or aftermarket?
Genuine Schlage. The B202-957 is an OEM replacement component built to factory specification, so it drops into a compatible Schlage lock assembly without filing, cutting or shimming.
6) Does the Schlage B202-957 come with a cylinder or screws, or is it the tailpiece only?
Tailpiece only. The B202-957 is a single replacement linkage part for an existing Schlage lock assembly; the cylinder, mounting screws and any other lock components are separate. Order it when the cylinder and lock body are otherwise sound.
7) Is this tailpiece rated for commercial door traffic or is it a residential part?
It is classed as a commercial part. Schlage builds the B202-957 for commercial mechanical lock assemblies, the kind used in offices, schools, healthcare, retail, warehouses, multi-tenant residential and municipal buildings.
8) Are there different versions of the Schlage B202-957 to choose from?
No options to pick. The B202-957 is sold as one configuration under that single part number, so there is no finish, length or handing selection to make when ordering.
