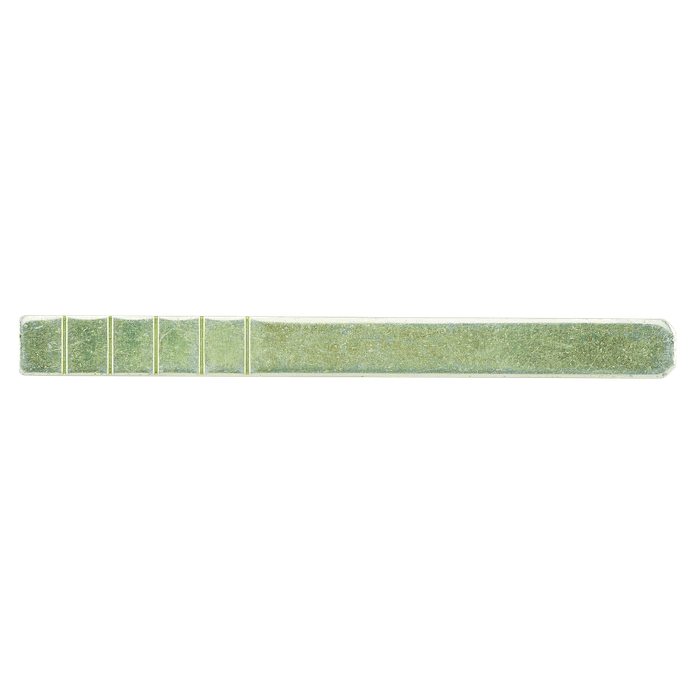

Schlage B520-653 Cylinder Tailpiece for B571 Locks, 1-3/8" to 2-1/4" Door Thickness
The Schlage B520-653 is a genuine OEM cylinder tailpiece engineered for use with the Schlage B571 lock series. Designed to accommodate door thicknesses ranging from 1-3/8" to 2-1/4", this commercial-grade replacement part ensures precise compatibility and reliable mechanical operation when restoring or servicing B571 lock installations. As an authentic Schlage component, it delivers the fit and performance expected of the original hardware.
Key Features
- Door Thickness Compatibility: Engineered for doors ranging from 1-3/8" to 2-1/4" thick, covering a wide range of commercial door configurations.
- B571 Lock Series Compatibility: Designed specifically for use with the Schlage B571 lock, ensuring proper mechanical engagement and reliable operation.
- Genuine Schlage Component: Authentic OEM replacement part manufactured to Schlage's original specifications for assured fit and function.
- Commercial-Grade Construction: Built to meet the demands of commercial applications where dependable hardware performance is essential.
- Cylinder Tailpiece Design: Precision-formed tailpiece provides accurate cylinder-to-lock body coupling for smooth, consistent latch and bolt actuation.
- Direct Replacement Part: Simplifies servicing and restoration of existing B571 lock installations without requiring full lock replacement.
Technical Specifications
- Department: Door Hardware
- Product Category: Mechanical Locks
- Product Group: Parts and Accessories
- Subcategory: Parts and Accessories
- Product Subgroup: Parts and Accessories
- Product Type: Cylinder Tailpiece
- Parts and Accessories Type: Replacement Parts
- Commercial/Residential: Commercial
- Product Model: B520-653
- Features: Schlage Parts
Typical Applications
- Commercial Office Buildings
- Educational Facilities
- Healthcare Institutions
- Retail Establishments
- Industrial and Warehouse Facilities
- Multi-Tenant Residential Properties
- Government and Municipal Buildings
Why Schlage B520?
Schlage cylinder tailpiece components are manufactured to exacting OEM standards, ensuring that replacement parts integrate seamlessly with existing B571 lock hardware. The B520-653 supports door thicknesses from 1-3/8" to 2-1/4", making it a versatile service part suited to a broad range of commercial door installations where precision fit and mechanical reliability are non-negotiable.
Manufacturer Resources
Product Specs
- Department:
- Door Hardware
- Product Category:
- Mechanical Locks
- Product Group:
- Parts and Accessories
- Subcategory:
- Parts and Accessories
- Product Subgroup:
- Parts and Accessories
- Product Type:
- Cylinder Tailpiece
- Parts and Accessories Type:
- Replacement Parts
- Commercial/Residential:
- Commercial
- Product Model:
- B520-653
- Features:
- Schlage Parts
Schlage B520-653 – Frequently Asked Questions
1) Can I use the B520-653 tailpiece on a Schlage lock that isn't a B571?
No. The B520-653 is cut and formed specifically for the B571 lock series. Tailpiece length and blade shape have to match the lock body's drive, so putting it in another Schlage series risks incomplete engagement or a bolt that won't throw. Identify the lock model first and order the tailpiece Schlage lists for that series.
2) Will the Schlage B520-653 tailpiece work on a 2-inch thick door?
Yes. The B520-653 covers door thicknesses from 1-3/8 inches to 2-1/4 inches, so a 2 inch door falls inside its range, as does the standard 1-3/4 inch commercial door and the older 1-3/8 inch interior door.
3) Is this a genuine Schlage part or an aftermarket copy?
Genuine OEM. The B520-653 is made by Schlage to the original specification for the B571, which matters on a tailpiece because the fit tolerance between cylinder and lock body is what keeps the key turn smooth over thousands of cycles.
4) If my key turns but the deadbolt won't move on a Schlage B571, is the tailpiece the part to replace?
That symptom points at the tailpiece, yes. When the cylinder spins freely but the bolt stays put, the coupling between cylinder and lock body has worn, twisted, or is the wrong length for the door thickness. The B520-653 is the coupling part for the B571 and fits doors 1-3/8 to 2-1/4 inches thick, so match your door thickness to that range before you fit it.
5) Do I need to buy a new cylinder along with the B520-653 tailpiece?
Not if your existing cylinder is sound. The B520-653 is sold as the tailpiece alone, which is the point of it: you keep the keyed cylinder and the lock body and replace only the driven part. Order a cylinder separately only if the plug or keyway is also damaged.
6) Do I have to order a different B520 tailpiece for each door thickness in my building?
No. One part number, B520-653, covers the whole 1-3/8 to 2-1/4 inch range, so a property manager standardizing B571 locks across mixed-age doors can stock a single tailpiece rather than one per thickness. Anything thicker than 2-1/4 inches is outside what this part covers.
7) Is the B520-653 tailpiece rated for commercial door traffic?
It's classified as a commercial part, built for the duty found in office buildings, schools, healthcare, retail, warehouses, municipal buildings and multi-tenant residential, all of which Schlage names as typical applications for the B571 hardware it serves.
