Schlage B520-736 Modular Strai...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$23.90
Schlage B520-736 Modular Straight Mortise Cylinder Cam, 1-1/8" / 1-3/8" / 1-5/8" Conventional, Compatible with Yale 2160, Arrow #004

Schlage B520-736 Modular Straight Mortise Cylinder Cam, 1-1/8" / 1-3/8" / 1-5/8" Conventional, Compatible with Yale 2160, Arrow #004

(No reviews yet) Write a Review

Model: B520-736

In Stock (leaves warehouse same day if ordered before 3pm ET)

$23.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage B520-736 Modular Straight Mortise Cylinder Cam, 1-1/8" / 1-3/8" / 1-5/8" Conventional

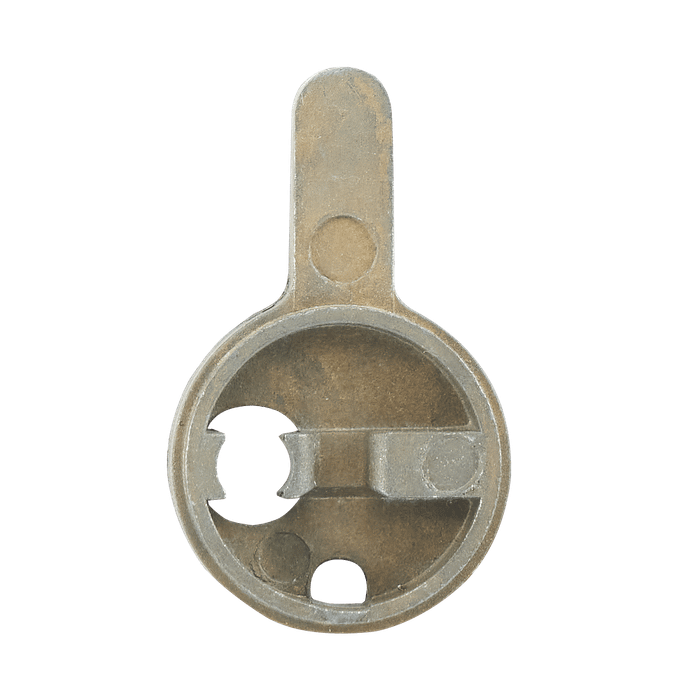

The Schlage B520-736 is a Modular Straight Mortise Classic Conventional Cylinder Cam engineered for commercial door hardware applications requiring precise, reliable cam geometry. Designed to accommodate three cylinder lengths, 1-1/8", 1-3/8", and 1-5/8", this replacement cam provides broad compatibility with conventional mortise cylinders. It is specifically designed for use with Yale 2160, Arrow #004, and Sargent 13-0660 mortise cylinders (except 50 Exterior and 16 Interior configurations), making it a versatile drop-in component for multi-brand commercial lockset service and maintenance.

Key Features

  • Multi-Length Compatibility: Accommodates 1-1/8", 1-3/8", and 1-5/8" conventional cylinder formats, reducing the need for multiple replacement part SKUs across a range of mortise lock applications.
  • Modular Straight Cam Design: Classic straight mortise cam geometry ensures consistent, dependable operation within compatible mortise lock bodies for commercial-grade performance.
  • Cross-Brand Cylinder Compatibility: Engineered for direct compatibility with Yale 2160, Arrow #004, and Sargent 13-0660 cylinders (except 50 Exterior and 16 Interior), supporting broad service coverage across major lock brands.
  • Commercial-Grade Construction: Manufactured to Schlage's commercial component standards, delivering the durability and precision required for demanding institutional and commercial environments.
  • Genuine Schlage Replacement Part: Sourced as an authentic Schlage component, ensuring proper fit, function, and longevity when servicing or replacing OEM hardware.
  • Conventional Cylinder Format: Designed specifically for conventional (non-interchangeable core) mortise cylinder configurations, maintaining mechanical integrity of the locking system.

Certifications & Compliance

  • Commercial-Grade Component
  • Genuine Schlage Replacement Part

Technical Specifications

  • Department: Door Hardware
  • Product Category: Mechanical Locks
  • Product Group: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Cams & Cam Locks
  • Parts and Accessories Type: Replacement Parts
  • Commercial/Residential: Commercial
  • Product Model: B520-736
  • Features: Schlage Parts

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties

Why Schlage B520?

Schlage commercial replacement parts are built to the same exacting standards as original OEM components, ensuring consistent fit and reliable operation across service and maintenance applications. The B520-736 Cylinder Cam delivers the precision geometry and material quality that commercial locksmiths and facility maintenance professionals depend on when servicing Yale, Arrow, and Sargent mortise lock systems. Engineered for demanding commercial environments, this component upholds Schlage's reputation for professional-grade door hardware reliability.

Manufacturer Resources

Product Specs

Department:
Door Hardware
Product Category:
Mechanical Locks
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Cams & Cam Locks
Parts and Accessories Type:
Replacement Parts
Commercial/Residential:
Commercial
Product Model:
B520-736
Features:
Schlage Parts

Schlage B520-736 – Frequently Asked Questions

1) I manage a building with Yale, Arrow, and Sargent locks mixed together. Do I need a different cam for each brand?
Not for those three. One B520-736 covers Yale 2160, Arrow #004, and Sargent 13-0660 conventional mortise cylinders across the 1-1/8, 1-3/8, and 1-5/8 inch lengths, so a single part number handles that mix on the service cart. The exception to watch is the 50 Exterior and 16 Interior configurations.
2) Can I use this cam on an interchangeable core cylinder?
No. The B520-736 is built for conventional, non-interchangeable-core mortise cylinders only. If your cylinder is a small format or large format IC housing, this cam is the wrong part for it.
3) What exactly is the Schlage B520-736 part, and what does it do?
It is the cam, the small flat tailpiece that bolts to the back of a mortise cylinder and drives the lock body's hub when the key turns. It is a replacement component, not a cylinder and not a lock, so you reuse your existing cylinder and swap the cam when the geometry is wrong or the original is worn.
4) Is a straight cam the right choice, or do I need a different cam shape?
The B520-736 is the classic straight mortise cam, which is what the great majority of standard mortise lock bodies take. If your lock body calls for a clover, offset, or other special cam profile, a straight cam will not throw the hub correctly and you need the profile the lock manufacturer specifies for that body.
5) Is the Schlage B520-736 cam suitable for high-traffic commercial buildings?
Yes, it is a commercial-grade component. Schlage lists it for office buildings, schools, healthcare, government and municipal buildings, retail, industrial and warehouse space, and multi-tenant residential, which is the traffic level it is built around.
6) Is the Schlage B520-736 a genuine Schlage part or an aftermarket copy?
It is an authentic Schlage component, model B520-736, sold as an OEM replacement part rather than a generic equivalent.
How fast can I get the Schlage B520-736 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Schlage B520-736 come with a warranty?
Absolutely. The Schlage B520-736 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Schlage B520-736?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Schlage B520-736 from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
