Schlage Commercial B520 Modular Mortise Cylinder Cam
Manufacturer Resources
Product Specs
- Product Group:
- Mechanical Locks
- Subcategory:
- Parts and Accessories
- Product Subgroup:
- Parts and Accessories
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Schlage B520-732 – Frequently Asked Questions

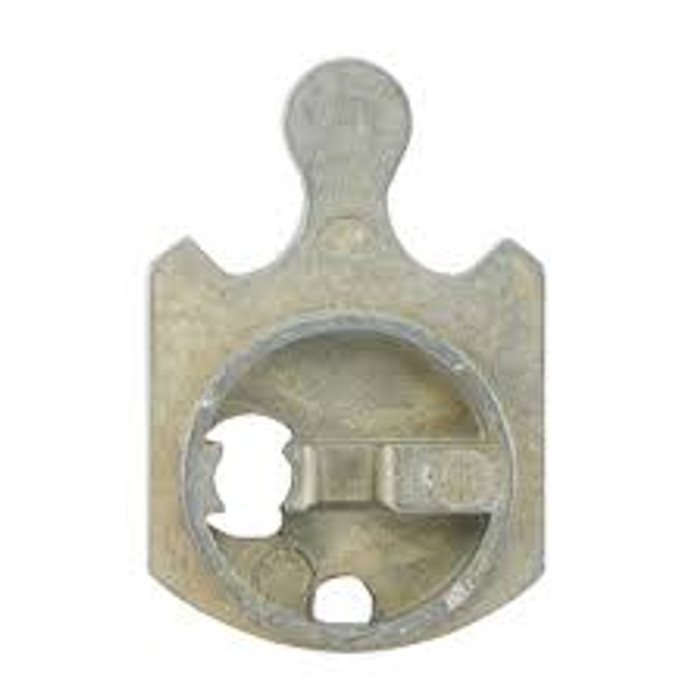

1) What does the Schlage B520 mortise cylinder cam do, and do I need one?
The B520 is the cam that mounts on the back of a Schlage modular mortise cylinder. The cam is what actually turns the lock's mechanism when the key rotates, so the cam has to match the lock body you are putting the cylinder into. If you are dropping a Schlage mortise cylinder into a non-Schlage lock, the cam is the part that makes it work.
2) Can I use a Schlage mortise cylinder in a Corbin Russwin ML2255 or ML2242 lock with the B520 cam?
No. The Corbin Russwin cam option covers the ML2200 series but specifically excludes the ML2255 and ML2242. Those two lock functions need a different cam, so ordering the ML2200 cam for them will not drive the lock.
3) I have Sargent mortise locks. Which B520 cam do I order and does cylinder length matter?
The cam that covers Sargent is the Yale 2160 / Arrow / Sargent 13-0660 option, and it is called out for 1-1/4, 1-1/2 and 1-3/4 inch. That same cam also covers Yale 2160 and Arrow locks, so a mixed building of those three brands standardizes on one cam.
4) I am converting Adams Rite 4070 deadlatches over to Schlage keying. What cam do I need?
Adams Rite 4070 has its own dedicated cam option on the B520. That cam lets a Schlage modular mortise cylinder run the 4070, which is how you bring aluminum storefront doors onto the same key system as the rest of the building.
5) Does the B520 cam come with a cylinder, or is it just the cam?
Just the cam. The B520 is the cam alone for a Schlage modular mortise cylinder, so you order the cylinder, the keying, and the cam that suits your lock body separately.
6) Can one B520 cam cover a building with mixed lock brands?
Partly. A single cam covers Yale 2160, Arrow, and Sargent 13-0660 openings, so those three run on one part. Corbin Russwin ML2200 locks and Adams Rite 4070 devices each need their own cam. Count your openings by lock body first, then order cams per group.
