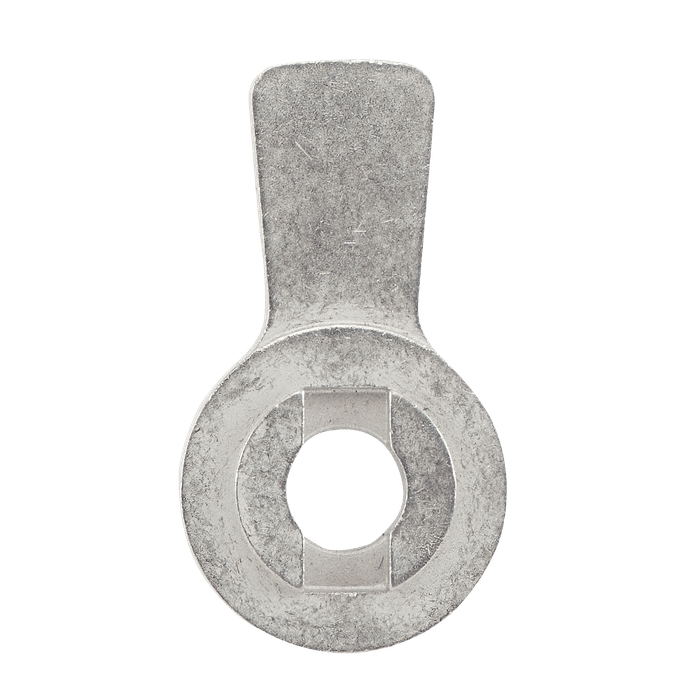

Schlage K510-680 Straight Mortise SFIC/FSIC Cam for L9060 Exterior and Glynn-Johnson HL-6 9060 Exterior Keyswitches
The Schlage K510-680 is a straight mortise cam engineered for Small Format Interchangeable Core (SFIC) and Full Size Interchangeable Core (FSIC) cylinder configurations. Designed as a precision replacement part for commercial door hardware, this cam is specifically compatible with Schlage L9060 Exterior mortise locks, Glynn-Johnson HL-6 9060 Exterior hardware, and CM5500, CM5600, PRO500, VIP5000, and 650 Keyswitch applications. As a factory-genuine Schlage component, the K510-680 ensures proper mechanical engagement and reliable operation in high-demand commercial environments.
Key Features
- SFIC/FSIC Compatibility: Designed for both Small Format Interchangeable Core and Full Size Interchangeable Core cylinder systems, providing flexibility across a wide range of commercial keying configurations.
- Straight Mortise Cam Design: Precision-engineered straight cam profile ensures accurate and consistent mechanical engagement within compatible mortise lock bodies and keyswitch cylinders.
- Broad Device Compatibility: Specifically rated for use with Schlage L9060 Exterior mortise locks, Glynn-Johnson HL-6 9060 Exterior hardware, and CM5500, CM5600, PRO500, VIP5000, and 650 Keyswitches.
- Factory Genuine Replacement Part: Manufactured as an authentic Schlage component, ensuring proper fit and function in supported lock bodies without modification.
- Commercial Grade Construction: Built to the performance standards expected of Schlage commercial door hardware, suitable for high-traffic and security-critical installations.
- Direct Replacement: Serves as a drop-in replacement part for worn or damaged cams in compatible Schlage and Glynn-Johnson hardware assemblies, minimizing downtime during servicing.
Technical Specifications
- Department: Door Hardware
- Product Category: Mechanical Locks
- Product Group: Parts and Accessories
- Subcategory: Parts and Accessories
- Product Subgroup: Parts and Accessories
- Product Type: Cams & Cam Locks
- Parts and Accessories Type: Replacement Parts
- Commercial/Residential: Commercial
- Product Model: K510-680
- Features: Schlage Parts
Typical Applications
- Commercial Office Buildings with Schlage L9060 Mortise Lock Systems
- Educational Facilities Utilizing Interchangeable Core Keying Programs
- Healthcare Institutions Requiring Reliable Mortise Cylinder Replacement Parts
- Government and Municipal Buildings with Schlage or Glynn-Johnson Hardware
- Retail Establishments Servicing Keyswitch-Controlled Entry Points
- Industrial and Warehouse Facilities Using CM5500, CM5600, PRO500, VIP5000, or 650 Keyswitches
- Multi-Tenant Residential or Mixed-Use Properties with Commercial-Grade Mortise Hardware
Why Schlage K510-680?
The Schlage K510-680 delivers the precision fit and reliable mechanical performance that professional locksmiths and facility managers depend on when servicing Schlage L9060 Exterior mortise locks, Glynn-Johnson HL-6 9060 Exterior hardware, and compatible keyswitch assemblies. As a factory-genuine replacement cam with SFIC/FSIC compatibility, it eliminates guesswork during service calls and maintains the integrity of the original hardware installation. Choose the K510-680 for a trusted, specification-correct solution in demanding commercial door hardware environments.
Manufacturer Resources
Product Specs
- Department:
- Door Hardware
- Product Category:
- Mechanical Locks
- Product Group:
- Parts and Accessories
- Subcategory:
- Parts and Accessories
- Product Subgroup:
- Parts and Accessories
- Product Type:
- Cams & Cam Locks
- Parts and Accessories Type:
- Replacement Parts
- Commercial/Residential:
- Commercial
- Product Model:
- K510-680
- Features:
- Schlage Parts
Schlage K510-680 – Frequently Asked Questions
1) What is the Schlage K510-680 cam used for?
The K510-680 is a straight mortise cam, the small driver piece that sits on the back of an interchangeable core cylinder and actuates the lock body or switch. It is a Schlage replacement part for Schlage L9060 Exterior mortise locks, Glynn-Johnson HL-6 9060 Exterior hardware, and CM5500, CM5600, PRO500, VIP5000 and 650 keyswitches. It is not a cylinder and not a lock, so you supply the core separately.
2) Will the K510-680 cam work with a small format interchangeable core, or do I need a full size core?
Either. The straight mortise cam is made for both SFIC (small format interchangeable core) and FSIC (full size interchangeable core) cylinder configurations, so a facility running a single IC keying program across different cylinder formats can use the same cam part number on supported devices.
3) My Schlage L9060 exterior mortise lock stopped turning the lock body when the key rotates. Is the cam the part to replace?
A key that turns freely without retracting or throwing the lock is the classic symptom of a worn or sheared cam. The K510-680 is the straight mortise cam specified for the L9060 Exterior, and it goes in as a drop-in replacement in supported assemblies without modification to the lock body. Replace the cam before you condemn the whole mortise lock.
4) I'm servicing a CM5500 keyswitch on a gate operator. Is this the right cam?
Yes, the straight mortise cam covers CM5500, CM5600, PRO500, VIP5000 and 650 keyswitch applications. Those switches take a mortise cylinder, and this is the cam that lets the interchangeable core drive the switch mechanism.
5) Does the K510-680 fit Glynn-Johnson HL-6 9060 exterior hardware?
Yes. Along with the Schlage L9060 Exterior, the straight mortise cam is specified for Glynn-Johnson HL-6 9060 Exterior hardware. Both brands sit under the same hardware family, which is why one cam part number covers them.
6) Can I use this cam on an interior L9060 function or another Schlage mortise function?
The K510-680 is called out for the L9060 Exterior and the HL-6 9060 Exterior specifically, plus the CM5500, CM5600, PRO500, VIP5000 and 650 keyswitches. Cam profiles are function-specific, so for a different mortise function or the interior side, match the cam called out for that device rather than assuming this one carries over.
7) Is the Schlage K510-680 a genuine factory part or aftermarket?
Factory genuine Schlage. It is built as an authentic Schlage component so it seats and engages in supported lock bodies with no filing or shimming, which matters on a service call where you cannot leave a security opening half working.
8) Is this cam rated for commercial use, or is it a residential part?
Commercial. The K510-680 is a commercial-grade replacement part, intended for high-traffic and security-critical openings such as schools, hospitals, government buildings and multi-tenant properties running Schlage or Glynn-Johnson mortise hardware.
9) How many cams do I get, and do I need one per door?
The K510-680 is a single cam part number, ordered one for one against each cylinder you are servicing. If you are standardizing a building on L9060 Exterior locks or CM5500 series keyswitches, count one cam per cylinder position and keep a few on the truck, since the cam is the wear item rather than the core.
