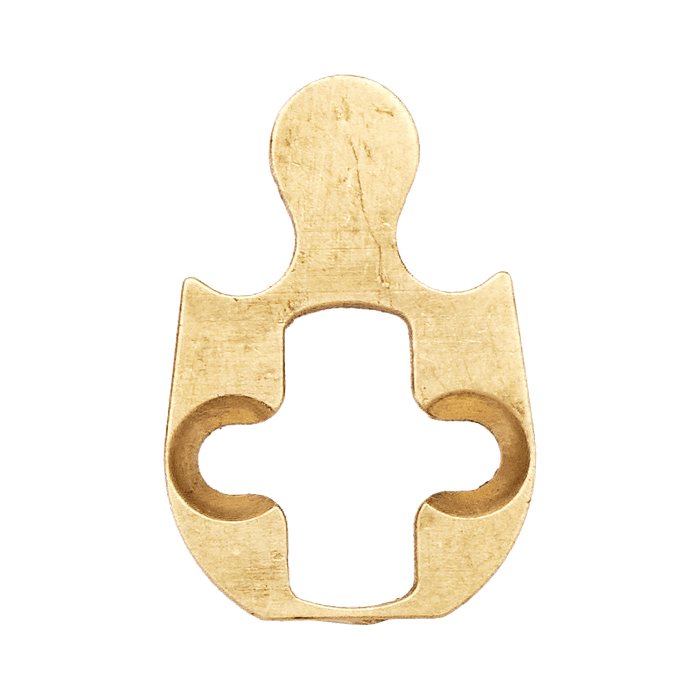

Schlage L583-198 Non-Modular Mortise Concealed Shell Clover Cam for L Series with Corbin Russwin Cylinder

Schlage L583-198 Non-Modular Mortise Concealed Shell Clover Cam for L Series with Corbin Russwin Cylinder

(No reviews yet) Write a Review

Model: L583-198

In Stock (leaves warehouse same day if ordered before 3pm ET)

$20.30
$14.68
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage L583-198 Non-Modular Mortise Concealed Shell Clover Cam for L Series with Corbin Russwin Cylinder

The Schlage L583-198 is a Non-Modular Mortise Concealed Shell Clover Mortise Classic Conventional Cylinder Cam engineered specifically for use with the Schlage L Series lockset when paired with a Corbin Russwin cylinder. This precision replacement part ensures proper cylinder-to-lockcase engagement, maintaining the performance and security standards expected from professional-grade commercial door hardware. Designed as a direct replacement component, the L583-198 cam delivers reliable, consistent operation in demanding commercial applications.

Key Features

  • Targeted Compatibility: Specifically designed for use with the Schlage L Series mortise lockset in combination with a Corbin Russwin cylinder, ensuring precise fitment and reliable operation.
  • Non-Modular Mortise Design: Concealed shell clover cam configuration engineered for conventional cylinder cam applications within non-modular mortise lock bodies.
  • Classic Conventional Cylinder Cam: Classic cam profile provides consistent cylinder actuation and smooth mechanical engagement for dependable day-to-day performance.
  • OEM Replacement Part: Genuine Schlage replacement component maintains original equipment performance standards and preserves the integrity of the L Series lockset installation.
  • Commercial-Grade Construction: Manufactured to the quality standards required for commercial door hardware applications where consistent, long-term performance is essential.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Mechanical Locks
  • Product Group: Parts and Accessories
  • Subcategory: Parts and Accessories
  • Product Subgroup: Parts and Accessories
  • Product Type: Cams & Cam Locks
  • Parts and Accessories Type: Replacement Parts
  • Commercial/Residential: Commercial
  • Product Model: L583-198
  • Features: Schlage Parts

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities
  • Retail Establishments

Why Schlage L583-198?

Schlage L Series replacement parts like the L583-198 are manufactured to exacting commercial standards, ensuring that repaired or serviced locksets perform as originally intended. The L583-198 cam is purpose-built for the specific cylinder pairing of Schlage L Series hardware with Corbin Russwin cylinders, eliminating guesswork and ensuring a correct, secure fit in professional commercial installations where dependable hardware performance is non-negotiable.

Manufacturer Resources

Product Specs

Department:
Door Hardware
Product Category:
Mechanical Locks
Product Group:
Parts and Accessories
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Cams & Cam Locks
Parts and Accessories Type:
Replacement Parts
Commercial/Residential:
Commercial
Product Model:
L583-198
Features:
Schlage Parts

Schlage L583-198 – Frequently Asked Questions

1) What does the Schlage L583-198 cam actually do, and when do I need one?
The L583-198 is the cam that sits on the back of a mortise cylinder and transfers the key turn into the lock body. You need it when you are putting a Corbin Russwin cylinder into a Schlage L Series mortise lock: the cylinder ships with its own cam profile, and this clover cam is the piece that makes it engage the L Series lockcase correctly. It is a Schlage replacement part, not a whole cylinder or lock.
2) Will the L583-198 clover cam work with a Schlage mortise cylinder instead of a Corbin Russwin one?
No. This cam is specified for the pairing of a Schlage L Series lockset with a Corbin Russwin cylinder. A Schlage conventional mortise cylinder uses its own Schlage cam, so ordering the L583-198 for that combination gets you a part that will not be the right engagement. Match the cam to the cylinder brand going into the lock, not to the lock alone.
3) Does the L583-198 fit modular Schlage L Series mortise locks?
It is a non-modular mortise cam. The L583-198 is built for conventional, non-modular L Series mortise lock bodies with a concealed shell, so before ordering confirm the lockcase you are servicing is the non-modular type. A modular L Series body takes a different cam.
4) I manage a building with Schlage L Series locks but our keying is on Corbin Russwin. Can I keep both?
That is exactly the case this cam covers. It lets a Corbin Russwin conventional mortise cylinder drive a Schlage L Series mortise lockset, so you can keep your existing Corbin Russwin keyway and key system across the building without replacing the Schlage lock bodies. Order one cam per cylinder you are converting.
5) Does the L583-198 come with a cylinder or screws?
No. What you get is the clover cam itself. The mortise cylinder, the cam screws that came with your cylinder, and the lockset are all separate. Locksmiths normally reuse the cylinder's existing cam screws when swapping in the correct cam.
6) Is this cam a genuine Schlage part or an aftermarket copy?
It is a genuine Schlage component, model L583-198, supplied as an OEM replacement for L Series mortise hardware. For facilities that standardize on Schlage and need service work to keep the original lockset performing as specified, that matters more than the part cost.
7) Is the L583-198 cam rated for commercial door traffic?
Yes, it is a commercial-grade part. Schlage lists it under commercial door hardware for L Series mortise locksets, and it is used in offices, schools, healthcare, government buildings, multi-tenant residential, warehouses and retail.
