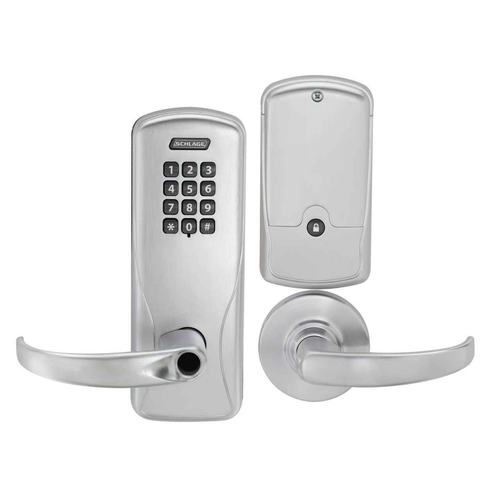

Schlage Electronics CO-200 Standalone Electronic Mortise Lock, Privacy Function, Keypad Reader
Model: SCH-CO-200-MS-40-KP
CO-200 OVERVIEW The CO Series offers ideal solutions for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system...
Schlage Electronics
Starting at
$2,079.00
$1,580.54
Schlage Electronics CO-200 Standalone Electronic Mortise Lock, Office Function, Keypad Reader
Model: SCH-CO-200-MS-50-KP
CO-200 OVERVIEW The CO Series offers ideal solutions for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system...
Schlage Electronics
Starting at
$2,079.00
$1,720.65
Schlage Electronics CO-200 Standalone Electronic Cylindrical Lock, Office Function, Keypad Reader
Model: SCH-CO-200-CY-50-KP
CO-200 OVERVIEW The CO Series offers ideal solutions for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system...
Schlage Electronics
Starting at
$1,766.00
$1,342.61
Schlage Electronic 47260707 CO Series Exterior Escutcheon Only for Cylindrical/Mortise Locks, CO100, Keypad, with Fasteners/O-Ring
Manufacturer Resources
Product Specs
- Product Group:
- Parts and Accessories
- Product Subgroup:
- Parts and Accessories
- Product Type:
- Escutcheons
- Subcategory:
- Parts and Accessories
- Parts and Accessories Type:
- Replacement Parts
- Product Attribute:
- Parts and Accessories
- Product Function:
- Keypads
- Product Category:
- Electronic Access Control
- Department:
- Door Hardware
Schlage Electronics 47260707-626 – Frequently Asked Questions
1) Is the Schlage 47260707 a complete CO Series lock or just the outside keypad plate?
It's the exterior escutcheon only for the CO100 keypad lock, supplied with fasteners and an O-ring. There is no chassis, no latch, no inside trim and no cylinder in the box. Use it when the outside keypad housing on an existing CO100 opening is damaged or worn and the rest of the lock is still good. If you're building a new opening, you need the complete CO100 lock, not this part.
2) Will the 47260707 escutcheon work on both cylindrical and mortise CO Series locks?
Yes. The 47260707 exterior escutcheon is listed for CO Series cylindrical and mortise CO100 applications, so the same outside keypad plate covers both chassis types. What it does not cover is the inside trim or the chassis itself, so the rest of the lock has to stay as it was.
3) Do I have to order gaskets or screws separately for this CO100 keypad escutcheon?
No. The 47260707 ships with its fasteners and the O-ring, so the mounting hardware and the weather seal behind the plate come with the part. Nothing else in the lock is included.
4) Can I use the 47260707 escutcheon to convert a CO Series lock to a different credential type?
No. This is the keypad version of the exterior escutcheon, matched to the CO100 keypad-only lock. It won't add a card reader or change how the lock reads credentials. Swapping credential types on a CO Series opening means changing the reader trim to the version built for it, not fitting this keypad plate.
5) Is the MS Sedco ESC escutcheon plate an alternative to the Schlage 47260707?
No, they solve different problems. The MS Sedco ESC is a decorative stainless escutcheon plate for R4 and R6 round push switches, so it trims out a switch, not a lock. The Schlage 47260707 is the outside keypad housing for a CO100 electronic access control lock. Neither part substitutes for the other.
6) Can an MS Sedco ESC stainless escutcheon plate be used in place of the Schlage 47260707 CO Series exterior escutcheon?
No. The Schlage 47260707 is the exterior keypad escutcheon for CO Series CO100 cylindrical and mortise locks, supplied with fasteners and an O-ring, and it carries the keypad that the electronic lock reads credentials through. The MS Sedco ESC is a decorative stainless escutcheon plate made to trim R4 and R6 round switches. The two share the word escutcheon but not the job: the Sedco plate has no keypad and no relationship to a CO100 lock chassis, so it will not restore keypad entry on a CO Series opening. For a CO100 exterior keypad, order the 47260707 in the 626 satin chrome finish.
7) What finish does the Schlage 47260707 CO100 keypad escutcheon come in?
Satin chrome, BHMA finish code 626. That's the standard finish on most commercial CO Series and Schlage lever hardware, so it will match satin chrome trim on the other doors in a building.
