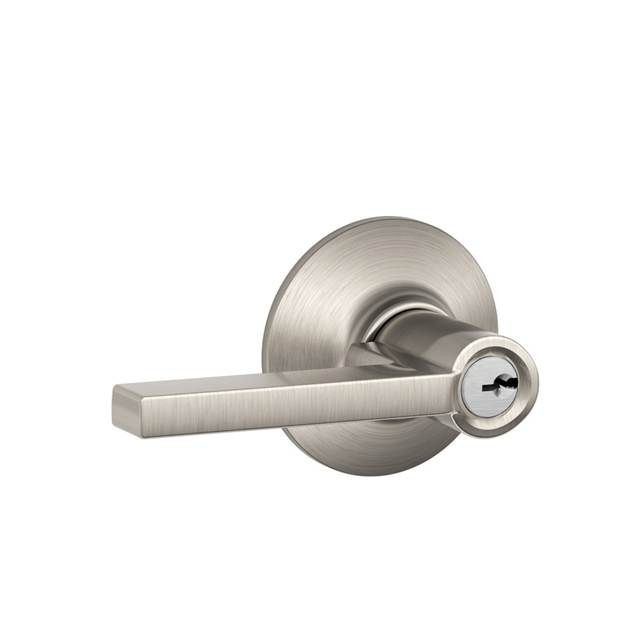

SCHLAGE STOREROOM LOCK
Schlage's F Series designs range from bold to classic to match any residential décor. Plus, it features an easy 3-step installation, only a screwdriver needed.
Schlage F80 Storeroom Door Handle Features:
Certification: ANSI/BHMA A156.2-2017 Commercial Grade 2; ANSI/BHMA A156.39-2015 Residential Grade AAA; Available UL Listed for 3-hour fire door (F10, F40 (CSV Only), F51A, F80 functions).
Latch: 1"x 2-1/4", 1/4" radius corner faceplate, 7/8" housing diameter, 1/2" throw, circular drive-in included, universal latch
Strike: 1-5/8" x 2-1/4" radius corner, full lip, no box
Backset: Dual backset latches, fits either 2-3/8" or 2-3/4" backsets
Cylinder: 5-Pin, C keyway, keyed alike (KA4)
Door Range: 1-3/8" – 1-3/4"
Keys: Two per lock, 5-pin, C section
Manufacturer Resources
Product Specs
- Series:
- F Series
- Category:
- Mechanical Locks
- Subcategory:
- Bored Locksets
- Grade:
- Grade 2
- Warranty:
- 10 Year
- Standard Strike:
- 10-027: Full Lip Radius Strike, 2-1/4" x 1-5/8"
- Standard Latch:
- 16-086: Dead Latch, Dual Option (Round, Drive-in)
- Keyed Function:
- Single Cylinder
- ANSI/BHMA:
- F81
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Keyed:
- Yes
- Electronic:
- No
- Substrate:
- Zinc and Steel
- Commercial/Residential:
- Residential
- Function Description:
- Keyed entry function unlocks when door is opened from the inside, allowing you to leave quickly, conveniently and re-enter easily; Locked by inserting key and rotating cylinder from outside, or manually rotating interior turnbutton after exit
- Lock Type:
- Cylindrical
- Lock Function:
- Single Cylinder
- Product Type:
- Bored Locksets
- Handle Type:
- Lever
- Handle Design:
- Latitude Lever
- Lever/Knob Design:
- Latitude Lever
- Product Attribute:
- Cylindrical Locks
- Product Model:
- F51A
- Product Function:
- Storeroom
- Door Hand Direction:
- Non-Handed
- Door Thickness Range:
- 1-3/8" to 1-3/4"
Schlage Residential F80 LAT 626 – Frequently Asked Questions
1) What is the Schlage F80 storeroom lock function?
The F80 is a storeroom function lock. The outside lever is always locked and requires a key to operate. The inside lever is always unlocked for free egress. This function is ideal for storage rooms, supply closets, and areas requiring restricted access.
2) What door thickness does this lock accommodate?
Standard commercial cylindrical locks typically fit doors from 1-3/8" to 1-3/4" thick. For doors outside this range, verify compatibility with manufacturer specifications or contact your supplier for proper backset and thickness requirements.
3) Is this lock handed or universal?
Schlage cylindrical locks are typically field-reversible for both right-hand and left-hand applications. The lever can be adjusted during installation to match your door swing configuration without ordering handed units.
4) What finish is available for the Latitude lever design?
Schlage commercial locks come in multiple finish options including satin chrome, bright chrome, and darker finishes. Check the specific model number for the exact finish. The Latitude lever features a contemporary curved design suitable for modern commercial applications.
5) What grade rating does the F80 series provide?
Schlage commercial cylindrical locks typically meet ANSI Grade 2 standards for commercial use. This provides adequate security and durability for medium-traffic commercial applications. Verify specific grade requirements for your project.
6) What is C keyway and can it be rekeyed?
C keyway is a standard Schlage commercial keyway. The lock can be rekeyed by a locksmith to match your existing key system or master key setup. C keyway cylinders are widely available for replacement or expansion of your key system.
7) What does the 16211 latch specification include?
The 16211 latch is typically a 2-3/8" or 2-3/4" backset adjustable latch with 1/2" throw. It includes the deadlocking feature standard on commercial locks. Verify the exact backset measurement from door edge to center of lock bore before installation.
8) What is included with the 10063 strike plate?
The 10063 strike accommodates the latch bolt and provides proper alignment in the door frame. It includes mounting screws and is designed to work with the 16211 latch assembly. Proper strike alignment is critical for smooth operation.
9) What door prep is required for installation?
Standard prep requires 2-1/8" door bore and 1" edge bore for the latch. Door frame requires mortising for the strike plate. Use manufacturer templates for precise hole locations. Solid wood or metal doors work best for commercial applications.
10) How do you adjust lever tension or operation?
Lever return tension is typically factory-set and non-adjustable on most commercial cylindrical locks. If levers are loose or binding, check mounting bolts, door alignment, and strike adjustment. Replacement internal components may be needed for worn units.
11) Can this lock be used on fire-rated doors?
Check the lock listing for fire rating compatibility. Many Schlage commercial locks are listed for use on fire doors when properly installed. Verify local codes and use only listed hardware on fire-rated assemblies.
12) What related Schlage commercial locks should I consider?
Consider the F51 entrance function for main doors, or F40 privacy function for offices. The F series offers consistent design across functions. Browse our Schlage commercial locks for complete function options with matching finishes and keyways.
