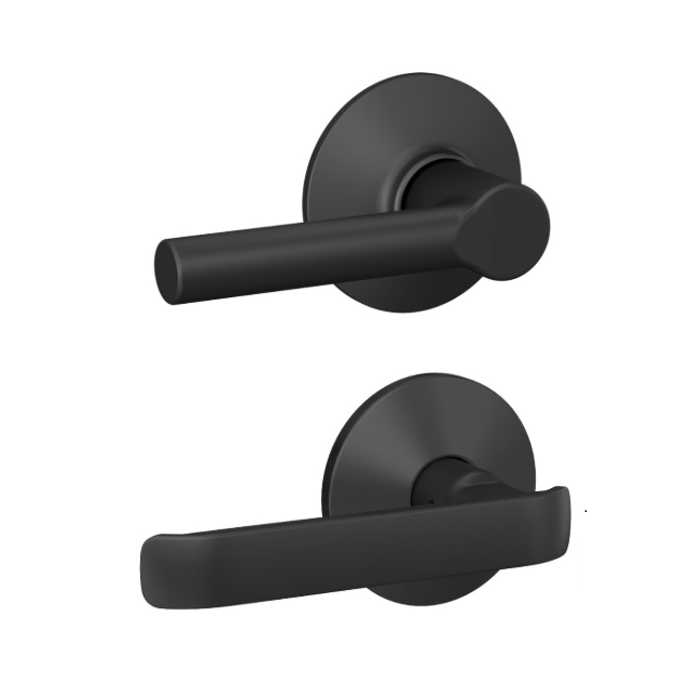

Schlage FC172 - Broadway Lever by Clybourn Lever Non Turning Double Dummy

Schlage Residential FC172 Broadway Lever by Clybourn Lever Non-Turning Double Dummy Leverset

(No reviews yet) Write a Review

Model: FC172BRWCAM622CYBCAM
$122.00
$83.96
Selected Finish is
Selected Rose Design for Broadway Lever is
Selected Rose Design for Latitude Lever is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$122.00
$83.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage Residential FC172 Broadway Lever by Clybourn Lever Non-Turning Double Dummy Leverset

Decorative Residential Door Hardware Solution

The Schlage Residential FC172 combines the Broadway lever design with Clybourn lever styling in a non-turning double dummy configuration for decorative applications. This Grade 2 certified leverset accommodates door thicknesses from 1-3/8" to 1-3/4" with dual backset options of 2-3/8" or 2-3/4". The stainless steel construction features concealed screws and low profile trim for a polished appearance, while the universal design works with both right and left swing doors.

Professional Features & Benefits

  • Door Thickness Compatibility: Accommodates 1-3/8" to 1-3/4" doors with dual backset latches fitting either 2-3/8" or 2-3/4" backsets for versatile installation options.
  • Grade 2 Certification: ANSI/BHMA A156.2-2017 Grade 2 and ANSI/BHMA A156.39-2015 Residential Grade AAA certified for reliable residential performance.
  • Stainless Steel Construction: Durable stainless steel substrate provides long-lasting performance and corrosion resistance for residential applications.
  • Concealed Fastener Design: Concealed screws and low profile trim create a more polished look while allowing future updates in minutes without removing the lock from the door.
  • Universal Door Compatibility: Non-handed design works with both right and left swing doors for flexible installation planning.
  • Easy Installation: Features 3-step installation requiring only a screwdriver, with included universal latch and full lip radius corner strike for complete installation.
  • Fire Door Option: Available UL Listed for 90 minute fire door applications when code compliance is required.
  • Manufacturer Warranty: 10 Year warranty coverage for added confidence and protection in residential applications.

Standard Features

Certification:ANSI/BHMA A156.2-2017 Grade 2
ANSI/BHMA A156.39-2015 Residential Grade AAA
Available UL Listed for 90 minute fire door
Latch: 1"x 2-1/4", 1/4" radius corner faceplate, 1" housing diameter, 1/2" throw, circular drive-in included, universal latch
Strike: 1-5/8" x 2-1/4" radius corner, full lip
Backset: Dual backset latches, fits either 2-3/8" or 2-3/4" backsets
Cylinder: 5-Pin, C keyway, keyed alike (KA4)
Door Range: 1-3/8" – 1-3/4"
Keys: Two per lock, 5-pin, C section

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness range of 1-3/8" to 1-3/4" and backset requirements of 2-3/8" or 2-3/4".
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for the cylindrical lock installation.
  3. Prepare door by drilling required holes per manufacturer specifications, ensuring proper alignment for the dual backset latch system.
  4. Install the universal latch and mounting hardware, securing the leverset to door per manufacturer torque specifications using only a screwdriver as required.
  5. Install the included full lip radius corner strike on the door frame, ensuring proper alignment with the latch mechanism.
  6. Test leverset operation to verify proper decorative function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Residential Entry Doors
  • Interior Passage Doors
  • Closet and Storage Room Doors
  • Multi-Family Housing Units
  • Apartment and Condominium Buildings
  • Single Family Home Construction
  • Residential Renovation Projects

Why Choose Schlage Residential Quality?

Schlage Residential FC172 leversets deliver professional-grade reliability with stainless steel construction and Grade 2 ANSI/BHMA certification for demanding residential applications. The 10 Year warranty coverage provides added confidence, while the concealed screw design and universal compatibility ensure long-term performance and easy maintenance. Engineered for residential applications where dependable decorative hardware and polished appearance are essential.

Manufacturer Resources

Product Specs

Series:
FC Series
Subcategory:
Bored Locksets
Grade:
Grade 2
Warranty:
10 Year
Standard Strike:
10-027: Full Lip Radius Strike, 2-1/4" x 1-5/8"
Standard Latch:
16-600: Spring Latch, Dual Option (Round, Drive-in)
Keyed Function:
Non-Keyed
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Keyed:
No
Electronic:
No
Commercial/Residential:
Residential
Product Function:
Dummy
Function Description:
Use as Non-Turning Decorative Pull on One Side of the Door
Lock Type:
Cylindrical
Product Type:
Leversets
Lock Function:
Dummy
Handle Design:
Broadway Lever x Clybourn Lever
Handle Type:
Lever and Knob
Lever/Knob Design:
Broadway Lever x Clybourn Lever
Product Attribute:
Cylindrical Locks
Product Model:
FC172
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/8" to 1-3/4"
Product Substrate:
Stainless Steel
Product Category:
Mechanical Locks
Department:
Door Hardware

Schlage Residential FC172BRWCAM622CYBCAM – Frequently Asked Questions

1) What does a double dummy leverset like the Schlage FC172 actually do on a door?
It doesn't latch and it doesn't turn. The FC172 is a dummy function set: the levers are fixed pulls, used as decorative trim on one side of the door with no latch operation. Schlage's own function description is "Use as Non-Turning Decorative Pull on One Side of the Door," and because it's a double dummy you get levers for both faces. Typical uses are closet or pantry doors, one inactive leaf of a pair of French doors, or a door held by a ball catch or magnetic catch. If you need the door to latch when it closes, you want a passage set instead.
2) Will the Schlage FC172 Broadway lever work on a 1-3/8 inch door as well as a standard 1-3/4 inch door?
Yes. The FC172 covers a door thickness range of 1-3/8 inches to 1-3/4 inches, which spans the common older interior door at 1-3/8 and the standard 1-3/4 inch door. Anything thicker than 1-3/4 is outside the range.
3) Do I have to order the FC172 handed for a left or right swing door?
No handing to specify. The Broadway by Clybourn dummy set is non-handed, so the same set goes on a left or right swing opening. That matters if you're buying for a building and don't want to track which door is which, and it's a difference from some decorative dummy trim, such as the Baldwin Estate 5103 half dummy, which is sold as a left hand or right hand part.
4) I need the closet door to actually latch, not just have a pull. What should I buy instead of the FC172?
A passage set is what you want. The FC172 is dummy function only, no latch. For a residential closet or hall door, the Kwikset 200BRNL Breton passage lever covers the same 1-3/8 to 1-3/4 inch thickness range. If the opening is commercial and takes real traffic, the Falcon K101 is a Grade 1 passage lever rated for 1-3/8 to 2-1/4 inch doors, and the Hager 2510 Withnell is a Grade 2 passage set for 1-3/8 to 2 inch doors.
5) Do I need a double dummy, or will a single dummy do the job?
Double dummy gives you a lever on both faces, which is what a pair of French doors or a double closet needs where both sides are seen. If only one face of the door is visible, a single dummy trim is the cheaper route: the BEST 7KC Series single dummy trim is a Grade 2 option and the BEST 9K Series 1DT is the Grade 1 heavy duty version. Emtek also sells dummy pairs such as the Arts and Crafts and Cortina levers if you're matching a decorative brass look rather than the Schlage FC line.
6) What is the closest equivalent to the Schlage FC172 double dummy leverset in another residential brand?
The Schlage FC172 is a non-keyed dummy-function leverset. The Callan Bentley CLN-BN5051 is also a Grade 2 dummy lever, matching the FC172's Grade 2 rating and dummy function, so it covers the same decorative, non-latching application. Emtek also offers dummy pairs such as the Arts & Crafts lever dummy pair, which like the FC172 provides trim for both faces of the door.
7) I only need a dummy lever on one face of the door, not both. What should I order instead of the FC172?
The FC172 is a double dummy, supplying a non-turning decorative lever on both sides of the door. For a single face, look at a half or single dummy: the Baldwin Estate 5103 half dummy is offered in left hand (BAL-5103-LDM) and right hand (BAL-5103-RDM) versions with the 5048 rose, the BEST 7KC single dummy trim is a Grade 2 non-keyed lever, and the BEST 9K 1DT single dummy trim is a Grade 1 heavy duty version.
8) My doors are 2 inches thick - can I use the Schlage FC172?
The FC172 is rated for doors 1-3/8 inch to 1-3/4 inch. For thicker doors, the Hager 2510 Grade 2 passage lever and the Dexter C1000 asylum function are rated 1-3/8 inch to 2 inches, the Arrow GL01 Grade 2 passage lever covers 1-3/4 inch to 2 inches, and the Falcon K101 Grade 1 passage lock covers 1-3/8 inch to 2-1/4 inches. Note these are latching functions rather than dummy trim.
9) Is the Schlage FC172 keyed, and can it be keyed to match my other locks?
It's non-keyed. The FC172 is a dummy set with no cylinder and no key, so there's nothing to key alike. If you need a keyed opening in the same lever style, you'd have to move to a keyed function set in the FC line.
10) What lever and rose combinations can I get on the Schlage FC172 Broadway by Clybourn?
Finish is 622 Matte Black. Each side of the door gets its own rose selection, and the rose choices are Camelot, Century, and Collins on either lever, so all nine combinations of the two sides are orderable. That lets you match the rose shape already used elsewhere in the unit even if the two faces of the door need to look different.
11) Is a Grade 2 dummy leverset tough enough for apartment turns and rental units?
For a decorative pull, yes. The FC172 carries ANSI/BHMA A156.2-2017 Grade 2 and ANSI/BHMA A156.39-2015 Residential Grade AAA, with a stainless steel substrate. Keep in mind a dummy lever doesn't cycle a latch, so the load on it is pulling and the occasional bump, not mechanism wear. It's built for residential use rather than commercial traffic.
12) How hard is the FC172 to install, and do I need to drill a new bore?
It mounts to a standard cylindrical lock prep, and installation is a screwdriver job with concealed screws, no exposed fasteners on the rose. Because it's a bored lockset, it goes into the same 2-1/8 inch cross bore a standard residential cylindrical lock uses, so on a replacement you're usually working with the holes that are already there.
13) Is the FC172 heavy duty enough for a commercial corridor, or should I specify something else?
The FC172 is a residential Grade 2 leverset. For heavy duty commercial openings, the Falcon T101 and Falcon K101 are Grade 1 heavy duty passage levers, the Corbin Russwin CL3110 is a Grade 1 vandal resistant passage/closet lever with a fire rating, and for dummy trim specifically the BEST 9K 1DT is a Grade 1 heavy duty single dummy.
14) Which lever looks like a substitute for the FC172 but will not work as one?
Anything with a keyed or locking function is not a drop-in for the FC172, which is non-keyed dummy trim with no latch action. The Cal-Royal AG00 entrance lever and AG05 storeroom lever, the Hager 2525 entrance and 2580 storeroom levers, and the Accentra 5301LN passage lever all mount to a bored door but operate a latch, so they require latch and strike prep the FC172 does not use. Electronic units such as the Delaney LP250 keypad leverlock and the Emtek Classic keypad leverset are further still from dummy trim - the FC172 has no electronics.
15) I need a bed or bath lever to match the FC172 dummies on the rest of the unit. What privacy options are there?
The FC172 is dummy only and has no privacy function. For privacy in the same door range of 1-3/8 inch to 1-3/4 inch, the Kwikset 300BRNL Breton privacy lever is Grade 3 and fits that range. Other privacy options include the Hager 2540 with Withnell lever, the Baldwin Estate 5103 privacy lever with 5048 rose, and the Arrow MK02-TA privacy lock with Tudor knob, which is fire rated.
16) Is there a decorative dummy pair in solid brass styling rather than the Schlage FC172's stainless steel?
The FC172 uses a stainless steel substrate. For a different decorative treatment in the same dummy function, Emtek offers the Classic Brass Cortina lever dummy pair, plus the Arts & Crafts and Hammered lever dummy pairs. Baldwin's Estate 5103 half dummy with the 5048 rose is another decorative dummy option, ordered by hand.
