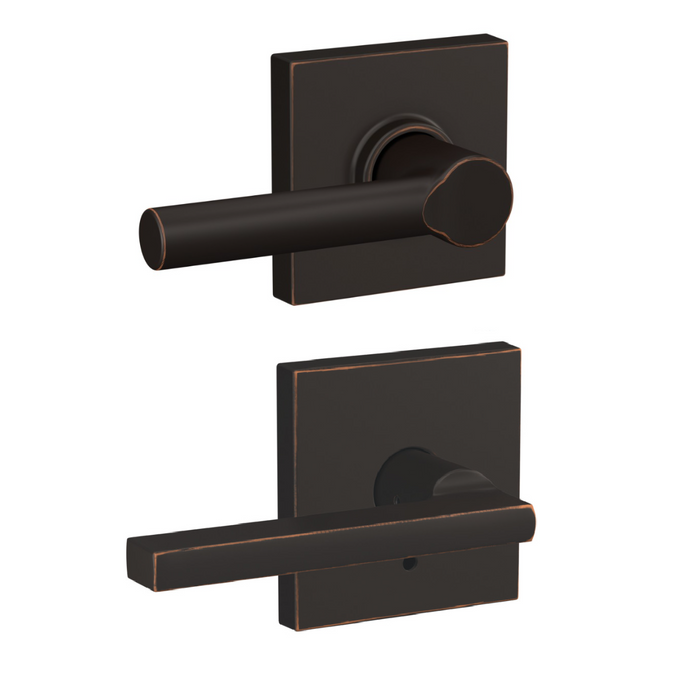

Schlage Residential FC172 Broadway Lever by Latitude Lever Non-Turning Double Dummy Leverset

Schlage Residential FC172 Broadway Lever by Latitude Lever Non-Turning Double Dummy Leverset

Decorative Residential Door Hardware Solution

The Schlage Residential FC172 combines the Broadway lever design with Latitude lever styling in a non-turning double dummy configuration for decorative applications. This Grade 2 certified leverset accommodates door thickness from 1-3/8" to 1-3/4" with dual backset options for 2-3/8" or 2-3/4" installations. The stainless steel construction features concealed screws and low profile trim for a polished appearance that coordinates with plumbing and lighting fixtures.

Professional Features & Benefits

• Door Thickness Compatibility: Accommodates 1-3/8" to 1-3/4" doors with dual backset latches fitting either 2-3/8" or 2-3/4" backsets for versatile installation options.
• Grade 2 Certification: ANSI/BHMA A156.2-2017 Grade 2 and ANSI/BHMA A156.39-2015 Residential Grade AAA certified for reliable residential performance.
• Stainless Steel Construction: Durable stainless steel substrate provides long-lasting performance and corrosion resistance for residential applications.
• Concealed Fastener Design: Concealed screws and low profile trim create a more polished look while maintaining secure installation.
• Easy Installation: Features 3-step installation requiring only a screwdriver, with future updates possible in minutes without removing the lock from the door.
• Universal Door Compatibility: Works with both right and left swing doors in a non-handed configuration for flexible installation.
• Complete Hardware Package: Includes spring latch with 1" x 2-1/4" faceplate, full lip radius strike, and all necessary mounting hardware.
• Manufacturer Warranty: 10 Year warranty coverage for added confidence and protection.

Standard Features

Certification:ANSI/BHMA A156.2-2017 Grade 2
ANSI/BHMA A156.39-2015 Residential Grade AAA
Available UL Listed for 90 minute fire door
Latch: 1"x 2-1/4", 1/4" radius corner faceplate, 1" housing diameter, 1/2" throw, circular drive-in included, universal latch
Strike: 1-5/8" x 2-1/4" radius corner, full lip
Backset: Dual backset latches, fits either 2-3/8" or 2-3/4" backsets
Cylinder: 5-Pin, C keyway, keyed alike (KA4)
Door Range: 1-3/8" – 1-3/4"
Keys: Two per lock, 5-pin, C section

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness between 1-3/8" and 1-3/4" and backset requirements for either 2-3/8" or 2-3/4" installation.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for the cylindrical lock installation.
3. Prepare door by drilling required holes for the latch assembly and lever mounting hardware as specified in manufacturer instructions.
4. Install the spring latch assembly and secure the leverset to door per manufacturer specifications using the concealed screw design.
5. Install the full lip radius strike plate on the door frame ensuring proper alignment with the latch mechanism.
6. Test leverset operation to verify proper fit and alignment of both Broadway and Latitude lever components. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Residential Entry Doors
• Interior Door Decorative Hardware
• Multi-Family Housing Units
• Apartment and Condominium Properties
• Single-Family Home Construction
• Residential Renovation Projects
• Custom Home Building Applications

Why Choose Schlage Residential Quality?

Schlage Residential FC172 leversets deliver professional-grade reliability with stainless steel construction and Grade 2 ANSI/BHMA certification for demanding residential applications. The 10 Year warranty coverage provides added confidence for long-term performance. Engineered with concealed fasteners and coordinated finishes, this hardware combines functional durability with aesthetic appeal for discerning homeowners.
