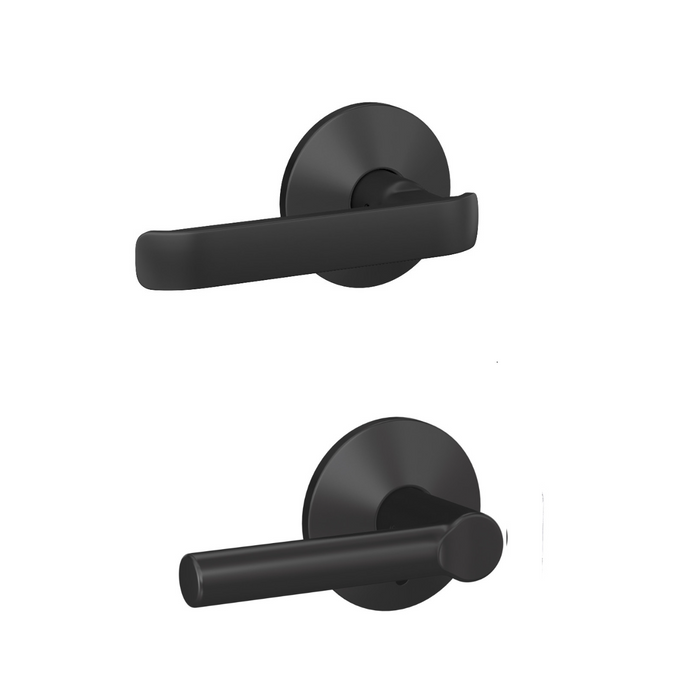

Schlage Residential FC172 Clybourn x Broadway Lever Double Dummy Cylindrical Lockset

Schlage Residential FC172 Clybourn x Broadway Lever Double Dummy Cylindrical Lockset

Non-Turning Decorative Lever Hardware for Residential Applications

The Schlage Residential FC172 combines the elegant Clybourn lever design with Broadway lever styling in a non-turning double dummy configuration. This Grade 2 certified lockset accommodates door thicknesses from 1-3/8" to 1-3/4" with dual backset options for 2-3/8" or 2-3/4" installations. The stainless steel construction features concealed screws and low-profile trim for a polished appearance, while the universal latch design works with both right and left swing doors.

Professional Features & Benefits

• Door Thickness Compatibility: Accommodates 1-3/8" to 1-3/4" doors with dual backset latches fitting either 2-3/8" or 2-3/4" backsets for versatile installation options.
• Grade 2 Certification: ANSI/BHMA A156.2-2017 Grade 2 and ANSI/BHMA A156.39-2015 Residential Grade AAA certified for reliable performance and durability.
• Stainless Steel Construction: Durable stainless steel substrate provides long-lasting performance and corrosion resistance for residential applications.
• Concealed Screw Design: Low-profile trim with concealed screws creates a more polished, professional appearance while maintaining security.
• Universal Installation: Works with both right and left swing doors and includes universal latch for flexible door preparation options.
• Easy Installation: Features 3-step installation process requiring only a screwdriver, with future updates possible without removing the lock from the door.
• Coordinated Finish Options: Available finishes coordinate easily with plumbing and lighting fixtures for cohesive interior design.
• Manufacturer Warranty: 10 Year warranty coverage for added confidence and protection.

Standard Features

Certification:ANSI/BHMA A156.2-2017 Grade 2
ANSI/BHMA A156.39-2015 Residential Grade AAA
Available UL Listed for 90 minute fire door
Latch: 1"x 2-1/4", 1/4" radius corner faceplate, 1" housing diameter, 1/2" throw, circular drive-in included, universal latch
Strike: 1-5/8" x 2-1/4" radius corner, full lip
Backset: Dual backset latches, fits either 2-3/8" or 2-3/4" backsets
Cylinder: 5-Pin, C keyway, keyed alike (KA4)
Door Range: 1-3/8" – 1-3/4"
Keys: Two per lock, 5-pin, C section

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/8" to 1-3/4" and backset requirements for either 2-3/8" or 2-3/4" installation.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for the cylindrical lockset installation.
3. Prepare door by drilling required holes per manufacturer specifications, ensuring proper alignment for the dual backset latch system.
4. Install the universal latch and strike hardware, securing the 1-5/8" x 2-1/4" radius corner full lip strike to the door frame.
5. Mount the lever hardware ensuring proper alignment and smooth operation of the non-turning decorative function on both sides.
6. Test the installation to verify proper fit and alignment of all components. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Residential Interior Doors
• Closet and Pantry Doors
• French Door Applications
• Decorative Door Hardware Upgrades
• Multi-Family Housing Projects
• Custom Home Construction
• Residential Renovation Projects

Why Choose Schlage Residential Quality?

Schlage Residential FC Series locksets deliver professional-grade reliability with stainless steel construction and Grade 2 ANSI/BHMA certification for demanding residential applications. The 10 Year warranty coverage provides added confidence, while the concealed screw design and coordinated finish options ensure both durability and aesthetic appeal. Engineered for easy installation and long-term performance where dependable residential door hardware is essential.
