Schlage Residential FCT58 Cust...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$281.00
$204.99
Schlage Residential Schlage Residential FCT58 - Custom 3/4 Trim Addison Exterior Active Handleset Only with C Keyway SCR-FCT58-ADD

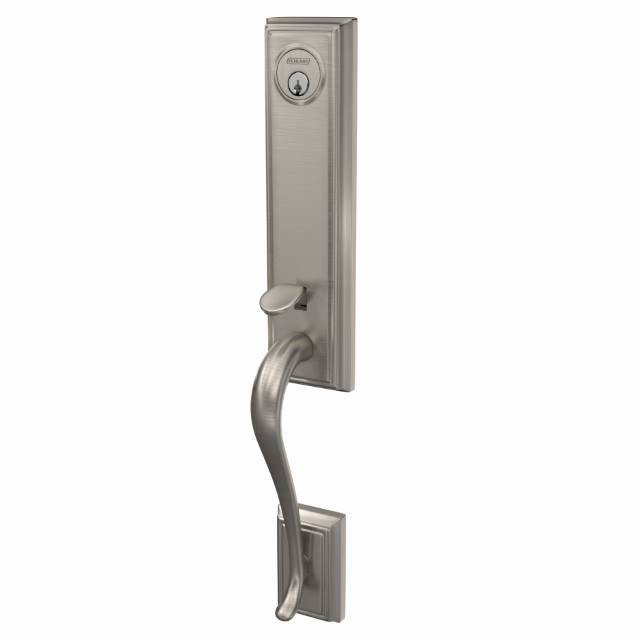

Schlage Residential FCT58 Custom Addison Keyed Entry Single Cylinder Handleset - Exterior Half Plate

(No reviews yet) Write a Review

Model: FCT58 ADD 622
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$281.00
$204.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage Residential FCT58 Custom Addison Keyed Entry Single Cylinder Handleset - Exterior Half Plate

Professional Residential Door Hardware Solution

The Schlage Residential FCT58 Custom Addison handleset combines classic design with modern security for residential applications. This exterior-only half plate handleset features adjustable 2-3/8" or 2-3/4" backset compatibility and accommodates door thickness from 1-5/8" to 2-1/4". Constructed from durable zinc material with concealed screw trim design, this Grade 2 security handleset adheres to ANSI/BHMA A156.4 standards for reliable performance.

Professional Features & Benefits

  • Adjustable Installation: Throughbolt adjusts 1-1/2" up or down to fit existing holes, making replacement installations simple with just a screwdriver.
  • Grade 2 Security Standards: Adheres to ANSI/BHMA A156.4 Grade 2 security standards for reliable residential protection.
  • Durable Metal Construction: Zinc material construction provides lasting durability for daily residential use.
  • Flexible Door Compatibility: Accommodates door thickness from 1-5/8" to 2-1/4" with reversible left or right handing.
  • Concealed Screw Design: Trim features concealed screws for a smooth, professional appearance without visible fasteners.
  • Complete Dimensional Specifications: 17-7/8" trim height, 2-11/16" trim width, and 3-1/8" handle projection for precise fit planning.
  • Manufacturer Warranty: Limited lifetime mechanical and finish warranty for added confidence and protection.
  • Easy 3-Step Installation: Simple installation process requires only a screwdriver and included allen wrench for quick door hardware upgrades.

Standard Features

Schlage's FC Series designs range from bold to classic to match any residential décor.  Plus, it features an easy 3-step installation, only a screwdriver needed.

Don’t live with outdated door hardware.

Schlage Custom Door Hardware is an easy upgrade to your home. Transform any door in minutes with just a screwdriver and the included allen wrench.

  • Easy installation
  • Adjustable throughbolt moves 1 ½” up or down to fit existing holes, making it easy to replace your old handleset

Elevate your home.

Whether replacing outdated or broken locks, remodeling a room or creating a cohesive look from the front door to the back, Schlage Custom Door Hardware gives your whole home the flawless look it deserves.

  • Adheres to ANSI/BHMA A156.4 Grade 2 security standards
  • Constructed from metal for lasting durability
  • Required installation hardware included with interior pack (sold separately)
  • Pair with a Schlage Custom 3/4 inch trim single cylinder interior pack for a complete handleset
  • Schlage offers a limited lifetime mechanical and finish warranty
  • Trim features concealed screws for a smooth appearance

Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Door Thickness: 1-5/8" to 2-1/4"
  • Handing: Reversible Left or Right
  • Handle Projection: 3-1/8"
  • Trim Height: 17-7/8"
  • Trim Width: 2-11/16"
  • Trim Projection: 3/4"
  • Center to Center: 5-1/2"
  • Latch Faceplate: Round Corner
  • Cylinder: 5 Pin Schlage C
  • Material: Zinc

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-5/8" to 2-1/4", 2-1/8" cross bore, and 1" edge bore dimensions.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces, noting the adjustable throughbolt range of 1-1/2" up or down.
  3. Prepare door by drilling required 2-1/8" cross bore and 1" edge bore holes as specified in manufacturer instructions.
  4. Install mounting hardware and secure the exterior handleset to door per manufacturer specifications, utilizing the adjustable backset of 2-3/8" or 2-3/4".
  5. Adjust operational components for proper alignment and smooth operation, ensuring reversible left or right hand configuration is correct.
  6. Test handleset operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and pairing with interior pack requirements.

Professional Applications

  • Single Family Residential Homes
  • Townhomes and Condominiums
  • Apartment Building Entry Doors
  • Residential Remodeling Projects
  • Property Management Upgrades
  • New Construction Residential
  • Home Security Enhancement Projects

Why Choose Schlage Residential Quality?

Schlage Residential FCT58 handlesets deliver professional-grade reliability with durable zinc construction and Grade 2 security standards for demanding residential applications. The limited lifetime mechanical and finish warranty provides long-term protection and confidence. Engineered with adjustable installation features and concealed screw trim design for both easy installation and lasting aesthetic appeal.

Manufacturer Resources

Product Specs

Series:
FCT Series
Subcategory:
Handlesets
Grade:
Grade 2
Warranty:
10 Year
Standard Strike:
10-269: 1-1/4" radius round corner deadbolt strike (10-116), 1 square corner full 1-1/4" radius round corner full lip strike (10-027)
Standard Latch:
16-680: 1"x 2-1/4" square corner, 1/4" radius corner faceplate, circular drive-in faceplate, 1" housing diameter, 1/2" throw spring latch
Keyed Function:
Non-Keyed
Product Group:
Mechanical Locks
Product Subgroup:
Handlesets
Keyed:
No
Electronic:
No
Commercial/Residential:
Residential
Function Description:
Passage is default function; Insert privacy pushbutton on interior side of lock to convert to privacy; Can be opened from outside with small emergency unlock too
Lock Type:
Cylindrical
Product Type:
Exterior Handle Only
Lock Function:
Passage/Privacy
Segment:
Door Hardware
Product Model:
FCT58
Product Function:
Entrance
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-5/8" to 2-1/4"
Trim Hardware:
Camelot
Product Category:
Mechanical Locks
Product Substrate:
Stainless Steel
Department:
Door Hardware

Schlage Residential FCT58 ADD 622 – Frequently Asked Questions

1) Does the Schlage FCT58 Addison exterior handleset come with everything needed to install it, or do I need to buy more?
You get the exterior half only. The FCT58 Addison is the outside plate and handle, and the mounting hardware ships with the interior pack, which is a separate order. Pair it with a Schlage Custom 3/4 inch trim single cylinder interior pack to have a complete, working handleset. Order one FCT58 plus one interior pack per door.
2) Will the Schlage FCT58 Addison handleset fit my existing door holes without redrilling?
In most cases yes. The throughbolt adjusts 1-1/2 inches up or down to meet holes already in the door, and the backset is adjustable between 2-3/8 and 2-3/4 inches, which are the two standard residential backsets. The prep it needs is a 2-1/8 inch cross bore and a 1 inch edge bore, and the handle centers are 5-1/2 inch center to center. If your old handleset used that same bore and its bolt-to-latch spacing falls inside the 1-1/2 inch adjustment, it drops in with a screwdriver.
3) What door thickness does the Schlage FCT58 handleset work on? I have a thick solid entry door.
The FCT58 covers 1-5/8 inch through 2-1/4 inch doors, which is wider than most residential locks and takes in heavy solid-core and some carved entry slabs. A standard 1-3/4 inch entry door is right in the middle of that range. Anything thinner than 1-5/8 inches, such as a typical 1-3/8 inch interior door, is out of range.
4) Is the Schlage FCT58 Addison handleset handed? I have an inswing door hinged on the right.
Handing is not a concern. The Addison exterior handleset is reversible for left or right hand doors, so one part number covers both swings. You set the hand during installation rather than ordering a specific one.
5) Can I key the Schlage FCT58 Addison handleset to match my other Schlage locks?
Yes. The FCT58 takes a 5 pin Schlage C cylinder, which is the standard residential Schlage keyway, so it can be keyed alike with other Schlage C locks on the property. That matters if you are standardizing a rental or a whole house on one key.
6) Will the Schlage FCT58 latch into the strike plate already in my jamb?
Usually. The standard latch is the 16-680 with a 1/2 inch throw spring latch and a 1 inch housing diameter, supplied with a square corner and 1/4 inch radius corner faceplate plus a circular drive-in faceplate, so it matches either style of edge prep. The standard strike is the 10-269, which includes a full lip strike with a 1-1/4 inch radius round corner and a square corner option. If your jamb has a 1-1/4 inch radius round corner strike cutout or a square corner one, the supplied strike matches it.
7) Is the Weslock 6685 Woodward I handleset a substitute for the Schlage Addison FCT58 on an operating entry door?
No. The Weslock 6685 Woodward I exterior handleset is dummy function, meaning it is a fixed pull with no latch operation, and the Weslock 6695 Woodward II is dummy as well. The Schlage FCT58 Addison exterior half plate is an entrance-function handleset built to operate a cylindrical lock. On an inactive leaf of a double door, or on a French door slab that stays fixed, the Weslock dummy handlesets are the correct choice; on the door that actually opens, they are not interchangeable with the FCT58. For an active opening in the Weslock line, the 6691 Woodward II is Entry function.
8) What handleset should be used on a 1-3/8 inch thick door instead of the Schlage Addison FCT58?
The FCT58 Addison exterior handleset starts at 1-5/8" door thickness and runs to 2-1/4", so a 1-3/8" slab falls below its range. The Weslock 6691 Woodward II exterior active handleset is rated 1-3/8" to 2" and covers that thinner door in an active entry function. For a thin door that only needs a pull with no operating latch, the Weslock 6685 Woodward I and 6695 Woodward II exterior handlesets are dummy function and also rated 1-3/8" to 2".
9) What is a cross-brand equivalent to the Schlage FCT58 Custom Addison exterior handleset for an active entry door?
The closest peer is the Weslock 6691 Woodward II Exterior Active Handleset, which is also an exterior active handleset and carries a Weslock Molten Bronze series identity. The differences that decide the job are door thickness and adjustability: the FCT58 Addison fits doors 1-5/8" to 2-1/4", while the Weslock 6691 fits 1-3/8" to 2". A door slab at 2-1/4" is inside the Schlage range and outside the Weslock range; a 1-3/8" slab is the reverse. The FCT58 is also non-handed, so one part covers a left or right swing.
10) How much space does the Schlage Addison handleset take up on the door face?
Plan for a 17-7/8 inch trim height and 2-11/16 inch trim width on the face, with the trim itself standing 3/4 inch off the door and the handle projecting 3-1/8 inches. That projection is what to check against a storm door, a screen door, or a tight jamb return before you commit.
11) Is the Schlage FCT58 handleset strong enough for a rental or apartment entry door?
It meets ANSI/BHMA A156.4 Grade 2, which is the mid tier residential security level, and the body is zinc with a stainless steel substrate. Grade 2 is a common specification for single family, townhome, and apartment entry doors. For a high traffic commercial opening you would step up to a Grade 1 commercial lockset instead, since the FCT line is built for residential use.
12) I need a key on both sides of the door for a glass panel entry. Does the Schlage FCT58 do that?
Not this one. The FCT58 Addison is single cylinder, keyed from the outside and thumbturn or lever inside. For a door with sidelights or glass where you want a key required from both sides, look at the Weslock 1343 Lexington, an exterior active dual cylinder handleset for 1-3/4 to 2 inch doors.
13) What handleset works on a glass panel entry door where a key is required from both sides, compared with the Schlage Addison FCT58?
The Weslock 1343 Lexington exterior handleset is double cylinder function, which is what a door with adjacent glass calls for when a key is wanted on the interior side as well. It fits doors 1-3/4" to 2". The Schlage FCT58 Addison exterior handleset is a single cylinder exterior half plate covering doors 1-5/8" to 2-1/4", so it spans a wider thickness range but is not a double cylinder configuration. Note that many jurisdictions restrict double cylinder hardware on dwelling exit doors, so confirm the local code for the occupancy before specifying the 1343.
14) Which handleset carries a stated ANSI/BHMA grade when comparing the Schlage Addison FCT58 against Weslock handlesets?
The Schlage FCT58 Addison exterior handleset is a Grade 2 residential handleset built to ANSI/BHMA A156.4, with zinc trim and concealed screws, and it is non-handed so a single part serves either swing. Among the Weslock peers, the identifying data is function and fit rather than grade: the 6691 Woodward II is Entry function at 1-3/8" to 2", the 1343 Lexington is double cylinder at 1-3/4" to 2", and the 6685 and 6695 Woodward handlesets are dummy at 1-3/8" to 2". An institutional or multi-family buyer who has to show a graded product on the submittal should specify against the Schlage Grade 2 figure.
15) What finishes does the Schlage FCT58 Addison handleset come in?
Four finishes: 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, and 716 Aged Bronze. If you are matching the rest of the door hardware in the building, pick the interior pack in the same finish code, since the exterior half and interior half are ordered separately.
16) What tools do I need to install the Schlage Custom Addison handleset on an already prepped door?
A screwdriver and the allen wrench that comes in the box. If the door is already bored with a 2-1/8 inch cross bore and a 1 inch edge bore, no drilling is needed. The trim mounts with concealed screws, so there are no visible fasteners on the finished face.
17) What is the difference between the Weslock 6685 Woodward I and 6695 Woodward II handlesets when neither will replace a Schlage FCT58 Addison?
Both are exterior dummy handlesets rated for doors 1-3/8" to 2", so neither operates a latch and neither replaces the entrance-function FCT58 Addison on a door that opens. They differ by design family: the 6685 Woodward I is a Molten Bronze series handleset supplied in oil rubbed bronze, and the 6695 Woodward II sits in the Elegance series. For a property manager matching fixed pulls across inactive leaves, that series and finish distinction is the whole decision; for a working entry door, the choice moves to an active handleset instead.
