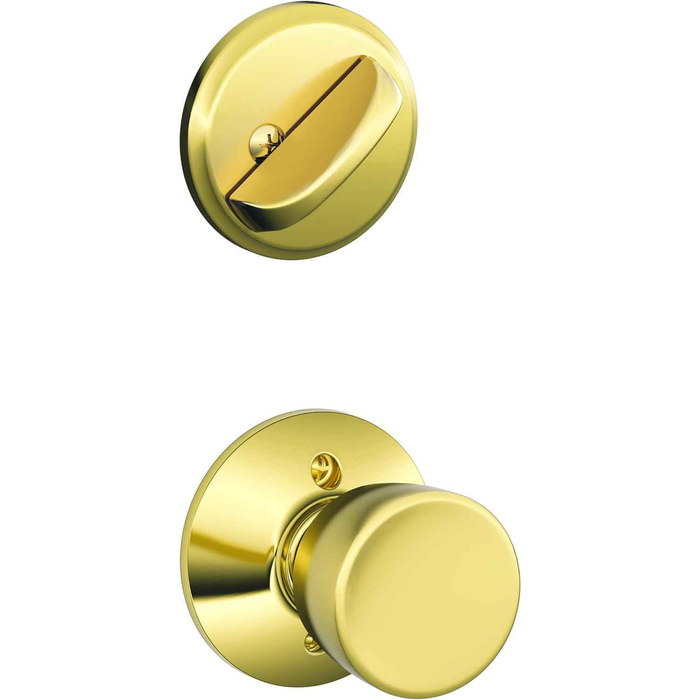

Schlage Residential F59 Bell Knob Interior Pack for Handleset Applications

Schlage Residential F59 Bell Knob Interior Pack for Handleset Applications

Professional Interior Trim Solution for Residential Handleset Systems

The Schlage Residential F59 Bell Knob Interior Pack provides the interior components needed to complete handleset installations with elegant Bell Knob styling. This Grade 2 certified interior pack accommodates doors from 1-5/8" to 1-3/4" thick and features universal backset compatibility for both 2-3/8" and 2-3/4" applications. Constructed with zinc and steel components, this F Series interior pack includes integrated strike reinforcement with 3" screws and an adjustable throughbolt system that moves up and down 1-1/2" to accommodate various pre-existing hole patterns.

Professional Features & Benefits

• Door Thickness Compatibility: Designed for 1-5/8" to 1-3/4" doors with universal backset fitting both 2-3/8" and 2-3/4" applications.
• Adjustable Installation System: Throughbolt adjusts up and down 1-1/2" to fit a variety of pre-existing holes for flexible installation options.
• Integrated Reinforcement: Strike and reinforcer system with 3" screws provides enhanced security and door frame protection.
• Professional Grade Construction: Zinc and steel substrate materials deliver durability for residential applications with ANSI/BHMA Grade 2 certification.
• Complete Latch System: Includes 1" x 2-1/4" latch with 1/4" radius corner faceplate, 7/8" housing diameter, and 1/2" throw spring latch mechanism.
• Comprehensive Strike Package: Part 10-269 strike set includes 1-1/4" radius corner deadbolt strike (10-116) and radius round corner full lip strike (10-027).
• Easy Installation: 3-step installation process requires only a screwdriver for quick and efficient setup.
• Handleset Compatibility: Designed to pair with F58 exterior handleset for complete residential entrance system.

Standard Features

Certification: ANSI/BHMA A156.36-2016 Commercial Grade 1
ANSI/BHMA A156.40-2015 Residential Grade AAA
Available UL Listed for 3-hour fire door (F59, F60, and FE285 only)
Latch: 1"x 2-1/4", 1/4" radius corner faceplate, 7/8" housing diameter, 1/2" throw spring latch
Deadbolt: 1"x 2-1/4", 1/4" radius corner faceplate, 1" housing diameter, 1" throw, latchset number 12-321
Strike: Part 10-269, includes: 1-1/4" radius corner deadbolt strike (10-116), radius round corner full lip strike (10-027)
Backset: Universal backset latch and deadbolt, fits either 2-3/8" or 2-3/4" backsets
Cylinder: 5-Pin, keyed 5-Pin, C keyway, keyed different (KD)
Door Range: 1-3/8" – 1-7/8"
Keys: Two cut keys per lock, 5-pin, C section
Reinforcement: Integrated strike and reinforcer with 3" screws
Adjustable Throughbolt: Adjustable throughbolt can move up and down 1-1/2" to fit a variety of pre-existing holes

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness between 1-5/8" and 1-3/4", and backset requirements for either 2-3/8" or 2-3/4" applications.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces, taking advantage of the adjustable throughbolt system.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for the dual option latch system.
4. Install all mounting hardware including the integrated strike reinforcement with 3" screws and secure the interior pack components per manufacturer specifications.
5. Adjust the throughbolt system up to 1-1/2" as needed to align with existing holes and ensure proper fit with paired F58 exterior handleset.
6. Test device operation to verify proper function of the Bell Knob interior trim and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Residential Front Door Entrance Systems
• Single-Family Home Security Applications
• Townhouse and Condominium Entry Points
• Residential Back Door Applications
• Multi-Family Housing Unit Entrances
• Residential Renovation and Upgrade Projects
• Custom Home Construction Projects

Why Choose Schlage Residential Quality?

Schlage Residential F Series interior packs deliver professional-grade reliability with zinc and steel construction certified to ANSI/BHMA Grade 2 standards for residential applications. The integrated strike reinforcement system with 3" screws and adjustable throughbolt technology ensures secure installation across various door preparations. Engineered for demanding residential applications where dependable performance and elegant styling are essential.
