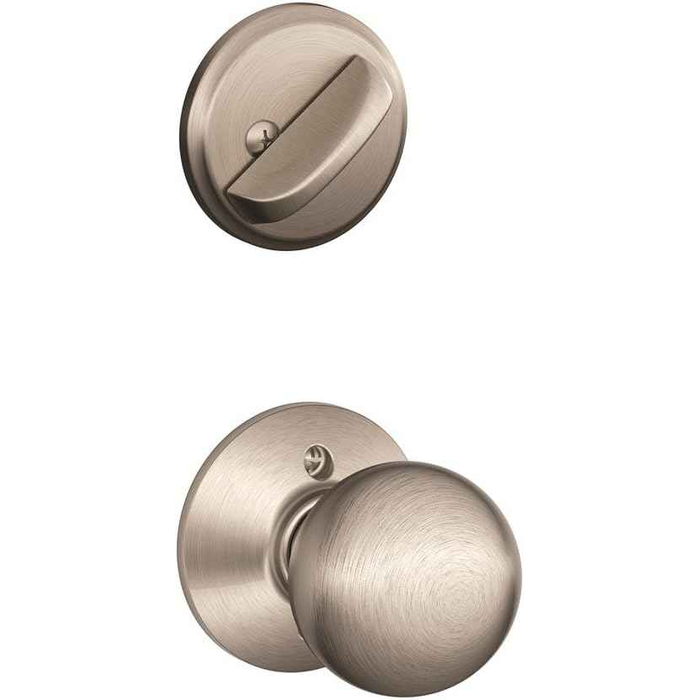

Schlage Residential F59 Orbit Knob Interior Pack with Deadbolt Thumbturn

Schlage Residential F59 Orbit Knob Interior Pack with Deadbolt Thumbturn

Professional Interior Trim Solution for Residential Handlesets

The Schlage Residential F59 Orbit Knob Interior Pack provides the interior components needed to complete your F Series handleset installation. This Grade 2 certified interior pack features a 1" throw deadbolt with thumbturn operation, universal backset compatibility for 2-3/8" or 2-3/4" applications, and fits door thicknesses from 1-5/8" to 1-3/4". Constructed with zinc and steel materials and certified to ANSI/BHMA A156.36-2016 Commercial Grade 1 and ANSI/BHMA A156.40-2015 Residential Grade AAA standards for reliable performance.

Professional Features & Benefits

• Universal Backset Compatibility: Fits either 2-3/8" or 2-3/4" backsets with universal latch and deadbolt design for flexible installation options.
• Door Thickness Range: Accommodates doors from 1-5/8" to 1-3/4" thick for standard residential applications.
• Heavy-Duty Construction: Zinc and steel materials provide exceptional durability for long-term residential use.
• Professional Grade Certification: ANSI/BHMA A156.36-2016 Commercial Grade 1 and ANSI/BHMA A156.40-2015 Residential Grade AAA certified for quality assurance.

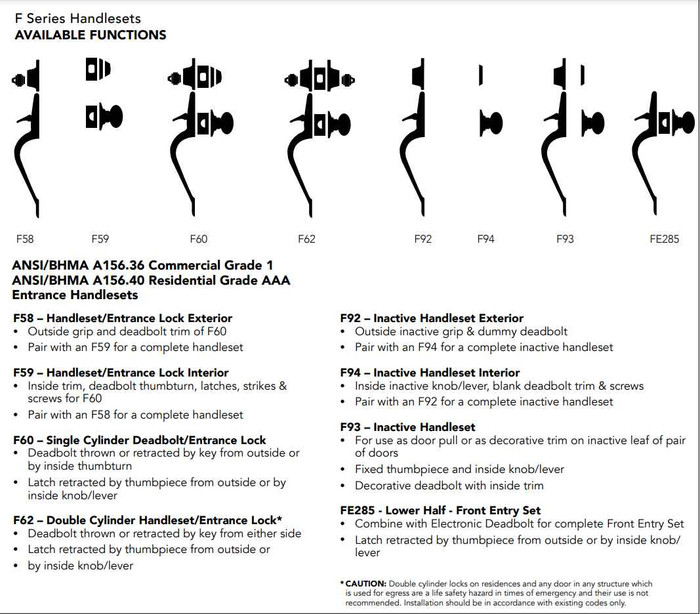

• Complete Interior Components: Includes inside trim, deadbolt thumbturn, latches, strikes, and screws for F60 handleset completion.
• Easy Installation Design: Features 3-step installation process requiring only a screwdriver for quick setup.
• Adjustable Throughbolt System: Throughbolt adjusts up and down 1-1/2" to accommodate various pre-existing hole patterns.
• Integrated Reinforcement: Strike and reinforcer with 3" screws provide enhanced security and door frame protection.

Standard Features

Certification: ANSI/BHMA A156.36-2016 Commercial Grade 1
ANSI/BHMA A156.40-2015 Residential Grade AAA
Available UL Listed for 3-hour fire door (F59, F60, and FE285 only)
Latch: 1"x 2-1/4", 1/4" radius corner faceplate, 7/8" housing diameter, 1/2" throw spring latch
Deadbolt: 1"x 2-1/4", 1/4" radius corner faceplate, 1" housing diameter, 1" throw, latchset number 12-321
Strike: Part 10-269, includes: 1-1/4" radius corner deadbolt strike (10-116), radius round corner full lip strike (10-027)
Backset: Universal backset latch and deadbolt, fits either 2-3/8" or 2-3/4" backsets
Cylinder: 5-Pin, keyed 5-Pin, C keyway, keyed different (KD)
Door Range: 1-3/8" – 1-7/8"
Keys: Two cut keys per lock, 5-pin, C section
Reinforcement: Integrated strike and reinforcer with 3" screws
Adjustable Throughbolt: Adjustable throughbolt can move up and down 1-1/2" to fit a variety of pre-existing holes

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-5/8" to 1-3/4", backset compatibility for 2-3/8" or 2-3/4", and proper handing for this interior pack.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door interior surface, ensuring alignment with exterior handleset components.
3. Prepare door by drilling required holes and routing as specified in manufacturer instructions, utilizing the adjustable throughbolt system for existing hole patterns.
4. Install all mounting hardware including integrated strike and reinforcer with 3" screws, securing the interior pack components per manufacturer torque specifications.
5. Adjust operational components including deadbolt thumbturn for proper alignment, smooth operation, and full 1" throw engagement with strike.
6. Test device operation to verify proper function of both latch and deadbolt mechanisms, making final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Residential Entry Door Systems
• Single-Family Home Security
• Townhouse and Condominium Units
• Apartment Building Individual Units
• Residential Renovation Projects
• Multi-Family Housing Developments
• Custom Home Construction

Why Choose Schlage Residential Quality?

Schlage Residential F Series interior packs deliver professional-grade reliability with zinc and steel construction certified to both Commercial Grade 1 and Residential Grade AAA standards. The universal backset design and adjustable throughbolt system ensure compatibility with various installation requirements while maintaining the security and durability expected from Schlage hardware. Engineered for demanding residential applications where dependable performance and easy installation are essential.
