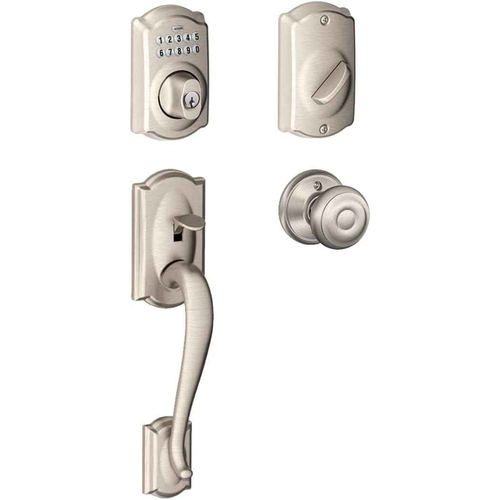

Schlage Residential FE365 Camelot Electronic Keypad Handleset with Accent Lever

Schlage Residential FE365 Camelot Electronic Keypad Handleset with Accent Lever

Convenient Keyless Entry Solution for Residential Security

The Schlage Residential FE365 Camelot Electronic Keypad Handleset with Accent Lever delivers convenient keyless access with professional-grade security for residential applications. This Grade 2 certified electronic handleset accommodates door thicknesses from 1-3/8" to 1-3/4" with adjustable backset options of 2-3/8" or 2-3/4". The battery-operated system provides over 3 years of reliable operation with illuminated keypad buttons and supports up to 19 personalized user codes for flexible access control.

Professional Features & Benefits

• Door Compatibility: Fits door thicknesses from 1-3/8" to 1-3/4" with adjustable backset of 2-3/8" or 2-3/4" for versatile installation options.
• Extended Battery Life: Battery-operated design provides over 3 years of reliable operation without the need for hardwired power connections.
• Flexible User Management: Assign up to 19 personalized codes with easy add, change, or delete functionality in seconds for customized access control.
• ANSI/BHMA Grade 2 Certification: Meets professional security standards for residential entrance applications with proven durability and performance.
• Illuminated Keypad: Buttons illuminate when pressed from the exterior for enhanced visibility and ease of use in low-light conditions.
• Ready-to-Use Installation: Includes personalized user code pre-programmed for immediate functionality right out of the box with no initial programming required.
• Reversible Handing: Compatible with both left and right-handed door applications for installation flexibility.
• Complete Hardware Package: Supplied with multiple faceplate options (Part 12-087) including 1/4" Round Corner, Square Corner, and Drive-In configurations plus Round Strike (Part 10-116) with 2-1/4" x 1-5/8" dimensions.

Standard Features

Schlage FE Series keypad locks bring convenient security to the home.
With features such as auto lock and flex lock, combined with the proven quality of all Schlage residential locks, security and safety is assured. Step up to a more secure and flexible solution with Schlage electronic keypad locks. You're free to add, change or delete user codes in just seconds and to come and go as you please.
Install a Schlage lock and you install nearly a century of total dedication to security, quality and innovation.

• No programming required; includes personalized user code to make it functional right out of the box
• Assign up to 19 personalized codes
• It does not automatically lock when you leave. To lock from the exterior, simply press the Schlage button and manually throw the bolt
• Convenience of keyless access and customizable to fit your security needs
• Buttons Illuminate when you press any button from the exterior

Additional Features:

• Easily replace most existing deadbolts with a screwdriver in about 30 minutes
• ANSI/BHMA Grade 2 Certified
• Fits standard door prep
• Reversible handing allows for use with both left and right handed applications
• Easy installation, no need to run wires
• Battery operated with over 3 year battery life
• Can fit a door up to 2-1/2" thick with Schlage's 02-007 and 61-072 adapter kits
• Faceplates (Part 12-087): Supplied with 1/4" Round Corner, Square Corner and Drive-In Faceplates
• Strike Plates (Part 10-116): Supplied with a Round Strike only with Dimensions of 2-1/4" x 1-5/8"

Specifications:

• Backset: Adjustable to 2-3/8" or 2-3/4"
• Center to Center: 5-1/2"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/8" , 1-1/2" , 1-5/8" or 1-3/4"
• Handing: Left, Right, Reversible
• Product Weight: 3.00 lbs

Installation & Operation

1. Verify electrical requirements and confirm battery installation per manufacturer specifications before proceeding with installation.
2. Disconnect any existing power sources and follow all applicable electrical codes and safety procedures during installation.
3. Mount the unit using standard door preparation with 2-1/8" cross bore and 1" edge bore, ensuring proper alignment with door thickness requirements.
4. Route and connect components according to manufacturer instructions, utilizing the included faceplates and strike hardware for proper fit.
5. Configure user codes and operational settings including the pre-programmed personalized code and any additional codes as needed for the application.
6. Test all functions including keypad operation, illumination, manual bolt operation, and code recognition to verify proper installation.
7. Complete final inspection and document user codes. Refer to manufacturer documentation for complete installation details, programming instructions, and troubleshooting.

Professional Applications

• Single-Family Residential Homes
• Townhomes and Condominiums
• Rental Properties and Vacation Homes
• Home Offices and Studios
• Residential Security Upgrades
• Multi-Generational Housing
• Assisted Living Residential Units

Manufacturer Resources

• User's Guide

Why Choose Schlage Residential Quality?

Schlage Residential electronic locks deliver proven residential security with ANSI/BHMA Grade 2 certification and over 3 years of battery life for dependable keyless access. The FE365 series combines nearly a century of Schlage dedication to security innovation with convenient features like illuminated keypads and flexible user code management. Engineered for residential applications where reliable keyless entry and customizable access control are essential.

Backed by Schlage's Lifetime Limited Mechanical and Finish Warranty. Support Resources: Manuals Hub: Schlage Manuals, Installation Guides & Templates (https://www.schlage.com/en/home/support/installation-manuals-templates.html) || FAQs & Support: Schlage Product FAQs (https://www.schlage.com/en/home/support/faqs.html) || User's Guide: User's Guide (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/P516-864.pdf)
