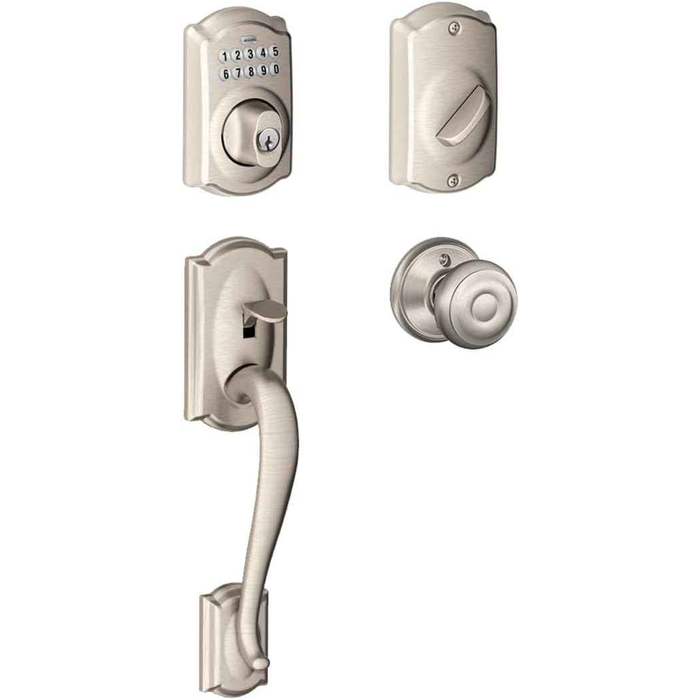

Schlage Residential FE365 Camelot Electronic Handleset with Georgian Knob Keypad Entry System

Schlage Residential FE365 Camelot Electronic Handleset with Georgian Knob Keypad Entry System

Convenient Keyless Entry with Traditional Handleset Design

The Schlage Residential FE365 Camelot Electronic Handleset combines the convenience of keypad entry with the classic appeal of a Georgian knob design. This Grade 2 certified electronic lock accommodates doors from 1-3/8" to 1-3/4" thick with adjustable backset options of 2-3/8" or 2-3/4". Battery-operated with over 3-year battery life, this system requires no wiring and fits standard door preparation for easy installation.

Professional Features & Benefits

• Door Compatibility: Accommodates door thickness from 1-3/8" to 1-3/4" with adjustable backset of 2-3/8" or 2-3/4" for versatile installation options.
• Extended Battery Life: Battery-operated system provides over 3-year battery life for reliable long-term operation without frequent maintenance.
• Multi-User Access Control: Assign up to 19 personalized user codes with no programming required - includes personalized user code functional right out of the box.
• ANSI/BHMA Grade 2 Certification: Meets professional security standards for residential applications with proven durability and performance.
• Illuminated Keypad: Buttons illuminate when pressed from exterior for enhanced visibility and ease of use in low-light conditions.
• Reversible Handing: Compatible with both left and right-handed door applications for flexible installation requirements.
• Standard Door Preparation: Fits standard door prep with 2-1/8" cross bore and 1" edge bore - easily replaces most existing deadbolts with basic tools.
• Complete Hardware Package: Includes multiple faceplate options (Part 12-087) with 1/4" Round Corner, Square Corner and Drive-In configurations plus Round Strike (Part 10-116) with 2-1/4" x 1-5/8" dimensions.

Standard Features

Schlage FE Series keypad locks bring convenient security to the home.
With features such as auto lock and flex lock, combined with the proven quality of all Schlage residential locks, security and safety is assured. Step up to a more secure and flexible solution with Schlage electronic keypad locks. You're free to add, change or delete user codes in just seconds and to come and go as you please.
Install a Schlage lock and you install nearly a century of total dedication to security, quality and innovation.

• No programming required; includes personalized user code to make it functional right out of the box
• Assign up to 19 personalized codes
• It does not automatically lock when you leave. To lock from the exterior, simply press the Schlage button and manually throw the bolt
• Convenience of keyless access and customizable to fit your security needs
• Buttons Illuminate when you press any button from the exterior

Additional Features:

• Easily replace most existing deadbolts with a screwdriver in about 30 minutes
• ANSI/BHMA Grade 2 Certified
• Fits standard door prep
• Reversible handing allows for use with both left and right handed applications
• Easy installation, no need to run wires
• Battery operated with over 3 year battery life
• Can fit a door up to 2-1/2" thick with Schlage's 02-007 and 61-072 adapter kits
• Faceplates (Part 12-087): Supplied with 1/4" Round Corner, Square Corner and Drive-In Faceplates
• Strike Plates (Part 10-116): Supplied with a Round Strike only with Dimensions of 2-1/4" x 1-5/8"

Specifications:

• Backset: Adjustable to 2-3/8" or 2-3/4"
• Center to Center: 5-1/2"
• Cross Bore: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/8" , 1-1/2" , 1-5/8" or 1-3/4"
• Handing: Left, Right, Reversible
• Product Weight: 3.00 lbs

Installation & Operation

1. Verify door preparation meets standard requirements: 2-1/8" cross bore, 1" edge bore, and door thickness between 1-3/8" and 1-3/4".
2. Remove existing deadbolt hardware and clean mounting surfaces thoroughly.
3. Install the electronic deadbolt mechanism using the appropriate faceplate configuration for your door edge preparation.
4. Mount the exterior keypad assembly and interior thumb turn, ensuring proper alignment and secure attachment.
5. Install batteries and test basic lock/unlock operation before proceeding with code programming.
6. Program personalized user codes as needed (up to 19 codes supported) and test each code for proper function.
7. Complete final testing of all functions including manual locking, keypad entry, and interior thumb turn operation. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Single-Family Residential Homes
• Townhomes and Condominiums
• Rental Properties and Vacation Homes
• Home Offices and Studios
• Multi-Generational Housing
• Assisted Living Residential Units
• Small Residential Care Facilities

Manufacturer Resources

• User's Guide

Why Choose Schlage Residential Quality?

Schlage Residential FE Series electronic locks deliver proven residential security with ANSI/BHMA Grade 2 certification and over 3-year battery life for dependable performance. The FE365 combines nearly a century of Schlage dedication to security, quality and innovation with modern keyless convenience. Engineered for residential applications where reliable access control and traditional aesthetic appeal are essential.

Backed by Schlage's Lifetime Limited Mechanical and Finish Warranty. Support Resources: Manuals Hub: Schlage Manuals, Installation Guides & Templates (https://www.schlage.com/en/home/support/installation-manuals-templates.html) || FAQs & Support: Schlage Product FAQs (https://www.schlage.com/en/home/support/faqs.html) || User's Guide: User's Guide (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/P516-864.pdf)
