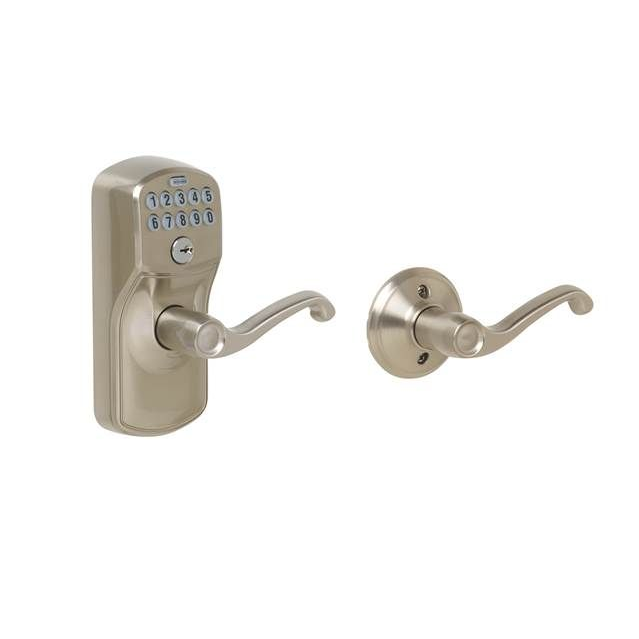

Schlage Residential FE575 Plymouth Keypad Entry Auto-Lock Leversets with Accent Lever

Schlage Residential FE575 Plymouth Keypad Entry Auto-Lock Leversets with Accent Lever

Convenient Electronic Security for Residential Applications

The Schlage Residential FE575 Plymouth keypad entry leversets combine proven security with modern convenience for residential door applications. This Grade 2 electronic lock features auto-lock functionality, accommodates door thickness from 1-3/8" to 1-3/4", and operates on a single 9V battery. With adjustable 2-3/8" to 2-3/4" backset and 5-pin C keyway cylinder, the FE575 provides flexible installation options for standard residential doors.

Professional Features & Benefits

• Door Compatibility: Fits door thickness from 1-3/8" to 1-3/4" with adjustable 2-3/8" to 2-3/4" backset for versatile residential installation.
• Flexible Code Management: Store up to 19 access codes with 2 pre-set unique 4-digit codes, allowing easy user management and access control.
• Auto-Lock Security: Automatic locking feature provides enhanced security by ensuring doors lock automatically after entry.
• Battery Operation: Single 9V battery power with extended operating temperature range from -35°C to 66°C exterior, -10°C to 50°C interior.
• Grade 2 Construction: ANSI/BHMA F76 rated leversets with 1" latch throw and reinforced strike for reliable residential security.
• Dual Access Options: Keypad entry with backup key access using conventional 5-pin C keyway cylinder for emergency situations.
• Professional Installation: Standard 2-1/8" cross bore with multiple latch faceplate options including round corner, square corner, and drive-in configurations.
• Manufacturer Warranty: 3 Year warranty coverage for added confidence and protection in residential applications.

Standard Features

Product Dimensions: 3" x 6.5" x 6.5"
Battery: 9V battery (1)
Latch Throw: 1"
Cylinder: 5-pin, C keyway
Door Thickness: 1-3/8" to 1-3/4"
Cross Bore: 2-1/8"
Latch Faceplate Size: 1" x 2-1/4" radius corner
Latch/Backset: 2-3/8" to 2-3/4" adjustable
Latch Faceplate Size: 1"
Latch Faceplate Options: Round corner, square corner, and drive-in (dual option  standard)
Strike:1-1/8" x 2-3/4" round corners, strike reinforce
Keys: 1 Key
Codes:2 pre-set unique 4-digit access codes, storage of up to 19 access codes
Operating Temperatures: Outside lock body (exterior mounted): -35C to 66C Inside lock body (interior mounted): -10C to 50C

Installation & Operation

1. Verify door preparation requirements including 2-1/8" cross bore and door thickness compatibility between 1-3/8" to 1-3/4".
2. Install 9V battery in the interior lock body before mounting. Ensure battery contacts are clean and secure.
3. Mount exterior and interior lock assemblies using provided hardware, adjusting backset to 2-3/8" or 2-3/4" as required for door preparation.
4. Install latch assembly with appropriate faceplate option (round corner, square corner, or drive-in) and secure strike plate to door frame.
5. Program initial access codes using the 2 pre-set 4-digit codes or customize up to 19 user codes as needed for household access.
6. Test keypad entry, key override function, and auto-lock operation to verify proper installation and programming.
7. Refer to manufacturer installation instructions and user guide for complete setup procedures and troubleshooting.

Professional Applications

• Single Family Residential Homes
• Townhomes and Condominiums
• Rental Property Management
• Home Office and Study Areas
• Secondary Entry Points
• Vacation and Seasonal Properties
• Multi-Generational Housing

Manufacturer Resources

• Installation Instructions
• User's Guide

Why Choose Schlage Residential Quality?

Schlage Residential FE575 leversets deliver proven residential security with Grade 2 ANSI/BHMA F76 rating and reinforced strike construction for reliable daily operation. The 3 Year manufacturer warranty and extended operating temperature range from -35°C to 66°C demonstrate the durability engineered into every FE Series electronic lock. Nearly a century of Schlage dedication to security, quality and innovation ensures dependable performance for residential applications where convenient access control is essential.

Always-locked keypad lever with up to 19 programmable access codes. Automatically relocks from the outside every time. Support Resources: Manuals Hub: Schlage Manuals, Installation Guides & Templates (https://www.schlage.com/en/home/support/installation-manuals-templates.html) || Installation Guides: FE575/FE595 Keypad Lever Installation Instructions (current) (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/fe595-keypad-lock-installation-instructions.pdf) | FE575 Keypad Lever Installation Instructions (alt) (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/fe575-keypad-lock-installation-instructions.pdf) | FE575/FE595 Installation and Programming Guide (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/P515-859.pdf) || Door Prep Templates: FE575/FE595 Door Prep Template — No Existing Holes (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/1105-b.pdf) | FE575/FE595 Door Prep Template — Existing Holes (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/1105.pdf) || User Guides & Manuals: Keypad Locks User Guide (BE365/FE575/FE595) (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/23780042.pdf) || Programming Guide: Schlage Programming Guides (https://www.schlage.com/en/home/support/programming-guides.html) || FAQs & Support: Schlage Keypad Auto Lock Lever FAQs and Support (https://www.schlage.com/en/home/support/faqs/keypad.html) | Schlage Product FAQs (https://www.schlage.com/en/home/support/faqs.html)
