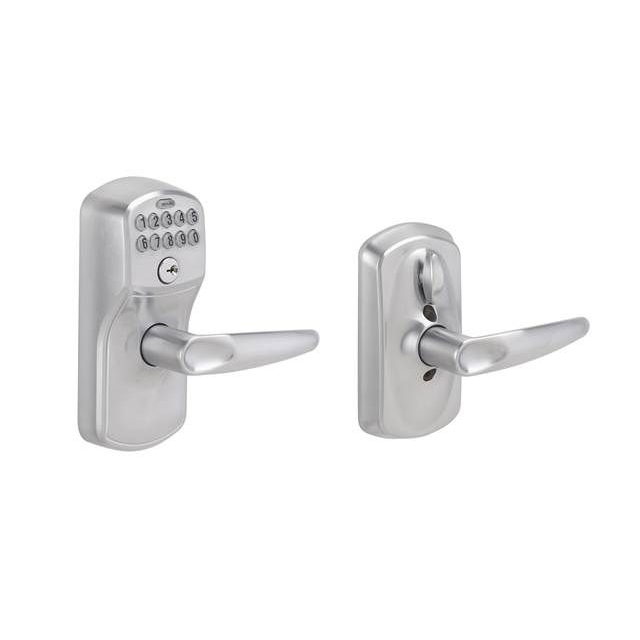

Schlage Residential FE595 Plymouth Keypad Entry Lever Set with Jazz Interior Lever and Flex-Lock Technology

Schlage Residential FE595 Plymouth Keypad Entry Lever Set with Jazz Interior Lever and Flex-Lock Technology

Advanced Electronic Access Control for Residential Security

The Schlage Residential FE595 Plymouth keypad entry lever set combines convenient keyless access with proven mechanical security for residential applications. This Grade 2 electronic lock features up to 19 programmable access codes, auto-lock and flex-lock functionality, and fits standard door preparations with 1-3/8" to 1-3/4" door thickness. The single cylinder design includes a 5-pin C keyway cylinder with conventional key override, while the adjustable 2-3/8" to 2-3/4" backset accommodates most residential door configurations.

Professional Features & Benefits

• Door Compatibility: Designed for 1-3/8" to 1-3/4" door thickness with adjustable 2-3/8" to 2-3/4" backset for versatile residential installation.
• Advanced Code Management: Store up to 19 unique 4-digit access codes with 2 pre-set codes included, allowing flexible user management for families and authorized personnel.
• Reliable Power System: Single 9V battery operation provides dependable power with wide operating temperature range from -35°C to 66°C for exterior components.
• Grade 2 Security Rating: ANSI/BHMA F76 certified construction with 1/2" latch throw and 7/8" housing diameter for enhanced security performance.
• Flex-Lock Technology: Auto-lock and flex-lock features provide customizable security settings with push-button locking and inside lever release functionality.
• Professional Installation Ready: Standard 2-1/8" cross bore with 1" x 2-1/4" radius corner latch faceplate fits existing door preparations.
• Dual Access Options: Keypad entry with conventional cylinder backup ensures access even during battery replacement or electronic malfunction.
• Manufacturer Warranty: 3 Year warranty coverage for added confidence and protection in residential applications.

Standard Features

Product Dimensions: 3" x 6.5" x 6.5"
Battery: 9V battery (1)
Latch Throw: 1/2" throw, 7/8" housing diameter
Cylinder: 5-pin, C keyway
Door Thickness: 1-3/8" to 1-3/4"
Cross Bore: 2-1/8"
Latch Faceplate Size: 1" x 2-1/4" radius corner
Latch/Backset: 2-3/8" to 2-3/4" adjustable
Latch Faceplate Size: 1" x 2-1/4"
Latch Faceplate Options: Spring latch radius corner and circular drive-in faceplates
Strike: 1-5/8" x 2-1/4", radius corner, full lip latch strikes
Keys: 1 Key
Codes: 2 pre-set unique 4-digit access codes, storage of up to 19 access codes
Operating Temperatures: Outside lock body (exterior mounted): -35C to 66C Inside lock body (interior mounted): -10C to 50C

Installation & Operation

1. Verify door preparation meets requirements including 1-3/8" to 1-3/4" door thickness and standard 2-1/8" cross bore dimensions.
2. Install 9V battery in exterior keypad unit and verify proper operation before mounting to door.
3. Mount exterior keypad assembly and interior Jazz lever assembly using provided mounting hardware and adjustable backset mechanism.
4. Configure latch assembly for 2-3/8" or 2-3/4" backset as required and install in door edge with 1" x 2-1/4" radius corner faceplate.
5. Program initial access codes using keypad interface and test both keypad entry and conventional key override functions.
6. Install full lip radius strike plate in door frame and adjust for proper latch alignment and smooth operation.
7. Test complete installation including auto-lock, flex-lock, and push-button locking functions. Refer to manufacturer documentation for complete programming instructions and troubleshooting.

Professional Applications

• Single Family Residential Homes
• Townhomes and Condominiums
• Rental Property Management
• Home Office and Study Areas
• Guest House and Secondary Entrances
• Residential Security Upgrades
• Multi-Generational Housing

Manufacturer Resources

• Installation Instructions
• User's Guide

Why Choose Schlage Residential Quality?

Schlage Residential electronic locks deliver proven residential security with Grade 2 ANSI/BHMA F76 certification and robust 5-pin cylinder construction. The 3 Year warranty coverage and wide operating temperature range from -35°C to 66°C ensure reliable performance in diverse residential environments. Engineered with nearly a century of lock manufacturing expertise, Schlage FE Series locks provide the security, convenience, and durability homeowners demand.

Keypad lever with Flex Lock technology — set to always-locked or passage mode as needed. Supports up to 19 programmable access codes. Support Resources: Manuals Hub: Schlage Manuals, Installation Guides & Templates (https://www.schlage.com/en/home/support/installation-manuals-templates.html) || Installation Guides: FE575/FE595 Keypad Lever Installation Instructions (current) (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/fe595-keypad-lock-installation-instructions.pdf) | FE575 Keypad Lever Installation Instructions (alt) (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/fe575-keypad-lock-installation-instructions.pdf) | FE575/FE595 Installation and Programming Guide (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/P515-859.pdf) || Door Prep Templates: FE595 Door Prep Template — No Existing Holes (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/1105-b.pdf) | FE595 Door Prep Template — Existing Holes (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/1105.pdf) || User Guides & Manuals: Keypad Locks User Guide (BE365/FE575/FE595) (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/23780042.pdf) || Programming Guide: Schlage Programming Guides (https://www.schlage.com/en/home/support/programming-guides.html) || FAQs & Support: Schlage Keypad Flex Lock Lever FAQs and Support (https://www.schlage.com/en/home/support/faqs/keypad.html) | Schlage Product FAQs (https://www.schlage.com/en/home/support/faqs.html)
