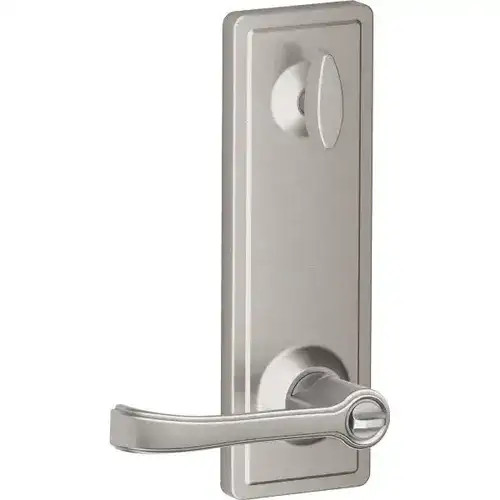

Schlage Residential JI59 Interconnected Passage Lock with Keyed Deadbolt - Torino Lever in Satin Stainless Steel

Schlage Residential JI59 Interconnected Passage Lock with Keyed Deadbolt - Torino Lever in Satin Stainless Steel

(No reviews yet) Write a Review

Model: JI59 TOR 630

In Stock (leaves warehouse same day if ordered before 3pm ET)

$99.00
$87.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage Residential JI58/59 Interconnected Passage Lock with Keyed Deadbolt - Torino Lever in Satin Stainless Steel

Professional Interconnected Lock Solution for Residential and Light Commercial Applications

The Schlage Residential JI58/59 interconnected passage lock combines a keyed deadbolt with passage function in a single integrated unit featuring the contemporary Torino lever design. This interconnected system allows both latch and deadbolt to retract simultaneously for emergency egress while maintaining security through the keyed deadbolt function. Designed for door thicknesses from 1-3/8" to 1-3/4" with adjustable 2-3/8" or 2-3/4" backset, this non-handed lock exceeds ANSI A156.12 Grade 3 requirements and carries UL listing for reliable performance.

Professional Features & Benefits

  • Interconnected Operation: Both latchbolt and deadbolt retract simultaneously from inside lever operation, providing immediate emergency egress capability.
  • Flexible Door Compatibility: Accommodates door thickness range of 1-3/8" to 1-3/4" with adjustable backset for 2-3/8" or 2-3/4" applications.
  • Professional Installation Specifications: Features 5-1/2" center to center cross-bore diameter design ideal for new construction applications.
  • ANSI Grade Performance: Exceeds all ANSI A156.12 Grade 3 requirements for residential and light commercial durability standards.
  • UL Listed Safety: UL Listed for all functions ensuring compliance with safety and performance standards.
  • Non-Handed Design: Universal installation eliminates field determination of door handing for simplified inventory and installation.
  • Lifetime Mechanical Warranty: Backed by manufacturer lifetime mechanical warranty for long-term reliability and protection.
  • Contemporary Torino Styling: Features modern Torino lever design in satin stainless steel finish for professional appearance.

Standard Features

Available while supplies last (No returns allowed)

Applications:
Single and multi-family residential, office, hotel/
motel, and light commercial applications.
Specifications:
• Interconnected latchbolt and deadbolt chassis
• Ideal for new construction
• 5 1/2” center to center cross-bore diameter
• Both latch and deadbolt are retracted
simultaneously, allowing for emergency egress
• Product exceeds all ANSI Al 56.12 Grade 3
requirements
• UL Listed for all functions
• Non-handed Levers
• Adjustable latch for 2 3/8” or 2 3/4” backset
• Dexter offers a lifetime mechanical warranty
DOOR RANGE: 1 3/8” to 1 3/4” (35 mm-51 mm).

JI18 Marin - Outside Trim

JI19 Marin - Inside Trim

JI58 Torino - Outside Trim

JI59 Torino - Inside Trim

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness between 1-3/8" and 1-3/4" and 5-1/2" center to center cross-bore spacing.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for proper alignment.
  3. Prepare door by drilling required cross-bore and edge-bore holes according to manufacturer specifications for interconnected chassis installation.
  4. Install interconnected latchbolt and deadbolt chassis assembly and secure all mounting hardware per manufacturer torque specifications.
  5. Adjust latch mechanism for proper 2-3/8" or 2-3/4" backset configuration and verify smooth operation of both latch and deadbolt functions.
  6. Test interconnected operation to verify both latch and deadbolt retract simultaneously from inside lever operation and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Single and Multi-Family Residential Properties
  • Office Buildings and Professional Suites
  • Hotel and Motel Guest Room Entries
  • Light Commercial Facilities
  • New Construction Projects
  • Residential Renovation and Upgrade Projects
  • Multi-Tenant Residential Complexes

Why Choose Schlage Residential Quality?

Schlage Residential interconnected locks deliver professional-grade reliability with interconnected chassis construction that exceeds ANSI A156.12 Grade 3 requirements and carries UL listing for all functions. The lifetime mechanical warranty provides long-term protection and confidence in demanding residential and light commercial applications. Engineered for reliable emergency egress capability while maintaining security through integrated keyed deadbolt operation.

Z-Wave Plus enabled for integration with SmartThings, Ring Alarm, Wink, and other compatible smart home hubs. Support Resources: Manuals Hub: Schlage Manuals, Installation Guides & Templates (https://www.schlage.com/en/home/support/installation-manuals-templates.html) || Quick-Start Guides: Schlage Connect Smart Deadbolt Quick Start Guide (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/schlage-connect-quick-start-guide.pdf) || User Guides & Manuals: Z-Wave Association and Configuration Parameters (https://www.schlage.com/content/dam/sch-us/documents/pdf/installation-manuals/24352403.pdf) || Programming Guide: Schlage Programming Guides (https://www.schlage.com/en/home/support/programming-guides.html) || FAQs & Support: Schlage Smart Z-Wave Deadbolt FAQs and Support (https://www.schlage.com/en/home/support/faqs/schlage-connect-zwave.html) | Schlage Product FAQs (https://www.schlage.com/en/home/support/faqs.html)

Manufacturer Resources

Product Specs

Series:
JI Series
Subcategory:
Bored Locksets
Grade:
Grade 2
Keyed Function:
Keyed
ANSI/BHMA:
F76
Product Group:
Mechanical Locks
Product Subgroup:
Clearance Center
Keyed:
Yes
Electronic:
No
Commercial/Residential:
Residential
Lock Type:
Cylindrical
Lock Function:
Privacy/Bed/Bath
Product Type:
Handlesets
Handle Design:
Torino Lever
Handle Type:
Lever
Lever/Knob Design:
Torino Lever
Segment:
Door Hardware
Product Model:
JI58/59
Product Function:
Passage
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/8" to 1-3/4"
Product Category:
Mechanical Locks
Department:
Door Hardware

Schlage Residential JI59 TOR 630 – Frequently Asked Questions

1) Will the Schlage JI58/59 interconnected lock fit a 1-3/8 inch door, or does it need a 1-3/4 inch door?
Both work. The JI58/59 covers a door range of 1-3/8 to 1-3/4 inches, so it suits older interior-thickness doors as well as the standard 1-3/4 inch commercial leaf. The latch adjusts for either a 2-3/8 or 2-3/4 inch backset, so you do not have to pick a backset when you order.
2) What door prep does an interconnected Schlage JI Series lock need, and can I retrofit it into an existing single bore?
No, it is not a single-bore retrofit. The JI58/59 is an interconnected latchbolt and deadbolt chassis with 5-1/2 inch center-to-center cross-bore spacing, so the door needs two bores at that spacing plus the matching edge bores. The description calls it out for new construction for exactly that reason. If your door is already bored for a separate knob and deadbolt at a different spacing, the holes will not line up.
3) Does a tenant have to turn the deadbolt separately to get out of an apartment with this lock?
No. Turning the inside Torino lever retracts both the latchbolt and the deadbolt at the same time, which is the point of an interconnected lock in multi-family and hotel work: one motion out, no separate thumbturn step.
4) What is the difference between the JI58 and JI59 part numbers?
They are the two halves of the same Torino trim set: JI58 is the outside trim and JI59 is the inside trim. The Marin design equivalents are JI18 outside and JI19 inside. You can order the exterior piece alone, the interior piece alone, or the complete interconnected lockset with both.
5) My doors are 2 inches thick. Will this Schlage interconnected lock still work?
No, it tops out at 1-3/4 inches. For a thicker slab, look at handlesets rated deeper: the Weslock 2810 Hillcrest single cylinder covers 1-3/8 to 2 inches, the Deltana 810871 Montego also covers 1-3/8 to 2 inches, and the Weslock 1411 Traditionale runs 1-3/4 to 2-1/4 inches.
6) I want keypad entry instead of a key on the Schlage JI58/59 Torino - what handleset does that?
The JI58/59 is a mechanical, non-electronic keyed unit. For code entry, the Kwikset 815SCEHFL-CP913CNT San Clemente handleset pairs Halifax lever interior trim with a contemporary SmartCode keypad electronic deadbolt for 1-3/4 inch doors, and the Yale Assure BYRD226CBARX Ridgefield handleset uses a Wi-Fi and Bluetooth touchscreen deadbolt for 1-3/4 inch to 2-1/4 inch doors. The Yale BYRD226NRRX is the standalone touchscreen version of the same Ridgefield handleset.
7) Which handleset matches the Schlage JI58/59 door thickness range most closely?
The Pamex FS7P31 Lexington single cylinder handleset in satin nickel lists the same 1-3/8 inch to 1-3/4 inch door range as the JI58/59 Torino and is an entry function handleset, so it drops into the same door prep range on a residential entry.
8) Is there another Grade 2 handleset with a deadbolt besides the Schlage JI58/59?
Yes. The JI58/59 Torino is Grade 2, and the Master Lock HDLBA0615/4D from the HDLB Series is a Grade 2 single cylinder deadbolt handleset with an entrance function. The Kwikset 687AMD and 687BW Amador and Belleview exterior-only handlesets are Grade 3.
9) Does the Schlage JI58/59 interconnected lock have a mortise equivalent?
No, the JI58/59 is a cylindrical bored lock. If the door is prepped for a mortise case, the Baldwin Estates 6542 Tremont entry mortise trim is the alternative and comes in single cylinder and double cylinder versions, both listed for 1-3/4 inch doors. Mortise trim requires a mortise pocket, not the cross-bore prep the JI58/59 uses.
10) Do I have to specify left or right hand when ordering the JI58/59 Torino lever?
No handing to call out. The JI Series levers are non-handed, so the same unit goes on a left or right swing door with no field conversion. That is useful if you are stocking one part number across a building.
11) Is this Schlage interconnected lock rated for apartment and hotel corridor use?
It is built for single and multi-family residential, office, hotel and motel, and light commercial openings. The lock exceeds ANSI A156.12 Grade 3 requirements and is UL Listed for all functions, with an F76 ANSI/BHMA function designation. For high-traffic commercial entry duty you would step up to a Grade 1 cylindrical or mortise lock instead.
12) I only need to replace a damaged exterior trim on a JI Series lock. Can I buy just that piece?
Yes. The Torino JI58/59 is sold three ways: exterior trim only, interior trim only, or the full interconnected lockset with both sides. If you are matching existing doors, order the single side in satin stainless steel so the finish lines up with the rest of the openings.
13) Is the JI58/59 keyed, and can it be keyed alike with other doors?
The deadbolt side is keyed; the lever itself is passage function, so the lever never locks and security comes entirely from the keyed deadbolt. That means one key controls entry on the opening.
14) What else could I use if I need a keyed entry handleset instead of an interconnected passage lock?
If you want a traditional grip-and-deadbolt handleset rather than an interconnected lever chassis, the Pamex FS7P31 Lexington single cylinder handleset covers the same 1-3/8 to 1-3/4 inch door range. The Master Lock HDLB Series single cylinder deadbolt handleset is a Grade 2 entrance option, and Sure-Loc's Madison and Aspen keyed entry handlesets ship with adjustable backset. Those are entry function, not interconnected, so the deadbolt is thrown and retracted separately from the handle.
15) I want a lever on both sides like the Schlage JI58/59 Torino - which comparable handlesets use knobs instead?
The JI58/59 uses the Torino lever. If you are cross-shopping and need to know what you would get instead, the Baldwin Wesley handleset comes with an Alcott knob or a Carnaby knob, the Weslock 2810 Hillcrest uses a Hudson knob, and the Weslock 1411 Traditionale Colonial uses an Eleganti knob. All four are knob interior trim, which matters where a lever is wanted for accessibility.
16) What should I order instead of the Schlage JI58/59 if I only need exterior trim with no working interior lock?
The JI58/59 is a keyed interconnected unit with a working deadbolt. If the interior side is inactive, dummy handlesets are the right part: the Weslock 2815 Hillcrest dummy with New Heaven lever covers 1-3/8 inch to 2 inch doors, the Weslock 6695 Belmont dummy with Impresa knob covers the same range, and the Emtek 3002 Memphis, 3004 Hamilton, 3005 Melrose and 3006 Manhattan brass mortise handlesets are all dummy function.
17) Which alternatives to the Schlage JI58/59 have an adjustable backset?
The JI58/59 uses an adjustable latch for 2-3/8 inch or 2-3/4 inch backset. Among other handlesets, the Sure-Loc Aspen AN507 single cylinder keyed entry, the Madison MA507 keyed entry, the Alta AT507 tubular and the Coral CR507 are all handlesets with adjustable backset, so they fit either bore spacing without a second SKU.
18) For a keyless multifamily entry, what replaces the Schlage JI58/59 keyed deadbolt?
The JI58/59 secures with a keyed deadbolt. Key-free options include the Yale Assure BYRD256 CBARX key free touchscreen deadbolt with Ridgefield passage handleset and trim connected by August for 1-3/4 inch to 2-1/4 inch doors, and the Yale Assure Lock 2 key-free touchscreen deadbolt with Wi-Fi and Ridgefield handleset, which covers 1-3/8 inch to 2-1/4 inch doors.
19) Are there solid brass handleset alternatives to the Schlage JI58/59 for a higher-end entry?
Yes. Deltana offers entry-function solid brass handlesets in the Hanover 803871B, St. Ann 815871 and Kingston 825871 series, and the Montego 810871 handleset covers doors from 1-3/8 inch to 2 inch. These are traditional grip handlesets rather than the interconnected latch and deadbolt chassis of the JI58/59 Torino.
