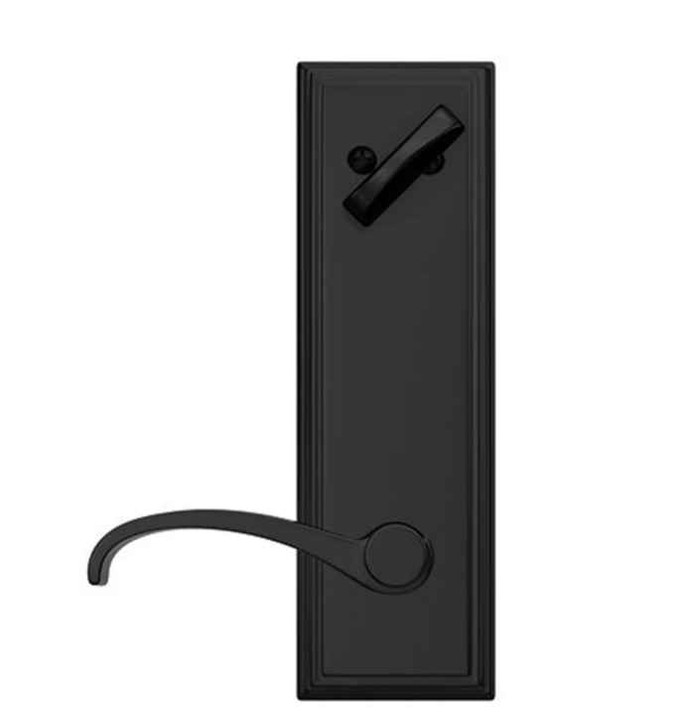

Schlage Residential Custom FCT-Series Outside Handleset with Whitney Lever and Addison Escutcheon

Schlage Residential Custom FCT-Series Outside Handleset with Whitney Lever and Addison Escutcheon

(No reviews yet) Write a Review

Model: FCT59 WIT 622 ADD
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$176.00
$141.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage Residential Custom FCT-Series Outside Handleset with Whitney Lever and Addison Escutcheon

Premium Architectural Door Hardware with Designer 3/4 Trim

The Schlage Residential Custom FCT-Series Outside Handleset combines the Whitney lever design with Addison escutcheon styling for a sophisticated entrance solution. This premium handleset features architecturally inspired 3/4" trim that extends decorative styling from grip to deadbolt, with adjustable 2-3/8" or 2-3/4" backset and accommodates door thickness from 1-5/8" to 2-1/4". Constructed from durable zinc and steel materials, this ANSI/BHMA A156.4 Grade 2 certified handleset delivers lasting performance with Schlage’s signature quality and craftsmanship.

Professional Features & Benefits

  • Premium 3/4" Trim Design: Architecturally inspired trim extends from grip to deadbolt for a cohesive designer look that elevates any home entrance.
  • Adjustable Installation: Throughbolt adjusts 1-1/2" up or down to fit existing holes, making replacement installations quick and easy.
  • Flexible Door Compatibility: Accommodates door thickness from 1-5/8" to 2-1/4" with adjustable 2-3/8" or 2-3/4" backset for versatile applications.
  • Grade 2 Security Standards: ANSI/BHMA A156.4 certification ensures reliable security performance for residential entrance applications.
  • Durable Construction: Zinc and steel materials provide lasting durability with metal construction designed for heavy-duty residential use.
  • Reversible Operation: Left or right handing capability allows flexible installation without additional hardware requirements.
  • Complete Installation Package: Includes all mounting hardware and installation guide for straightforward setup and professional results.
  • Manufacturer Warranty: 10 Year Limited warranty plus lifetime mechanical and finish warranty for added confidence and protection.

Standard Features

  • Adheres to ANSI/BHMA A156.4 Grade 2 security standards
  • Constructed from metal for lasting durability
  • Includes all mounting hardware for easy installation
  • Pair with a Schlage Custom 3/4 inch trim exterior keyed entry handleset
  • Schlage offers a limited lifetime mechanical and finish warranty
  • Easy installation
  • Adjustable throughbolt moves 1 ½” up or down to fit existing holes, making it easy to replace your old handleset

Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Door Thickness: 1-5/8" to 2-1/4"
  • Handing: Reversible Left or Right
  • Handle Projection: 2-3/8"
  • Trim Height: 8-7/8"
  • Trim Width: 5-3/8"
  • Trim Projection: 3/4"
  • Center to Center: 5-1/2"
  • Latch Faceplate: Round Corner
  • Cylinder: 5 Pin Schlage C
  • Material: Zinc

Installation Guide

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-5/8" to 2-1/4", cross bore of 2-1/8", and edge bore of 1".
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces, noting the 5-1/2" center to center spacing.
  3. Prepare door by drilling required holes and routing as specified, ensuring proper backset of 2-3/8" or 2-3/4" as needed for your application.
  4. Install the handleset using included mounting hardware, utilizing the adjustable throughbolt that moves 1-1/2" up or down to fit existing holes.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion, ensuring reversible left or right operation as needed.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Residential Front Door Entrances
  • Custom Home Construction
  • Home Renovation and Remodeling
  • Multi-Family Residential Properties
  • Luxury Home Developments
  • Architectural Design Projects
  • Premium Residential Communities

Why Choose Schlage Residential Quality?

Schlage Residential Custom Door Hardware delivers premium architectural styling with durable zinc and steel construction rated to ANSI/BHMA A156.4 Grade 2 standards. The 10 Year Limited warranty plus lifetime mechanical and finish warranty provide exceptional protection and confidence. Engineered for demanding residential applications where sophisticated design and dependable security performance are essential.

Support Resources: Manuals Hub: Schlage Manuals, Installation Guides & Templates (https://www.schlage.com/en/home/support/installation-manuals-templates.html) || FAQs & Support: Schlage Product FAQs (https://www.schlage.com/en/home/support/faqs.html) || Installation Guide: Installation Guide (https://s1.img-b.com/build.com/mediabase/specifications/schlage/1474311/schlage-fct59-and-cam-installation-sheet.pdf)

Manufacturer Resources

Product Specs

Subcategory:
Interconnected Locks
Series:
Custom, FCT-Series
Duty Level:
Heavy Duty
Warranty:
10 Year Limited
Keyed Function:
Single Cylinder
ANSI/BHMA:
A156.4
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Interconnected Locks
Keyed:
Yes
Electronic:
No
Commercial/Residential:
Commercial
Lock Function:
Entrance
Product Attribute:
Cylindrical Locks
Product Function:
Entrance
Door Hand Direction:
Left, Reversible, Right
Product Substrate:
Zinc and Steel
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage Residential FCT59 WIT 622 ADD – Frequently Asked Questions

1) Will the Schlage Custom FCT-Series handleset fit a 2 inch thick front door?
Yes. The FCT-Series Custom handleset covers door thickness from 1-5/8 inches up to 2-1/4 inches, so a 2 inch slab is inside its range. That range is wider than a standard 1-3/4 inch commercial door, which is why it suits thicker custom and solid entry doors. Prep is a 2-1/8 inch cross bore with a 1 inch edge bore.
2) Can the Schlage FCT-Series handleset be installed on a door bored for a 2-3/8 inch backset?
Both common backsets work. The FCT-Series latch adjusts to 2-3/8 inches or 2-3/4 inches, so it drops into either of the two standard bore positions without ordering a different part. Those are the only two backsets used on residential and light commercial bored doors, so an existing prep will take it.
3) I am replacing an old handleset, will the new Schlage Custom handleset cover the existing holes?
That is what the adjustable throughbolt is for. It moves 1-1/2 inches up or down, so the handleset can pick up holes drilled at a different spacing than its nominal 5-1/2 inch center to center between grip and deadbolt. Combined with the 2-1/8 inch cross bore and the two selectable backsets, most existing handleset preps take it without redrilling.
4) Do I have to order the Schlage FCT-Series Whitney handleset in a left hand or right hand version?
No handing to specify. The Whitney lever handleset is reversible left or right, and the reversal is done during installation with no extra hardware. One part number covers both swings, which matters if you are buying for several openings at once.
5) Is the Schlage Custom FCT-Series handleset a complete lock or do I need an interior piece too?
It is the outside half. The FCT-Series Custom handleset is the exterior keyed trim, and Schlage's own instruction is to pair it with a Schlage Custom 3/4 inch trim exterior keyed entry handleset arrangement, meaning you complete the opening with the matching interior trim. All mounting hardware for the outside handleset and the installation guide are in the box.
6) What cylinder and keyway does the Schlage Custom handleset use, and can it be keyed alike with my other Schlage locks?
It uses a 5 pin Schlage C keyway cylinder, single cylinder function, so it keys with the rest of a Schlage C system. That is the standard Schlage residential keyway, which is what makes it practical to bring a whole building's entrances onto one key.
7) How much room does the Schlage Whitney handleset need on the door face and how far does the grip stick out?
The Addison escutcheon trim measures 8-7/8 inches high by 5-3/8 inches wide with a 3/4 inch trim projection, and the grip projects 2-3/8 inches off the face. Check the 5-3/8 inch width against narrow stile or glass front doors, and the 2-3/8 inch projection against storm doors or sidelight trim that swings close to the handle.
8) What is the closest Schlage equivalent to the Custom FCT-Series Whitney handleset for a commercial interconnected opening?
The Schlage CS210-B500 is the nearest Schlage interconnected lockset. It is a Grade 2 entrance single locking interconnected lockset rated Heavy Duty, matching the Custom FCT-Series Whitney handleset on ANSI/BHMA A156.4 Grade 2 entrance function and Heavy Duty rating. The difference is form: the FCT-Series is an outside handleset with a Whitney lever and Addison escutcheon carrying 3/4 inch trim from grip to deadbolt, while the CS210-B500 is a lever-only interconnected lockset without the decorative handleset trim.
9) Which interconnected lock should I use if the opening needs a fire rating?
The Dormakaba Saffire LX-I interconnect lockset carries a 3-hour fire rating and is the option in the set stated for a fire-rated opening. It is an electronic interconnected lockset with RFID and Bluetooth credentials. The Schlage Custom FCT-Series Whitney handleset is a mechanical, non-electronic keyed entrance handleset using a 5 pin Schlage C cylinder, so the two are chosen on different grounds: credential type and fire rating on one side, keyed mechanical entry on the other.
10) Is a Schlage Custom FCT-Series handleset strong enough for an apartment or rental entrance?
It is certified to ANSI/BHMA A156.4 Grade 2 and rated heavy duty, built from zinc and steel. Grade 2 is the normal specification level for residential and light commercial entrances, so it holds up for multi-family front doors. For a true commercial opening in a corridor or classroom you would step to a Grade 2 cylindrical lockset built for that use, such as the Schlage CS210 Series interconnected lockset.
11) Does the Schlage Whitney handleset come in a keypad or electronic version?
No, this one is strictly mechanical, key only with a 5 pin Schlage C cylinder. If you need credential access on the same kind of opening, ZenSupply carries the Dormakaba Saffire LX-I RFID interconnect lockset, which also carries a 3-hour fire rating and Bluetooth, and the Dormakaba InSync RI5100G battery operated interconnected latch and deadbolt with RFID keys and a Gala lever.
12) Will the Schlage Custom handleset latch work with my existing strike plate?
The latch has a round corner faceplate, so it wants a round corner mortise in the door edge, cut for a 1 inch edge bore. If your old latch had a square corner faceplate or a drive-in collar, the edge prep will need adjusting. The strike itself sits at whichever backset you set, 2-3/8 or 2-3/4 inches.
13) Is the Schlage S270 a substitute for the FCT-Series Custom handleset?
No. The Schlage S270 is a Grade 2 cylindrical keyed lever lock with a classroom function, from the S200 Series. The Custom FCT-Series Whitney handleset is an entrance-function interconnected lock with a single cylinder key. Classroom and entrance functions behave differently at the door, so an opening specified for keyed entrance is not served by the S270 even though both are Grade 2 and Heavy Duty.
14) What is the difference between the Schlage Custom FCT-Series handleset and the Dormakaba InSync RI5100G?
The Dormakaba InSync RI5100G-26D is a battery operated interconnected cylindrical latch and deadbolt lock with electronic RFID keys, a Gala lever, right hand only, in satin chrome. The Schlage Custom FCT-Series Whitney handleset is mechanical rather than electronic, is keyed with a single cylinder, is reversible left or right, and comes in Satin Nickel, Matte Black, or Aged Bronze. Handing matters most here: the RI5100G is specified right hand, while the FCT-Series handleset is field reversible.
15) What finishes does the Schlage Custom Whitney handleset with Addison escutcheon come in?
Three: Satin Nickel, Matte Black, and Aged Bronze. If you are matching existing openings across a building, those are the finish families to check the rest of your trim against before you standardize.
16) Do the Dormakaba J300 and QCI200 interconnected locksets work the same way as the Schlage Custom FCT-Series handleset?
The Dormakaba J300 Series and QCI200 Series are both interconnected locksets, so they address the same latch-and-deadbolt-together opening as the Schlage Custom FCT-Series Whitney handleset. What separates them is the exterior: the FCT-Series is a handleset with a Whitney lever and Addison escutcheon, 3/4 inch trim, 8-7/8 inch trim height, 5-3/8 inch trim width, and 5-1/2 inch center to center spacing, prepped for a 2-1/8 inch cross bore and 1 inch edge bore with an adjustable 2-3/8 or 2-3/4 inch backset. Confirm the door prep on the Dormakaba unit against that existing prep before swapping either direction.
