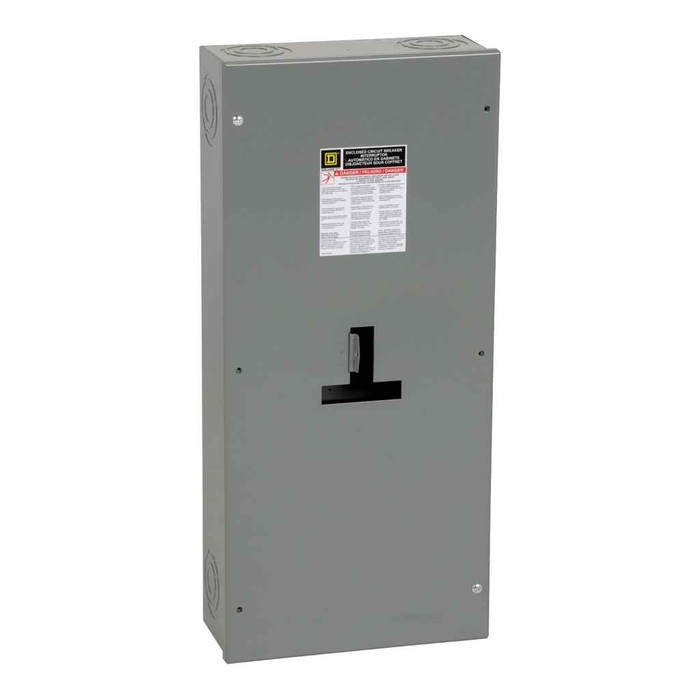

Schneider Circuit breaker enclosure, PowerPacT H/J, 15A to 250A, NEMA 1, surface mount

Schneider Electric PowerPact H/J Circuit Breaker Enclosure 15A-250A NEMA 1 Surface Mount

(No reviews yet) Write a Review

Model: J250S

In Stock (leaves warehouse same day if ordered before 3pm ET)

$352.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric PowerPact H/J Circuit Breaker Enclosure 15A-250A NEMA 1 Surface Mount

Professional NEMA 1 Enclosure for PowerPact H/J Circuit Breakers

Schneider Electric PowerPact H/J Circuit Breaker Enclosure provides reliable protection and mounting for PowerPact H and J series circuit breakers rated 15A to 250A. This NEMA 1 rated surface mount enclosure delivers professional installation flexibility with robust construction measuring 31.36" H x 14.36" W x 6" D. Designed for indoor applications requiring secure circuit breaker housing with easy access for maintenance and operation.

Professional Features & Benefits

  • 15A to 250A Compatibility: Accommodates full range of PowerPact H/J circuit breakers for versatile application coverage
  • NEMA 1 Rating: Provides reliable protection against incidental contact with enclosed equipment in indoor environments
  • Surface Mount Design: Enables flexible installation on walls or panels without requiring recessed mounting preparation
  • Compact Dimensions: 31.36" x 14.36" x 6" profile optimizes space utilization while maintaining full functionality
  • RoHS Compliant Construction: Meets environmental standards with halogen-free plastic components and mercury-free materials
  • Green Premium Status: Certified environmentally responsible product with comprehensive lifecycle carbon footprint documentation

Technical Specifications

  • Carbon Footprint: 122.4722871
  • Carbon Footprint Kg Co2 Eq Total Life Cycle: 122.4722871
  • China Rohs In Scope: No
  • China Rohs Label: 1
  • Country Of Origin: Mexico
  • Distribution Carbon Footprint: 4.680154063
  • End Of Life Carbon Footprint: 23.17141655
  • Environmental Disclosure: ENVPEP1408006EN
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Compliant
  • Field Service Division: PPIBS
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Green Premium Status For Reporting: Green Premium product
  • Halogen Content Performance: Halogen free plastic parts product
  • Halogen Free Status: Halogen free plastic parts product
  • Halogene Performance: Halogen free plastic parts product
  • Installation Carbon Footprint: 2.72E-02
  • Legacy Weee Scope: In
  • Manufacturing Carbon Footprint: 94.59355164
  • Mercury Free: Yes
  • Package Weight Lbs: 16.443 kg
  • Packaging Made With Recycled Cardboard: No
  • Packaging Without Single Use Plastic: No
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 6 in
  • Product Height: 31.36 in
  • Product Width: 14.36 in
  • Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 1906
  • Rohs Eur Full Compliance Status: Compliant
  • Rohs Eur Full Compliance Status Id: COMPLIANT
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant
  • Rohs Exemption Information: Yes
  • Scope Perimeter: Outside of Europe
  • Serviceability: No
  • Sustainable Packaging: No
  • Take Back: No
  • Tier: 3
  • Tier Id: 3
  • Total Lifecycle Carbon Footprint: 122 kg CO2 eq.
  • Toxic Heavy Metal Free: Yes
  • Traceability: No
  • Use Carbon Footprint: 0
  • Wd Status: 1 - GSC certified
  • With Recycled Cardboard: No
  • Without Single Use Plastic: No
  • Department: Electrical

Professional Applications

  • Commercial Building Electrical Distribution
  • Industrial Control Panel Integration
  • Institutional Facility Power Management
  • Multi-Unit Residential Properties
  • Professional Office Buildings
  • Retail and Service Establishments
  • Light Manufacturing Facilities

Why Choose Schneider Electric Quality?

Schneider Electric PowerPact enclosures deliver proven reliability with RoHS compliant construction, halogen-free materials, and comprehensive environmental certification. Green Premium status ensures responsible manufacturing practices while maintaining the durability and performance standards required for professional electrical installations.

Manufacturer Resources

Product Specs

Carbon Footprint:
122.4722871
Carbon Footprint Kg Co2 Eq Total Life Cycle:
122.4722871
China Rohs In Scope:
No
China Rohs Label:
1
Distribution Carbon Footprint:
4.680154063
End Of Life Carbon Footprint:
23.17141655
Environmental Disclosure:
ENVPEP1408006EN
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Compliant
Field Service Division:
PPIBS
Function Option:
Standard
Green Premium Status For Reporting:
Green Premium product
Halogen Content Performance:
Halogen free plastic parts product
Installation Carbon Footprint:
2.72E-02
Legacy Weee Scope:
In
Manufacturing Carbon Footprint:
94.59355164
Mercury Free:
Yes
Package Weight Lbs:
16.443 kg
Packaging Made With Recycled Cardboard:
No
Packaging Without Single Use Plastic:
No
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
6 in
Product Height:
31.36 in
Product Width:
14.36 in
Reach Full Compliance Status:
Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
1906
Rohs Exemption Information:
Yes
Serviceability:
No
Sustainable Packaging:
No
Take Back:
No
Tier:
3
Total Lifecycle Carbon Footprint:
122 kg CO2 eq.
Toxic Heavy Metal Free:
Yes
Traceability:
No
Use Carbon Footprint:
0
Wd Status:
1 - GSC certified
With Recycled Cardboard:
No
Without Single Use Plastic:
No
Department:
Electrical
Product Group:
Enclosures & Wiring Infrastructure

Schneider J250S – Frequently Asked Questions

1) Which circuit breakers fit the Schneider J250S enclosure?
The J250S enclosure is built to house Schneider Electric PowerPact H-frame and J-frame circuit breakers rated 15A through 250A. It is the breaker housing only, so the breaker itself is ordered separately. If your breaker is a different frame (for example an L-frame or a larger 400A+ unit), this box is not the right one.
2) Can the J250S breaker enclosure be installed outdoors or in a washdown area?
No. It carries a NEMA 1 rating, which covers indoor use and protection against incidental contact with the enclosed equipment only. There is no rating here for rain, dust, hose-down, or corrosive atmospheres, so for an exterior wall, a parking structure, or a wet mechanical room you need a NEMA 3R, 4, or 4X enclosure instead.
3) How much wall space do I need for the PowerPact H/J enclosure?
Plan for 31.36 in height, 14.36 in width, and 6 in depth off the wall. The 6 inch depth is the number that usually decides the job: it has to clear door swings, pipe racks, and any required working clearance in front of the panel.
4) Is this a surface mount or flush mount breaker enclosure?
Surface mount. It bolts directly to a wall or panel face with no recessed wall prep, pocket, or trim ring needed. If the spec on your drawing calls for a flush or semi-flush installation with the cover trimmed into finished drywall, this is not the enclosure for that detail.
5) Does this Schneider enclosure meet RoHS and green procurement requirements?
It is RoHS compliant under the EU directive, with halogen free plastic parts, mercury free and toxic heavy metal free construction, and Schneider classifies it as a Green Premium product. Environmental disclosure document ENVPEP1408006EN covers it, and the stated total lifecycle carbon footprint is 122 kg CO2 eq. One caveat for anyone filing REACH paperwork: the reference does contain Substances of Very High Concern above the threshold.
6) Can I use the J250S enclosure as a service disconnect in a small commercial build-out?
It is used as an indoor breaker housing in commercial distribution, industrial control panel work, institutional facilities, multi-unit residential, offices, retail, and light manufacturing. Whether it can serve as your service disconnect depends on the PowerPact breaker you install in it and your local AHJ, since the enclosure itself provides the housing and the breaker provides the interrupting and disconnecting function.
7) Where is the Schneider PowerPact H/J enclosure manufactured?
Mexico. That matters if you are filing country-of-origin documentation on a government or institutional project, or tracking USMCA content.
8) Is this enclosure a standard non-interlocked box, or does it include a special operating option?
It is the Standard function option, meaning a plain breaker housing with external access to operate and service the breaker. There is no key interlock, no fusible switch section, and no special mechanism built into it.
