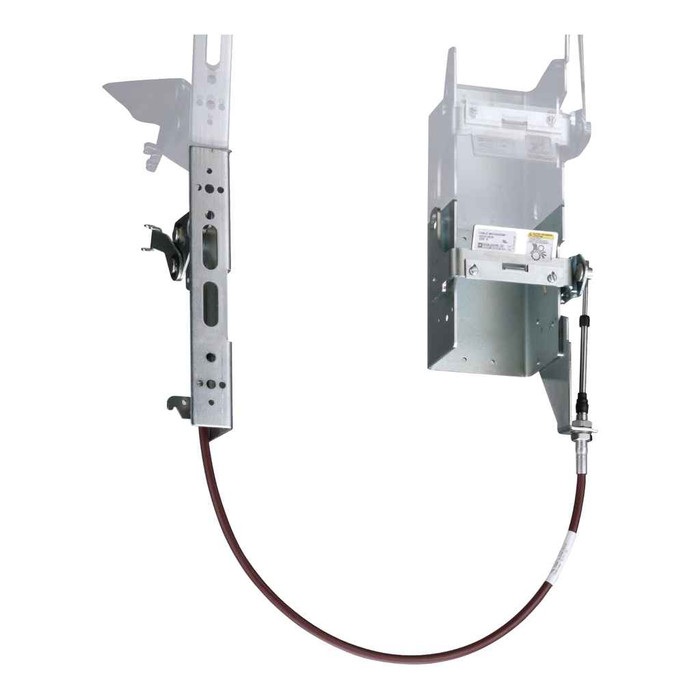

Schneider Disconnect Mechanism, Circuit Breaker, Cable Operated, 125A, 3 Pole, PowerPacT B Breaker

Schneider Electric Cable Operated Disconnect Mechanism for PowerPacT B Circuit Breaker 125A 3-Pole with 36 in Cable

(No reviews yet) Write a Review

Model: 9422CSB30

In Stock (leaves warehouse same day if ordered before 3pm ET)

$496.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric Cable Operated Disconnect Mechanism for PowerPacT B Circuit Breaker 125A 3-Pole with 36 in Cable

Professional Remote Circuit Breaker Operation & Control

Schneider Electric delivers reliable remote circuit breaker control with this cable operated disconnect mechanism designed for PowerPacT B circuit breakers. This single cable operating mechanism provides 125A capacity with 3-pole configuration and includes a 36 inch cable for flexible installation positioning and safe remote operation of circuit breaker functions.

Professional Features & Benefits

  • 125A 3-Pole Capacity: Handles substantial electrical loads with three-pole configuration for comprehensive circuit protection and control.
  • 36 Inch Cable Length: Provides flexible positioning options for safe remote operation away from the electrical panel.
  • PowerPacT B Compatibility: Specifically engineered for seamless integration with PowerPacT B series circuit breakers ensuring reliable mechanical operation.
  • Single Cable Design: Simplified installation with one cable connection reducing complexity and potential failure points.
  • Standard Function Operation: Delivers consistent disconnect mechanism performance for routine circuit breaker control applications.
  • RoHS Compliant Construction: Meets European environmental standards with mercury-free and toxic heavy metal-free materials for safe operation.
  • Quality Manufacturing: Manufactured in Mexico with comprehensive quality control and normally stocked availability for reliable supply.

Technical Specifications

  • Cable Length: 36 in
  • China Rohs In Scope: No
  • China Rohs Label: 1
  • Country Of Origin: Mexico
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Compliant
  • Field Service Division: PPIBS
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Legacy Weee Scope: In
  • Mercury Free: Yes
  • Number Of Cables: 1
  • Package Weight Lbs: 2.436 kg
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: No
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Or Component Type: Single Cable Operating Mechanism
  • Range Of Product: 9422C
  • Reach Free Of Svhc: Yes
  • Reach Free Shvc: Yes
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 1923
  • Rohs Eur Full Compliance Status: Compliant
  • Rohs Eur Full Compliance Status Id: COMPLIANT
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant
  • Rohs Exemption Information: Yes
  • Scope Perimeter: At least in Europe
  • Serviceability: No
  • Sustainable Packaging: No
  • Take Back: No
  • Tier: 1
  • Tier Id: 1
  • Toxic Heavy Metal Free: Yes
  • Traceability: No
  • Wd Status: 1 - GSC certified
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: No
  • Department: Electrical

Professional Applications

  • Industrial Control Panels
  • Commercial Electrical Distribution
  • Manufacturing Facilities
  • Power Distribution Centers
  • Electrical Maintenance Operations
  • Remote Circuit Breaker Control
  • Safety Disconnect Applications

Why Choose Schneider Electric Quality?

Schneider Electric provides dependable electrical control solutions with RoHS compliant construction, mercury-free materials, and comprehensive environmental compliance. This cable operated disconnect mechanism delivers consistent performance with normally stocked availability and returnable design for professional electrical applications requiring reliable remote circuit breaker operation.

Manufacturer Resources

Product Specs

Cable Length:
36 in
China Rohs In Scope:
No
China Rohs Label:
1
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Compliant
Field Service Division:
PPIBS
Function Option:
Standard
Legacy Weee Scope:
In
Mercury Free:
Yes
Number Of Cables:
1
Package Weight Lbs:
2.436 kg
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
No
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Or Component Type:
Single Cable Operating Mechanism
Range Of Product:
9422C
Reach Free Of Svhc:
Yes
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
1923
Rohs Exemption Information:
Yes
Serviceability:
No
Sustainable Packaging:
No
Take Back:
No
Tier:
1
Toxic Heavy Metal Free:
Yes
Traceability:
No
Wd Status:
1 - GSC certified
With Recycled Cardboard:
Yes
Without Single Use Plastic:
No
Department:
Electrical
Product Type:
Single Cable Operating Mechanism
Product Group:
Electrical Mounting Hardware & Accessories

Schneider 9422CSB30 – Frequently Asked Questions

1) Will the Schneider 9422CSB30 cable operating mechanism work on a PowerPacT B circuit breaker?
Yes. The 9422CSB30 is part of Schneider's 9422C range and is built for PowerPacT B frame breakers rated 125A in a 3-pole configuration. It is a mechanical cable operator, so the breaker it mounts to has to be a PowerPacT B of that rating and pole count; it is not a universal operator for other frames.
2) How far from the panel can I mount the operating handle with the 9422CSB30?
The cable supplied is 36 inches long, and there is one cable in the assembly. That 36 inches is the total run between the breaker mechanism and the remote handle position, and cable routing bends eat into it, so plan the handle location inside that distance rather than at the full 36.
3) Is a cable operated disconnect mechanism the right choice, or should I use a direct rotary handle?
A cable operator like the 9422CSB30 is what you use when the handle can't line up with the breaker, for example a breaker mounted deep in an enclosure or off to one side of the door. The 36 inch cable lets the handle sit where the operator stands. If the breaker sits directly behind the intended handle location, a direct-coupled rotary handle is simpler, with no cable to route or pinch.
4) Is the Schneider 9422CSB30 cable operator a field-serviceable part?
No. Serviceability on the 9422CSB30 is listed as no, so treat it as a replace-not-repair assembly. If the cable or mechanism is damaged, the fix is a new unit, not internal parts.
5) Does this Schneider cable operating mechanism meet RoHS and REACH requirements for a spec job?
It is RoHS compliant under the EU directive, mercury-free, free of toxic heavy metals, and free of REACH SVHCs. That covers the environmental boxes most institutional and government submittals ask for on electrical accessories. Country of origin is Mexico.
6) What cable lengths does the 9422CSB cable operating mechanism come in?
One length: 36 inches, ordered as 9422CSB30. If your handle location needs a longer run, you need a different 9422C cable mechanism, not this one.
7) What does the Standard function option mean on the Schneider 9422CSB mechanism?
Standard means a plain ON/OFF/reset disconnect operation, no special variant function. For a maintenance crew that is the usual configuration: turn the breaker off and on from outside the enclosure without opening the door.
