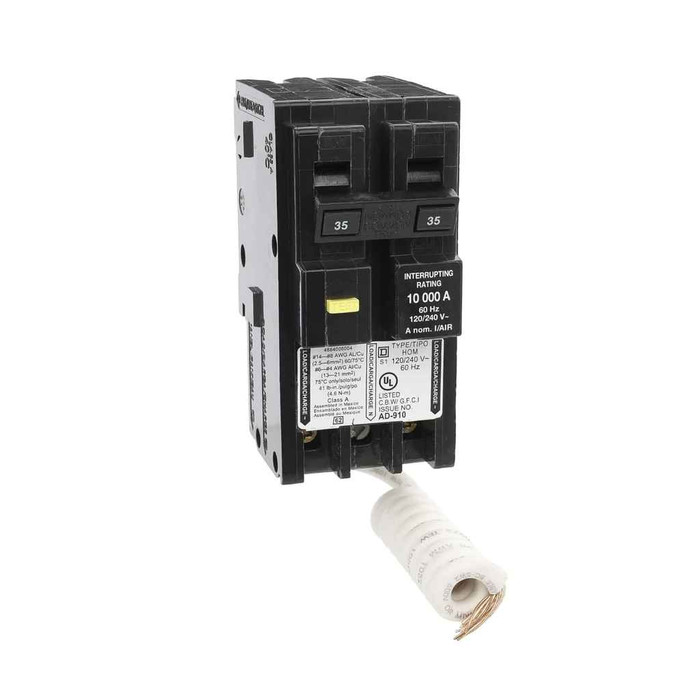

Schneider Electric HOMeline 2-Pole GFCI Circuit Breakers 15-50A HACR Rated Ground-Fault Protection System

Schneider Electric HOMeline 2-Pole GFCI Circuit Breakers 15-50A HACR Rated Ground-Fault Protection System

Professional Ground-Fault Protection for Residential Applications

Schneider Electric HOMeline 2-Pole GFCI Circuit Breakers deliver reliable ground-fault protection with HACR rating for residential electrical systems. These miniature circuit breakers feature plug-in mounting, screw clamp terminals, and UL Listed certification for professional installation. The 2-pole design provides comprehensive protection across 15-50A ratings with 10 kA short circuit current capacity and halogen-free construction.

Professional Features & Benefits

• HACR Rated Design: Certified for heating, air conditioning, and refrigeration applications ensuring reliable motor load protection.
• Ground-Fault Protection: Advanced GFCI functionality provides enhanced safety by detecting ground faults and interrupting power flow.
• 10 kA Short Circuit Current: High interrupting capacity handles electrical faults effectively, protecting downstream equipment and wiring.
• UL Listed Certification: Meets rigorous safety standards for professional electrical installations and code compliance.
• Plug-In Mounting: Convenient installation design allows for quick and secure connection to compatible electrical panels.
• Halogen-Free Construction: Environmentally conscious design reduces harmful emissions during manufacturing and end-of-life disposal.
• 15-Year Average Life Duration: Long service life reduces maintenance costs and provides reliable long-term protection.

Technical Specifications

• Ambient Air Temperature For Operation: 40 °C
• Average Life Duration: 15 year(s)
• China Rohs In Scope: No
• Circuit Breaker Application: HACR rated
• Circularity Profile: ENVEOLI1406034
• Compliance: TAA
• Country Of Origin: Mexico
• Device Type: LV equipment - Low voltage circuit breaker
• Electrical Connection: screw clamp terminals
• End Of Life Doc Ref: ENVEOLI1406034
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP1406034
• Eoli Availability Display: Yes
• Eu Rohs Directive: Compliant with Exemptions
• Field Service Division: PPIBS
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: yes
• H And D Enrichment Class 3: Earth leakage protection devices
• H And D Enrichment Class 4: GFCI
• H And D Enrichment Function: GFCI
• H And D Subrange: RESI
• Halogen Content Performance: Halogen free product
• Halogen Free Status: Halogen free product
• Halogene Performance: Halogen free product
• Legacy Weee Scope: In
• Manufacturer: Schneider Electric
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Mounting Mode: plug-in
• Number Of Spaces Required: 2
• Packaging Without Single Use Plastic: Yes
• Poles Description: 2P
• Product Availability: Stock - Normally stocked in distribution facility
• Product Certifications: UL Listed
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 2.98 in
• Product Height: 3.13 in
• Product Or Component Type: miniature circuit-breaker
• Product Width: 2 in
• Range Of Product: Homeline
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2532
• Rohs Eur Full Compliance Status: Compliant with Exemptions
• Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant with Exemptions
• Rohs Exemption Information: Yes
• Serviceability: No
• Short Circuit Current: 10 kA
• Take Back: No
• Tier: 1
• Tier Id: 1
• Traceability: No
• Use Carbon Footprint: 39.066
• Without Single Use Plastic: Yes
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Electrical Panels
• HVAC System Protection
• Kitchen and Bathroom Circuits
• Outdoor Electrical Installations
• Pool and Spa Equipment
• Garage and Workshop Circuits
• Appliance Branch Circuits

Why Choose Schneider Electric Quality?

Schneider Electric HOMeline circuit breakers deliver proven reliability with UL Listed certification and 15-year average life duration. The halogen-free construction and Green Premium product status demonstrate environmental responsibility, while TAA compliance ensures quality manufacturing standards for professional electrical installations.
