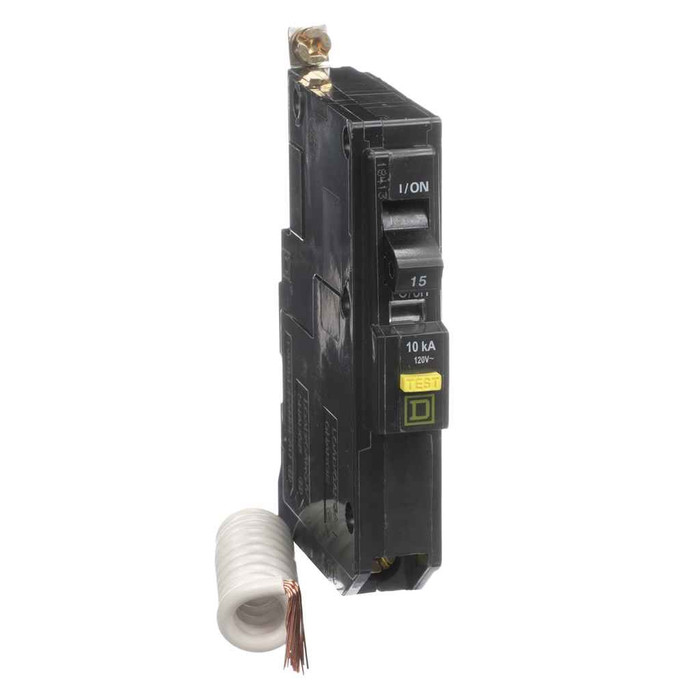

Schneider Mini Circuit Breaker, QO, 1 Pole, 120VAC, 10kA, Bolt On, 6mA grd Fault A, Pigtail [TAA]

Schneider Electric QO 1-Pole GFCI Circuit Breaker 120VAC 10kA with 6mA Ground Fault Protection

(No reviews yet) Write a Review

Model: QOB120GFI

In Stock (leaves warehouse same day if ordered before 3pm ET)

$330.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric QO 1-Pole GFCI Circuit Breaker 120VAC 10kA with 6mA Ground Fault Protection

Professional Ground Fault Circuit Interrupter Protection for Commercial Applications

The Schneider Electric QO 1-Pole GFCI Circuit Breaker delivers reliable ground fault protection with 6mA sensitivity for 120VAC systems. This miniature circuit breaker features 10kA interrupting capacity and bolt-on mounting for secure installation in commercial electrical panels. Built with pressure plate electrical connections and compact 0.75-inch width design, this GFCI breaker provides essential safety protection while occupying minimal panel space.

Professional Features & Benefits

  • 6mA Ground Fault Sensitivity: Provides enhanced protection against electrical shock hazards and ground fault conditions in sensitive commercial environments.
  • 10kA Interrupting Capacity: Delivers robust fault current interruption capability for reliable circuit protection in demanding electrical systems.
  • 120VAC Single Pole Design: Optimized for standard residential and light commercial voltage applications with efficient space utilization.
  • Bolt-On Mounting: Ensures secure mechanical connection to electrical panels with superior vibration resistance and long-term reliability.
  • Pressure Plate Connections: Provides reliable electrical connections with consistent contact pressure for optimal performance and reduced maintenance.
  • QO Series Compatibility: Integrates seamlessly with existing QO electrical panels and load centers for system consistency.
  • TAA Compliance: Meets Trade Agreements Act requirements for government and institutional procurement applications.

Technical Specifications

  • Ambient Air Temperature For Operation: 40 °C
  • Average Life Duration: 15 year(s)
  • China Rohs In Scope: No
  • Circuit Breaker Application: not rated
  • Circularity Profile: ENVEOLI2212005
  • Compliance: TAA
  • Country Of Origin: Mexico
  • Device Type: LV equipment - Low voltage circuit breaker
  • Electrical Connection: pressure plate
  • End Of Life Doc Ref: ENVEOLI2212005
  • Energy Efficiency Optimized: FALSE
  • Environmental Disclosure: ENVPEP2212005
  • Eoli Availability Display: Yes
  • Eu Rohs Directive: Compliant with Exemptions
  • Field Service Division: PPIBS
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Green Premium Status For Reporting: Green Premium product
  • H And D Domain: Safety
  • H And D Enrichment Assignment: yes
  • H And D Enrichment Class 3: Earth leakage protection devices
  • H And D Enrichment Class 4: GFCI
  • H And D Enrichment Function: GFCI
  • H And D Subrange: COM
  • Legacy Weee Scope: In
  • Manufacturer: Schneider Electric
  • Market Segmentation: Commercial
  • Market Segmentation Id: COMMERCIAL
  • Mercury Free: Yes
  • Mounting Mode: bolt-on
  • Number Of Spaces Required: 1
  • Packaging Without Single Use Plastic: Yes
  • Poles Description: 1P
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 2.91 in
  • Product Height: 4.13 in
  • Product Or Component Type: miniature circuit-breaker
  • Product Width: 0.75 in
  • Range Of Product: QO
  • Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 2532
  • Rohs Eur Full Compliance Status: Compliant with Exemptions
  • Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant with Exemptions
  • Rohs Exemption Information: Yes
  • Serviceability: No
  • Take Back: No
  • Tier: 1
  • Tier Id: 1
  • Total Lifecycle Carbon Footprint: 39 kg CO2 eq.
  • Traceability: No
  • Use Carbon Footprint: 37.375
  • Without Single Use Plastic: Yes
  • Department: Electrical

Professional Applications

  • Commercial Electrical Systems
  • Office Buildings and Professional Facilities
  • Retail and Service Establishments
  • Light Industrial Applications
  • Institutional and Government Buildings
  • Multi-Unit Residential Properties
  • Healthcare and Educational Facilities

Why Choose Schneider Electric Quality?

Schneider Electric QO series circuit breakers deliver proven reliability with 15-year average life duration and TAA compliance for demanding commercial applications. The Green Premium product status and mercury-free construction demonstrate environmental responsibility, while the bolt-on mounting and pressure plate connections ensure long-term performance in critical electrical protection systems.

Manufacturer Resources

Product Specs

Ambient Air Temperature For Operation:
40 °C
Average Life Duration:
15 year(s)
China Rohs In Scope:
No
Circuit Breaker Application:
not rated
Circularity Profile:
ENVEOLI2212005
Compliance:
TAA
Device Type:
LV equipment - Low voltage circuit breaker
Electrical Connection:
pressure plate
End Of Life Doc Ref:
ENVEOLI2212005
Energy Efficiency Optimized:
FALSE
Environmental Disclosure:
ENVPEP2212005
Eoli Availability Display:
Yes
Eu Rohs Directive:
Compliant with Exemptions
Field Service Division:
PPIBS
Function Option:
Standard
Green Premium Status For Reporting:
Green Premium product
H And D Domain:
Safety
H And D Enrichment Assignment:
yes
H And D Enrichment Class 3:
Earth leakage protection devices
H And D Enrichment Class 4:
GFCI
H And D Enrichment Function:
GFCI
Legacy Weee Scope:
In
Market Segmentation:
Commercial
Mercury Free:
Yes
Mounting Mode:
bolt-on
Number Of Spaces Required:
1
Packaging Without Single Use Plastic:
Yes
Poles Description:
1P
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
2.91 in
Product Height:
4.13 in
Product Or Component Type:
miniature circuit-breaker
Product Width:
0.75 in
Range Of Product:
QO
Reach Full Compliance Status:
Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
2532
Rohs Exemption Information:
Yes
Serviceability:
No
Take Back:
No
Tier:
1
Total Lifecycle Carbon Footprint:
39 kg CO2 eq.
Traceability:
No
Use Carbon Footprint:
37.375
Without Single Use Plastic:
Yes
Department:
Electrical
Product Type:
Miniature Circuit-Breaker
Product Group:
Circuit Breakers

Schneider QOB120GFI – Frequently Asked Questions

1) Will a Schneider QOB GFCI breaker fit a plug-on QO load center, or do I need a bolt-on panel?
The QOB1xxGFI breakers are bolt-on, not plug-on. They mount with a screw to the bus in panelboards prepped for QOB bolt-on breakers. If your QO load center takes plug-on breakers, this one will not seat in it, and you want the plug-on QO GFCI version instead. Each breaker takes one pole space and is 0.75 in wide.
2) Is this a people-protection GFCI or an equipment-protection ground fault breaker?
6mA sensing, which is Class A personnel protection, the same trip threshold used for receptacle GFCIs. That is the level required where the NEC calls for GFCI protection of personnel, as opposed to 30mA equipment ground-fault protection used on heat tracing and similar loads.
3) Does this GFCI breaker need a neutral pigtail connection in the panel?
Yes. It is a pigtail-style GFCI breaker: the white lead lands on the panel neutral bar, and the circuit's own neutral terminates on the breaker, not the neutral bar. Keeping the load neutral off the bar is what lets the breaker sense imbalance. The line and load conductors use pressure plate terminals.
4) Is 10kA interrupting capacity enough for my commercial panel?
The QOB GFCI breaker is rated 10kA at 120VAC. That covers most lighting and receptacle panelboards fed well downstream of the service. If your available fault current at the panel exceeds 10kA per your short circuit study, you need a higher AIC breaker or series-rated combination, not this one.
5) Is the Schneider QO GFCI breaker TAA compliant for a federal or government job?
Yes, it carries TAA compliance, which is what a government, military or publicly funded procurement spec usually requires. Country of origin is Mexico, a TAA designated country.
6) Can I use a 120V 1-pole GFCI breaker on a 240V circuit like a water heater or spa?
No. This is a single pole device rated 120VAC only, and it occupies one space. A 240V load, or a 120/240V load such as a spa panel or electric water heater, needs a 2-pole GFCI breaker. The 30 A version here is for single-pole 120V loads only.
7) What amperages does the Schneider QO 1-pole GFCI bolt-on breaker come in?
Three ratings: 15 A (QOB115GFI), 20 A (QOB120GFI) and 30 A (QOB130GFI). All three are single pole, 120VAC, 10kA, with 6mA ground fault sensing. Pick the amperage to match the branch circuit conductor you are protecting, 15 A and 20 A for general receptacle and lighting circuits, 30 A for larger single-pole loads.
8) Will this breaker fit the gutter space in my panel? What are its dimensions?
It measures 4.13 in height, 2.91 in depth and 0.75 in width, occupying a single pole space. The 2.91 in depth is the figure to check against your enclosure if you are retrofitting GFCI breakers into a tight flush-mount panel with existing wire fill.
9) Do I need anything else to install this, or is the breaker all there is?
The GFCI breaker itself is complete, with its neutral pigtail and pressure plate terminals. What it does not include is the panel-side hardware some retrofits need: a bolt-on mounting location that is actually free on the bus, and, where the existing circuit shares a neutral, a rework so the load neutral can come off the bar and land on the breaker. Shared neutrals between two circuits will trip a GFCI breaker and have to be separated first.
10) Can I use this breaker in an unconditioned space or a hot mechanical room?
Operating ambient air temperature is rated to 40 degrees C (104 F). Panels in attics, rooftop closets or boiler rooms can run above that, and sustained higher ambient means the breaker is operating outside its rated condition, so plan on derating or relocating the panel.
11) Can a tripped QO GFCI breaker be repaired or rebuilt?
No. It is non-serviceable, so a breaker that has failed or will not reset gets replaced as a unit rather than repaired. Match the replacement by amperage: QOB115GFI, QOB120GFI or QOB130GFI.
12) Does this Schneider breaker meet green building or environmental reporting requirements?
It is classified a Green Premium product, mercury free, ships without single use plastic, and has a published environmental disclosure (ENVPEP2212005) plus an end of life document (ENVEOLI2212005) for LEED or ESG documentation. Total lifecycle carbon footprint is listed at 39 kg CO2 eq. Note that it is EU RoHS compliant with exemptions and the reference contains Substances of Very High Concern above the REACH threshold, which matters if your spec screens for SVHC.
