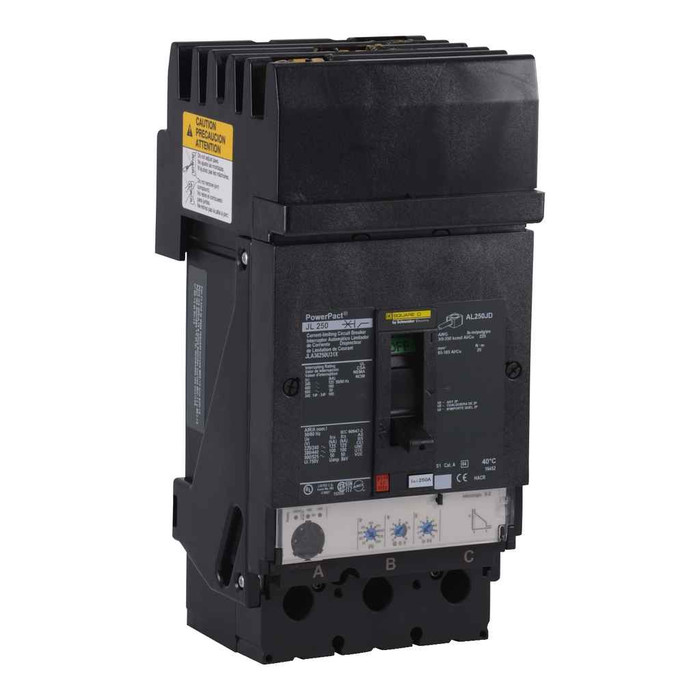

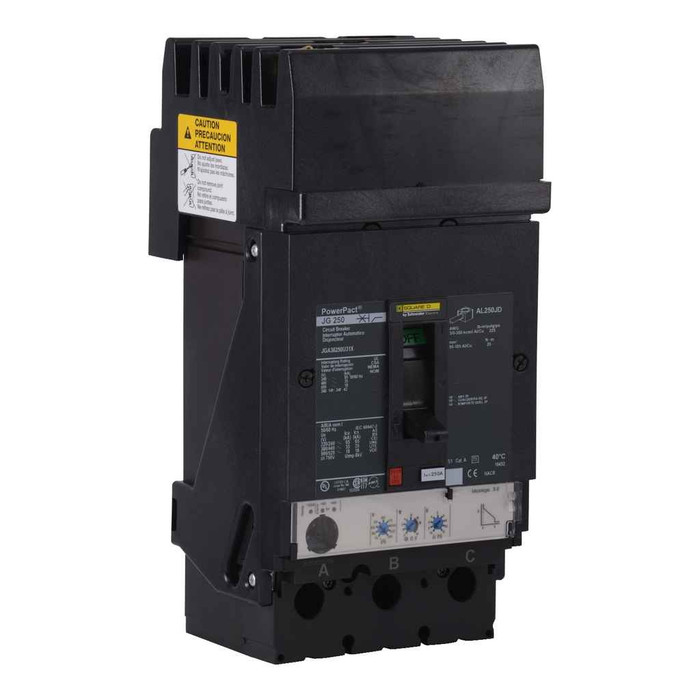

Schneider Molded Case Circuit Breakers — U31X Interrupting Rating, 3-Pole (60A–250A)

Schneider PowerPact Molded Case Circuit Breaker 3-Pole 60A-250A with MicroLogic 3.2 Trip Unit

(No reviews yet) Write a Review

Model: HGA36150U31X

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,272.51
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider PowerPact Molded Case Circuit Breaker 3-Pole 60A-250A with MicroLogic 3.2 Trip Unit

Professional HACR-Rated Power Distribution & Protection

The Schneider PowerPact molded case circuit breaker delivers reliable 3-pole power distribution and protection for 60A-250A applications. Featuring the advanced MicroLogic 3.2 trip unit with toggle control and HACR rating, this black-finished unit provides professional-grade circuit protection with bracket mounting support and category A utilization rating for versatile electrical distribution systems.

Professional Features & Benefits

  • HACR Rating: Certified for heating, air conditioning, and refrigeration applications, ensuring reliable protection for HVAC systems and motor loads.
  • MicroLogic 3.2 Trip Unit: Advanced electronic trip technology provides precise overcurrent protection and enhanced system reliability.
  • 3-Pole Configuration: Complete three-phase power distribution with ABC phase connection for balanced electrical systems.
  • 60A-250A Range: Versatile amperage capacity accommodates diverse commercial and industrial power distribution requirements.
  • Long Time Pick Up Adjustment: 0.25...1 x In adjustment range allows customized protection settings for specific load characteristics.
  • Wide Operating Temperature: -25-70 °C ambient air temperature range ensures reliable operation in challenging environmental conditions.
  • 15-Year Average Life Duration: Extended service life reduces maintenance costs and provides long-term system reliability.

Technical Specifications

  • Accessories: VTRIPHJ
  • Ambient Air Temperature For Operation: -25-70 °C
  • Ambient Air Temperature For Storage: -50-85 °C
  • Average Life Duration: 15 year(s)
  • China Rohs In Scope: Yes
  • China Rohs Label: 7
  • Circuit Breaker Application: HACR rated
  • Continuous Current Rating: 80%
  • Control Type: toggle
  • Device Application: distribution
  • Device Type: LV equipment - Low voltage circuit breaker
  • Eoli Availability Display: Yes
  • Eu Rohs Directive: Compliant with Exemptions
  • Field Service Division: PPIBS
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Green Premium Status For Reporting: Green Premium product
  • Legacy Weee Scope: In
  • Long Time Pick Up Adjustment Range: 0.25...1 x In
  • Mercury Free: Yes
  • Mounting Support: bracket
  • Network Frequency: 50/60 Hz
  • Packaging Made With Recycled Cardboard: Yes
  • Phase Connection: ABC
  • Poles Description: 3P
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Color: Black
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 3.39 in
  • Product Width: 4.09 in
  • Protected Poles Description: 3t
  • Quality Labels: CE
  • Quantity Per Set: 1
  • Range: PowerPact
  • Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Removable Battery: NO
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 2539
  • Rohs Eur Full Compliance Status: Compliant with Exemptions
  • Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant with Exemptions
  • Rohs Exemption Information: Yes
  • Scope Perimeter: Outside of Europe
  • Serviceability: Yes
  • Sustainable Packaging: No
  • Take Back: No
  • Tier: 1
  • Tier Id: 1
  • Traceability: Yes
  • Trip Unit Name: MicroLogic 3.2
  • Utilisation Category: category A
  • Wd Status: 5 - INITIALIZED WITH DataSCAN OK (Migration)
  • With Recycled Cardboard: Yes
  • Department: Electrical

Professional Applications

  • Commercial Building Power Distribution
  • Industrial Facility Protection
  • HVAC System Circuit Protection
  • Motor Control Centers
  • Electrical Panel Boards
  • Manufacturing Equipment Protection
  • Data Center Power Distribution

Why Choose Schneider Quality?

Schneider PowerPact circuit breakers deliver proven reliability with 15-year average life duration, CE quality certification, and mercury-free construction. The Green Premium product status and bracket mounting support ensure professional installation and long-term performance in demanding electrical distribution applications.

Manufacturer Resources

Product Specs

Accessories:
VTRIPHJ
Ambient Air Temperature For Operation:
-25-70 °C
Ambient Air Temperature For Storage:
-50-85 °C
Average Life Duration:
15 year(s)
China Rohs In Scope:
Yes
China Rohs Label:
7
Circuit Breaker Application:
HACR rated
Continuous Current Rating:
80%
Control Type:
toggle
Device Application:
distribution
Device Type:
LV equipment - Low voltage circuit breaker
Eoli Availability Display:
Yes
Eu Rohs Directive:
Compliant with Exemptions
Field Service Division:
PPIBS
Function Option:
Standard
Green Premium Status For Reporting:
Green Premium product
Legacy Weee Scope:
In
Long Time Pick Up Adjustment Range:
0.25...1 x In
Mercury Free:
Yes
Mounting Support:
bracket
Network Frequency:
50/60 Hz
Packaging Made With Recycled Cardboard:
Yes
Phase Connection:
ABC
Poles Description:
3P
Product Availability:
Stock - Normally stocked in distribution facility
Product Color:
Black
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
3.39 in
Product Width:
4.09 in
Protected Poles Description:
3t
Quality Labels:
CE
Quantity Per Set:
1
Range:
PowerPact
Reach Full Compliance Status:
Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Removable Battery:
NO
Rohs Eur Conformity Date:
2539
Rohs Exemption Information:
Yes
Serviceability:
Yes
Sustainable Packaging:
No
Take Back:
No
Tier:
1
Traceability:
Yes
Trip Unit Name:
MicroLogic 3.2
Utilisation Category:
category A
Wd Status:
5 - INITIALIZED WITH DataSCAN OK (Migration)
With Recycled Cardboard:
Yes
Department:
Electrical
Product Group:
Circuit Protection
Product Subgroup:
Circuit Breakers
Product Type:
Circuit Breaker

Schneider HGA36150U31X – Frequently Asked Questions

1) What amp ratings and interrupting ratings does the Schneider PowerPact 3-pole breaker with MicroLogic 3.2 come in?
Three orderable combinations of the PowerPact U31X 3-pole breaker: H-frame 150 A sensor with G interrupting rating (HGA36150U31X), J-frame 250 A sensor with G interrupting rating (JGA36250U31X), and 250 A sensor with J interrupting rating (JJA36250U31X). The MicroLogic 3.2 electronic trip unit is adjustable from 0.25 to 1 x In on long time pick up, so a 250 A sensor can be set down to roughly 63 A and a 150 A sensor down to about 38 A. That adjustment is why the family covers a 60 A to 250 A window rather than requiring one breaker per amp rating.
2) Is this Schneider PowerPact breaker approved for HVAC and refrigeration circuits?
Yes, it is HACR rated, which is the marking an inspector looks for when a molded case breaker protects heating, air conditioning or refrigeration equipment with motor loads. It is a distribution-application breaker with a category A utilisation rating, meaning no intentional short-time delay for selective coordination downstream.
3) How is the PowerPact U31X breaker mounted, and does it come with the trip unit?
Mounting support is bracket type, so it bolts into the enclosure or panelboard interior on brackets rather than plugging onto a bus stab. Each order is a single breaker (quantity per set of 1) supplied with the MicroLogic 3.2 trip unit and a toggle handle for manual on/off. Lugs, terminal shields, rotary handles and any accessory kits are separate items.
4) Should I pick the G or the J interrupting rating version of this PowerPact 250A breaker?
That choice is driven by the available fault current at the point of installation, not by the load. JGA36250U31X carries the G interrupting rating and JJA36250U31X the J rating, which is the higher-interrupting option in the PowerPact scheme. Pull the AIC value from the electrical engineer's short circuit study for that panel and order the rating that meets or exceeds it. Both are the same 250 A sensor with the same MicroLogic 3.2 trip unit, so protection settings and accessory selection do not change between them.
5) Will the PowerPact 3-pole breaker work on a 50 Hz system as well as 60 Hz?
It is rated for 50/60 Hz, so the same breaker serves North American 60 Hz distribution and 50 Hz systems. The three poles are ABC phase connected with all three poles protected, which makes it a standard three-phase feeder or branch device.
6) Can this breaker be installed in an unconditioned mechanical room or rooftop enclosure?
Operating ambient range is -25 to 70 degrees C, which covers unheated mechanical spaces, parking structures and most rooftop enclosures. Storage range is wider, -50 to 85 degrees C, so a unit held in an unheated warehouse over winter is fine. Note that the 80 percent continuous rating still applies, and high ambient is where that margin matters most.
7) What are the case dimensions of the Schneider PowerPact 3-pole breaker for panel layout?
The breaker measures 4.09 in width by 3.39 in depth. Use the width when laying out pole spacing in a panelboard interior and the depth when checking clearance to the enclosure cover or door-mounted equipment. Height is not part of the figures given here, so verify the gutter space above and below against the enclosure drawing.
8) Which trip accessory works with the PowerPact MicroLogic 3.2 breaker?
VTRIPHJ is the listed accessory for this breaker. The HJ in that designation lines up with the H-frame and J-frame breakers covered here (HGA36150U31X, JGA36250U31X, JJA36250U31X), which is why one accessory reference serves all three amp and interrupting rating combinations.
9) Does the Schneider PowerPact U31X breaker meet RoHS and REACH for a government or institutional spec?
It carries the CE quality label, is Compliant with Exemptions under the EU RoHS directive, is mercury free, and is in scope for China RoHS with label 7. For REACH, the reference contains Substances of Very High Concern above the threshold, which matters if your submittal package requires an SVHC declaration. Schneider also classes it as a Green Premium product with recycled cardboard packaging.
10) Is this PowerPact breaker serviceable, or is it a sealed replace-only unit?
It is flagged serviceable and traceable, with a 15 year average life duration, so it can be supported in the field rather than scrapped on the first fault. For a facilities group standardizing a building, that combination plus the adjustable MicroLogic 3.2 trip unit means one stocked breaker can cover several feeder sizes instead of holding a shelf of fixed-thermal units.
