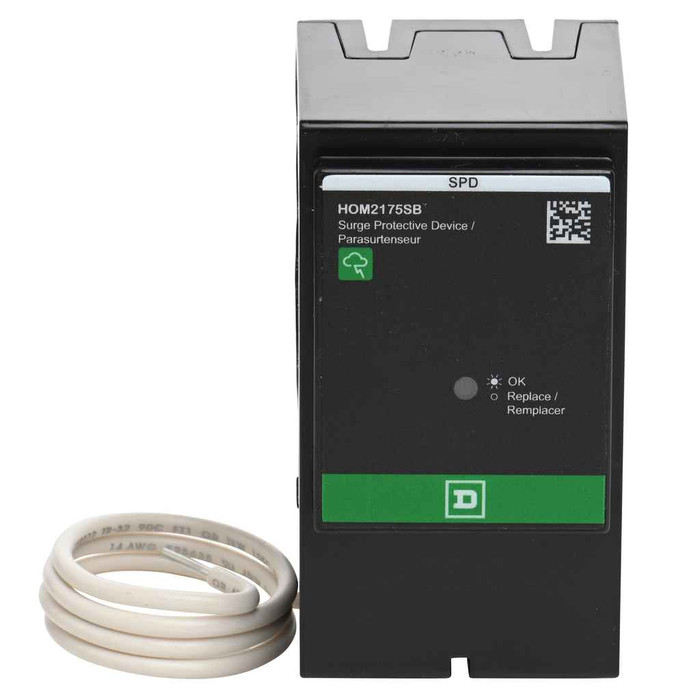

Schneider Electric Homeline Surge Protection Device 25kA 120/240VAC 1-Phase NEMA 1

Schneider Electric Homeline Surge Protection Device 25kA 120/240VAC 1-Phase NEMA 1

Professional surge protection for residential electrical systems

The Schneider Electric Homeline Surge Protection Device delivers reliable protection against electrical surges with 25kA surge current capacity for 120/240VAC single-phase applications. This NEMA 1 rated device provides essential protection for residential electrical systems with 3-wire configuration and 10kA line rated current capability.

Professional Features & Benefits

• 25kA Surge Current Capacity: Provides robust protection against high-energy electrical surges to safeguard connected equipment and systems.
• 120/240VAC Single-Phase Operation: Designed specifically for standard residential voltage applications with reliable performance.
• NEMA 1 Enclosure Rating: Offers appropriate protection for indoor installations in dry locations with general purpose housing.
• 10kA Line Rated Current: Handles normal operating currents while maintaining surge protection functionality.
• 3-Wire Configuration: Compatible with standard residential wiring systems for straightforward installation.
• Homeline Series Integration: Designed to work seamlessly with Schneider Electric Homeline electrical distribution products.
• Compact Design: Measures 2.6" depth x 3.7" height x 2" width for space-efficient installation in electrical panels.

Technical Specifications

• Ambient Air Temperature For Operation: 65-65 °C
• Carbon Footprint: 251.0062856
• Carbon Footprint Kg Co2 Eq Total Life Cycle: 251.0062856
• China Rohs In Scope: No
• Circularity Profile: ENVEOLI2002007EN
• Country Of Origin: Mexico
• Device Type: Surge Protection and Power Conditioning - Surge Protection Devices
• Distribution Carbon Footprint: 0.047404369
• End Of Life Carbon Footprint: 0.139170669
• End Of Life Doc Ref: ENVEOLI2002007EN
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2002007EN
• Eoli Availability Display: Yes
• Eu Rohs Directive: Compliant with Exemptions
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: yes
• H And D Enrichment Class 3: Surge protection devices
• H And D Enrichment Class 4: SPD Type 1
• H And D Enrichment Function: SPD
• H And D Subrange: SPD NEMA
• Html Descr: LO CEN HOM SEC SUR ARRES
• Installation Carbon Footprint: 0.003594683
• Legacy Weee Scope: In
• Line Rated Current: 10 kA
• Manufacturer: Schneider Electric
• Manufacturing Carbon Footprint: 3.346115919
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Nema Degree Of Protection: NEMA 1
• Package Weight Lbs: 172.365 g
• Packaging Made With Recycled Cardboard: No
• Packaging Without Single Use Plastic: Yes
• Phase: 1 phase
• Product Availability: Stock - Normally stocked in distribution facility
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 2.6 in
• Product Height: 3.7 in
• Product Or Component Type: surge protection device
• Product Width: 2 in
• Range Of Product: Homeline
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2531
• Rohs Eur Full Compliance Status: Compliant with Exemptions
• Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant with Exemptions
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Serviceability: No
• Short Circuit Protection: 25 kA
• Surge Current: 25 kA
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Total Lifecycle Carbon Footprint: 251 kg CO2 eq.
• Traceability: No
• Use Carbon Footprint: 247.47
• Wd Status: 1 - GSC certified
• Wiring Configuration: 3-wire
• With Recycled Cardboard: No
• Without Single Use Plastic: Yes
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical panel protection
• Single-family home surge protection
• Multi-unit residential properties
• Small commercial facilities
• Professional offices
• Retail establishments
• Light industrial applications

Why Choose Schneider Electric Quality?

Schneider Electric delivers proven reliability with NEMA 1 rated construction and mercury-free design. This Green Premium product meets EU RoHS compliance standards and provides dependable surge protection performance for residential electrical systems with the trusted quality of the Homeline series.
