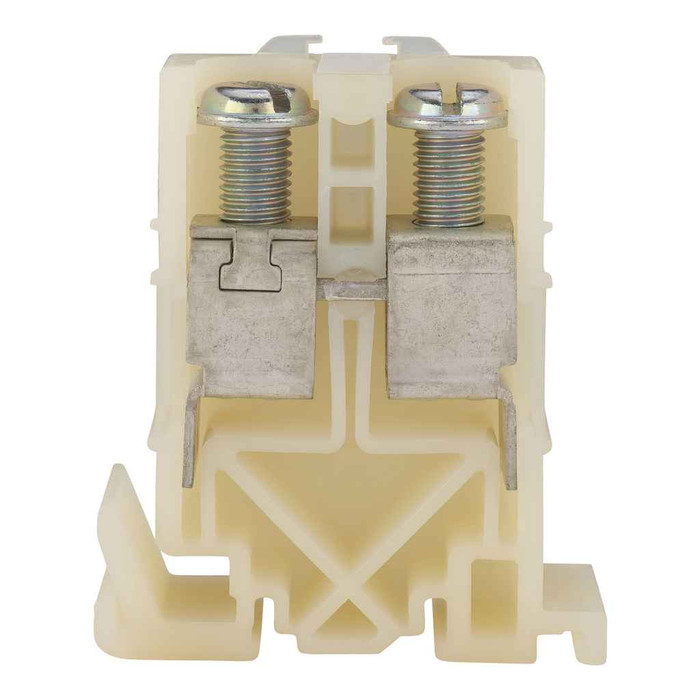

Schneider Electric Linergy Terminal Block Box Connector 180A 600V Natural - Set of 10

Schneider Electric Linergy Terminal Block Box Connector 180A 600V Natural - Set of 10

Professional electrical connection solution for high-current applications

The Schneider Electric Linergy Terminal Block delivers reliable electrical connections with 180A current capacity and 600V rating in a natural colored housing. This professional-grade box connector from the 9080G product range provides secure termination for high-current electrical systems with compact dimensions and durable construction suitable for demanding electrical applications.

Professional Features & Benefits

• 180A Current Rating: Handles high-current applications with reliable performance and safety margins for demanding electrical systems.
• 600V Voltage Rating: Supports medium voltage applications with proper insulation and electrical clearance for professional installations.
• Compact Design: Measures 2.12" W x 2.71" H x 0.7" D for space-efficient installation in electrical panels and enclosures.
• Natural Color Housing: Provides clear visual identification and professional appearance in electrical installations.
• Set of 10 Quantity: Convenient packaging for multiple connection points and project requirements.
• Wide Operating Range: Functions reliably in ambient temperatures from -40°F to 257°F for diverse environmental conditions.
• RoHS Compliant: Meets environmental standards for safe installation and disposal in professional electrical systems.

Technical Specifications

• Ambient Air Temperature For Operation: -40-257 °F
• China Rohs In Scope: No
• China Rohs Label: 1
• Country Of Origin: Mexico
• Eu Rohs Directive: Compliant
• Function Option: Standard
• Function Option Id: STANDARD
• Legacy Weee Scope: In
• Localisation On Device: standard
• Mercury Free: Yes
• Package Weight Lbs: 685.378 g
• Packaging Made With Recycled Cardboard: Yes
• Packaging Without Single Use Plastic: No
• Product Availability: Stock - Normally stocked in distribution facility
• Product Color: natural
• Product Compatibility: GD6B
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 0.7 in
• Product Height: 2.71 in
• Product Or Component Type: terminal block
• Product Width: 2.12 in
• Quantity Per Set: set of 10
• Range Of Product: 9080G
• Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• Reach Free Shvc: Yes
• Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 1918
• Rohs Eur Full Compliance Status: Compliant
• Rohs Eur Full Compliance Status Id: COMPLIANT
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant
• Rohs Exemption Information: Yes
• Scope Perimeter: At least in Europe
• Sustainable Packaging: No
• Take Back: No
• Tier: 2
• Tier Id: 2
• Toxic Heavy Metal Free: Yes
• Wd Status: 1 - GSC certified
• With Recycled Cardboard: Yes
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Control Panels
• Commercial Electrical Distribution
• Manufacturing Equipment Connections
• Power Distribution Systems
• Electrical Enclosures
• High-Current Junction Applications
• Professional Electrical Installations

Why Choose Schneider Electric Quality?

Schneider Electric Linergy terminal blocks provide dependable electrical connections with RoHS compliance and mercury-free construction. The wide operating temperature range and compact design ensure reliable performance in professional electrical applications with proper environmental standards compliance.
