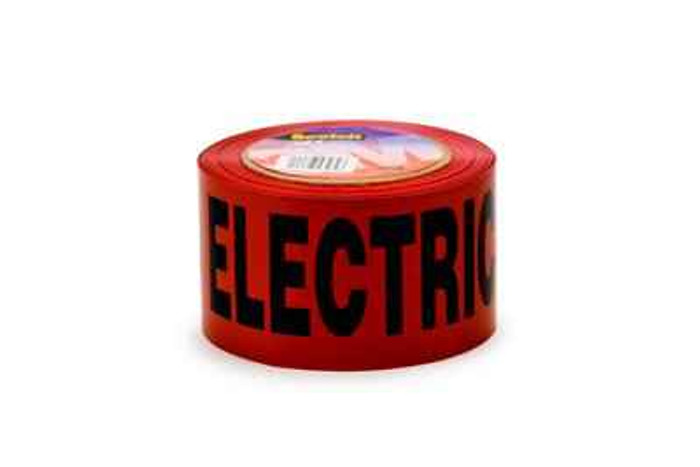

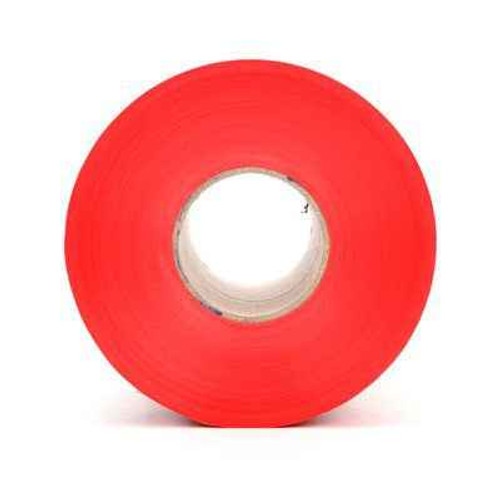

3M 80611217714 Scotch Buried Barricade Tape 302, CAUTION BURIED ELECTRIC LINE, 3 in x 1000 ft, Red, 8 rolls/case, BULK

3M 80611217714 Scotch Buried Barricade Tape 302, CAUTION BURIED ELECTRIC LINE, 3 in x 1000 ft, Red, 8 rolls/case, BULK

(No reviews yet) Write a Review

Model: 80611217714
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$105.10
$63.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Scotch Buried Barricade Tape 302, CAUTION BURIED ELECTRIC LINE, 3 in x 1000 ft, Red, 8 rolls/case, BULK

  • Overview

    • 8 rolls/case, BULK
    • Printed with "CAUTION BURIED ELECTRIC LINE BELOW" message
    • Scotch® Buried Barricade Tape 302 features durable polyethylene film backing that prevents accidental tearing. This effective and economical tape is printed with 2-in, bold characters on a bright background. It is designed to signify restricted access to hazardous areas. RoHS 2011/65/EU Compliant.
    • Scotch® Buried Barricade Tape 302 is a 4-mil thick, polyethylene film backing, buried barricade tape that is printed with a warning message. When buried 4 to 6 inches below the surface, it provides an early warning when digging before reaching a depth that could cause damage or injury to a line or worker.
    • Withstands temperatures of 0 to 120 degrees F (0 to 49 degrees C)
    • Comes in red color
    • Tape measures 3 in x 1000 ft x 4 mil


80611217714 - spec sheet

Product Specs

3m Id:
80611217714
Application:
Buried
Backing Material:
Polyethylene Film
Cable Tie Length:
193 mm
Case Quantity:
8 Rolls
Elongation At Break:
MD 400% / TD 500%
Family:
Scotch® Buried Barricade Tape 300 Series
Flammability Rating:
UL 94 V-2
Length Metric:
304.8 m
Maximum Bundle Diameter:
2 Inch
Maximum Bundle Diameter Metric:
51 mm
Maximum Operating Temperature Celsius:
85 Degree Celsius
Maximum Operating Temperature Fahrenheit:
185 Degree Fahrenheit
Product Brand:
Scotch
Product Color:
Red
Product Length:
1000 Linear Foot
Product Markets:
Electrical Construction, Electrical MRO, Power Distribution
Product Material:
Polyethylene Film
Product Type:
Barricade Tape
Product Width:
3 Inch
Rohs 2011 65 Eu Compliant:
RoHS 2011/65/EU Compliant, Yes
Rohs Eu Comments:
RoHS 2011/65/EU compliant without exemption
Rolls Per Case:
8
Tape Type:
Standard
Tensile Strength:
50 lb, MD 4,400 psi / TD 3,900 psi
Tensile Strength Metric:
23 kg
Text On Tape:
CAUTION BURIED ELECTRIC LINE BELOW
Thickness:
4 mil
Thickness Metric:
0.1 mm
Trademark:
Scotch®
Width Metric:
76.2 mm
Department:
Electrical
Product Group:
Safety & PPE
Product Subgroup:
PPE & Safety

3M 80611217714 – Frequently Asked Questions

1) How deep should buried electric line warning tape be installed above the conduit?
Scotch Buried Barricade Tape 302 is meant to lie 4 to 6 inches below the surface, directly over the run. At that depth a backhoe or shovel hits the red film before it reaches the cable, giving the crew warning while there is still cover left over the line.
2) What exactly is printed on the 3M 302 red buried tape?
It reads CAUTION BURIED ELECTRIC LINE BELOW, printed in 2 inch bold characters on a red background so it is legible from the edge of an open trench.
3) Is red buried tape the right color for an electric line?
Yes. Red is the utility marking color for electric power lines and conduit, and this 302 tape is red with the electric line wording printed on it. If you are marking gas, water, or communications, you need a different color and message roll, not this one.
4) Is this buried barricade tape sticky, or does it need adhesive to install?
No adhesive at all. The 302 is a non-adhesive polyethylene film marker tape that you simply lay in the trench over the line and backfill. Nothing sticks to the conduit and nothing needs to be primed.
5) How much tape comes in a case of 3M 80611217714?
Eight rolls per case, each roll 3 inches wide by 1000 feet long, so a full case covers 8000 linear feet of trench. Metric equivalents are 76.2 mm wide and 304.8 m per roll.
6) Does this 3M underground marking tape meet RoHS for a government or utility spec?
Scotch Buried Barricade Tape 302 is RoHS 2011/65/EU compliant without exemption, and it carries a UL 94 V-2 flammability rating. Those are the two compliance points on record for the product.
7) Can this 3M tape be used as above-ground caution barricade tape around a work zone?
It is specified as a buried application tape, meant to go in the trench above a line. It has no adhesive and is a 4 mil film, so for cordoning off an open work area you want an above-ground barricade tape instead.
